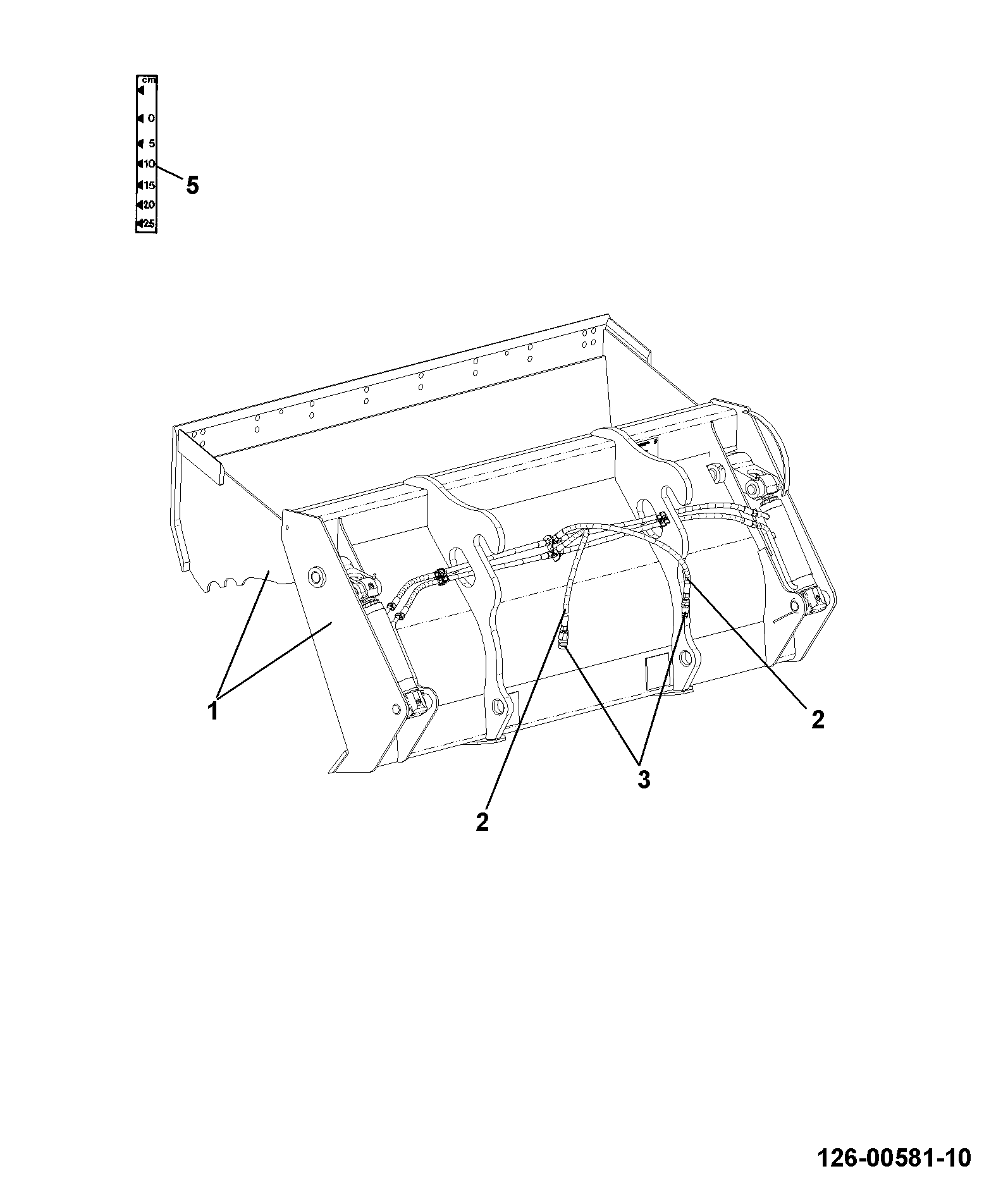

A100-303-12 SHOVEL INSTALLATION ASSEMBLIES CLAMSHOVEL 6 IN 1 QUICKHITCH, 1.3M3 X 96″ Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	BOLT-ON TOEPLATE 8' 990/69901	1	1 IN STOCK	$955.26	Quantity
	GA CLAM 1.3m3 96" Qhitch 126/01532 128/C1066	1	AVAILABLE TO ORDER	$11,988.50	Quantity
	LABEL - CLAMSHOVEL INDEX 817/03808	1	AVAILABLE TO ORDER	$0.86	Quantity
2	ABI HOSE 3/8 BSP HP 800A GUARD 332/H4266	1	AVAILABLE TO ORDER	$59.09	Quantity

Showing 1 to 4 of 4 parts
