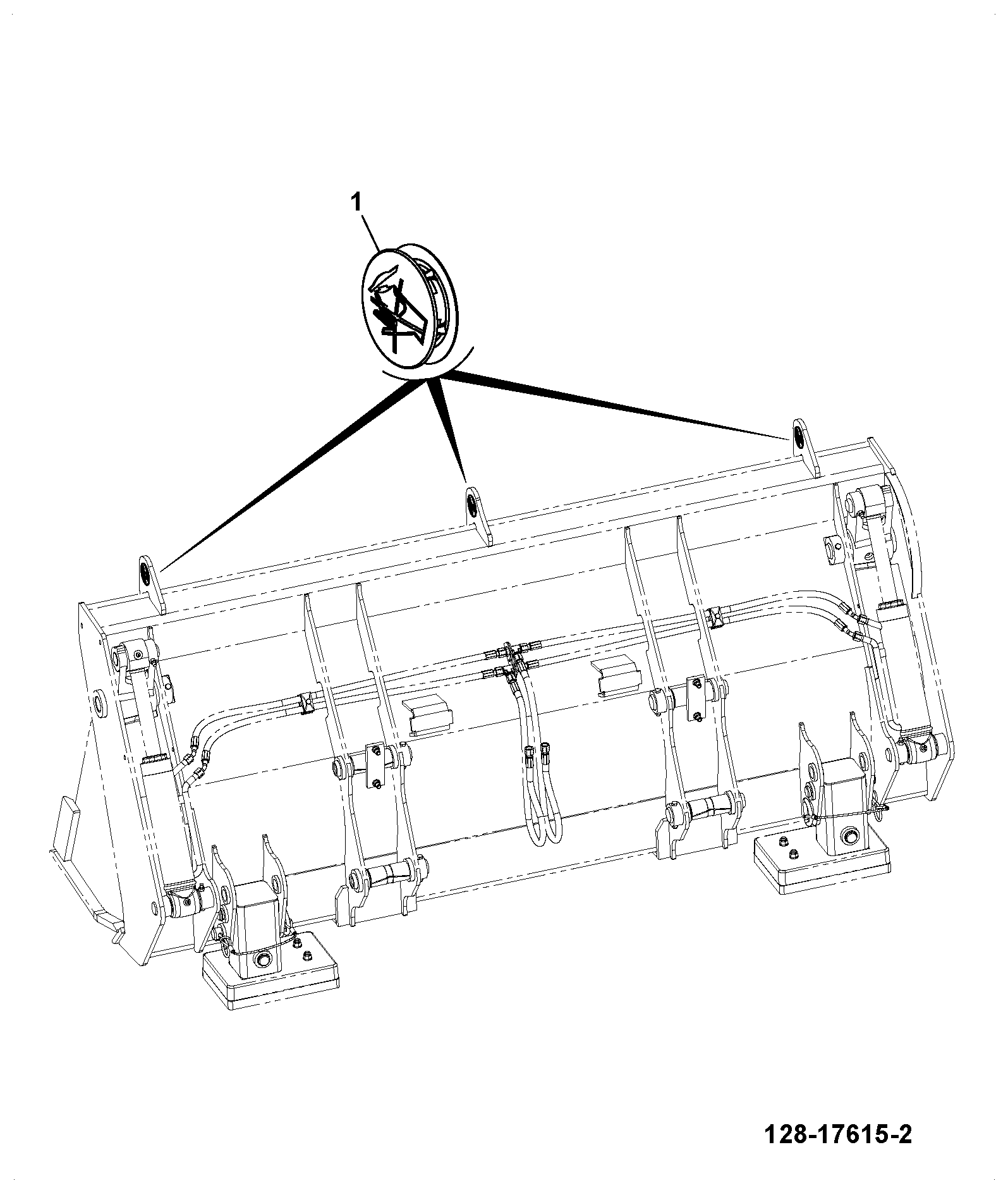

A100-15-1 SHOVEL INSTALLATION ASSEMBLIES CLAM, 1.0 M3 X 88″ Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	HOSE 3/8BSP 800mm 612/80156	1	AVAILABLE TO ORDER	$126.71	Quantity
5	LABEL - CLAMSHOVEL INDEX 817/03808	1	AVAILABLE TO ORDER	$0.86	Quantity
7	LABEL - ISO-03C 817/70144	1	AVAILABLE TO ORDER	$0.86	Quantity
8	BLANKING CAP 3/8 BSP 816/90044	1	AVAILABLE TO ORDER	$17.85	Quantity
9	HOSE SPIRAL 40/302889	1	AVAILABLE TO ORDER	$4.14	Quantity

Showing 1 to 5 of 5 parts

DIAG-A125-1-1-394764 A125-1-1 6 IN 1 SHOVEL DETAILS BLANKS NO FORKS
View Diagram
DIAG-A190-1-1-394764 A190-1-1 OTHER SHOVELS TOE PLATE BOLT, 88"
View Diagram

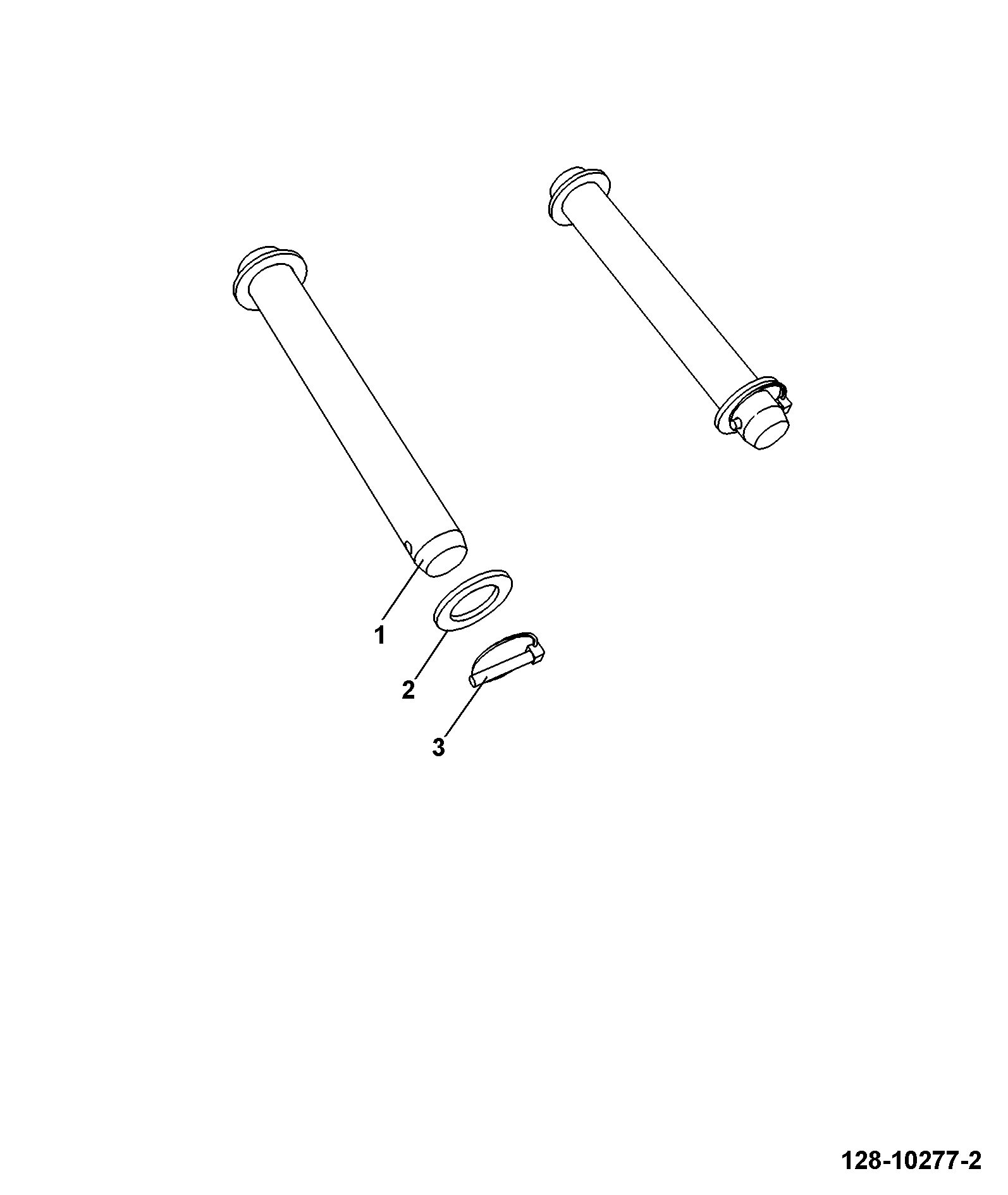

DIAG-A200-25-1-394764 A200-25-1 BUCKET INSTALLATION ASSEMBLIES PIVOT PIN LOCATION STANDARD LENGTH
View Diagram
