A100-1-1 SHOVEL INSTALLATION ASSEMBLIES CLAMSHOVEL 6 IN 1 1.0M3 X 88″ Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	HOSE 3/8BSP 800mm 612/80156	1	AVAILABLE TO ORDER	$126.71	Quantity
5	LABEL - CLAMSHOVEL INDEX 817/03808	1	AVAILABLE TO ORDER	$0.86	Quantity
7	LABEL - ISO-03C 817/70144	1	AVAILABLE TO ORDER	$0.86	Quantity
8	BLANKING CAP 3/8 BSP 816/90044	1	AVAILABLE TO ORDER	$17.85	Quantity
9	HOSE SPIRAL 40/302889	1	AVAILABLE TO ORDER	$4.14	Quantity

Showing 1 to 5 of 5 parts

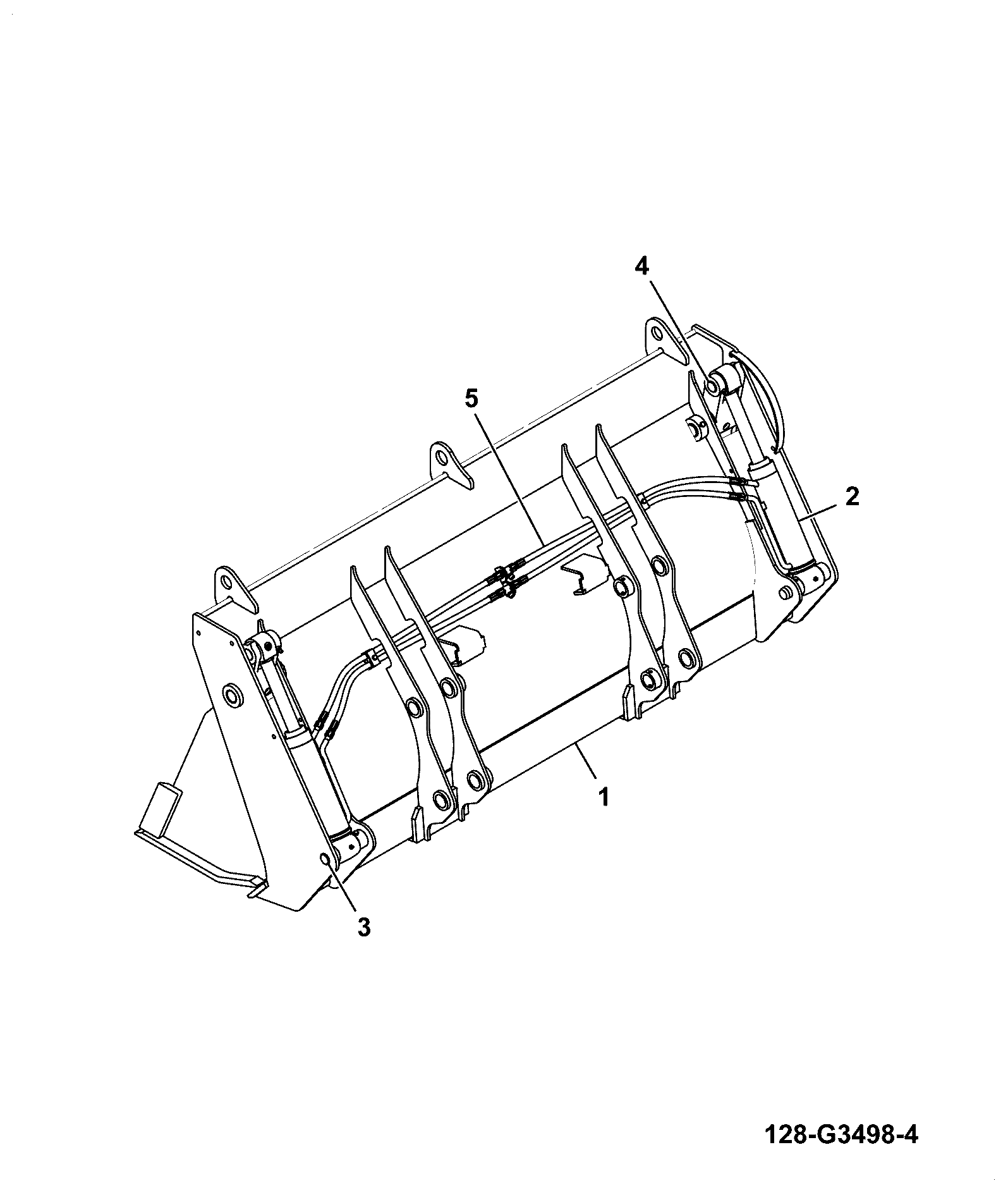

DIAG-A100-30-1-394793 A100-30-1 SHOVEL INSTALLATION ASSEMBLIES CLAM, 1.0 M3 X 88''
View Diagram

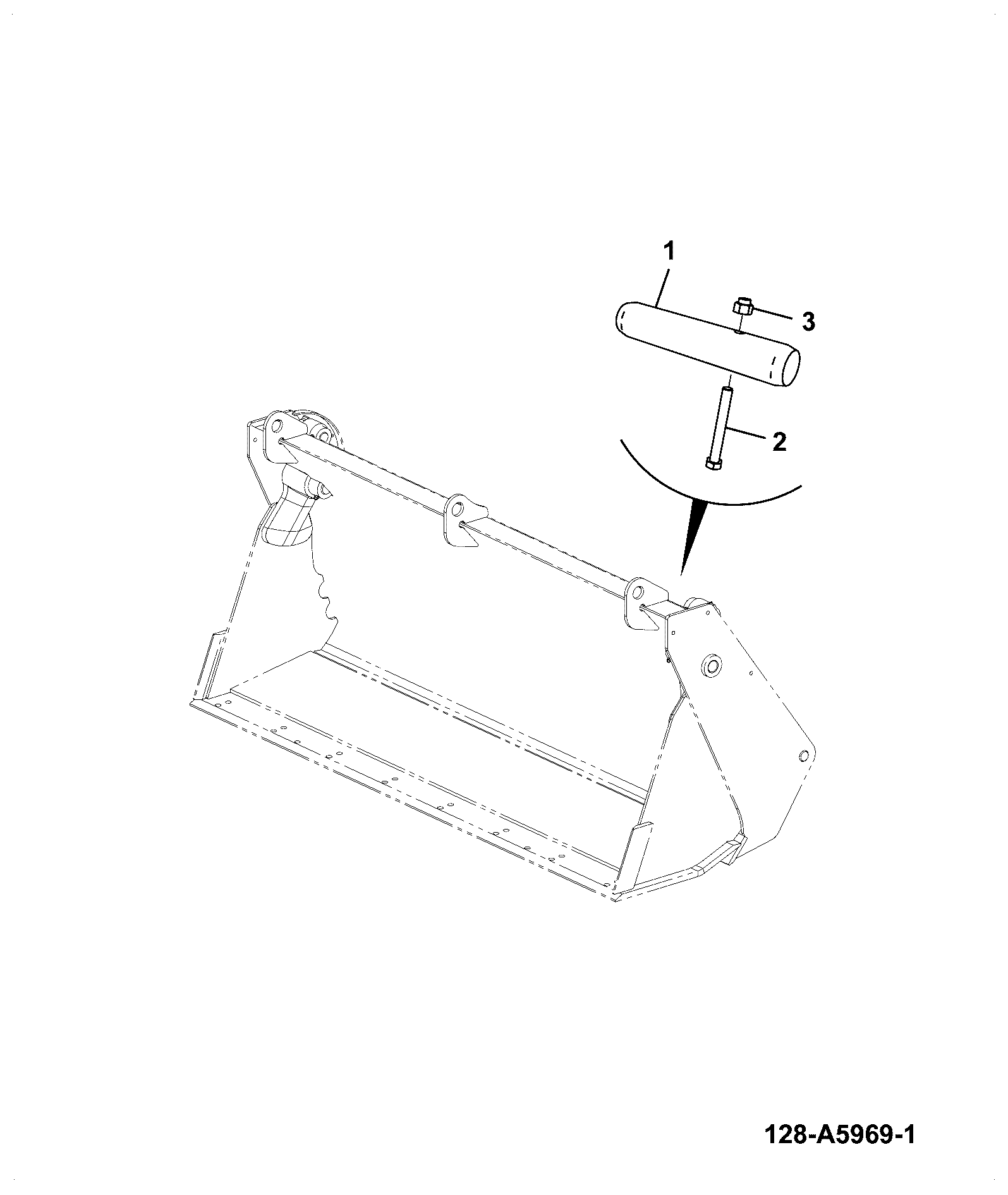

DIAG-A125-301-1-394793 A125-301-1 6 IN 1 SHOVEL DETAILS PIVOT PIVOT CLAM RAM DUMP END
View Diagram

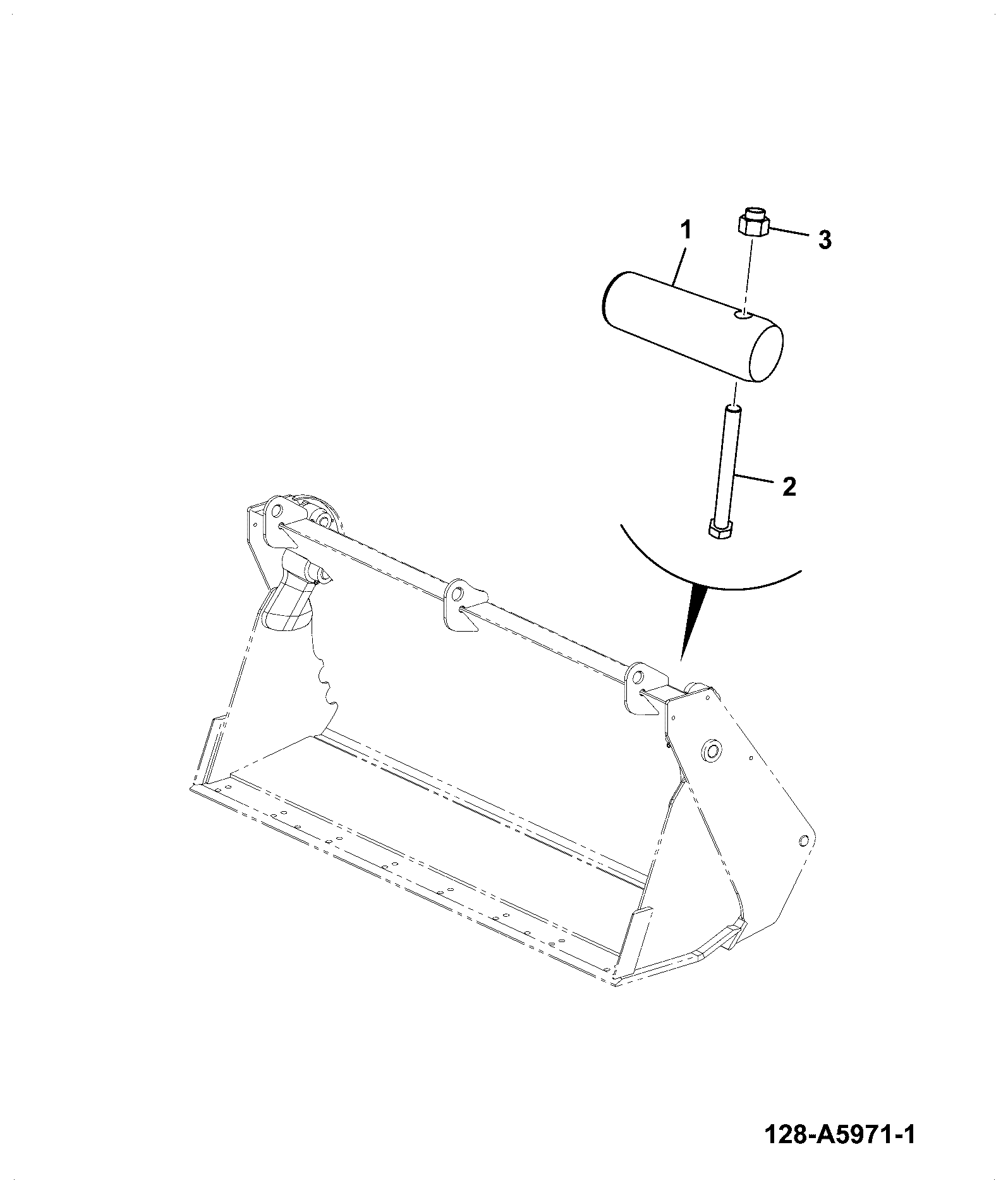

DIAG-A125-305-1-394793 A125-305-1 6 IN 1 SHOVEL DETAILS PIVOT CLAM RAM EYE END
View Diagram
