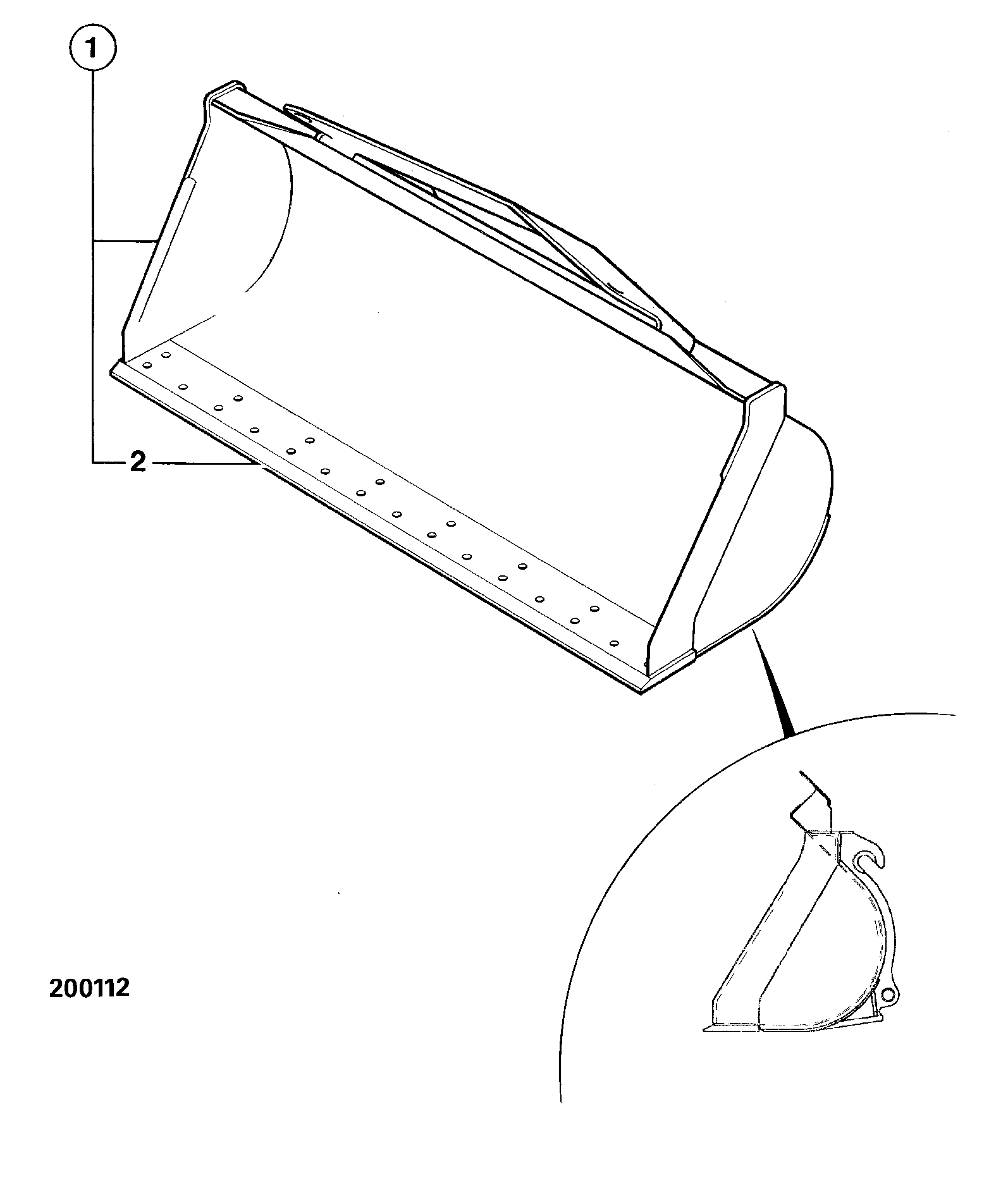

A1-3-1 SHOVEL 1.4CU.M. QUICKHITCH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA.1.4CU.M./1.8CU.YD. 510/89300	1	AVAILABLE TO ORDER	$4,429.91	Quantity
2	TOEPLATE 510/90309	1	AVAILABLE TO ORDER	$750.95	Quantity

Showing 1 to 2 of 2 parts

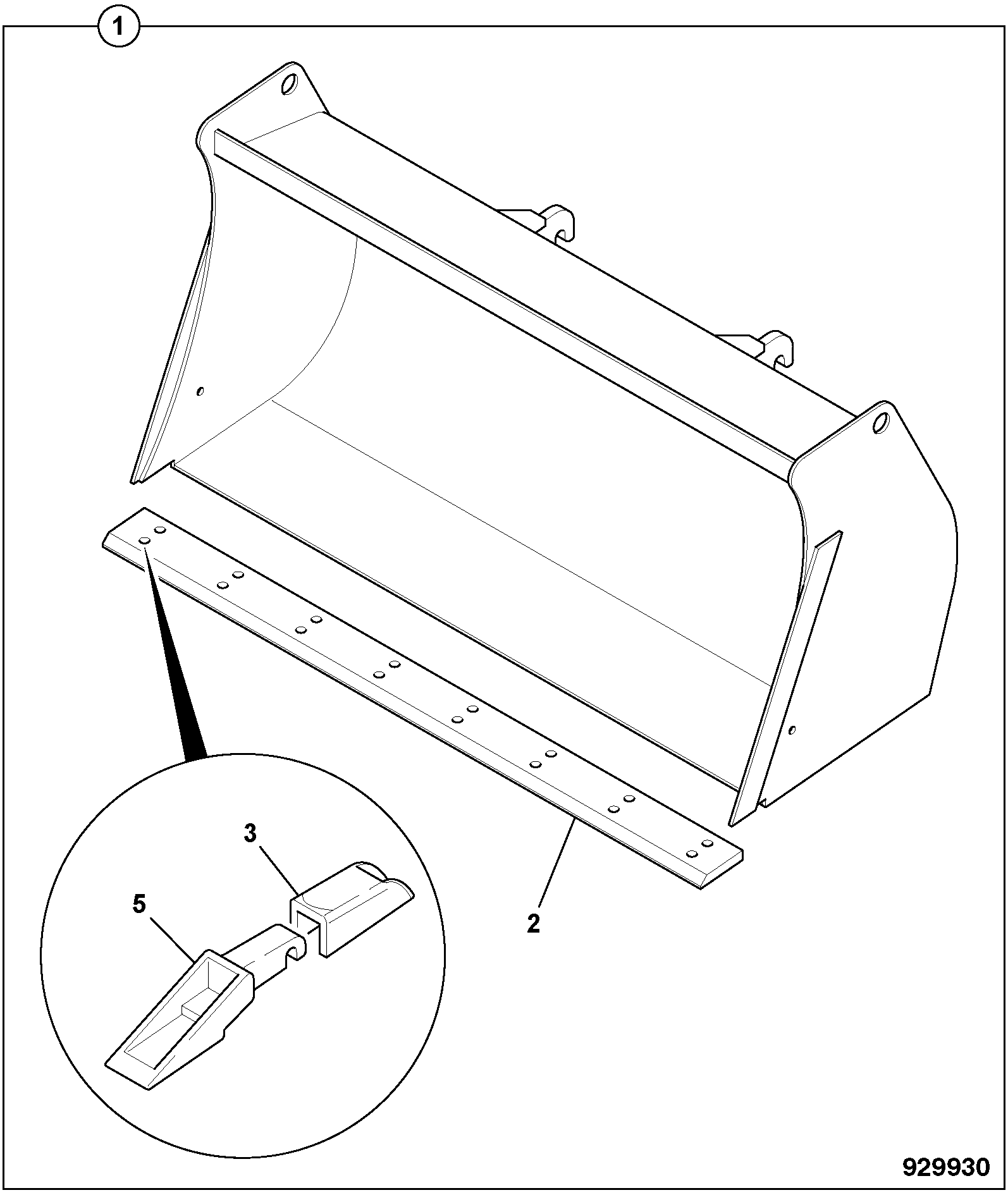

DIAG-A1-3-1-404587 A1-3-1 SHOVEL 1.6 CU.M. , WITH WELD ON V23 ADAPTERS, SALES SPECIAL
View Diagram
DIAG-A1-4-1-404587 A1-4-1 SHOVEL 1.6CU.M. QUICKHITCH
View Diagram

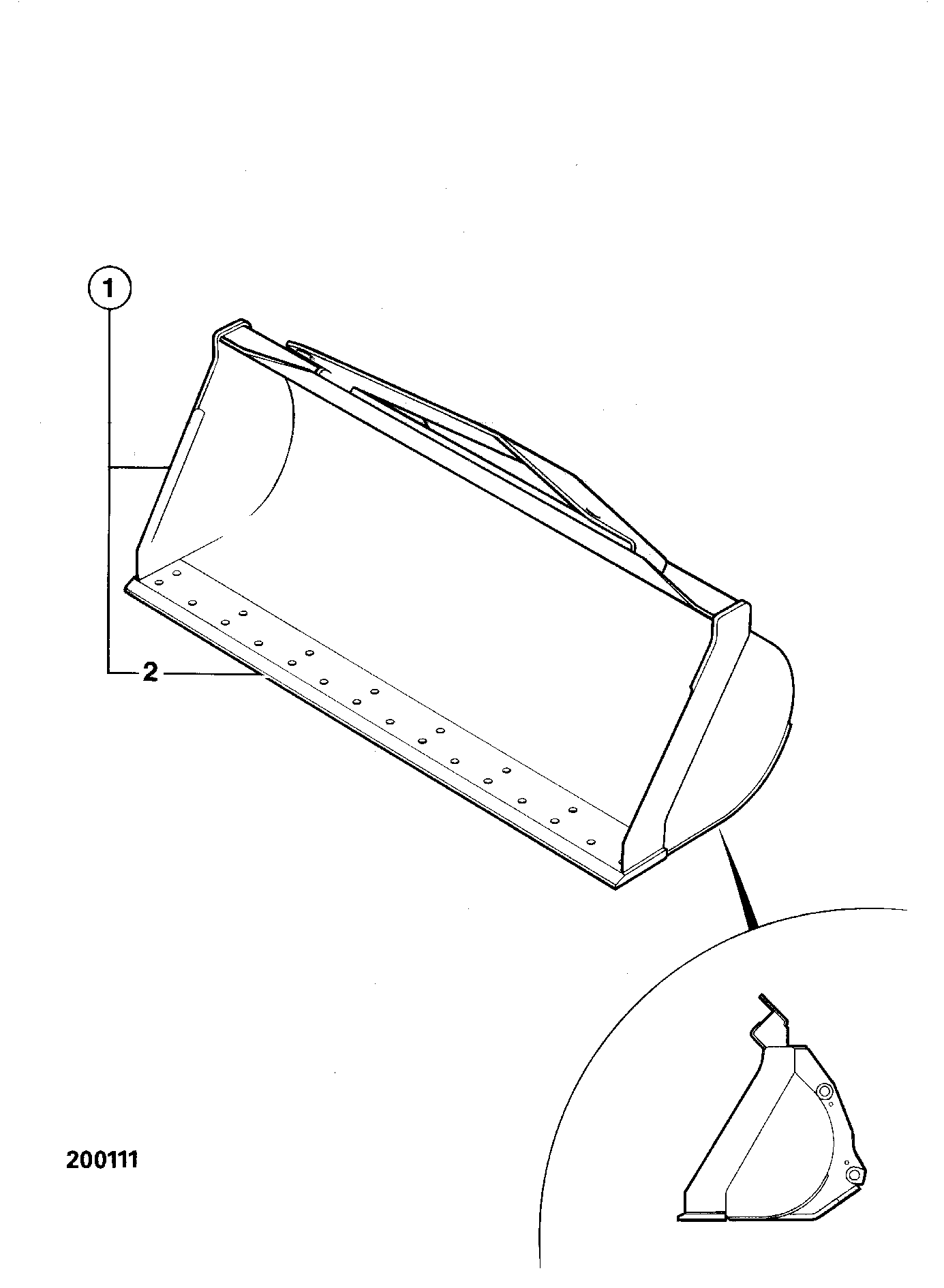

DIAG-A1-2-1-404587-15607654 A1-2-1 SHOVEL 1.6CU.M.
View Diagram
