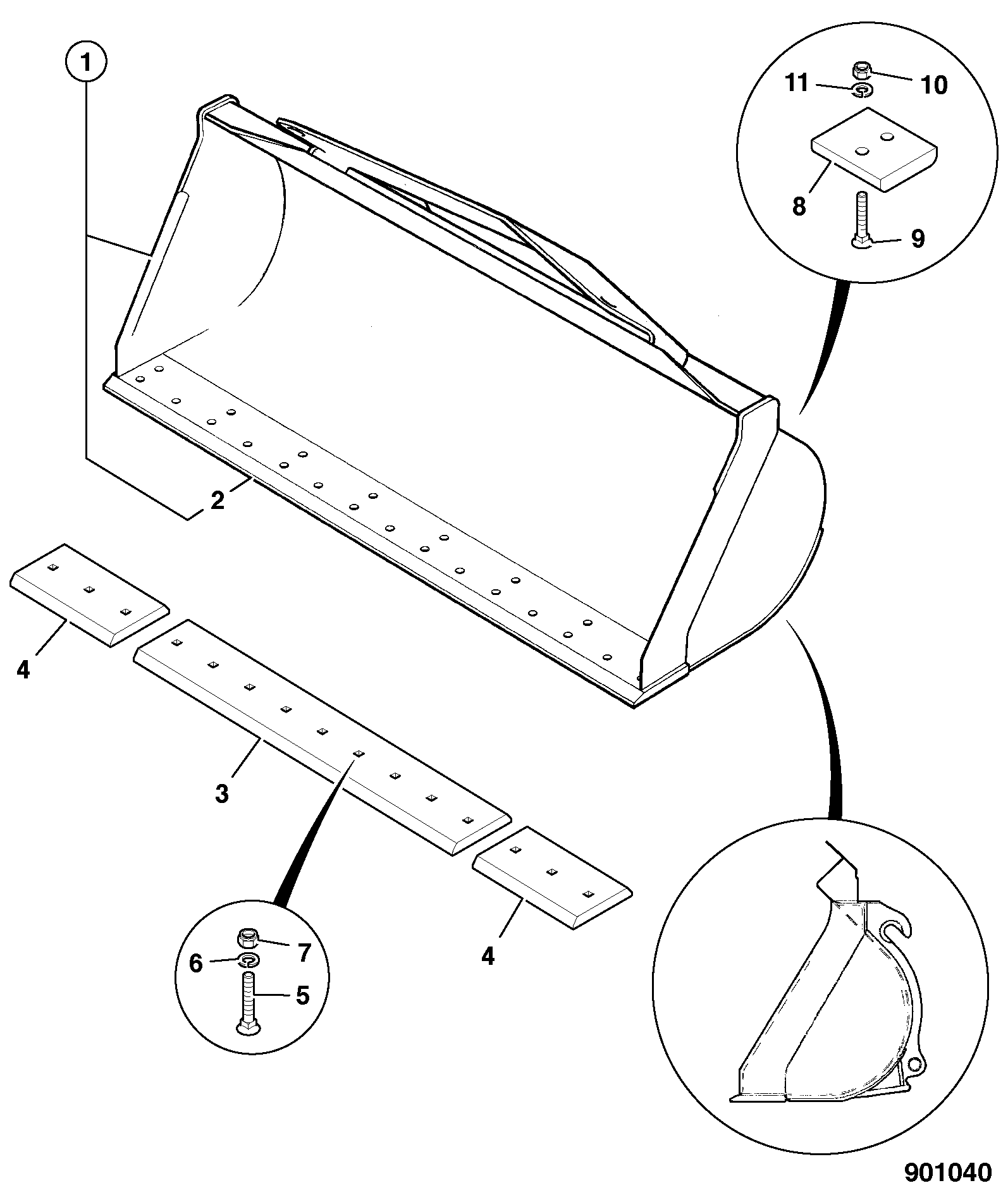

A1-21-1 SHOVEL COAL, 5.5 CU.M. Z BAR, SALES SPECIAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
9	PLOUGH BOLT 3/4 UNC -2.1/2" Long 511/42215	1	AVAILABLE TO ORDER	$16.43	Quantity
10	NUT 3/4 UNC 1340/2201	1	AVAILABLE TO ORDER	$1.97	Quantity
11	WASHER 3/4 1410/0008	1	AVAILABLE TO ORDER	$2.41	Quantity

Showing 1 to 3 of 3 parts
