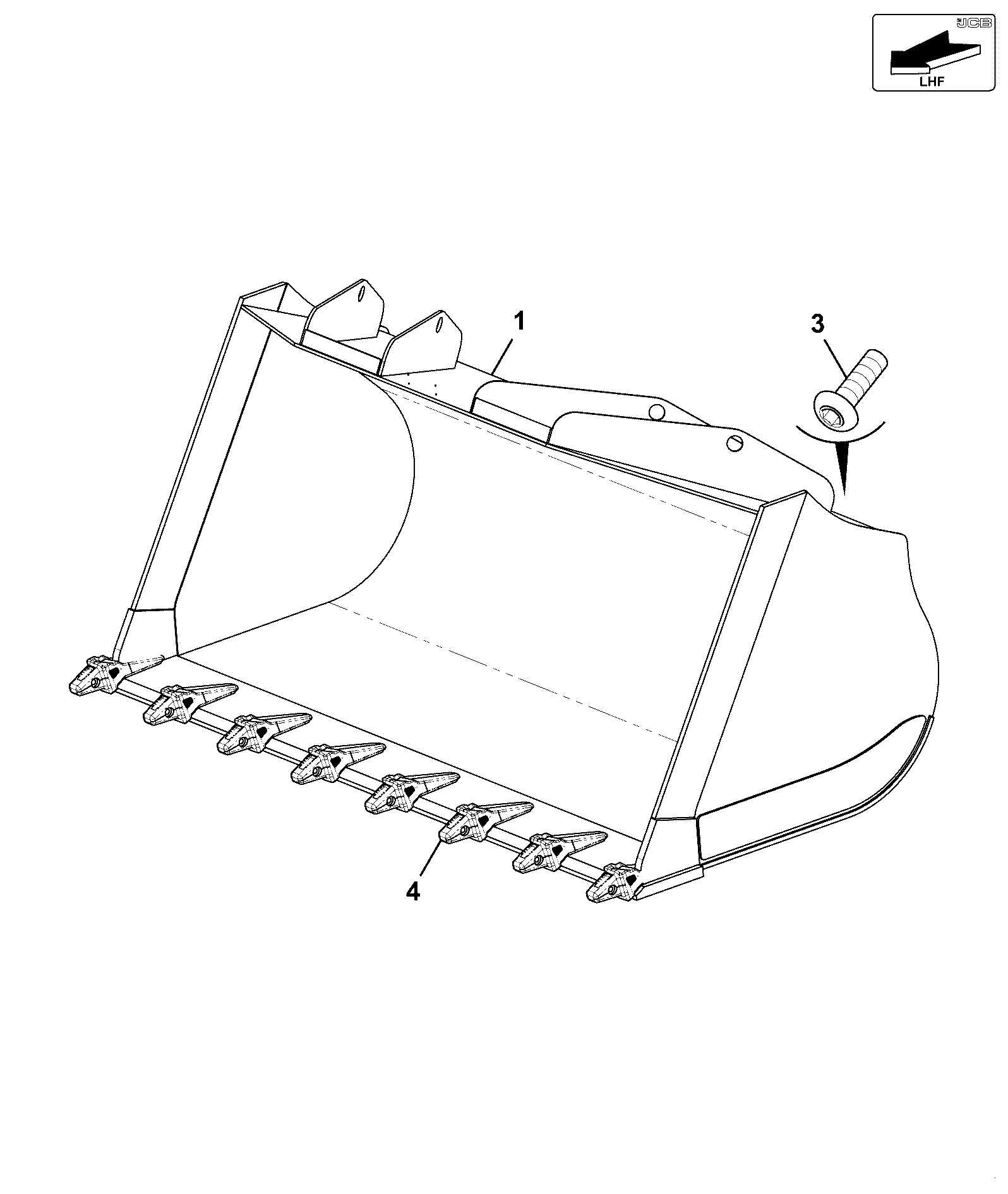

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE 332/V0244 | 1 | $157.33 | ||||
| SLEEVING - PVC 63.5mmx247 647/02611 | 1 | $62.01 | ||||
| 3 | Toeplate 983/10897 | 1 | $3,055.83 | |||
| 4 | TOEPLATE, BOLT-ON 983/10507 | 1 | $2,362.42 | |||
| 5 | TOEPLATE, BOLT-ON 983/10508 | 1 | $1,141.93 | |||
| 11 | Plate heel 332/E7650 | 1 | $476.13 | |||
| 12 | PLOUGH BOLT 3/4 UNC -2.1/2" Long 511/42215 | 1 | $16.43 | |||
| 13 | NUT 3/4 UNC 1340/2201 | 1 | $1.97 | |||
| 14 | (W) (P) WASHER 3/4 SMALL PLAIN 1410/0008Z | 1 | $2.00 | |||
| 15 | Ram assembly 903/21243 | 1 | $3,338.64 | |||
| 17 | Pin pivot 983/10537 | 1 | $482.10 | |||
| 18 | Bush pivot 983/10539 | 1 | $276.06 | |||
| 19 | Spacer 983/10870 | 1 | $318.34 | |||
| 21 | Washer 983/11176 | 1 | $0.78 | |||
| 25 | Valve relief 903/20752 | 1 | $1,707.34 | |||
| 27 | Nut 983/11177 | 1 | $1.46 | |||
| 30 | Adapter 903/20974 | 1 | $33.25 | |||
| 31 | Washer 903/20976 | 1 | $11.72 | |||
| 32 | Washer 3/8"BSP Dow 331/40152 | 1 | $6.11 | |||
| 39 | Nipple Grease M10 331/40069 | 1 | $16.28 | |||
| 40 | Nipple grease 332/E7667 903/21249 | 1 | $11.45 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-A1-22-1-404839 A1-22-1 SHOVEL 4.0 CU.M. SALES SPECIAL
View Diagram -
DIAG-A1-19-1-404839 A1-19-1 SHOVEL 2.5CU.M.REFUSE CLAMP SALES SPECIAL
View Diagram -
DIAG-A1-28-1-404839 A1-28-1 SHOVEL 3.0 CU.M. Z BAR WITH WELD ON ADAPTERS, SAUDI ARABIA
View Diagram
