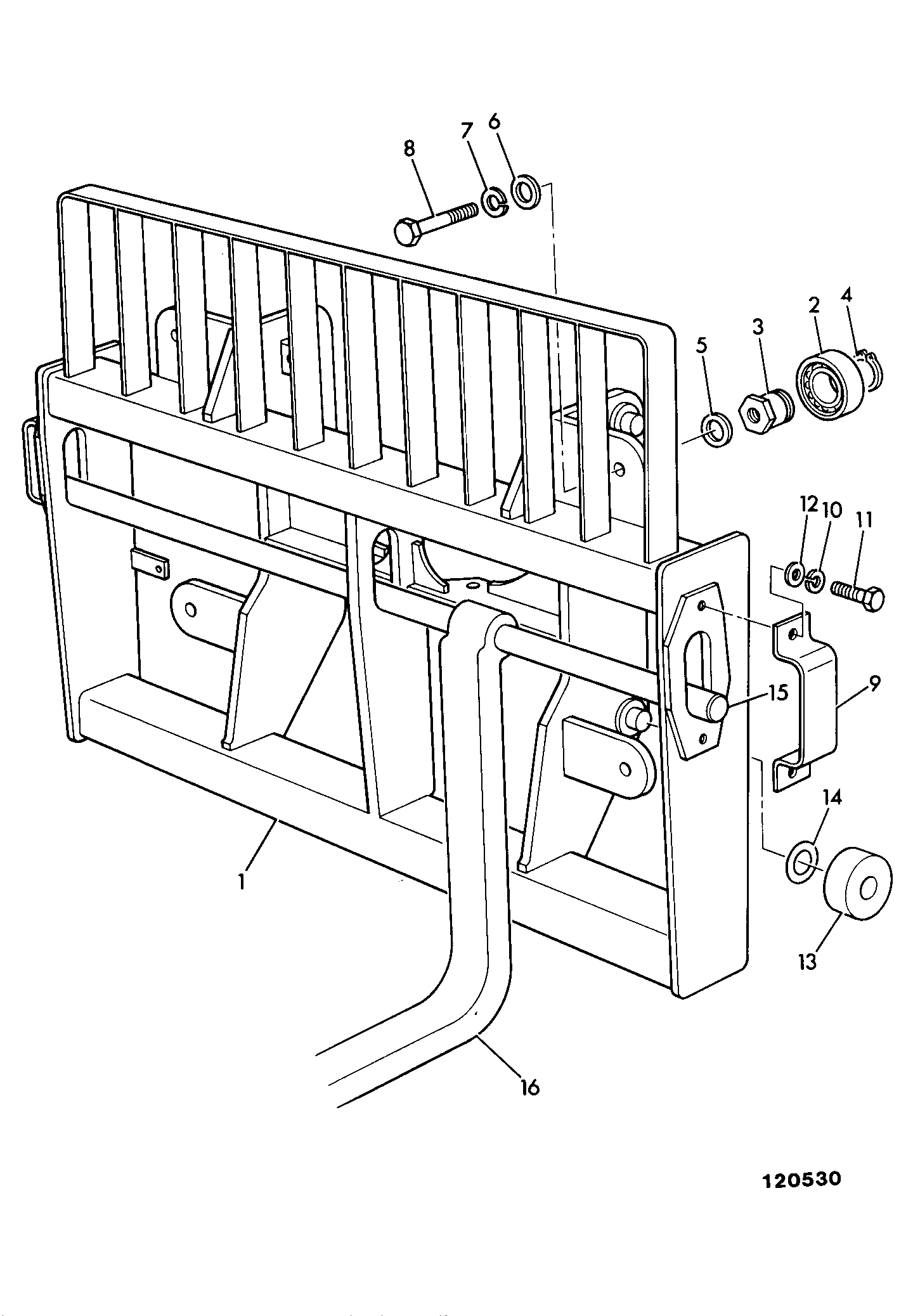

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| KIT, FORK RETENTION 547/03401 993/45300 | 1 | $130.88 | ||||
| WA IND.CARRIGE.TRIPLEX 548/16700 | 1 | $4,847.54 | ||||
| 2 | BEARING ROLLER 907/10300 | 1 | $379.03 | |||
| 3 | PIN PIVOT 548/14301 | 1 | $108.44 | |||
| 4 | CIRCLIP 35MM EXTERNAL 2203/0048 | 1 | $3.12 | |||
| 5 | WASHER 3/4 1410/0008 | 1 | $2.41 | |||
| 6 | WASHER 823/00228 | 1 | $87.64 | |||
| 7 | WASHER SPRING 3/4 1416/0011 | 1 | $2.46 | |||
| 8 | SCREW 3/4 X 2 UNF 1305/0714 | 1 | $13.01 | |||
| 10 | ROLLER SHIM 819/00051 | 1 | $0.98 | |||
| 11 | BAR-LOCATING 548/11500 | 1 | $1,041.66 | |||
| 13 | PIN SPLIT 2103/1111 | 1 | $3.47 | |||
| 14 | ROLLER PIVOT 548/10501 | 1 | $544.70 | |||
| 15 | fork arm 1200mm RTFL hook 548/40800 | 1 | $1,043.77 | |||
| 15 | FORKS - 1067 MM LONG 548/40900 | 1 | $998.75 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-A1-1-2-399309 A1-1-2 CARRIAGE FLOATING FORK TRIPLEX, 50" WIDE
View Diagram -

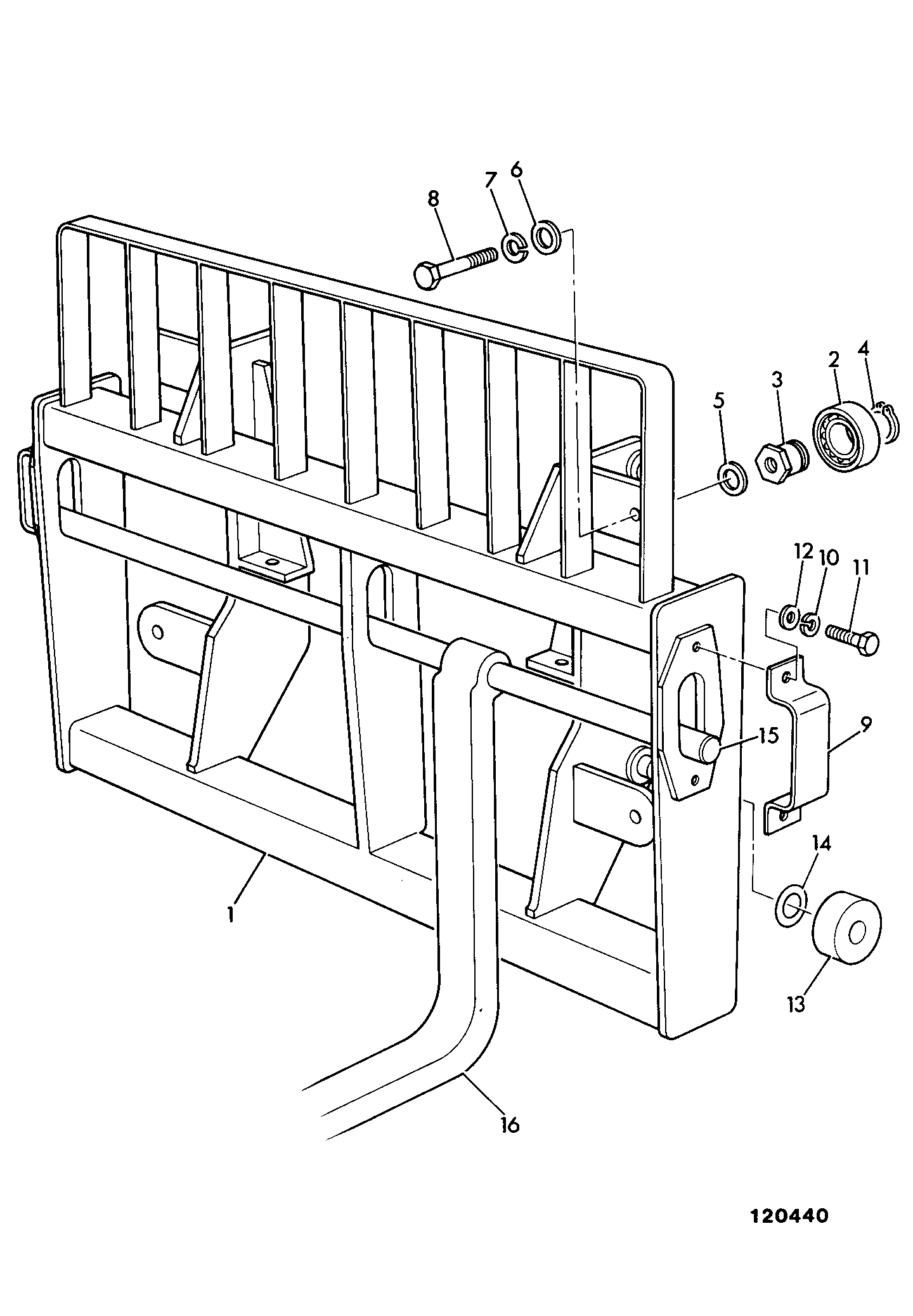

DIAG-A1-2-1-399309-12234004 A1-2-1 CARRIAGE FLOATING FORK DUPLEX, 50" WIDE
View Diagram -
DIAG-A1-2-2-399309 A1-2-2 CARRIAGE, BAR TYPE DUPLEX HEAVY DUTY
View Diagram
