Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY LEVER TD170-54810 | 1 | $69.03 | |||
| 020 | Bushing 08511-01010 | 1 | $3.77 | |||
| 030 | BRG BALL RADIAL1 08121-06000 | 1 | $10.17 | |||
| 040 | Plain Washer 04011-00100 04011-50100 | 1 | $0.29 | |||
| 050 | CIR-CLIP 04612-50100 04612-00100 | 1 | $0.54 | |||
| 060 | GRIP TD170-54820 | 1 | $13.20 | |||
| 070 | ASSY CABLE TD170-54794 | 1 | $22.55 | |||
| 080 | RUBBER, WIRE T1065-75290 | 1 | $2.82 | |||
| 090 | CLAMP, CORD T1060-44740 | 1 | $4.36 | |||
| 100 | BAND, CORD 65601-42390 53581-64150 | 1 | $3.03 | |||
| 110 | PIN, SPLIT 05511-50612 05511-51612 | 1 | $0.45 | |||
| 120 | Snap Pin 05525-50600 05525-70600 | 1 | $1.48 | |||
| 130 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.61 | |||
| 130 | Plain Washer 04011-50060 04012-50060 | 1 | $0.36 | |||
| 140 | SPRING 51641-87290 | 1 | $14.37 | |||
| 150 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.14 | |||
| 160 | Pin for Tractor & Mower Assemblies 05525-50080 05525-50800 | 1 | $1.31 | |||
| 170 | SPRING 32430-24190 | 1 | $10.76 | |||
| 180 | LEVER TD170-54860 | 1 | $87.70 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

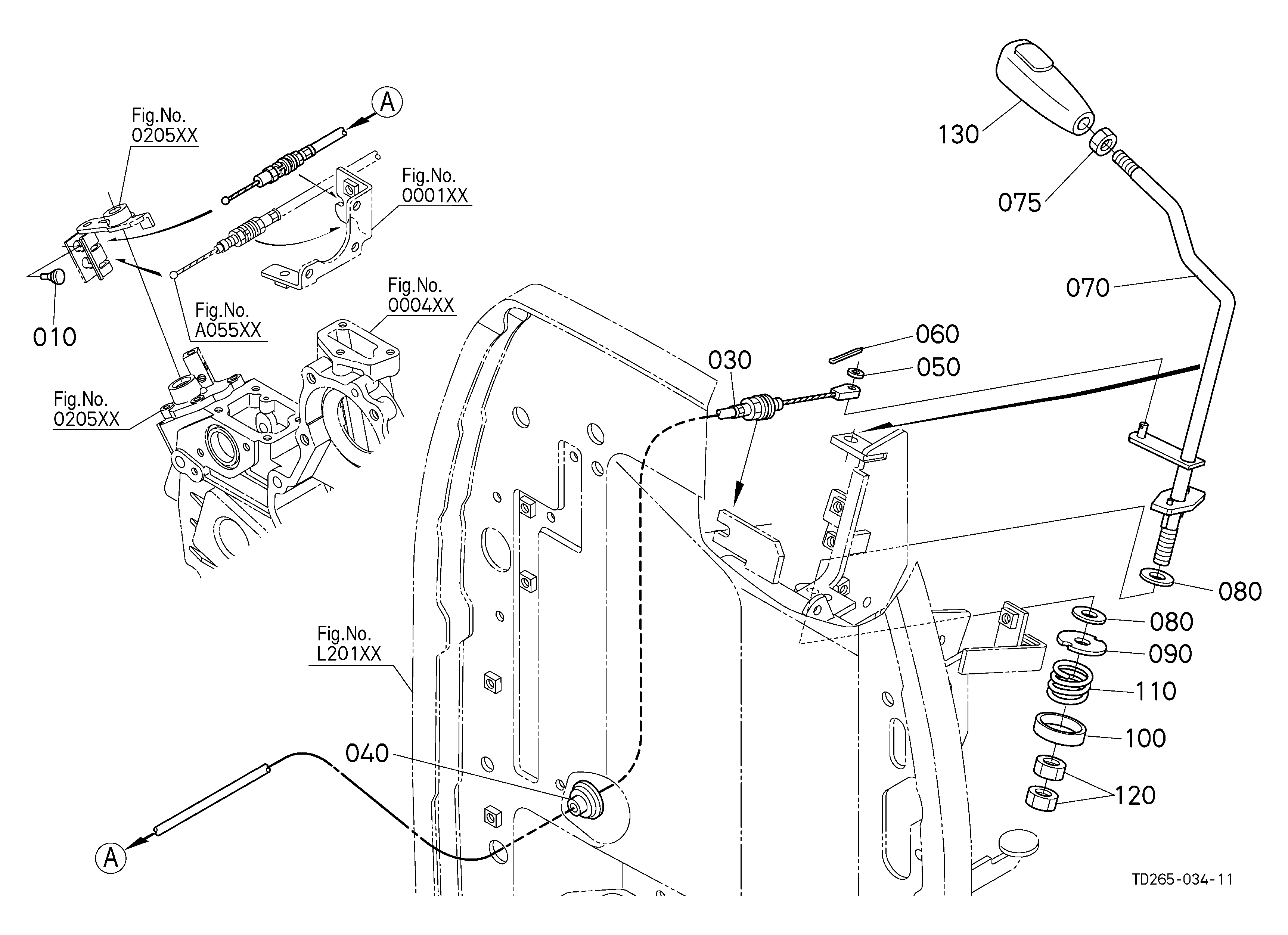

DIAG-A01000-87237 A01000 ACCELERATOR LEVER
View Diagram -
DIAG-A05500-87237 A05500 AUTO THROTTLE CAM
View Diagram -
DIAG-R10501-87237 R10501 LABEL 1 (FRONT)
View Diagram
