Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | RADIATOR ASSY 17189-72060 Discontinued | 1 | $667.46 | |||
| 020 | SHROUD FAN 15521-72330 Discontinued | 1 | $183.08 | |||
| 030 | Radiator Cap 15101-72030 15272-72020 | 1 | $27.99 | |||
| 040 | PIPE, WATER 15521-72850 | 1 | $25.40 | |||
| 050 | PIPE, WATER 15521-72940 | 1 | $29.62 | |||
| 060 | Cooling Water Pipe & Front Drive Shaft O-Ring Seal 15108-72873 15108-72870 | 1 | $4.60 | |||
| 070 | CUSHION 15111-72180 | 1 | $12.33 | |||
| 080 | CUSHION 15111-72190 | 1 | $12.33 | |||
| 090 | BOLT, RADIATOR S 15108-72382 15108-72380 | 1 | $7.77 | |||
| 100 | Washer 15111-72202 15111-72200 | 1 | $3.94 | |||
| 110 | Snap Pin Retaining Pin 05515-51000 | 1 | $1.51 | |||
| 120 | DRAIN PIPE 15193-73180 Discontinued | 1 | $10.69 | |||
| 130 | BAND, PIPE 15109-73363 15109-73360 | 1 | $4.60 | |||
| 140 | COCK 15221-73100 | 1 | $36.88 | |||
| 150 | WATER PIPE 3 15521-73350 | 1 | $11.97 | |||
| 160 | CLAMP, PIPE 15521-73140 Discontinued | 1 | $7.26 | |||
| 180 | BASE, RADIATOR C 87681-31802 87781-01190 Discontinued | 1 | $10.77 | |||
| 200 | PIPE, DRAIN 87681-61592 87782-00330 Discontinued | 1 | $11.64 | |||
| 210 | CLIP, PIPE 87681-61632 87782-00340 Discontinued | 1 | $12.10 | |||
| 220 | RESERVE TANK ASS 17189-72402 | 1 | $153.74 | |||
| 230 | CAP 15272-72420 | 1 | $6.65 | |||
| 240 | GASKET NA 15272-72430 15531-72432 | 1 | $5.49 | |||
| 250 | PIPE, WATER OVER 17325-72440 | 1 | $22.00 | |||
| 270 | CLIP, PIPE 15501-72470 | 1 | $4.60 | |||
| 280 | HOSE 17914-72710 | 1 | $14.65 | |||
| 290 | RESERVE TANK STA 15521-72462 15527-72460 | 1 | $28.51 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

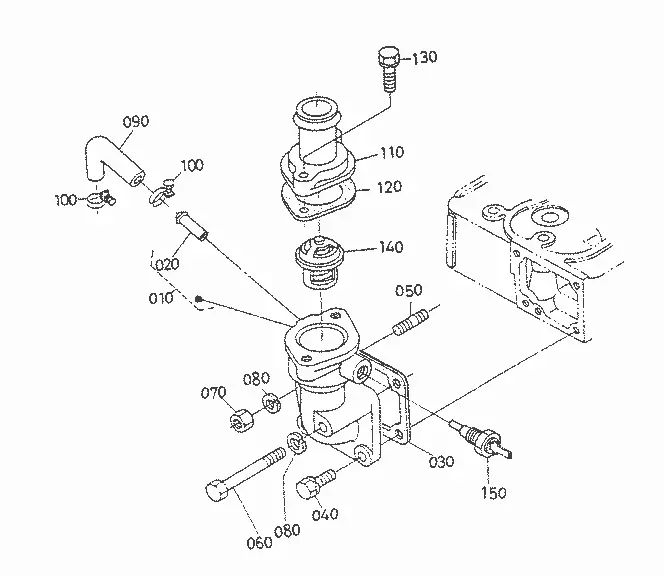

DIAG-A02900-85032 A02900 WATER FLANGE
View Diagram -

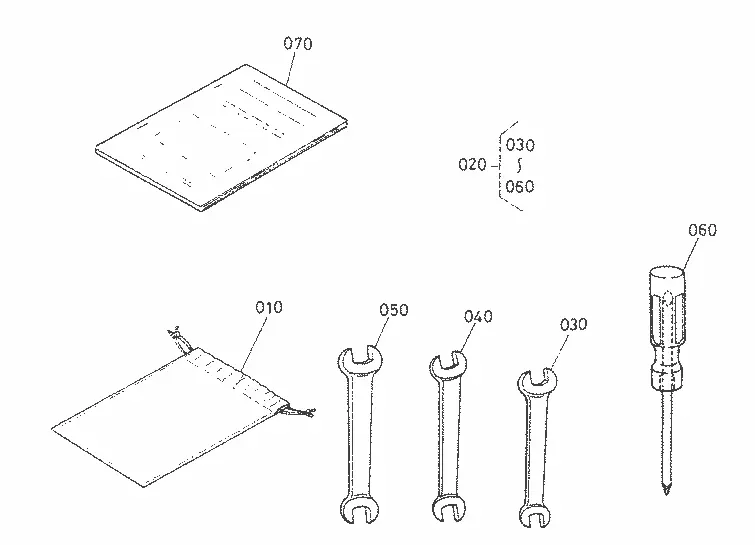

DIAG-A03100-85032 A03100 ACCESSORIES
View Diagram -

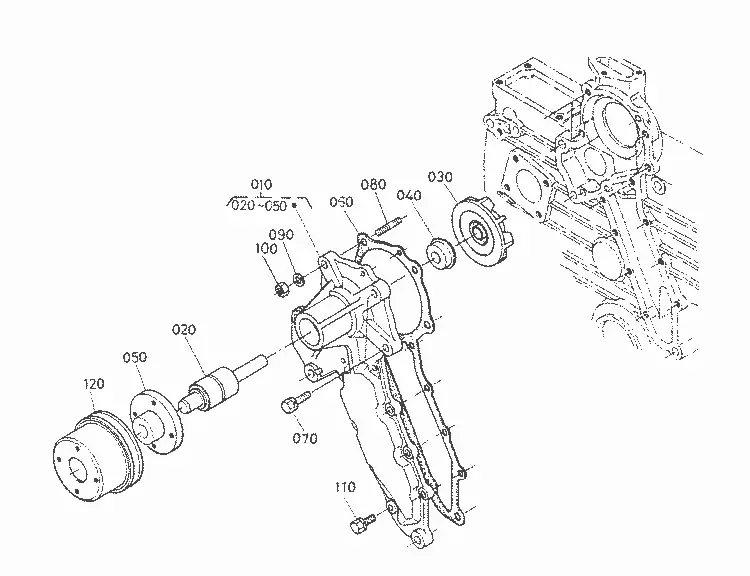

DIAG-A02800-85032 A02800 WATER PUMP
View Diagram
