Kubota GV3120-60-B A02000 FUEL TANK Parts Diagram
Exploded-view parts diagram "A02000 FUEL TANK" for the Kubota GV3120-60-B. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FUEL TANK ASSY 15193-41010 15193-41012 Discontinued | 1 | $475.00 | |||
| 020 | CAP, FUEL 14261-41260 11151-41260 | 1 | $48.31 | |||
| 030 | GASKET 14681-41340 | 1 | $9.93 | |||
| 040 | Fuel Tank Cap G3810-41350 11151-41350 | 1 | $17.17 | |||
| 060 | COCK, DRAIN 15000-34390 Discontinued | 1 | $29.63 | |||
| 070 | FUEL COCK 15193-41380 | 1 | $33.20 | |||
| 080 | CUSHION 37300-35160 | 1 | $10.80 | |||
| 090 | CUSHION 38430-35160 Discontinued | 1 | $10.92 | |||
| 100 | CUSHION 37300-35120 | 1 | $3.59 | |||
| 110 | SPACER 37300-35140 | 1 | $5.76 | |||
| 120 | PIPE, DRAIN 87681-61612 87782-00320 Discontinued | 1 | $14.72 | |||
| 130 | CLIP, PIPE 87681-61622 87783-00320 Discontinued | 1 | $7.06 | |||
Showing 1 to 12 of 12 parts

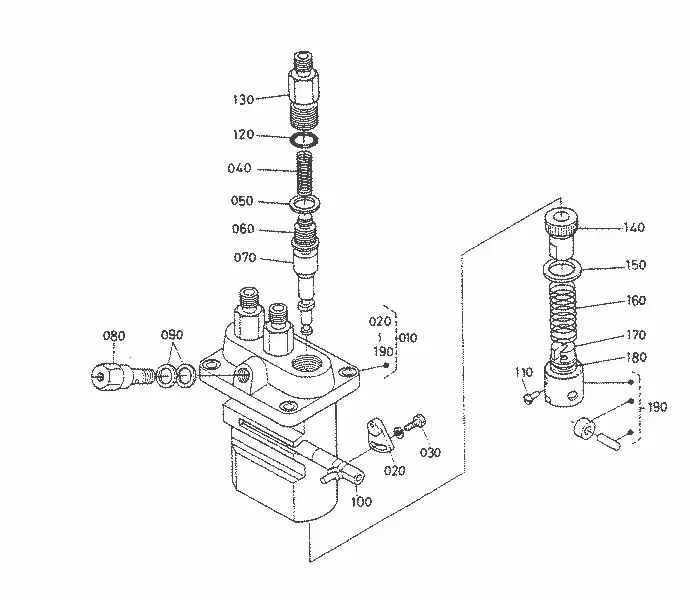

Related Assemblies
-

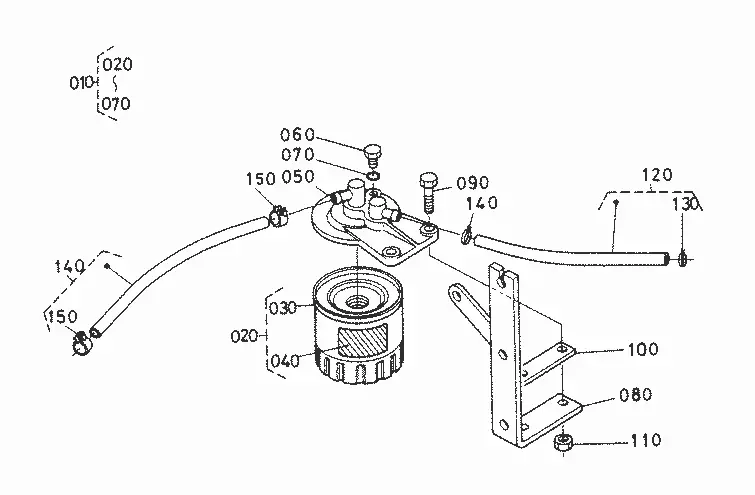

DIAG-A01900-85032 A01900 FUEL FILTER
