| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PLUG T1060-16690 | 1 | $2.72 | |||
| 020 | ASSY PEDAL T1060-47470 | 1 | $18.41 | |||
| 030 | SPACER T1065-74830 | 1 | $7.06 | |||
| 040 | Flange Bolt 01754-50840 | 1 | $5.68 | |||
| 050 | ROD, ACCEL. PEDA T1065-42920 T1065-42923 | 1 | $12.35 | |||
| 060 | Snap Pin 05525-50600 05525-70600 | 1 | $1.48 | |||
| 070 | PIN 05511-11212 05511-51212 | 1 | $0.14 | |||
| 080 | SPRING T1060-42930 | 1 | $9.24 | |||
| 090 | BOLT T1065-74822 | 1 | $4.28 | |||
| 100 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 110 | CLAMP, CORD T1060-44760 | 1 | $3.59 | |||
| 120 | LEVER T1065-94750 | 1 | $43.92 | |||
| 130 | CABLE,ASSY(ACCEL.) T4360-44750 | 1 | $38.92 | |||
| 140 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.60 | |||
| 150 | PIN, SPLIT 05511-50612 05511-51612 | 1 | $0.45 | |||
| 160 | BOLT,FLANGE 01754-60612 01754-70612 | 1 | $3.44 | |||
| 170 | BAND, CORD 65601-42390 53581-64150 | 1 | $4.85 | |||
| 180 | BOOT T1065-75283 | 1 | $17.93 | |||
| 180 | BOOTS(ACCLEL,ROD) T6368-75280 | 1 | $21.75 | |||
| 190 | RUBBER, WIRE T1065-75290 | 1 | $2.82 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

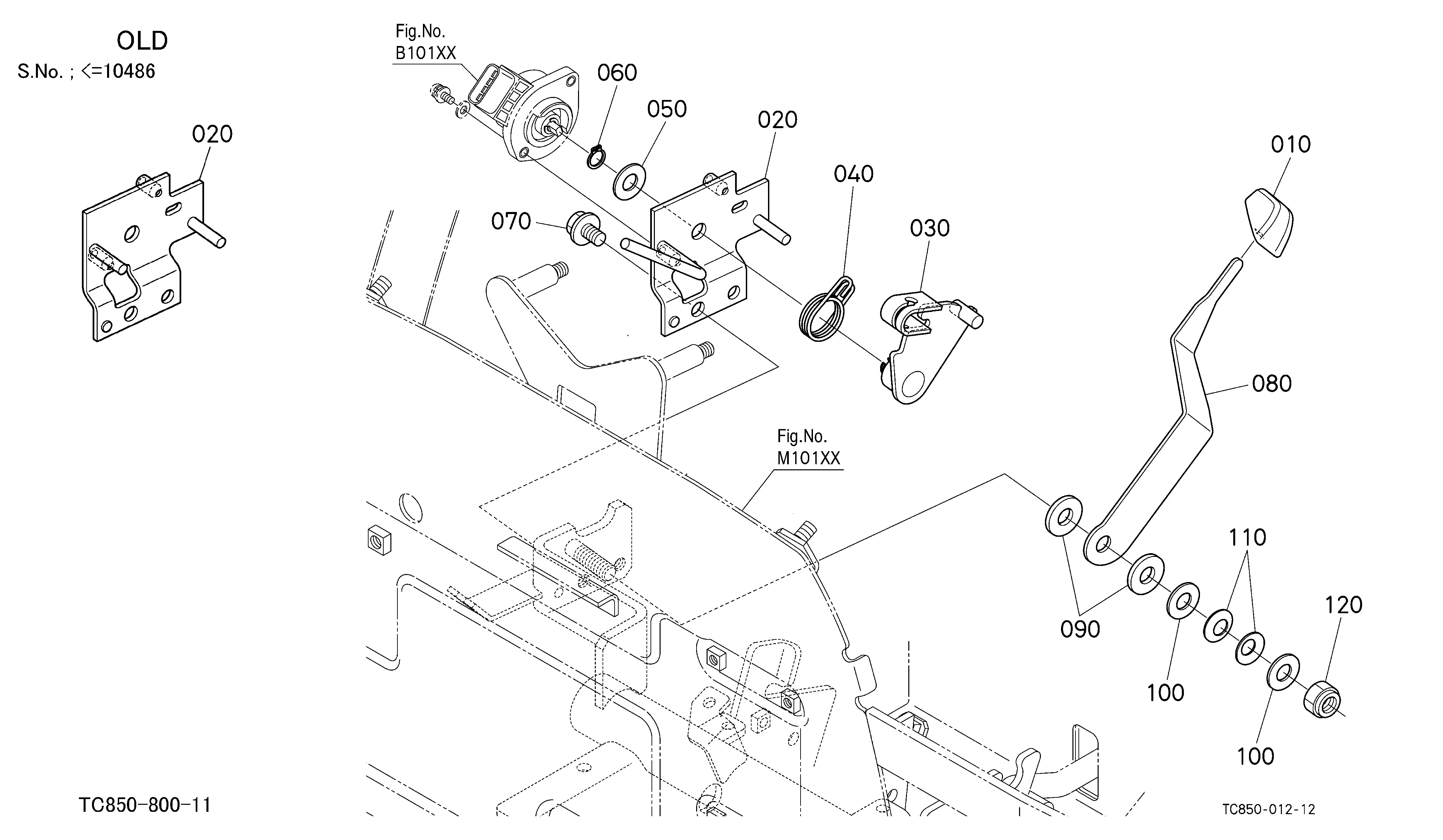

DIAG-A01000-125549 A01000 ACCELERATOR LEVER
View Diagram -
DIAG-R10501-125549 R10501 LABEL (BONNET) [OLD]
View Diagram -

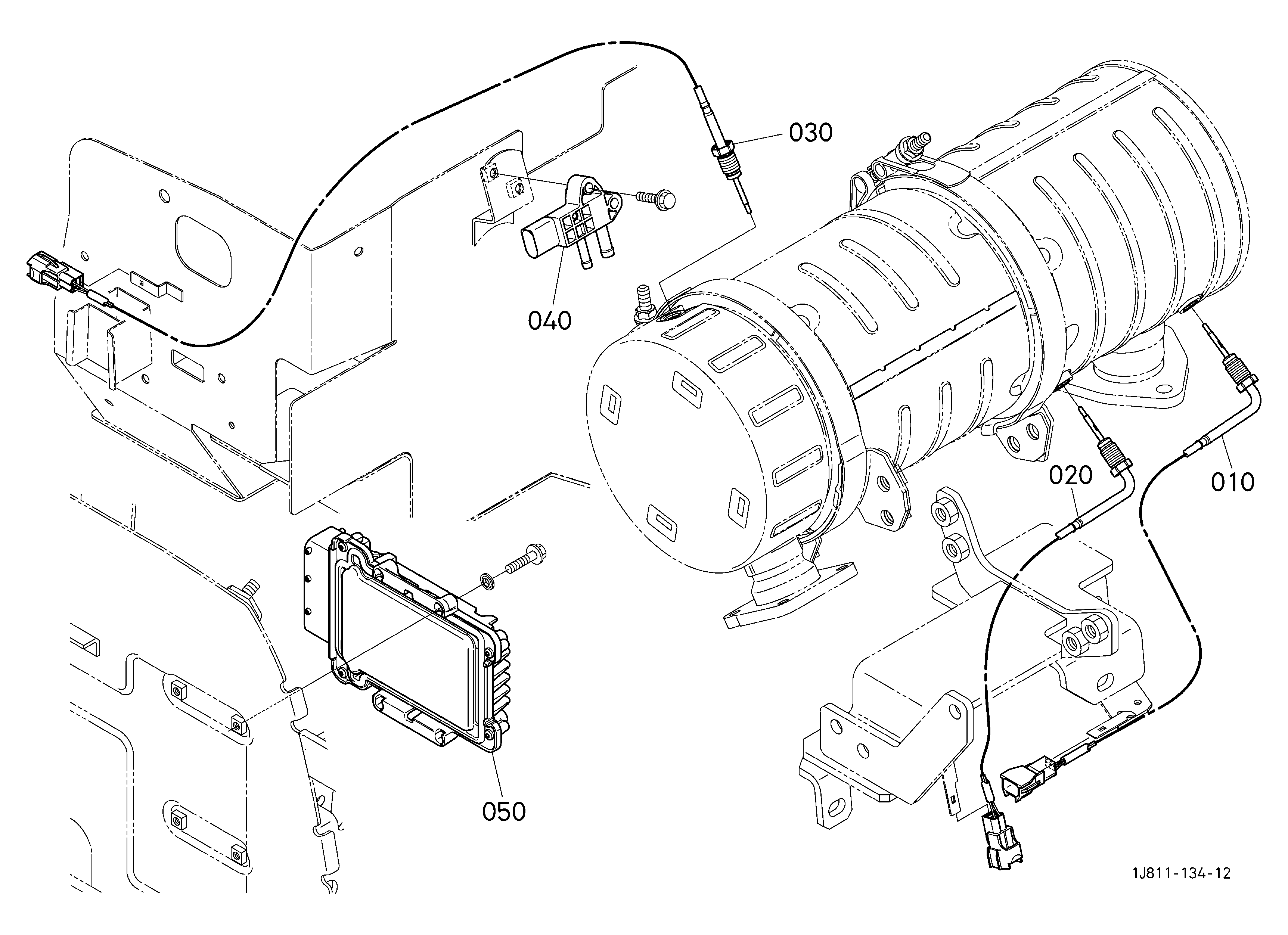

DIAG-595100-125549 595100 ENGINE ELECTRICAL PARTS (MUFFLER/ELECTRONIC CONTROL UNIT)
View Diagram
