Kubota T1570 A00501 MUFFLER Parts Diagram

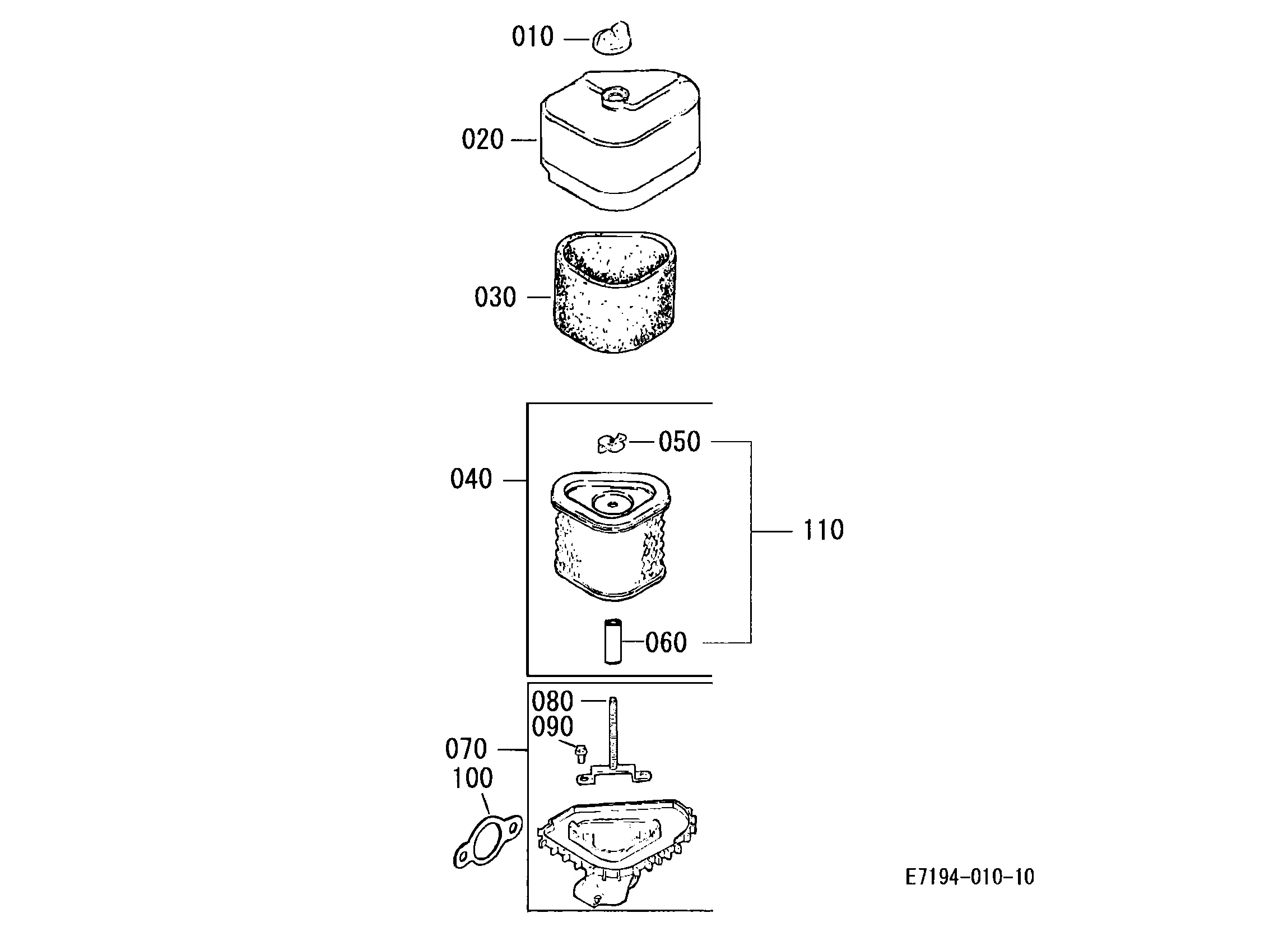

Exploded-view parts diagram "A00501 MUFFLER" for the Kubota T1570. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | Muffler K1162-25113 | 1 | $183.62 | |||
| 010 | MUFFLER K1162-25110 | 1 | $163.19 | |||
| 020 | Lock Washer 60009-60601 75599-33012 | 1 | $0.27 | |||
| 030 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 040 | BOLT 01053-51018 | 1 | $1.35 | |||
| 040 | BOLT, FLANGE 01754-51018 | 1 | $7.21 | |||
| 050 | STAY, MUFFLER K1162-25123 Discontinued | 1 | $3.43 | |||
| 060 | Nut (Fastener) 02014-50100 | 1 | $0.86 | |||
| 070 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 080 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 090 | COVER, MUFFLER K1162-25210 | 1 | $33.88 | |||
| 100 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
Showing 1 to 12 of 12 parts
