Kubota SVL90-2 584000 RESERVE TANK Parts Diagram
Exploded-view parts diagram "584000 RESERVE TANK" for the Kubota SVL90-2 and Kubota SVL90-2C. 8 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY TANK, RESER V0511-43710 | 1 | $155.25 | |||
| 030 | CAP TC232-16730 | 1 | $42.13 | |||
| 040 | GASKET NA 15272-72430 15531-72432 | 1 | $5.49 | |||
| 050 | HOSE RC411-42900 | 1 | $13.94 | |||
| 060 | WATER OVERFLOW P 15501-72710 | 1 | $27.89 | |||
| 070 | CLIP, PIPE 15501-72470 | 1 | $4.60 | |||
| 080 | Plate 3G704-17390 | 1 | $37.79 | |||
| 090 | PIPE, WATER OVER 3C631-17330 67156-58822 | 1 | $13.13 | |||
Showing 1 to 8 of 8 parts
Related Assemblies
-
DIAG-583400-86270 583400 RADIATOR
View Diagram -

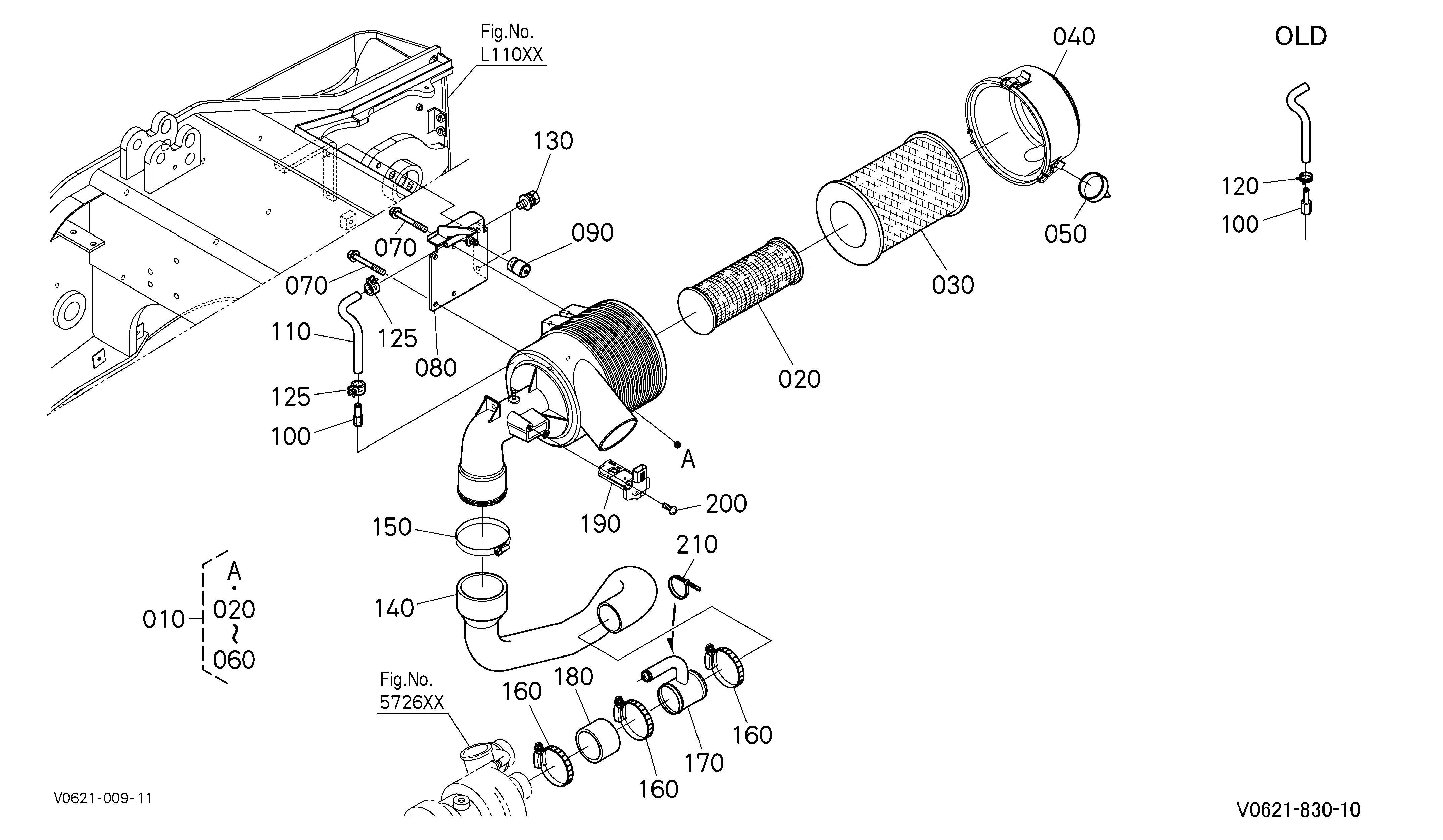

DIAG-584600-86270 584600 AIR CLEANER
