Kubota SVL95-2S 545000 INJECTION PIPE Parts Diagram
Exploded-view parts diagram "545000 INJECTION PIPE" for the Kubota SVL95-2S, Kubota SVL95-2SC, Kubota SVL97-2, Kubota SVL97-2C and Kubota SVL97-2CC. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY PIPE, OVER 1J574-42500 | 1 | $114.76 | |||
| 020 | BOLT 1C020-95810 | 1 | $14.07 | |||
| 030 | Engine Injector & Glow Plug Gasket 1J550-96730 | 1 | $1.39 | |||
| 040 | INJECTOR,KIT 1J508-53070 1J508-53076 | 1 | $997.91 | |||
| 050 | O-Ring Seal 04814-00160 | 1 | $5.79 | |||
| 060 | O-Ring Seal 04814-05120 | 1 | $3.37 | |||
| 070 | Engine Fuel Injection Packing (Seal) 1E886-53620 1J864-53620 | 1 | $2.26 | |||
| 080 | CLAMP (INJECTOR) 1J574-53150 | 1 | $92.11 | |||
| 090 | Steel Ball 07715-01605 | 1 | $0.42 | |||
| 100 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 110 | PIPE INJECTION, 1J508-53710 | 1 | $71.07 | |||
| 120 | PIPE INJECTION, 1J508-53720 | 1 | $71.07 | |||
| 130 | PIPE INJECTION, 1J508-53730 | 1 | $71.07 | |||
| 140 | PIPE INJECTION, 1J508-53740 | 1 | $66.66 | |||
| 150 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 160 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 170 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-526500-93502 526500 SUPPLY PUMP
View Diagram -

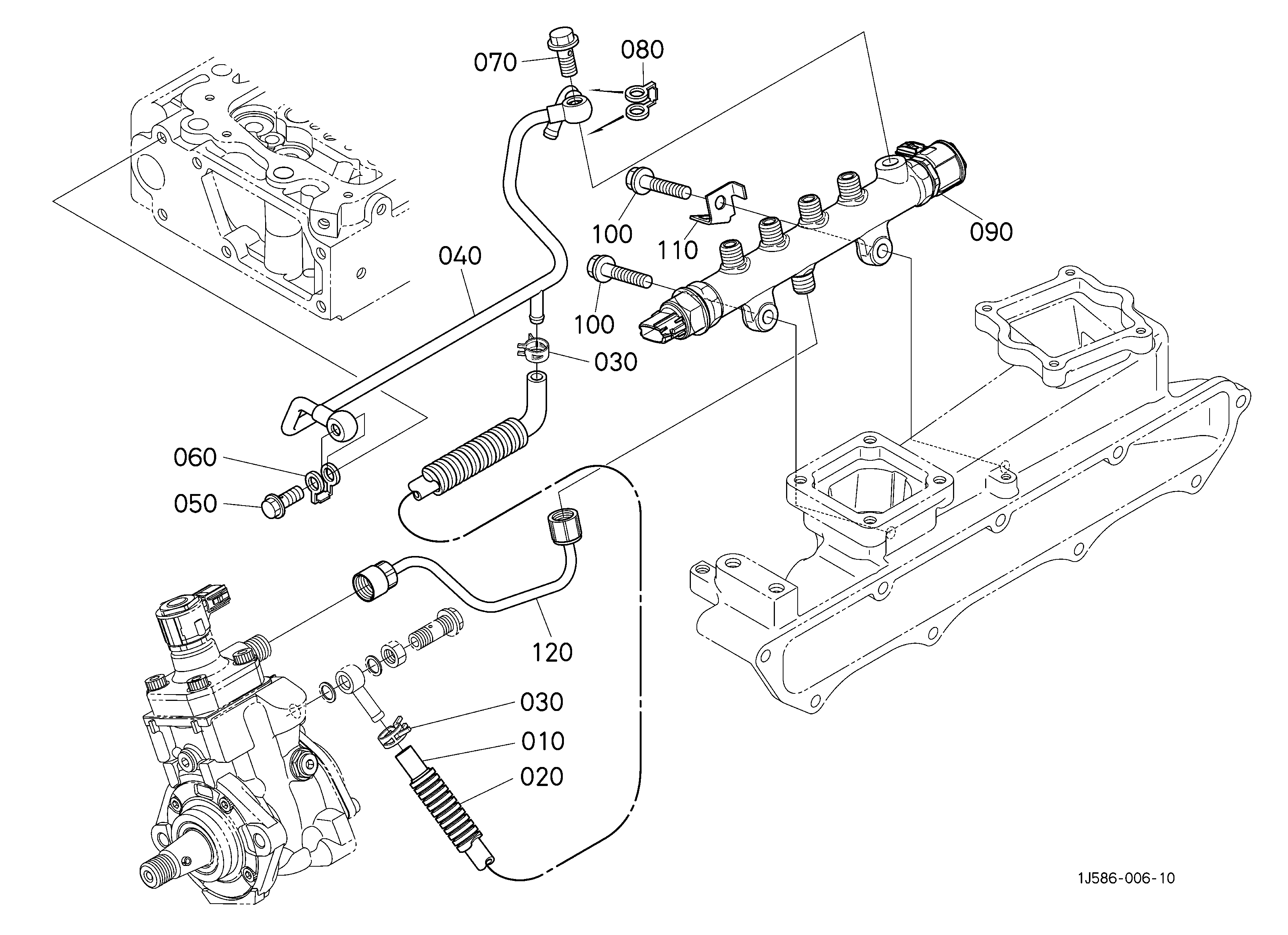

DIAG-548000-93502 548000 COMMON RAIL
View Diagram -

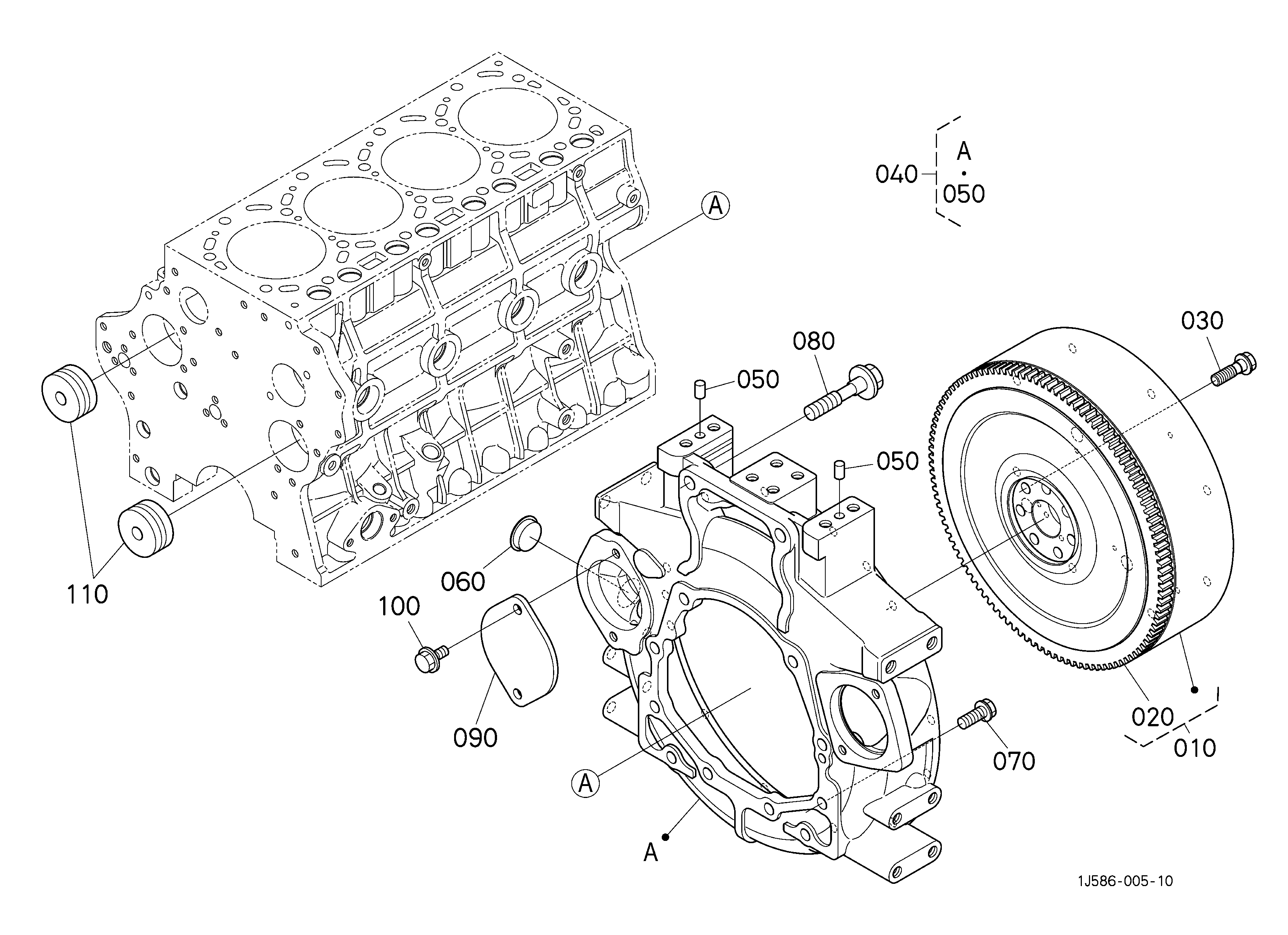

DIAG-515000-93502 515000 FLYWHEEL
