Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY PIPE, OVER 1J574-42500 | 1 | $114.76 | |||
| 020 | BOLT 1C020-95810 | 1 | $14.07 | |||
| 030 | Engine Injector & Glow Plug Gasket 1J550-96730 | 1 | $1.39 | |||
| 030 | Injection Nozzle Gasket 1G911-96730 1C020-96730 | 1 | $2.01 | |||
| 040 | Injector Kit 1J500-53050 1J500-53076 | 1 | $1,132.53 | |||
| 050 | O-Ring Seal 04814-00160 | 1 | $5.79 | |||
| 060 | O-Ring Seal 04814-05110 | 1 | $3.15 | |||
| 070 | Engine Fuel Injection Packing (Seal) 1E886-53620 1J864-53620 | 1 | $2.26 | |||
| 080 | CLAMP (INJECTOR) 1J574-53150 | 1 | $92.11 | |||
| 090 | Steel Ball 07715-01605 | 1 | $0.42 | |||
| 100 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 110 | PIPE,INJECTION 1J500-53712 1J500-53713 | 1 | $70.63 | |||
| 120 | PIPE, INJECTION 1J500-53722 1J500-53723 | 1 | $70.06 | |||
| 130 | PIPE,INJECTION 1J500-53732 1J500-53733 | 1 | $70.34 | |||
| 140 | PIPE,INJECTION 1J500-53742 1J500-53743 | 1 | $70.34 | |||
| 150 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 160 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 170 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
| 180 | COMP PIPE (2, OF 1J574-42850 | 1 | $124.46 | |||
| 190 | BOLT, CONNECT 15471-95790 1J860-95790 | 1 | $10.82 | |||
| 200 | Gasket 1G557-96650 | 1 | $1.88 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-526500-86271 526500 SUPPLY PUMP
View Diagram -

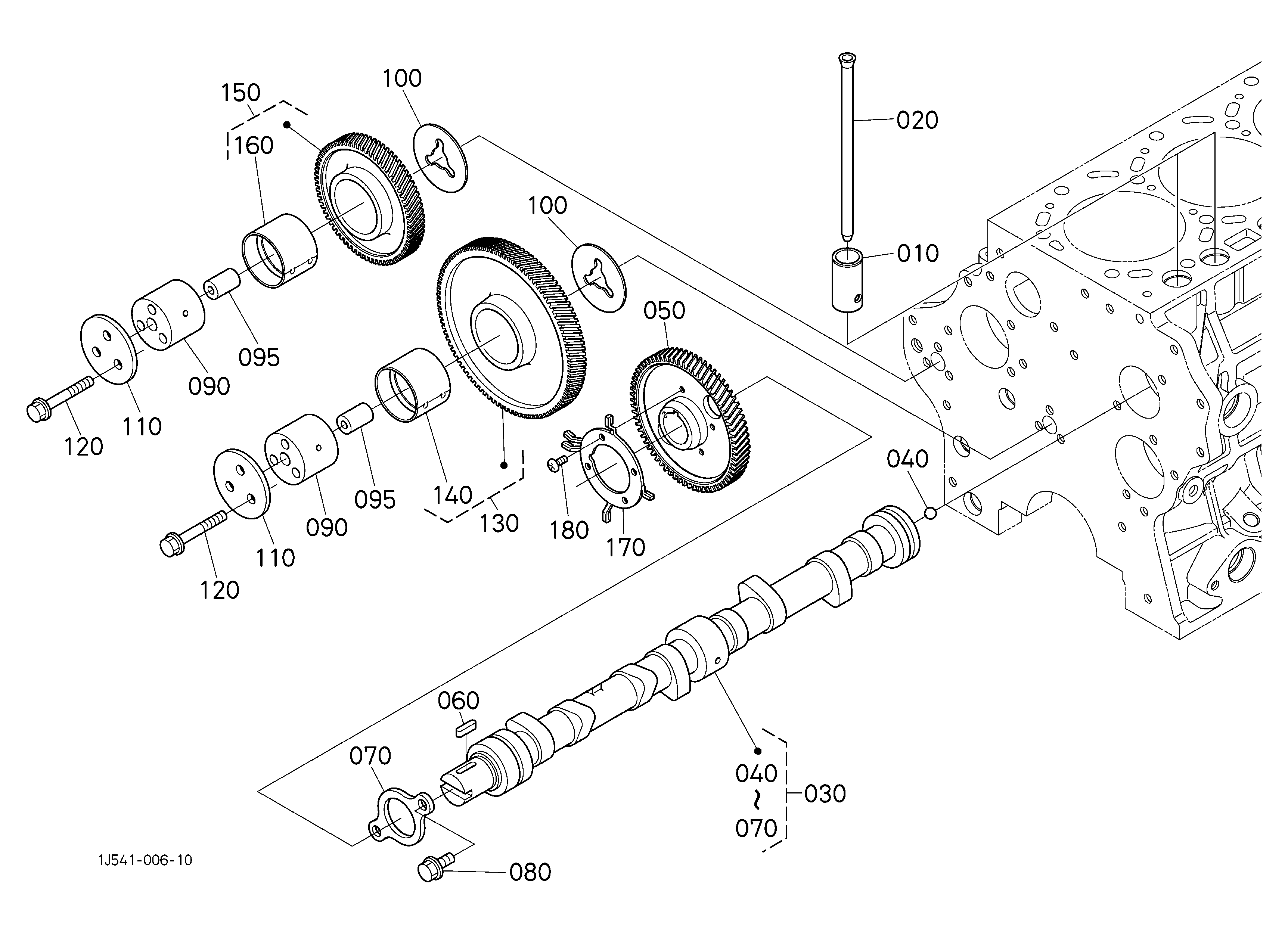

DIAG-512000-86271 512000 CAMSHAFT AND IDLE GEAR SHAFT
View Diagram -

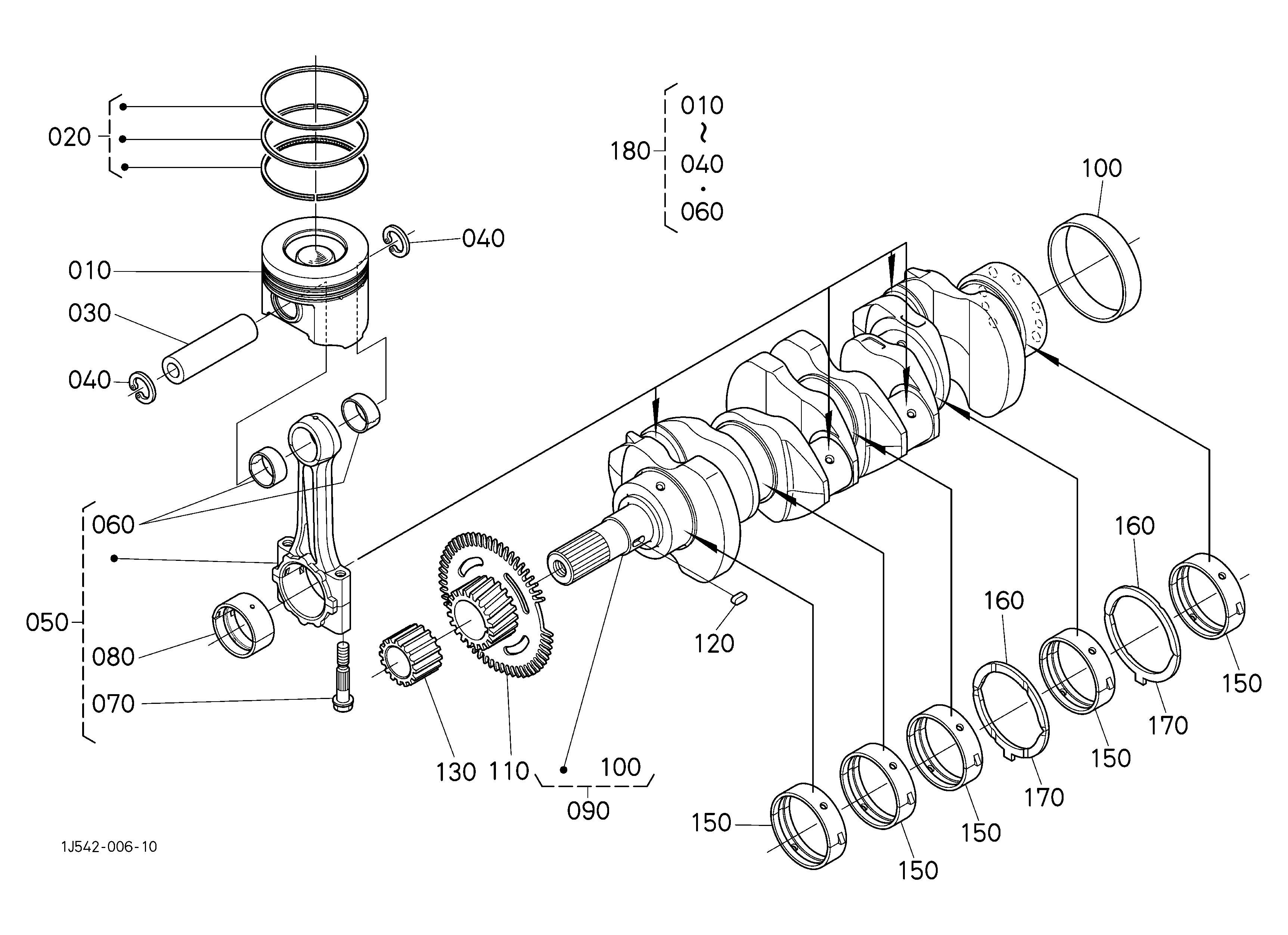

DIAG-511000-86271 511000 PISTON AND CRANKSHAFT
View Diagram
