Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP CRANKCASE 1J805-01013 | 1 | $5,620.86 | |||
| 010 | CRANKCASE,COMP 1J805-01016 | 1 | $4,444.99 | |||
| 020 | PLUG 15521-96022 15521-96020 | 1 | $5.15 | |||
| 030 | PLUG 15521-96032 15521-96030 | 1 | $3.09 | |||
| 040 | PLUG,CONCAVE 1G814-96160 | 1 | $1.76 | |||
| 040 | PLUG,EXPANSION 17391-96160 | 1 | $0.66 | |||
| 050 | PLUG, EXPANSION 16271-96160 | 1 | $1.56 | |||
| 060 | Sealing Plug 15221-03383 15221-03380 | 1 | $5.90 | |||
| 070 | COMP PIPE (WATER 1J860-71010 | 1 | $33.60 | |||
| 071 | PIPE 1, RETURN 17331-73340 17331-73342 | 1 | $8.90 | |||
| 080 | Cap. Sealing 15221-03392 15221-03390 | 1 | $8.57 | |||
| 090 | PIN 05012-00609 | 1 | $0.80 | |||
| 100 | PIN 05011-00612 05012-00612 | 1 | $0.80 | |||
| 110 | PIN 05012-01018 | 1 | $1.51 | |||
| 120 | PIN, PIPE 15221-33650 | 1 | $4.60 | |||
| 130 | PIPE 1G814-73340 | 1 | $13.74 | |||
| 130 | PIPE, WATER RETU 15321-73342 15321-73340 | 1 | $9.29 | |||
| 140 | COMP PIPE, OIL R 1J801-05840 | 1 | $27.92 | |||
| 150 | ASSY PUMP, OIL * 1E013-35010 1E013-35013 | 1 | $174.46 | |||
| 160 | GASKET, OIL PUMP 15296-35150 1A021-35150 | 1 | $2.01 | |||
| 170 | BOLT 01023-60650 01023-50650 | 1 | $2.17 | |||
| 180 | GEAR, OIL PUMP D 19202-35660 1G896-35660 | 1 | $61.55 | |||
| 190 | KEY, FEATHER 05712-00410 | 1 | $1.91 | |||
| 200 | NUT, FLANGE 15221-35680 15221-35682 | 1 | $4.60 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

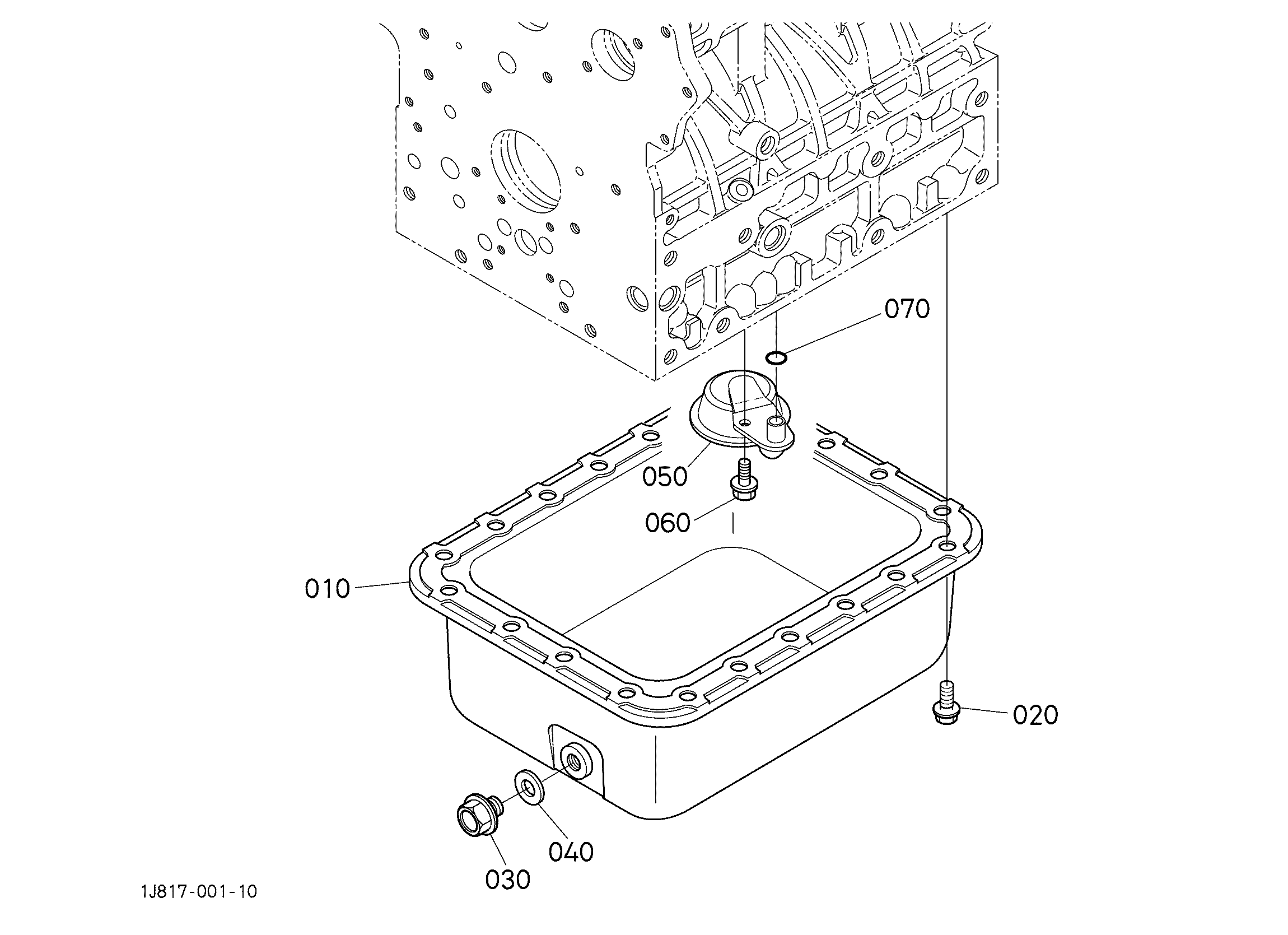

DIAG-501000-125548 501000 PAN,OIL
View Diagram -

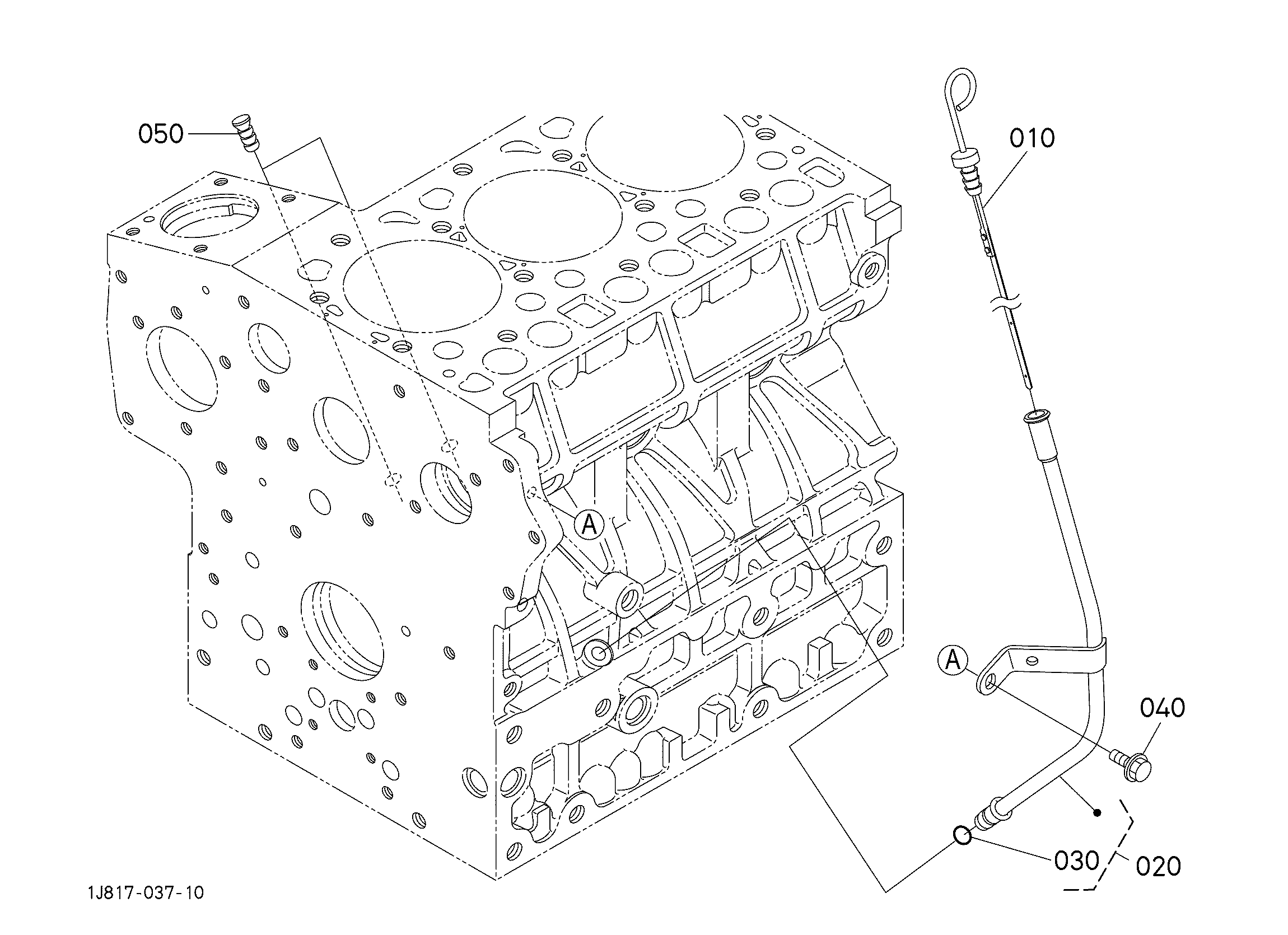

DIAG-501200-125548 501200 DIPSTICK
View Diagram -

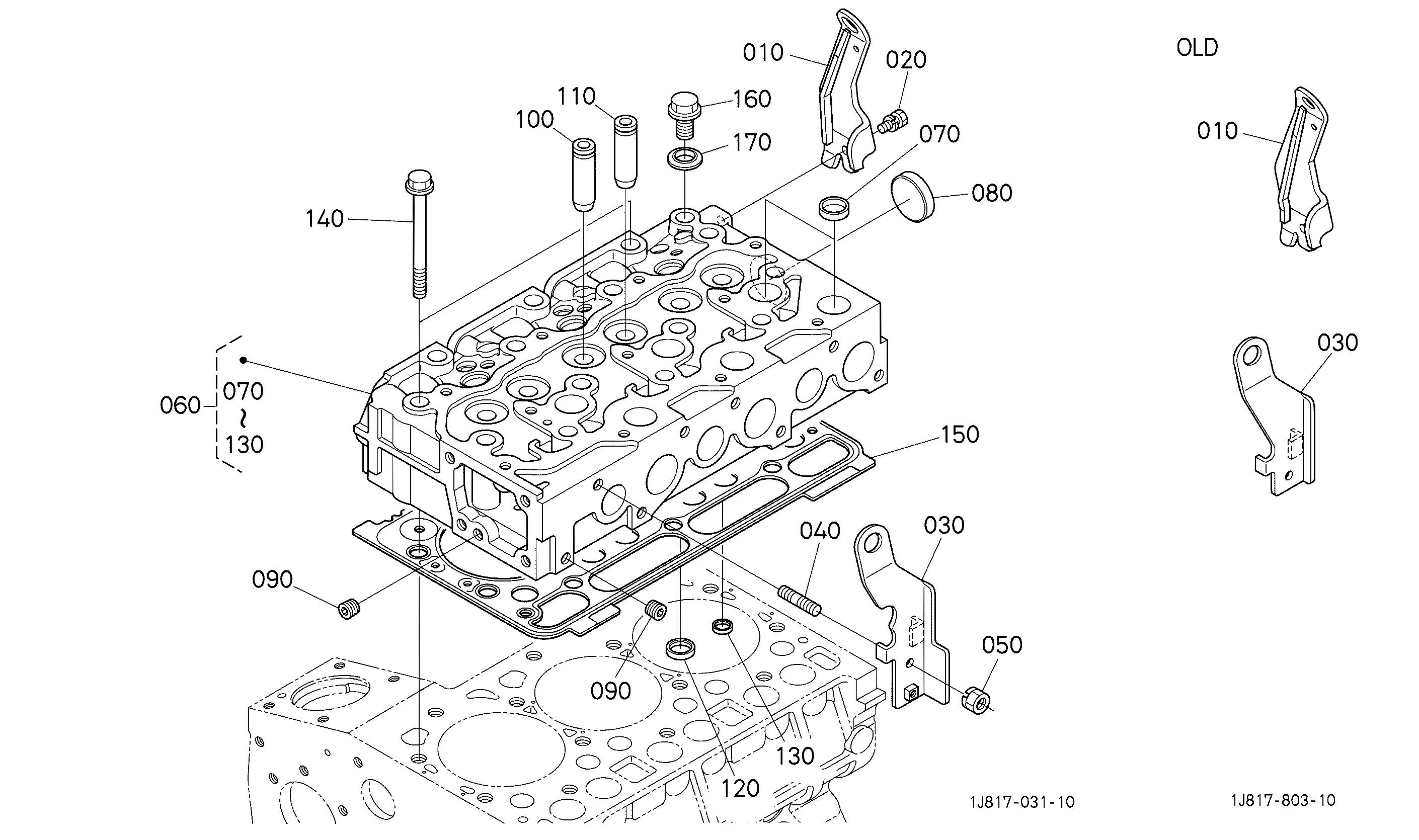

DIAG-502000-125548 502000 CYLINDER HEAD
View Diagram
