Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | TANK,ASSY(DEF) 3B291-05102 3B291-05108 | 1 | $4,629.52 | |||
| 015 | PLATE, DEF,US *** 3B291-05120 | 1 | $16.24 | |||
| 016 | PLATE DEF REFILL 3S205-05130 | 1 | $22.01 | |||
| 016 | PLATE(DEF REFILL) 3B291-05150 | 1 | $23.01 | |||
| 016 | PLATE(DEF REFILL) 3S205-05120 | 1 | $22.66 | |||
| 017 | BAND, CORD 55311-41261 55311-41260 | 1 | $4.85 | |||
| 020 | JOINT, BREATHER 3C081-21630 | 1 | $2.71 | |||
| 025 | TUBE 3B291-05440 | 1 | $217.14 | |||
| 027 | Pipe Clip for Fuel Pipe and Fuel Filter Lines 16241-42750 14911-42750 | 1 | $4.60 | |||
| 030 | COVER 3B481-05312 | 1 | $241.92 | |||
| 040 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 050 | COVER 3B881-05333 3B881-05334 | 1 | $215.59 | |||
| 055 | COVER 3B881-05340 | 1 | $353.57 | |||
| 060 | M8 Flange Bolt 01754-50816 | 1 | $4.33 | |||
| 065 | Flange Bolt 01754-50830 | 1 | $5.85 | |||
| 067 | NUT, FLANGE 02763-50080 | 1 | $4.85 | |||
| 069 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 070 | COVER 3B881-05370 | 1 | $106.84 | |||
| 090 | COVER 3B881-05383 | 1 | $172.45 | |||
| 100 | Flange Nut 02761-50060 | 1 | $0.60 | |||
| 110 | HANDLE,HOPPER CO 53721-53180 | 1 | $16.77 | |||
| 130 | FIXTURE 3B291-05320 | 1 | $20.83 | |||
| 140 | CUSHION 5H801-12120 | 1 | $8.12 | |||
| 150 | FOCK BOLT, BATTE 3A111-74360 3A111-74362 | 1 | $10.49 | |||
| 160 | Plain Washer (Flat Washer) 04015-50060 | 1 | $0.60 | |||
| 170 | Lock Nut (Locknut) W2336-06100 02552-50060 | 1 | $1.51 | |||
| 180 | CUSHION TD170-42050 | 1 | $37.44 | |||
| 190 | CUSHION T1170-42060 | 1 | $10.69 | |||
| 200 | INSULATION 3B481-05732 3B481-05733 | 1 | $505.84 | |||
| 210 | TAPE 3B481-05752 | 1 | $16.51 | |||
| 220 | TAPE 3B481-05762 | 1 | $19.02 | |||
| 230 | STAY 3B881-05350 | 1 | $47.72 | |||
| 240 | NUT 3F760-53380 | 1 | $1.41 | |||
| 250 | CUSHION 3B481-05740 | 1 | $15.75 | |||
| 255 | CUSHION(DEF,COVE 3B481-05790 | 1 | $5.69 | |||
| 260 | INSULATION 3B481-05770 | 1 | $58.66 | |||
| 270 | INSULATION 3B291-05602 | 1 | $191.56 | |||
| 280 | INSULATION 3B291-05610 | 1 | $201.64 | |||
| 290 | TAPE(ALUMINIUM,340) 3B291-05622 | 1 | $17.72 | |||
| 300 | PLATE 3B481-05320 | 1 | $65.71 | |||
| 310 | TRIM LH 5K250-61380 | 1 | $10.94 | |||
Showing 1 to 41 of 41 parts
Related Assemblies
-
DIAG-472002-96442 472002 DIESEL EXHAUST FLUID HOSE
View Diagram -

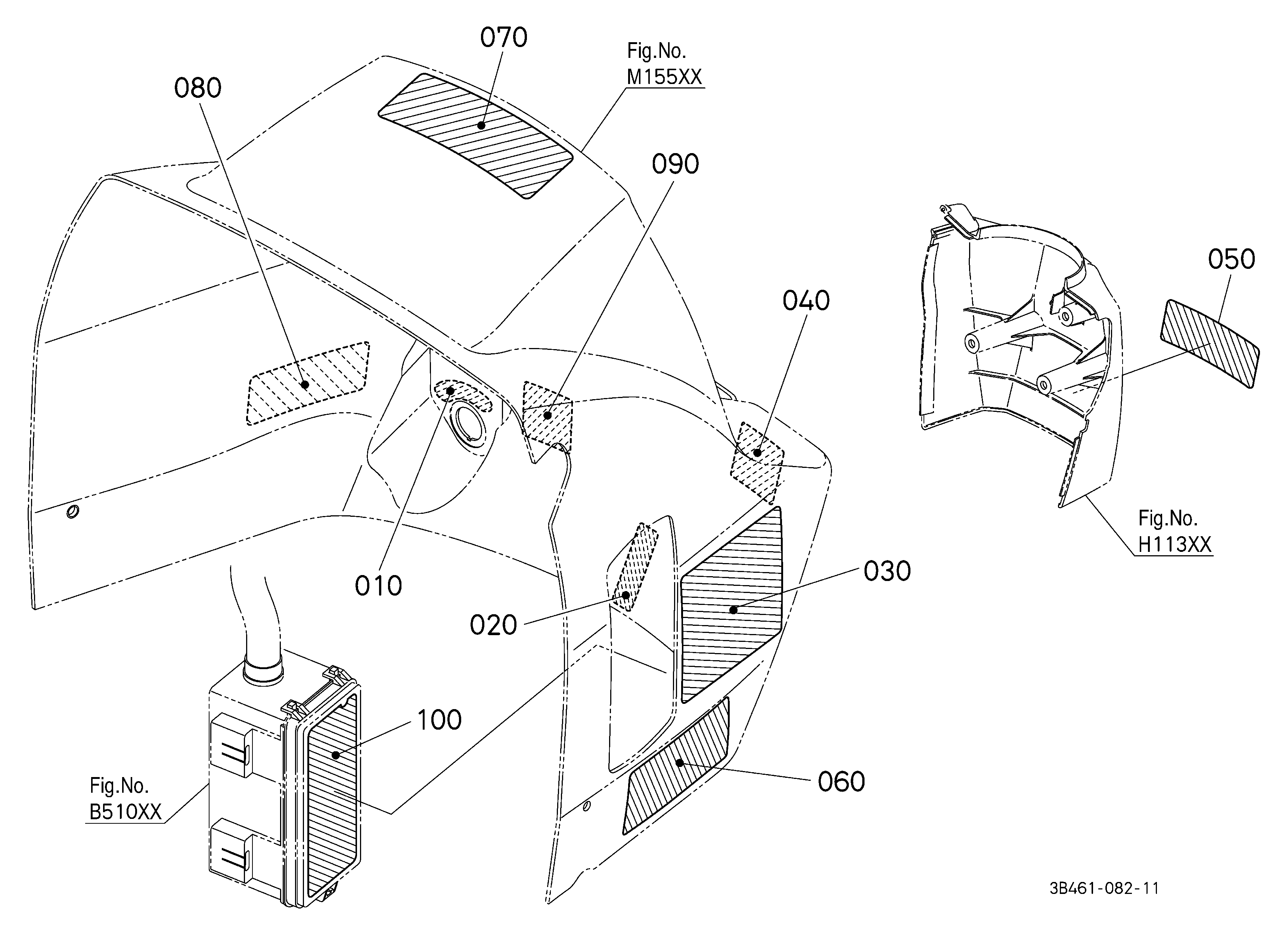

DIAG-S11002-96442 S11002 LABEL (FRONT)
View Diagram -
DIAG-S12002-96442 S12002 LABEL (PANEL)
View Diagram
