Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PISTON 1J508-21110 | 1 | $394.64 | |||
| 010 | PISTON(05) 1J508-21910 | 1 | $521.10 | |||
| 015 | CIR-CLIP, INTERN 04611-00300 | 1 | $1.51 | |||
| 020 | ASSY RING,PISTON 1J508-21050 | 1 | $155.71 | |||
| 020 | ASSY RING,PISTON 1J508-21090 | 1 | $180.07 | |||
| 030 | PIN,PISTON 1J550-21310 1C010-21310 Discontinued | 1 | $30.42 | |||
| 050 | ASSY ROD,CONNECT 1J574-22014 1J574-22016 | 1 | $504.08 | |||
| 060 | BUSHING(PISTON PIN,S 1J574-21980 1J508-21980 | 1 | $14.93 | |||
| 070 | BOLT, CONNECTING 1C010-22140 1C010-22142 | 1 | $9.95 | |||
| 080 | METAL, CRANKPIN 1C020-22312 1C020-22313 | 1 | $48.46 | |||
| 080 | METAL, CRANKPIN 1C020-22332 1C020-22334 | 1 | $50.98 | |||
| 085 | METAL, CRANKPIN 1C020-22962 1C020-22963 | 1 | $45.79 | |||
| 085 | METAL, CRANKPIN 1C020-22972 1C020-22973 | 1 | $45.79 | |||
| 090 | COMP.CRANKSHAFT 1G381-23010 1G381-23012 | 1 | $5,781.10 | |||
| 100 | SLEEVE 1C010-23300 | 1 | $101.20 | |||
| 110 | COMP GEAR,CRANKS 1G381-24100 | 1 | $401.99 | |||
| 120 | KEY, FEATHER 05712-00515 | 1 | $2.86 | |||
| 130 | GEAR,OIL PUMP DR 1G381-35630 1G381-35633 | 1 | $55.49 | |||
| 150 | METAL, CRANKSHAF 1C020-23470 1C020-23472 | 1 | $67.54 | |||
| 150 | METAL, CRANKSHAF 1C020-23910 1C020-23912 | 1 | $78.09 | |||
| 150 | METAL, CRANKSHAF 1C020-23920 1C020-23922 | 1 | $78.09 | |||
| 160 | METAL, SIDE 1C010-23530 1C010-23532 | 1 | $16.09 | |||
| 160 | METAL, SIDE 1C010-23950 1C010-23952 | 1 | $17.79 | |||
| 160 | METAL, SIDE 1C010-23960 1C010-23962 | 1 | $17.87 | |||
| 170 | METAL, SIDE 1C010-23540 1C010-23542 | 1 | $16.09 | |||
| 170 | METAL, SIDE 1C010-23970 1C010-23972 | 1 | $17.79 | |||
| 170 | METAL, SIDE 1C010-23980 1C010-23982 | 1 | $17.87 | |||
| 180 | PULLEY,FAN DRV 1J583-74280 | 1 | $369.02 | |||
| 190 | BOLT 1G774-91010 | 1 | $13.55 | |||
| 200 | PISTON,KIT(05) 1J508-21780 1J508-21782 | 1 | $417.47 | |||
| 200 | PISTON,KIT(STD) 1J508-21770 1J508-21772 | 1 | $474.75 | |||
| 210 | KIT METAL, ENGIN 1G533-23750 1G533-23752 | 1 | $248.30 | |||
| 210 | KIT METAL,ENGINE 1G533-23760 1G533-23762 | 1 | $480.29 | |||
| 210 | KIT METAL,ENGINE 1G533-23772 | 1 | $490.80 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-

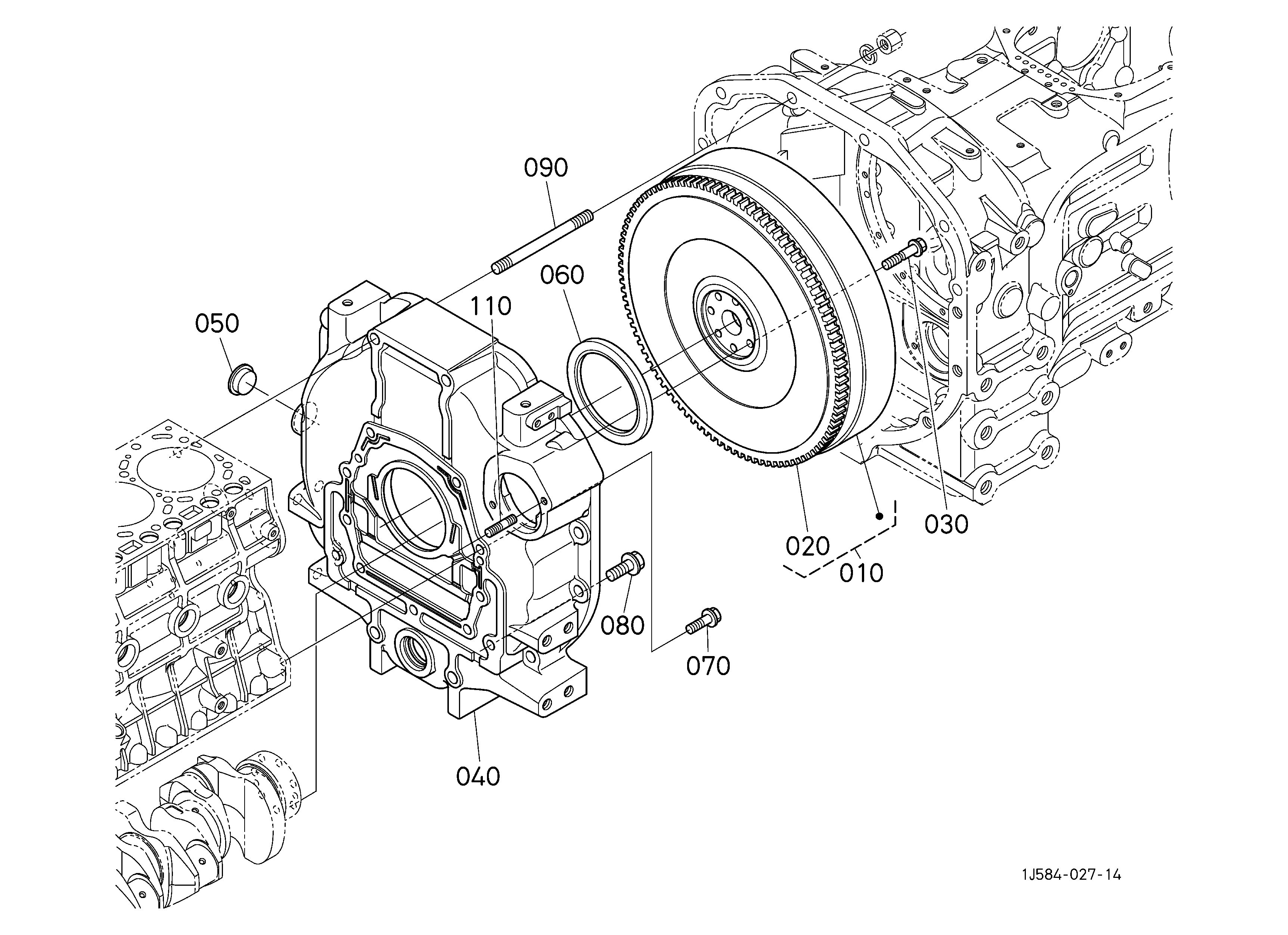

DIAG-415000-341367 415000 FLYWHEEL
View Diagram -
DIAG-403000-341367 403000 INLET VALVE AND EXHAUST VALVE
View Diagram -

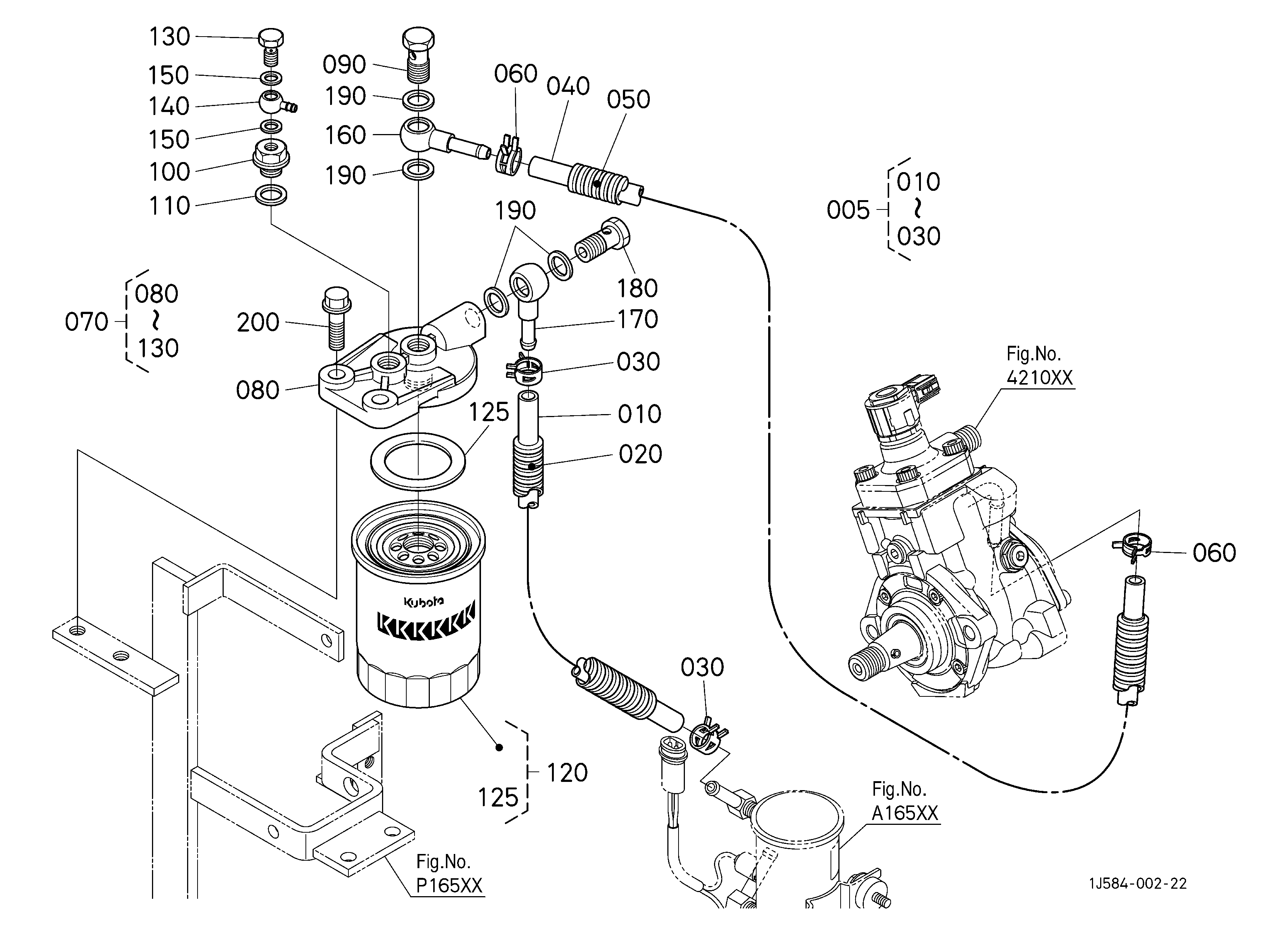

DIAG-420000-341367 420000 FUEL FILTER [OLD]
