Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | AXLE, REAR 35340-27110 35340-27116 Discontinued | 1 | $854.57 | |||
| 002 | OIL SEAL 37300-27560 | 1 | $77.99 | |||
| 003 | Radial Ball Bearing (Radial 55) 3C341-28190 08101-06211 | 1 | $31.79 | |||
| 004 | CIR-CLIP, INTERN 04611-01000 | 1 | $12.09 | |||
| 005 | CIR-CLIP, INTERN 04611-00900 | 1 | $15.11 | |||
| 006 | COLLAR *** 35340-27140 | 1 | $16.50 | |||
| 007 | WASHER** * 34350-27150 Discontinued | 1 | $10.47 | |||
| 008 | GEAR, SPUR 74 37300-26830 Discontinued | 1 | $700.85 | |||
| 009 | BEARING BALL 08100-00028 H7041-52430 | 1 | $182.27 | |||
| 010 | NUT 37300-27280 | 1 | $99.64 | |||
| 011 | PLUG 37300-27290 | 1 | $23.91 | |||
| 012 | REAR WHEEL ASSEM 35340-27900 Discontinued | 1 | $4,620.78 | |||
| 013 | WHEEL ASSY C WHL 70000-00093 Discontinued | 1 | $0.46 | |||
| 013 | WHEEL, REAR LH 35340-27910 Discontinued | 1 | $2,285.27 | |||
| 014 | TIRE 13.6-28 6 F 35340-27620 70001-00077 Discontinued | 1 | $1,083.82 | |||
| 014 | TIRE 13.6X28 C-M 70000-00090 Discontinued | 1 | $478.54 | |||
| 015 | TUBE 35340-27630 | 1 | $555.79 | |||
| 015 | TUBE 13.6X28** 70000-00091 Discontinued | 1 | $48.45 | |||
| 016 | RIM,OUTER 13.6X2 33251-49080 70000-00009 | 1 | $489.78 | |||
| 017 | DISC 35340-27660 | 1 | $718.56 | |||
| 017 | DISC, 28 IN 8ON8 70000-00008 | 1 | $329.03 | |||
| 018 | BOLT, HEX 70000-00010 75599-01760 | 1 | $5.79 | |||
| 018 | Rear Wheel Bolt 31220-27684 31220-27680 | 1 | $8.26 | |||
| 019 | Nut Fastener 02173-50160 02174-50160 | 1 | $2.26 | |||
| 019 | NUT,WHIZ LOCK 5/ 70000-00094 70000-00098 | 1 | $10.49 | |||
| 020 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 020 | Spring Washer (Size 5) 3N300-13570 75599-33017 | 1 | $1.47 | |||
| 021 | WHEEL ASSY C WHL 70000-00092 Discontinued | 1 | $0.46 | |||
| 021 | WHEEL, REAR RH 35340-27950 Discontinued | 1 | $2,285.27 | |||
| 029 | 2-1/4 Inch Stud 35410-49150 | 1 | $7.16 | |||
| 030 | NUT 36500-49390 | 1 | $8.66 | |||
| 031 | SPRING, PLATE 36500-49410 Discontinued | 1 | $4.54 | |||
| 032 | PIECE, DISTANCE 35340-99250 Discontinued | 1 | $359.39 | |||
| 033 | STUD 01517-51650 | 1 | $4.83 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-

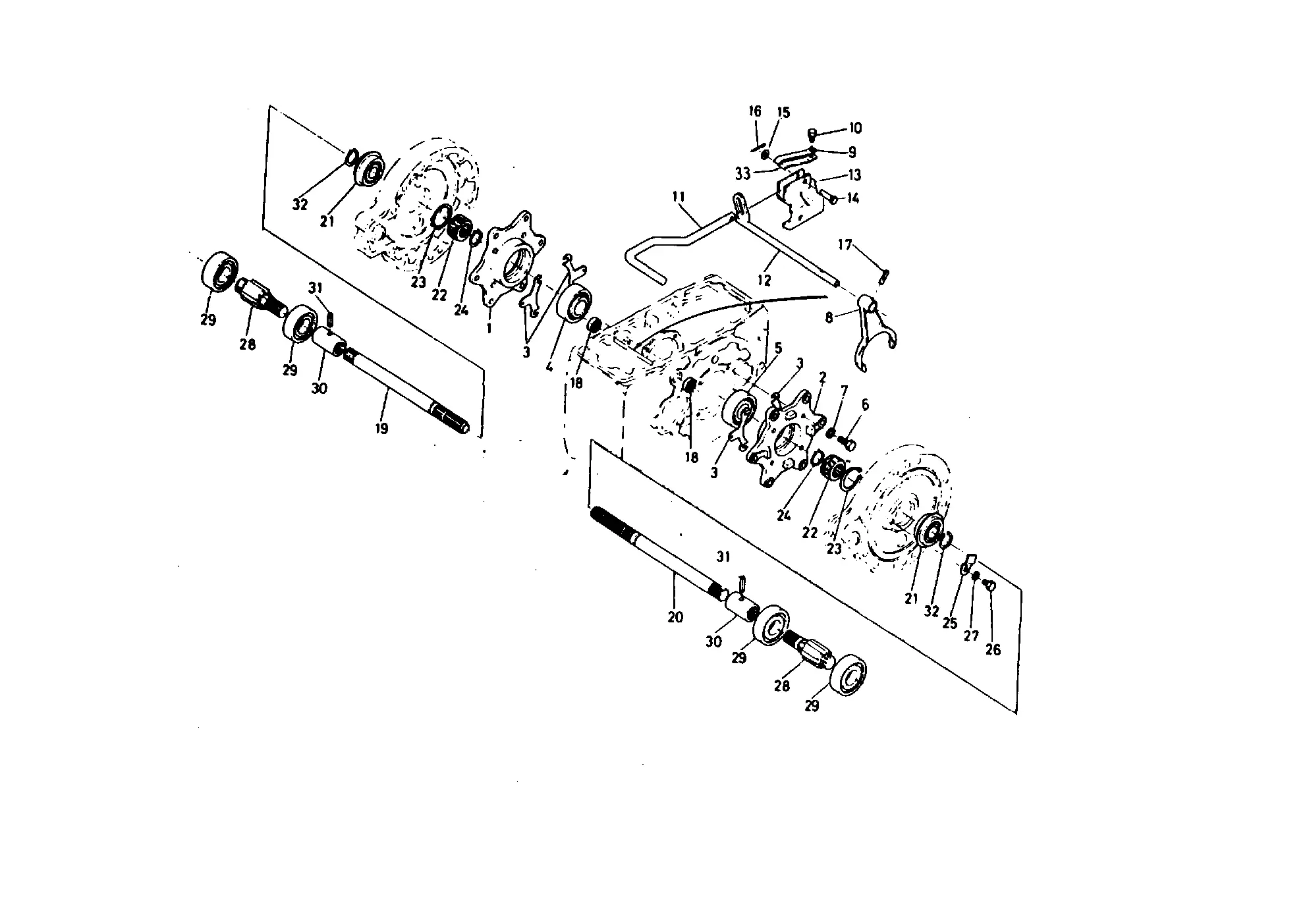

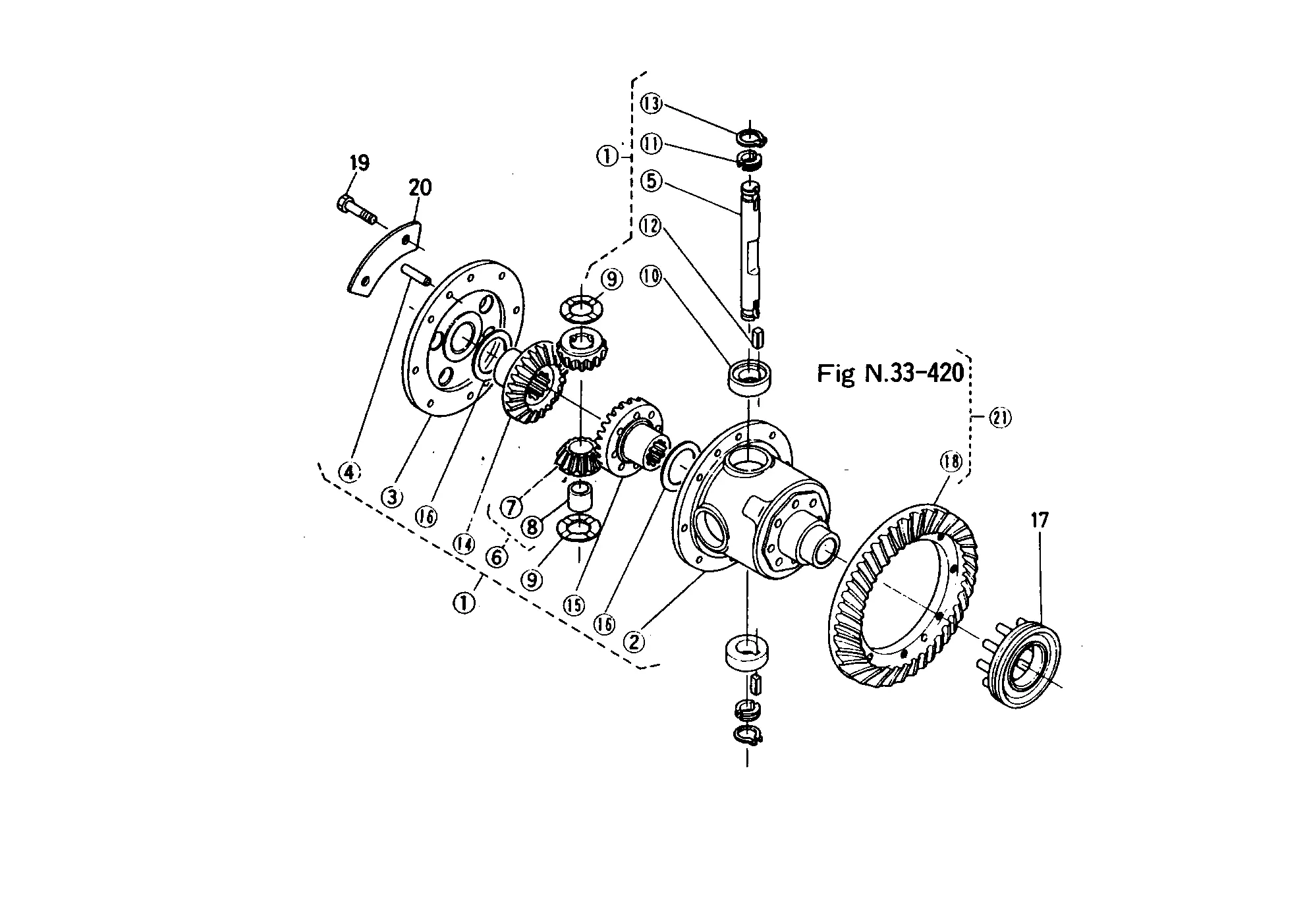

DIAG-400000-85344 400000 DIFFERENTIAL SYSTEM 2
View Diagram -
DIAG-410200-85344 410200 REAR AXLE (12.4-28)
View Diagram -
DIAG-390000-85344 390000 DIFFERENTIAL SYSTEM 1
View Diagram
