Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT 12181-63320 | 1 | $10.30 | ||||
| BUSH 12181-63500 | 1 | $8.79 | ||||
| BUSH, DRY 12181-63530 | 1 | $11.33 | ||||
| CLUTCH, SUB-ASSY 12183-63040 | 1 | $177.40 | ||||
| COVER 17381-63290 | 1 | $15.33 | ||||
| END, FRAME 12182-63450 11420-63450 | 1 | $111.53 | ||||
| FRAME ASSY, END 12183-63450 Discontinued | 1 | $56.33 | ||||
| HOLDER, BRUSH 12181-63380 | 1 | $55.33 | ||||
| HOUSING, STARTER 12182-63030 | 1 | $159.70 | ||||
| INSULATOR 12181-63680 | 1 | $36.01 | ||||
| KIT, BRUSH SERVI 12181-63360 | 1 | $23.88 | ||||
| LEVER, STARTER D 12181-63050 | 1 | $28.43 | ||||
| NUT 12181-92010 | 1 | $2.87 | ||||
| NUT 14278-92010 | 1 | $2.29 | ||||
| NUT 16611-92020 | 1 | $5.59 | ||||
| Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | ||||
| NUT, PINION STOP 12181-63470 | 1 | $85.45 | ||||
| RING, SNAP 12181-63220 | 1 | $6.66 | ||||
| Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | ||||
| SPRING, BRUSH 12181-63390 | 1 | $14.65 | ||||
| STARTER ARMATURE 12181-63070 | 1 | $372.79 | ||||
| STARTER, ASSY 12183-63010 | 1 | $389.47 | ||||
| SWITCH, MAGNETIC 12181-63080 | 1 | $250.90 | ||||
| YOKE, STARTER 12181-63200 | 1 | $313.24 | ||||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-330300-84407 330300 FLYWHEEL,MAGNETO AND STARTER
View Diagram -

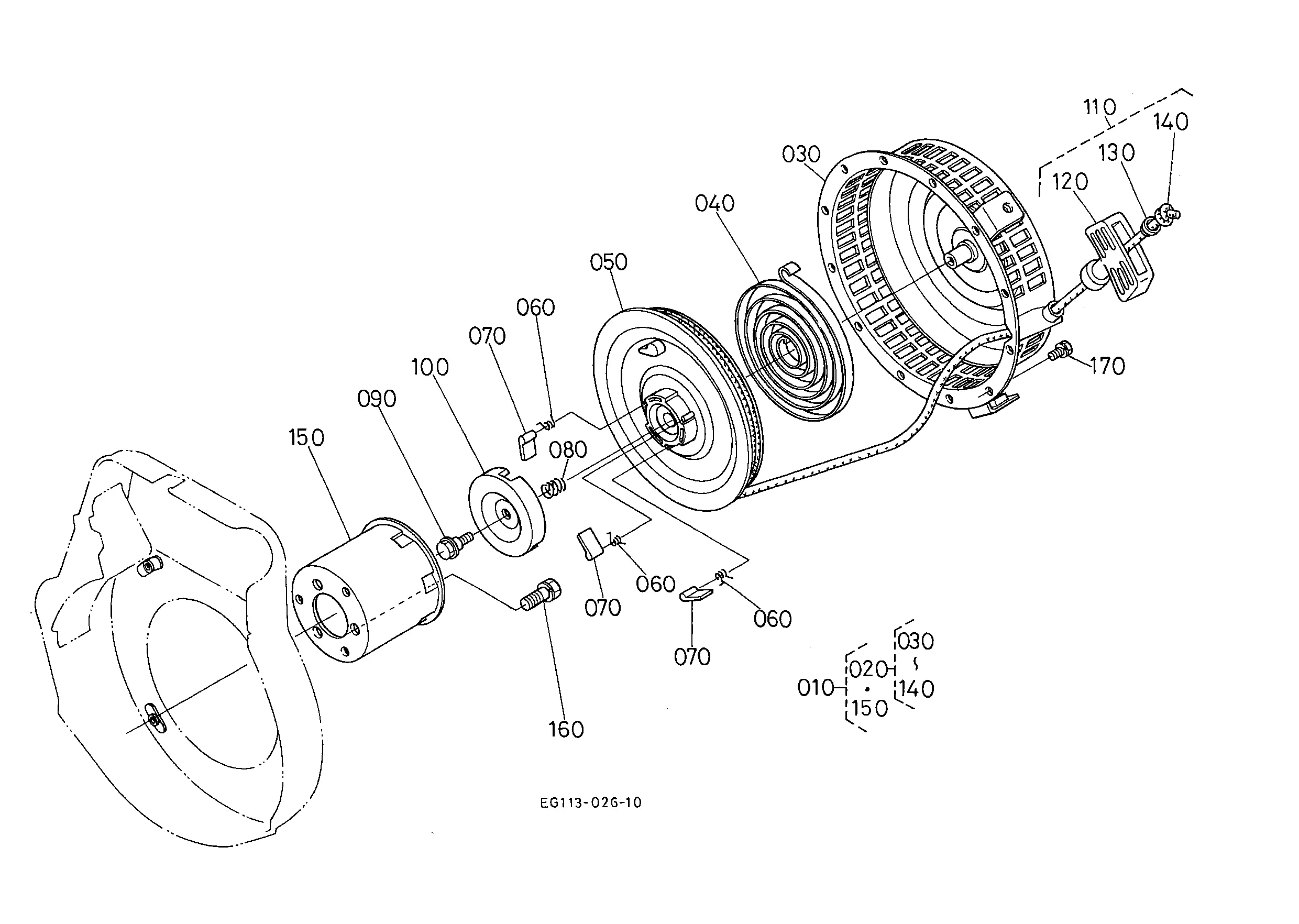

DIAG-330000-84407 330000 RECOIL STARTER
View Diagram -

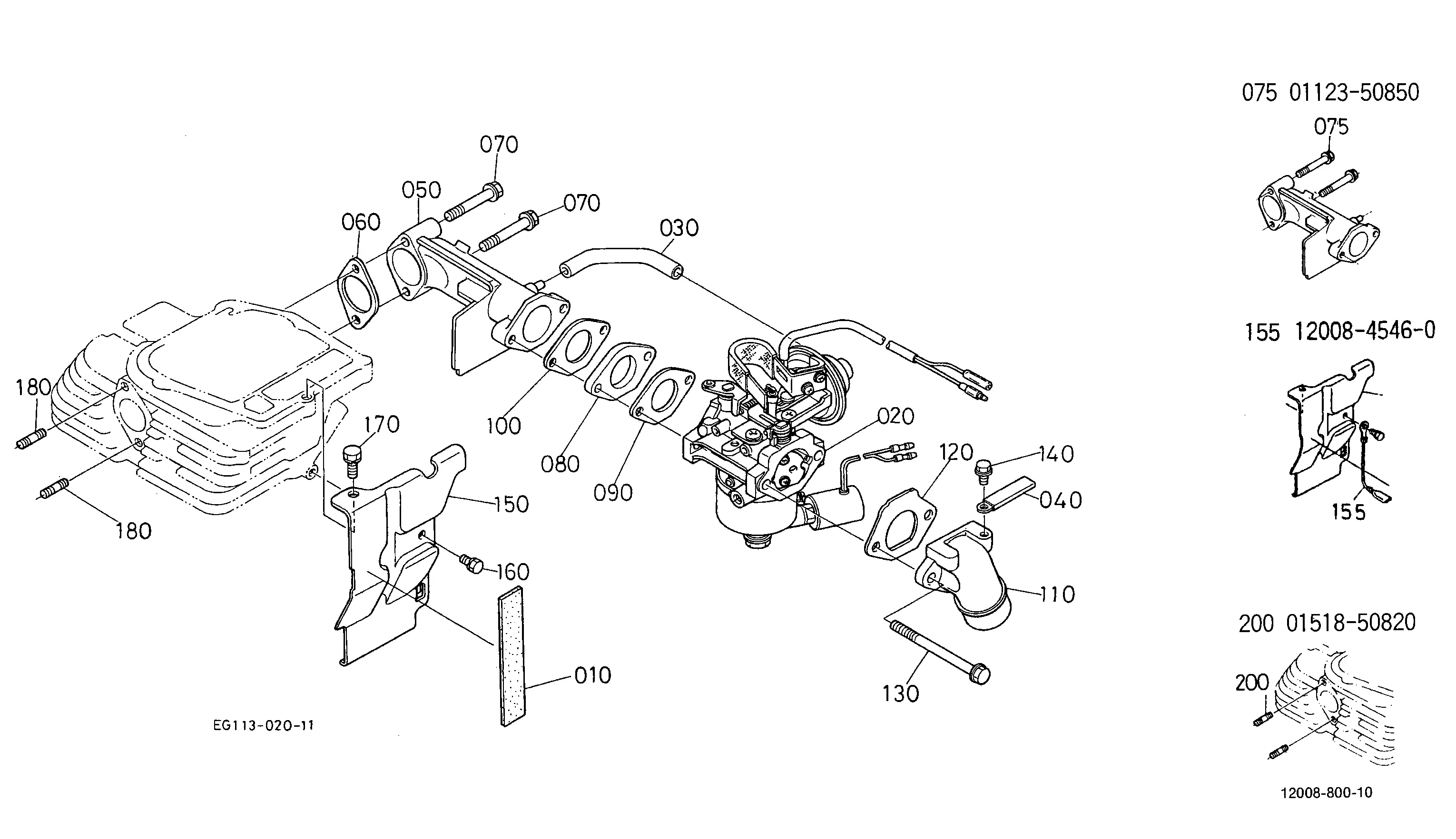

DIAG-340100-84407 340100 INTAKE ELBOW
View Diagram
