Scroll to zoom Click a part # to view details

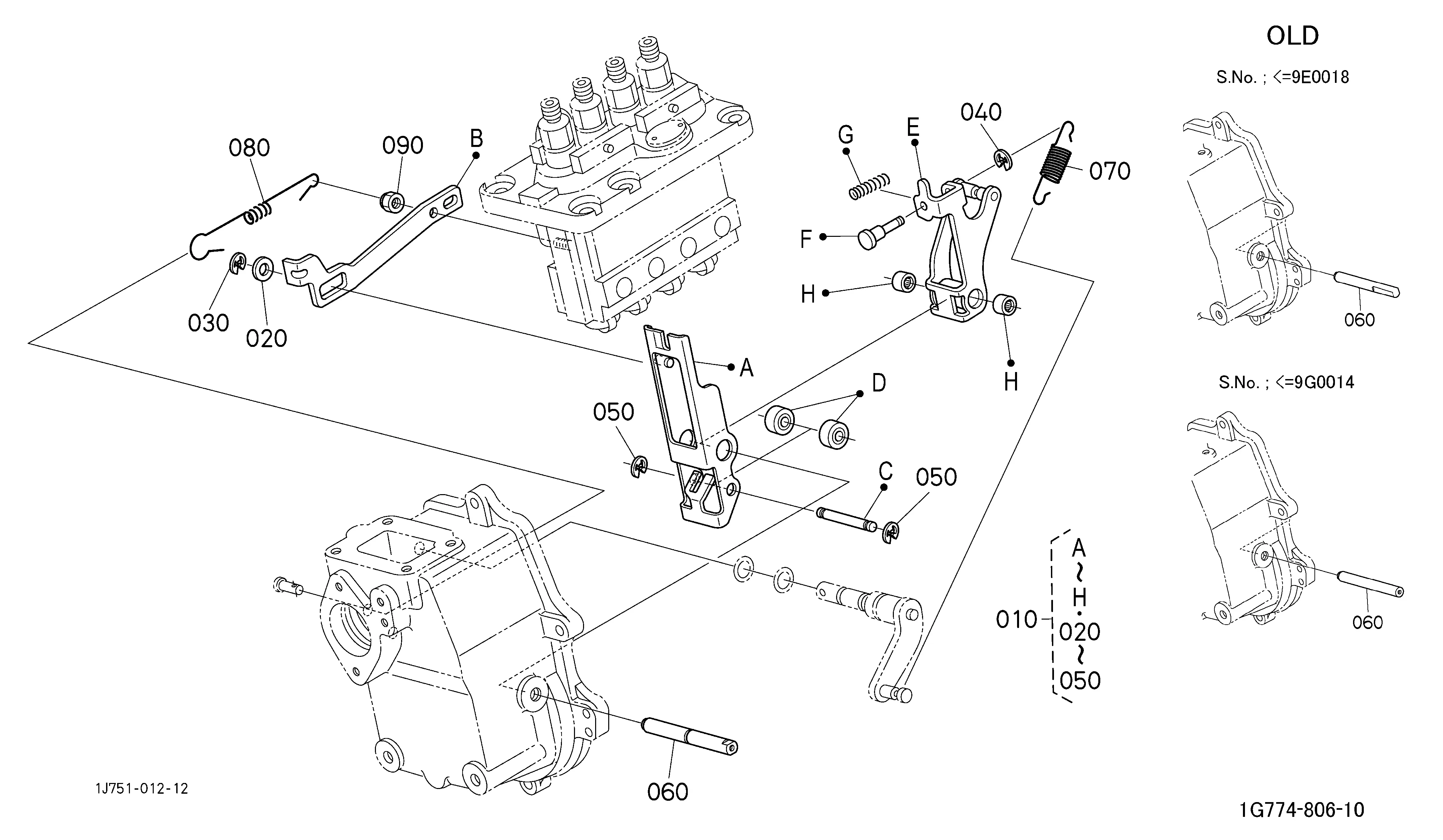

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COVER 1C010-56750 | 1 | $3.94 | |||
| 020 | ASSY WEIGHT, GOV 1G777-55050 | 1 | $119.86 | |||
| 030 | Flange Nut 66071-41030 02771-50120 | 1 | $3.15 | |||
| 040 | SLEEVE, GOVERNOR 1G772-55450 | 1 | $65.13 | |||
| 050 | HOUSING (GOVERNO 1G772-55108 1J751-55100 | 1 | $142.89 | |||
| 050 | HOUSING, GOVERNO 1G772-55100 | 1 | $199.39 | |||
| 060 | ASSY LEVER (GOVE 1G772-56020 | 1 | $57.44 | |||
| 070 | O RING 04814-10070 | 1 | $2.26 | |||
| 080 | SPRING 1G772-57510 | 1 | $11.47 | |||
| 090 | LEVER, SPEED CON 1G776-57150 | 1 | $50.98 | |||
| 090 | LEVER, SPEED CON 1G777-57150 | 1 | $28.67 | |||
| 100 | PIN, SPRING 05411-00416 | 1 | $0.80 | |||
| 110 | ASSY LEVER, ENG. 1G772-57700 | 1 | $161.26 | |||
| 130 | SPRING, RETURN 1G772-57920 | 1 | $58.27 | |||
| 140 | LEVER, ENGINE ST 1G772-57620 1G776-57620 | 1 | $29.39 | |||
| 160 | PIN,START SPRING 15221-56280 15221-56284 | 1 | $7.76 | |||
| 170 | PIN, STRAIGHT 1C010-94510 | 1 | $2.38 | |||
| 180 | STUD 15841-91510 | 1 | $2.37 | |||
| 190 | STUD 01518-50820 | 1 | $1.07 | |||
| 200 | GASKET 1C010-55770 | 1 | $15.99 | |||
| 210 | BOLT, FLANGE 01754-50618 | 1 | $3.31 | |||
| 210 | Flange Bolt 01754-50620 | 1 | $2.95 | |||
| 220 | COVER 1G730-54540 | 1 | $15.95 | |||
| 230 | GASKET, PLATE 1A021-57210 1A021-57212 | 1 | $4.60 | |||
| 240 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 250 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 260 | CLAMP, CORD 13313-69750 15272-67580 | 1 | $4.60 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-322002-85777 322002 FUEL CAMSHAFT
View Diagram -
DIAG-324002-85777 324002 FORK LEVER (GOVERNOR)
View Diagram -
DIAG-321002-85777 321002 INJECTION PUMP
View Diagram
