| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| COVER ASSEMBLY 15101-32350 15213-32070 | 1 | $343.19 | ||||
| 001 | ASSY PUMP,WATER 15151-73032 15151-73034 | 1 | $455.42 | |||
| 003 | BRG BALL RADIAL1 08141-06302 | 1 | $13.05 | |||
| 004 | BEARING BALL RAD 08141-06202 | 1 | $12.20 | |||
| 005 | IMPELLER *** 15121-73512 15121-73510 Discontinued | 1 | $58.89 | |||
| 006 | SHAFT,IMPELLER 15121-73482 15121-73480 Discontinued | 1 | $97.76 | |||
| 007 | ASSY SEAL,MECHAN 19202-73050 19202-73052 | 1 | $36.49 | |||
| 009 | KEY, WOODRUFF 05811-00416 12331-95230 | 1 | $2.99 | |||
| 010 | CIR-CLIP 04611-10420 04611-00420 | 1 | $2.50 | |||
| 011 | External Circlip Retaining Ring 04612-50150 04612-00150 | 1 | $0.80 | |||
| 012 | COVER 15121-73750 Discontinued | 1 | $30.66 | |||
| 013 | PACKING 15109-73762 15109-73760 | 1 | $5.49 | |||
| 014 | SLINGER 10231-73620 15121-73620 | 1 | $10.12 | |||
| 015 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
| 016 | NUT 02117-50120 02118-50120 | 1 | $1.07 | |||
| 017 | BOLT 01010-00840 01053-50840 | 1 | $1.48 | |||
| 018 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 019 | FILTER, OIL ASSY 15213-32024 15213-32020 Discontinued | 1 | $125.84 | |||
| 020 | COVER 15213-32350 | 1 | $112.64 | |||
| 021 | L Series Engine Oil Filter 15213-32430 15213-32090 | 1 | $14.90 | |||
| 022 | SAFETY VALVE ASS 15101-32700 Discontinued | 1 | $45.73 | |||
| 023 | VALVE,(BALL) 15101-36970 Discontinued | 1 | $10.82 | |||
| 024 | PLUG 15101-36910 15101-32940 | 1 | $14.67 | |||
| 025 | SPRING 15101-36950 Discontinued | 1 | $51.77 | |||
| 026 | O-RING 15101-36920 | 1 | $11.93 | |||
| 027 | VALVE, RELIEF AS 15213-36073 15213-36070 Discontinued | 1 | $68.67 | |||
| 028 | O-Ring Seal 04811-00180 04816-00180 | 1 | $2.01 | |||
| 029 | PLUG 15213-32940 | 1 | $15.09 | |||
| 030 | O-RING 15213-36920 Discontinued | 1 | $4.85 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-

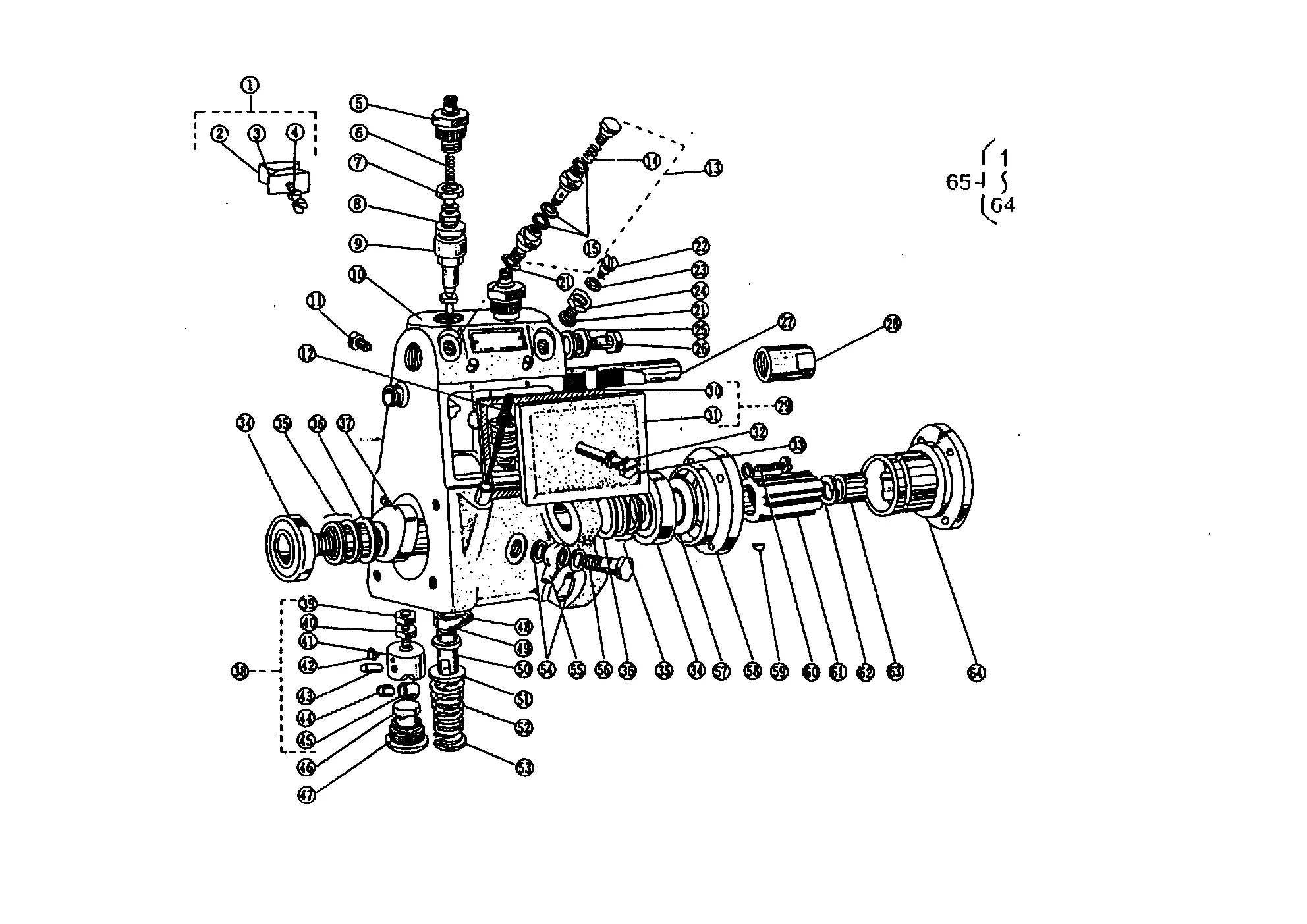

DIAG-290000-85288 290000 FUEL INJECTION PUMP
View Diagram -

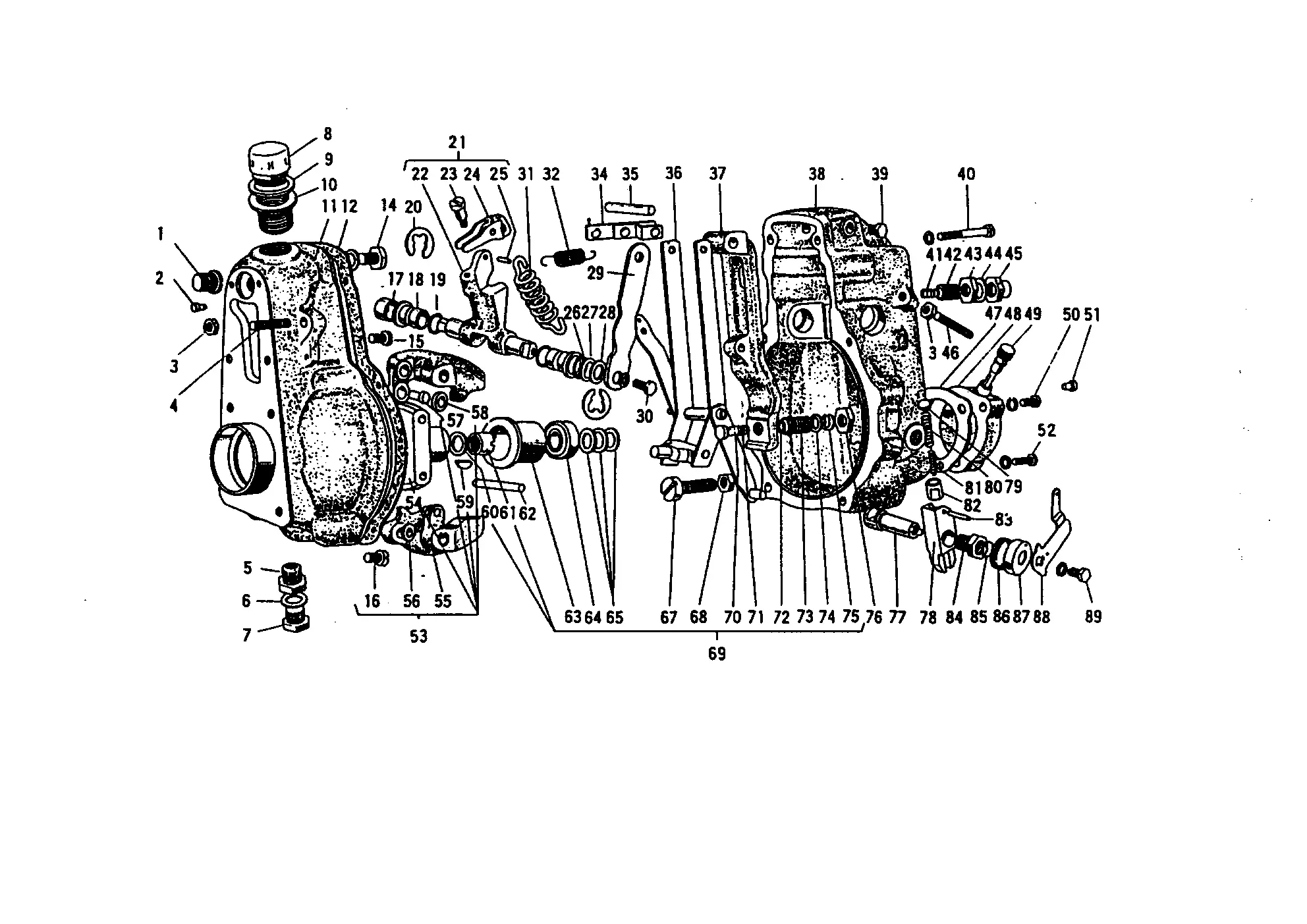

DIAG-310000-85288 310000 MECHANICAL GOVERNOR
View Diagram -

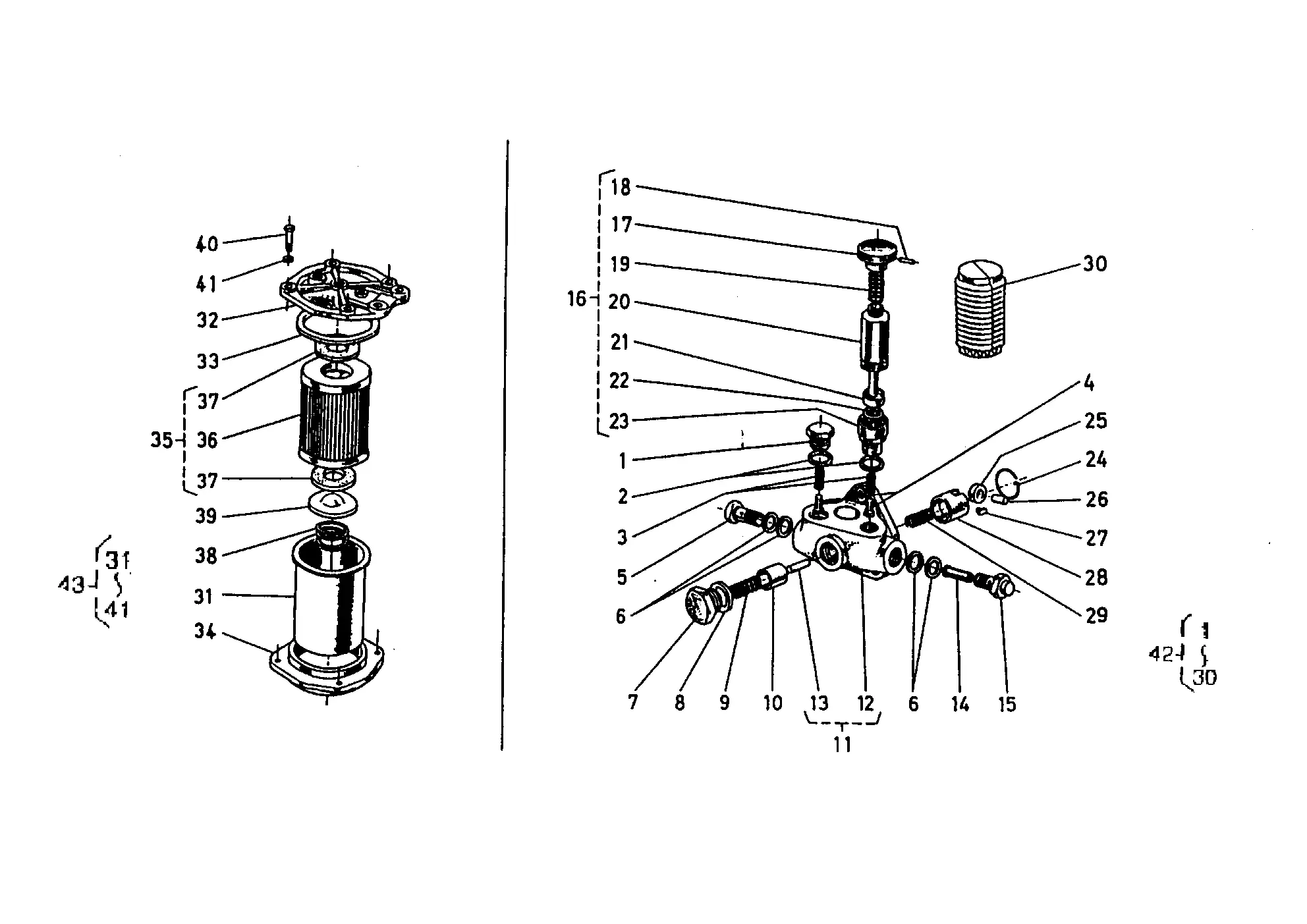

DIAG-280000-85288 280000 FEED PUMP AND FUEL FILTER
View Diagram
