| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | HEAD,CYLINDER,ASSY 1C020-03027 1C050-03023 | 1 | $1,581.90 | |||
| 010 | STUD 01513-50875 | 1 | $2.93 | |||
| 020 | ASSY PIPE, OVERF 1C020-42500 | 1 | $80.84 | |||
| 030 | BOLT 1C020-95810 | 1 | $14.07 | |||
| 040 | Engine Injector & Glow Plug Gasket 1J550-96730 | 1 | $1.39 | |||
| 040 | Injection Nozzle Gasket 1G911-96730 1C020-96730 | 1 | $2.01 | |||
| 050 | ASSY HOLDER, NOZ 1J550-53000 | 1 | $479.07 | |||
| 070 | O-Ring Seal 04814-00150 | 1 | $2.93 | |||
| 080 | O-Ring Seal 04814-05110 | 1 | $3.15 | |||
| 090 | Engine Fuel Injection Packing (Seal) 1E886-53620 1J864-53620 | 1 | $2.26 | |||
| 100 | CLAMP,INJ.NOZZLE 1C020-53452 1C020-53453 | 1 | $7.22 | |||
| 110 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 120 | PIPE, INJECTION 1J550-53710 | 1 | $76.22 | |||
| 130 | PIPE, INJECTION 1J550-53720 | 1 | $76.22 | |||
| 140 | PIPE, INJECTION 1J550-53730 | 1 | $76.22 | |||
| 150 | PIPE, INJECTION 1J550-53740 | 1 | $76.22 | |||
| 160 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 170 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 180 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
| 185 | STAY, INJECTION 1G527-53800 | 1 | $19.45 | |||
| 190 | JOINT, PIPE 14117-42560 14117-42562 | 1 | $14.79 | |||
| 200 | BOLT, CONNECT 15471-95790 1J860-95790 | 1 | $10.82 | |||
| 210 | GASKET, FILTER F 1G772-33660 | 1 | $5.59 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

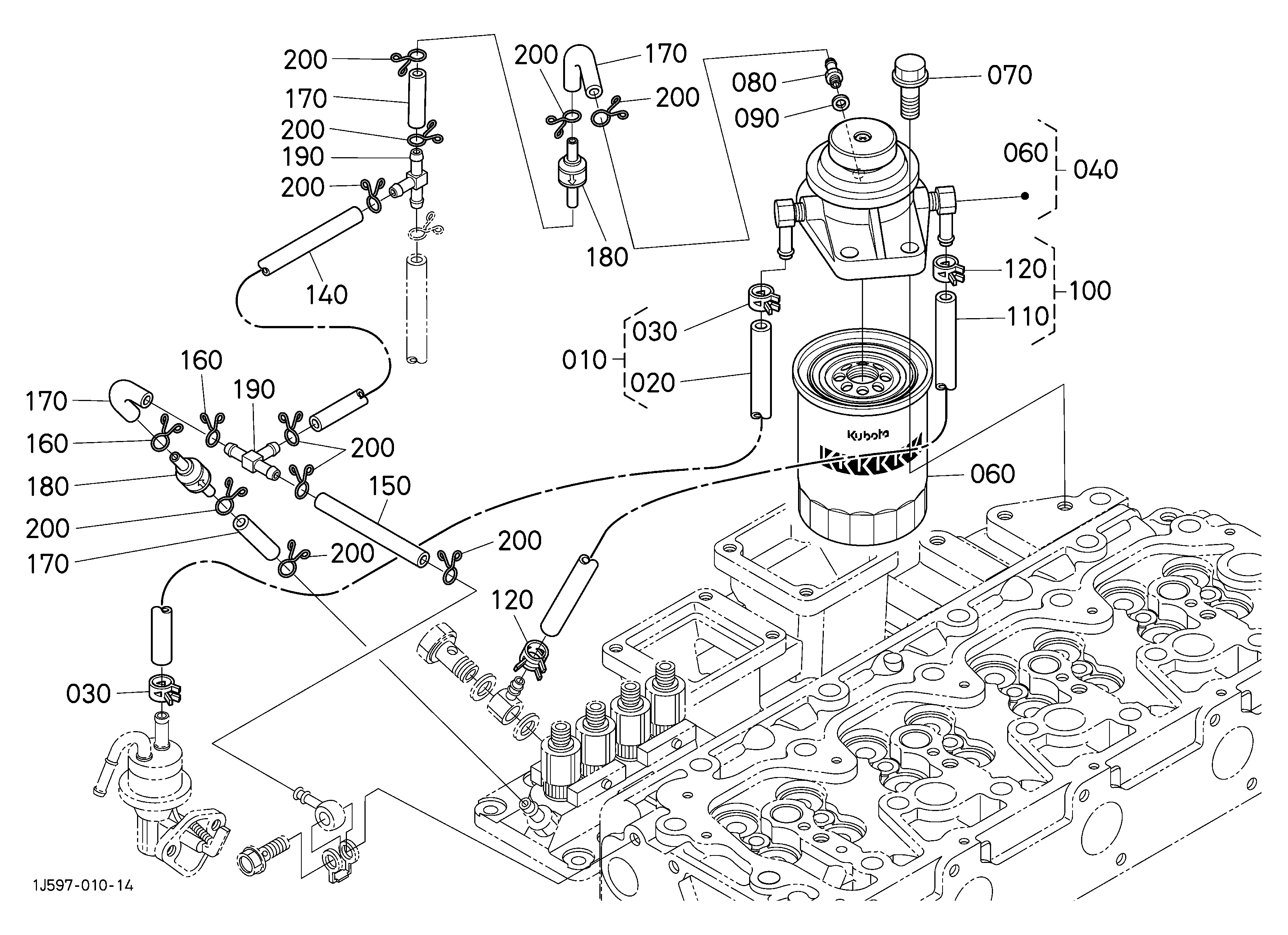

DIAG-231000-85934 231000 FUEL FILTER
View Diagram -

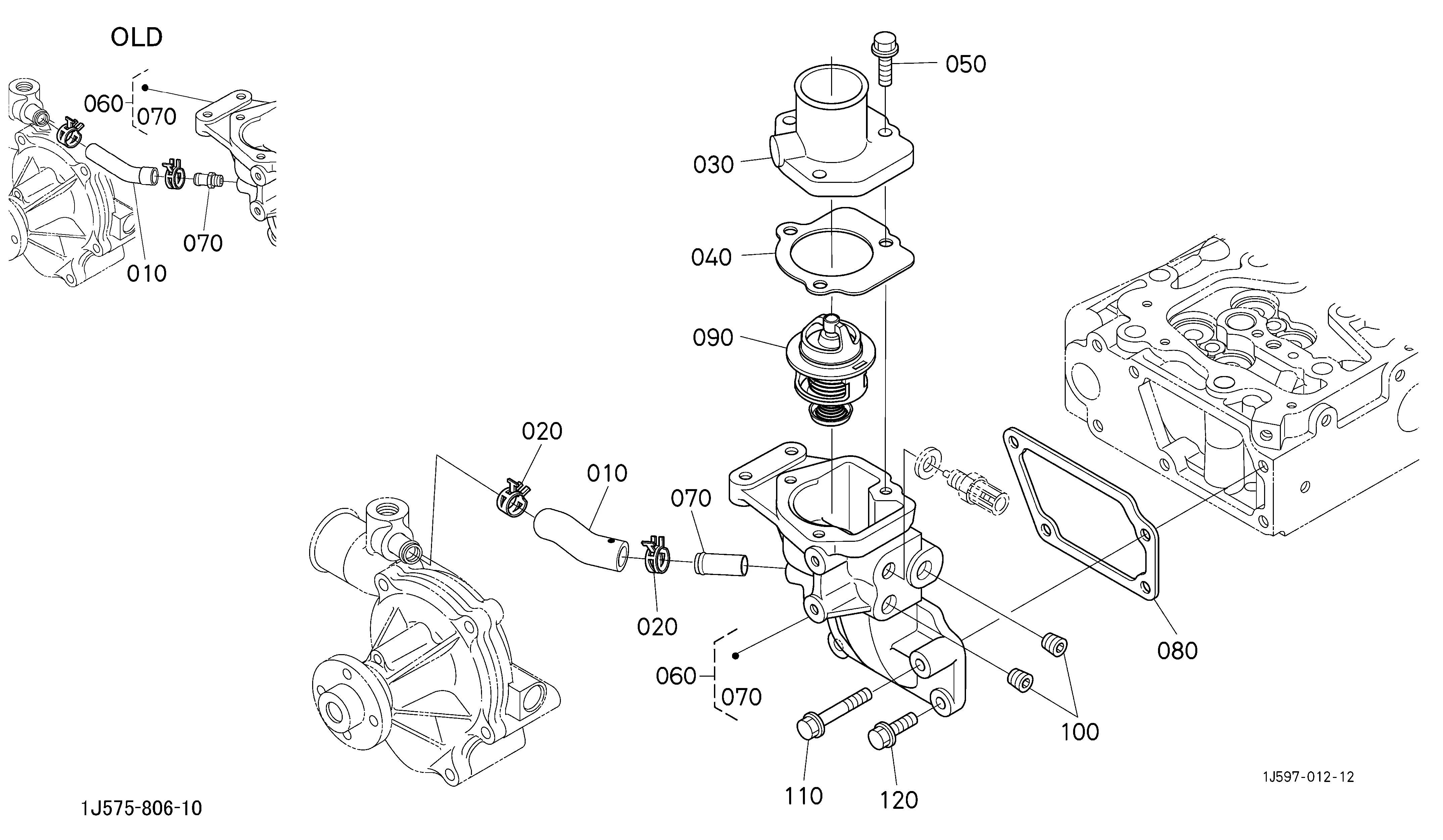

DIAG-260000-85934 260000 WATER FLANGE AND THERMOSTAT
View Diagram -

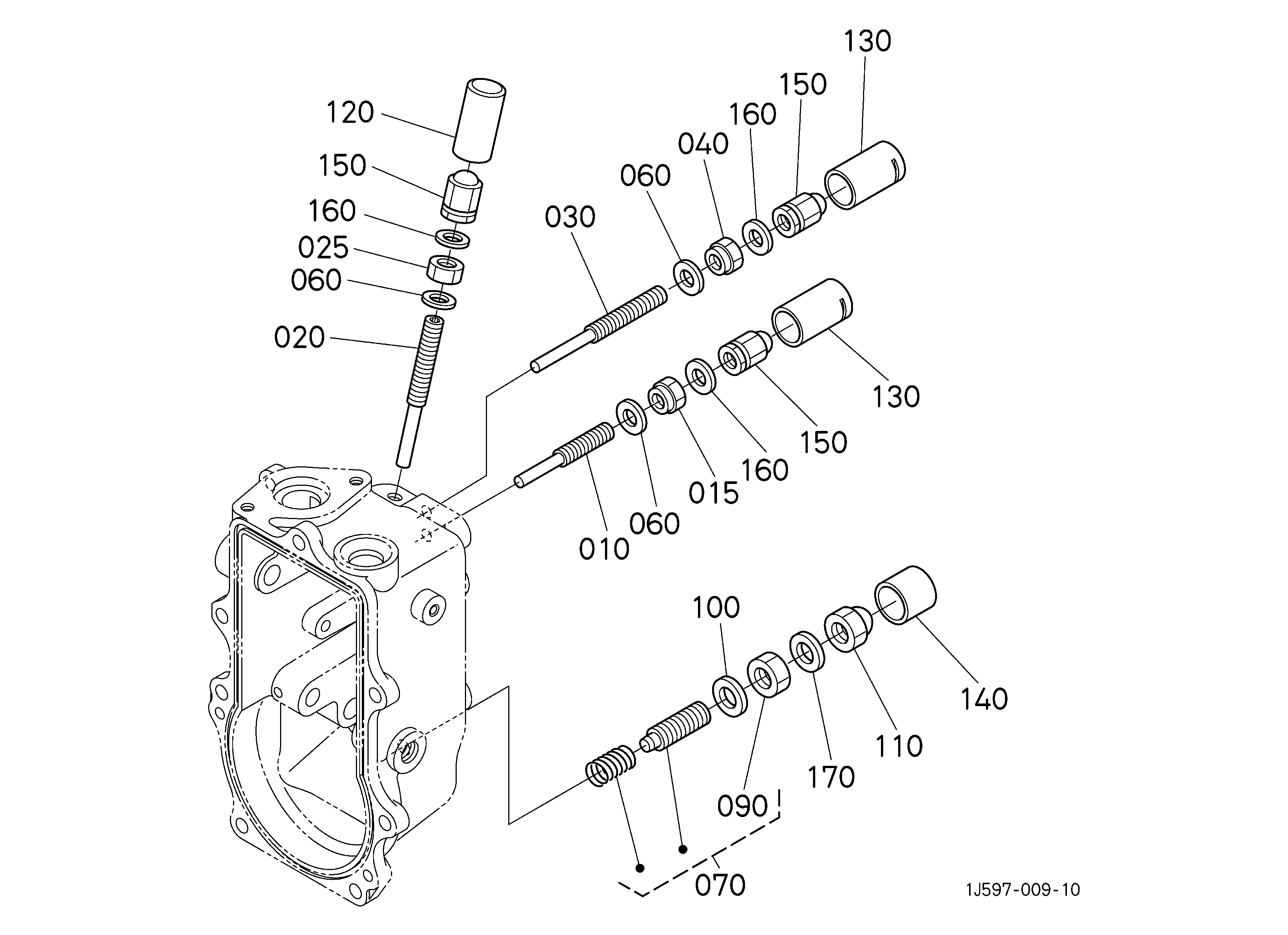

DIAG-225000-85934 225000 GOVERNOR ADJUSTING BOLT
View Diagram
