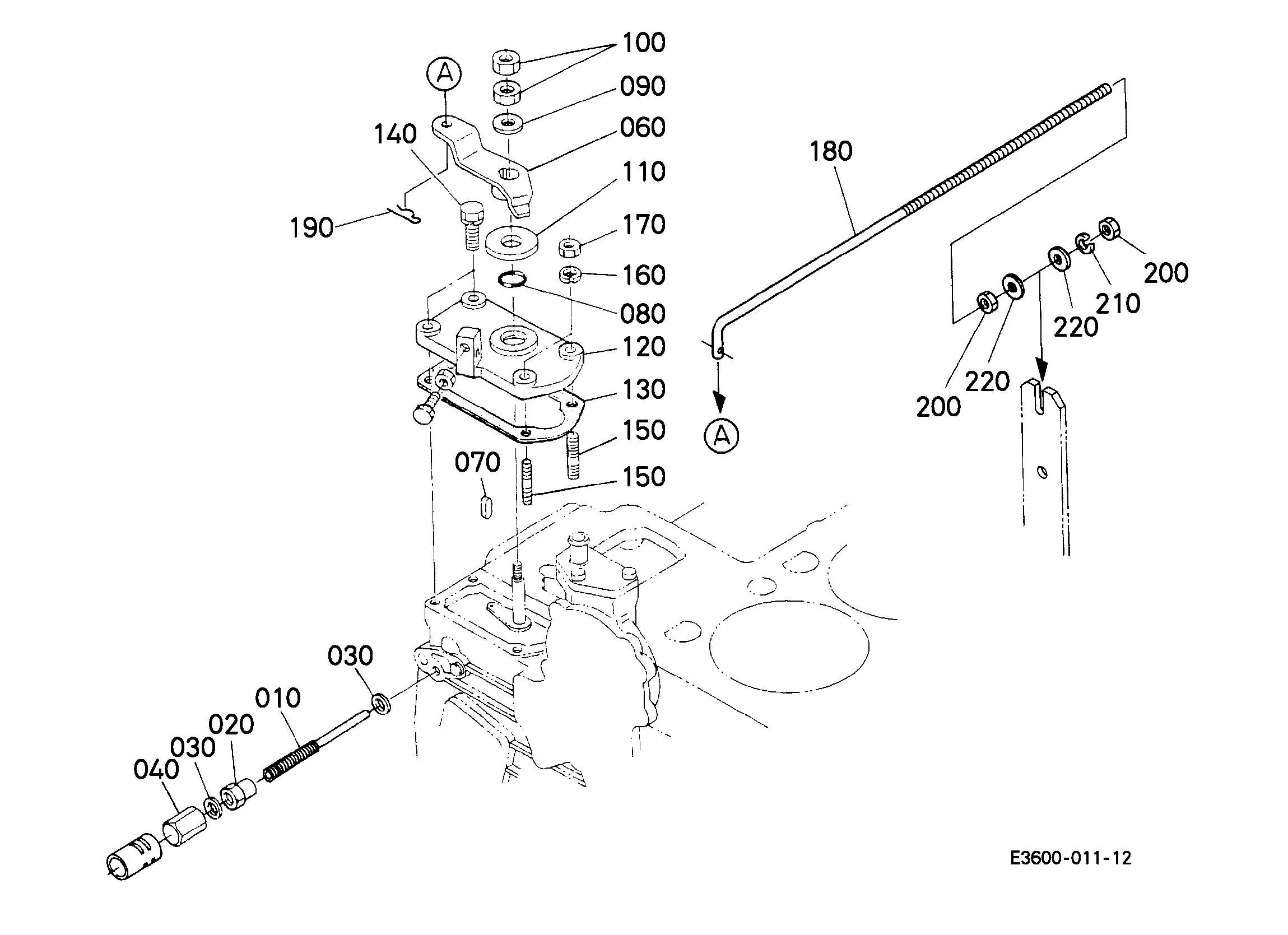

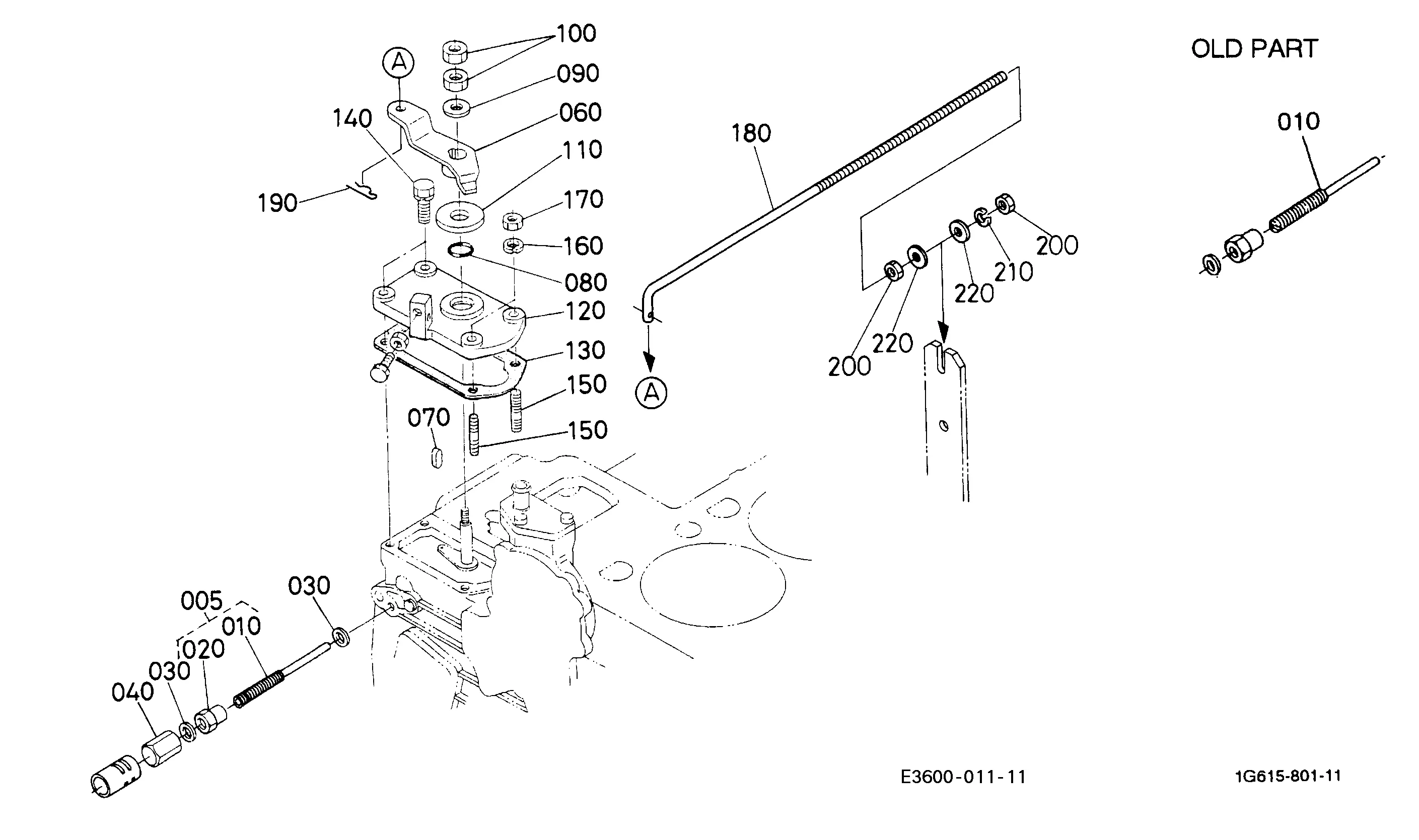

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIPE, OVERFLOW 16484-42500 16484-42502 | 1 | $73.45 | |||
| 020 | TUBE, FUEL ASSY 17331-42500 32751-42630 | 1 | $14.43 | |||
| 030 | Pipe Clip 14971-42751 14971-42750 | 1 | $1.88 | |||
| 040 | CLIP 15271-42710 | 1 | $1.45 | |||
| 060 | replaces #16454-53900 KIT HOLDER NOZZLE 16454-53900 16454-53905 | 1 | $294.76 | |||
| 070 | PIECE, NOZZLE 16454-53610 | 1 | $134.45 | |||
| 080 | Copper Gasket for Nozzle Holder / Glow Plug 15841-53620 15841-53622 | 1 | $2.99 | |||
| 090 | Heat Seal for Nozzle Holder / Glow Plug Assembly 19077-53650 | 1 | $9.67 | |||
| 100 | PIPE, INJECTION 16484-53710 | 1 | $65.21 | |||
| 110 | PIPE, INJECTION 16484-53720 | 1 | $69.89 | |||
| 120 | PIPE, INJECTION 16484-53730 | 1 | $69.89 | |||
| 130 | PIPE, INJECTION 16484-53740 Discontinued | 1 | $55.50 | |||
| 140 | PIPE, INJECTION 16484-53750 | 1 | $65.90 | |||
| 150 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 160 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 170 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
| 180 | Glow Plug 19077-65511 19077-65512 | 1 | $47.06 | |||
| 190 | CORD 16415-65560 1G742-65562 | 1 | $18.39 | |||
| 200 | Flange Nut 02761-50040 | 1 | $2.50 | |||
| 210 | Plain Washer 04013-60040 04013-70040 | 1 | $0.36 | |||
Showing 1 to 20 of 20 parts
