Kubota A1000-3-120-Y 140200 FRONT COVER 1/2 Parts Diagram
Exploded-view parts diagram "140200 FRONT COVER 1/2" for the Kubota A1000-3-120-Y. 23 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | FRONT COVER ASSY 18539-03122 18539-03120 Discontinued | 1 | $186.24 | |||
| 002 | PANEL 18539-03150 Discontinued | 1 | $38.03 | |||
| 003 | PLATE, PANEL 18513-03210 Discontinued | 1 | $19.49 | |||
| 004 | KNOB 18151-04330 Discontinued | 1 | $3.36 | |||
| 005 | SCREW 18151-04350 Discontinued | 1 | $1.22 | |||
| 006 | SWITCH 18151-03870 | 1 | $48.67 | |||
| 007 | SCREW 03024-50406 | 1 | $0.46 | |||
| 008 | HOLDER, FUSE 18100-03450 | 1 | $24.79 | |||
| 009 | FUSE (8A) 18107-03480 | 1 | $3.75 | |||
| 011 | FUSE (10A) 18108-03480 | 1 | $3.89 | |||
| 012 | DC SOCKET 18166-03290 Discontinued | 1 | $37.40 | |||
| 013 | PLATE, 'S' 18103-03310 18103-03300 Discontinued | 1 | $5.31 | |||
| 014 | PLATE 18103-02850 | 1 | $3.04 | |||
| 015 | OUTLET 18151-03250 Discontinued | 1 | $17.24 | |||
| 016 | SCREW, W/WASHER 03024-50410 | 1 | $0.46 | |||
| 017 | Hardware Nut 32530-19290 02054-50040 | 1 | $0.36 | |||
| 018 | INDICATOR ASSY. 18513-03770 Discontinued | 1 | $71.72 | |||
| 019 | SCREW, W/WASHER 03024-50420 | 1 | $0.26 | |||
| 020 | TERMINAL, CORD 1 18152-03730 Discontinued | 1 | $3.83 | |||
| 021 | TERMINAL, CORD 2 18152-03740 Discontinued | 1 | $3.83 | |||
| 022 | COUPLER ASSY. 18152-04140 Discontinued | 1 | $14.31 | |||
| 023 | SCREW, W/WASHER 03057-50510 Discontinued | 1 | $0.28 | |||
| 024 | LABEL 18539-09010 Discontinued | 1 | $8.89 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

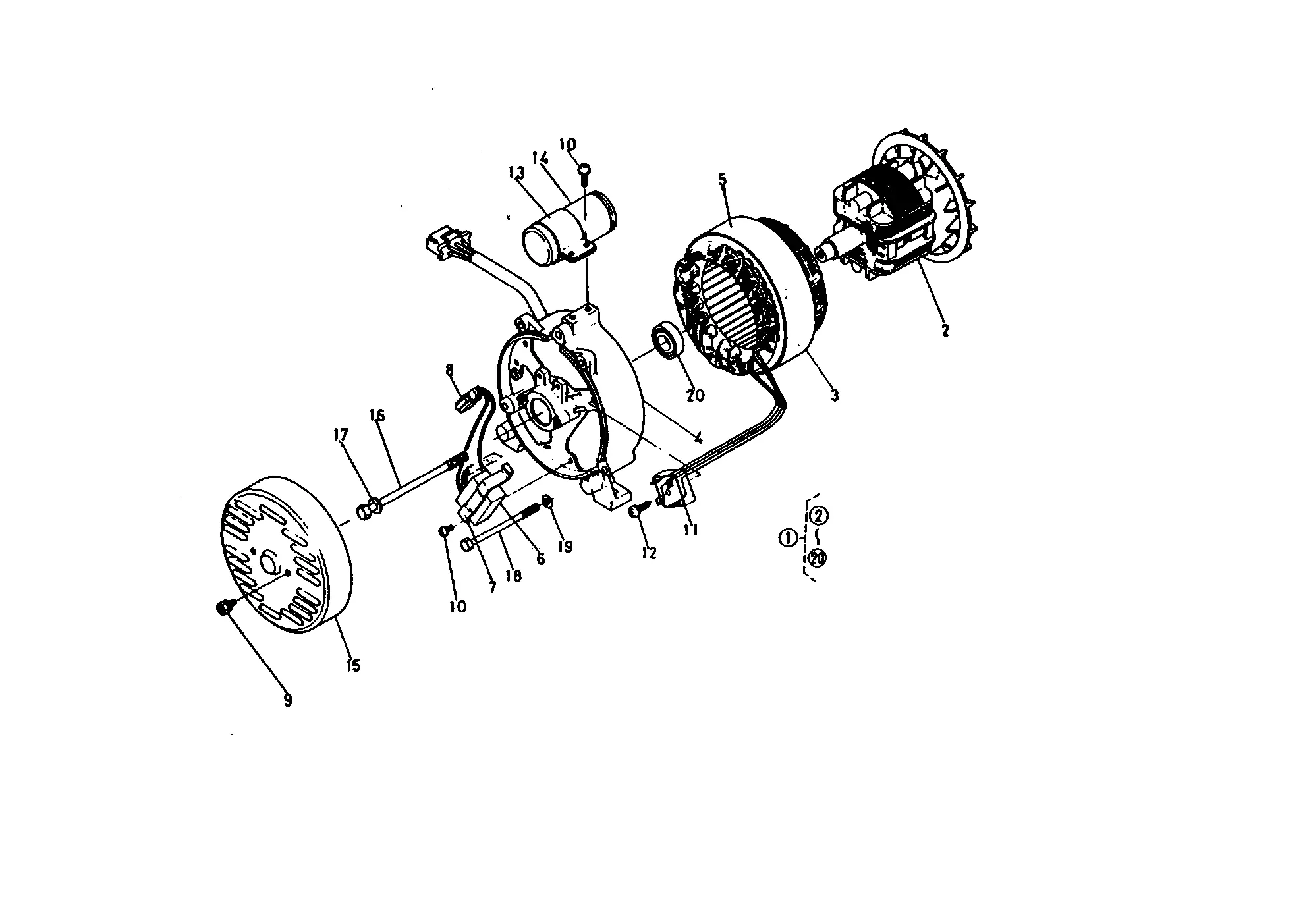

DIAG-130000-84364 130000 GENERATOR
View Diagram -

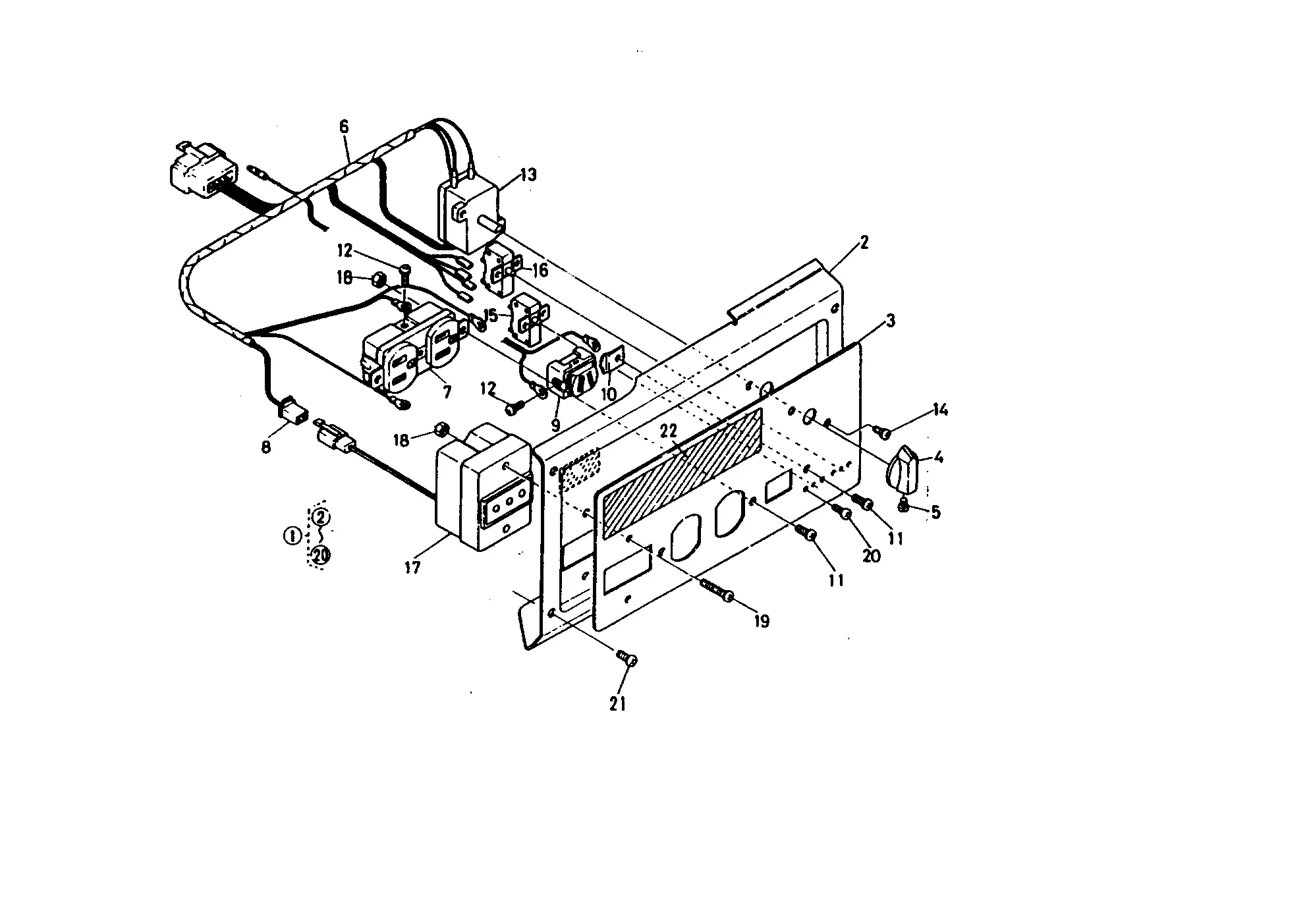

DIAG-140300-84364 140300 FRONT COVER 2/2
View Diagram -

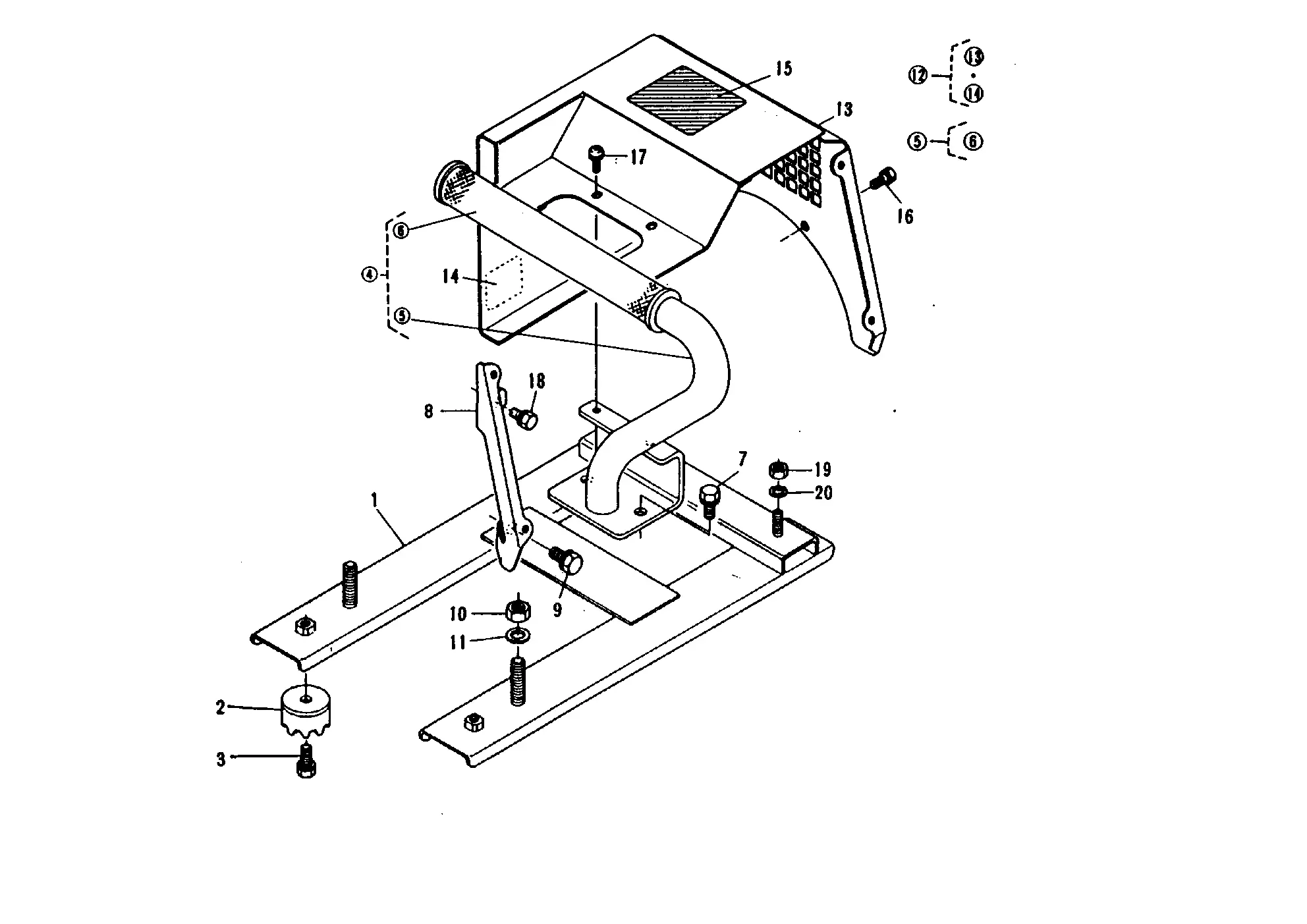

DIAG-120000-84364 120000 ENGINE FRAME
