Kubota L260P 130000 TRANSMISSION (3) Parts Diagram

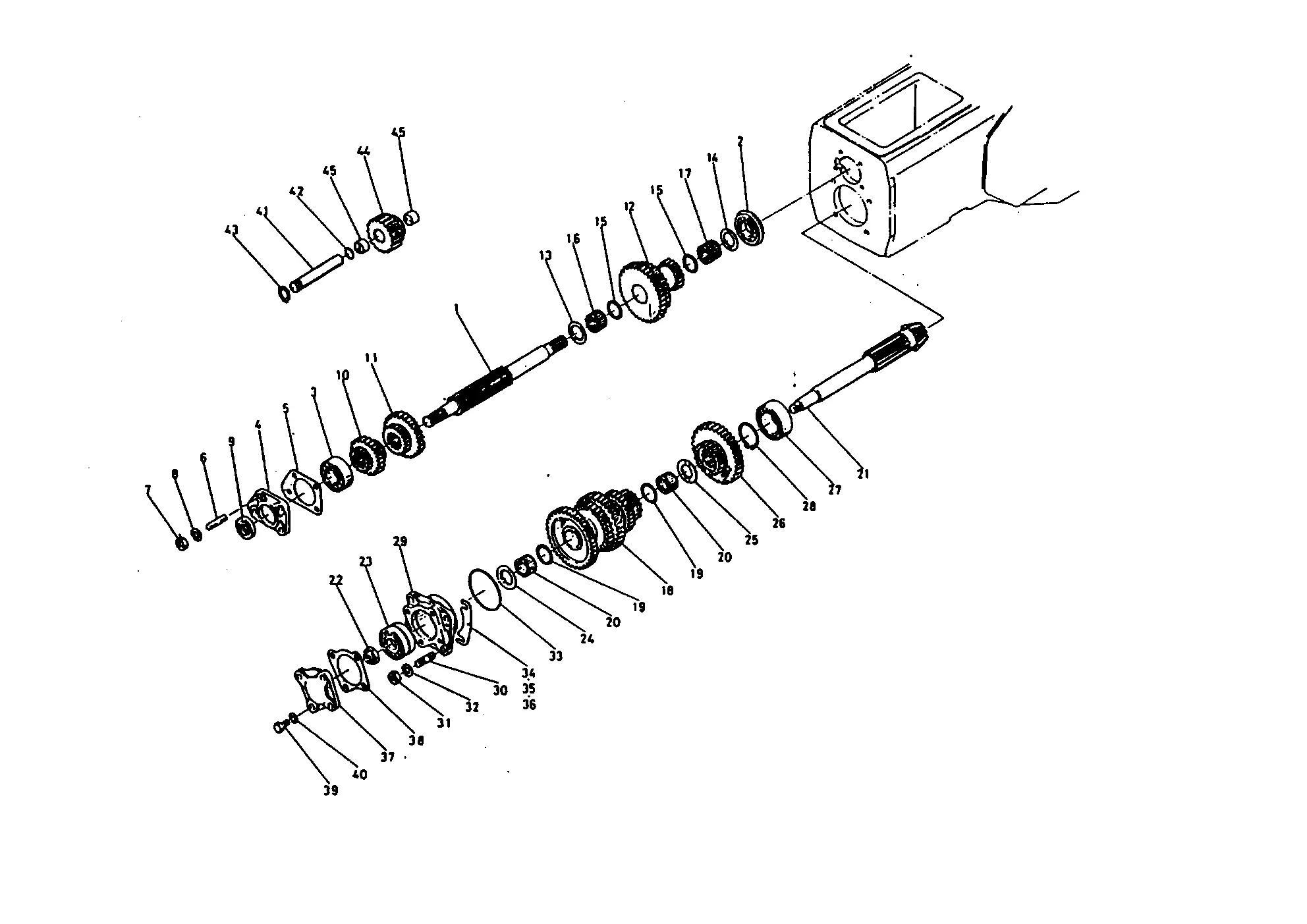

Exploded-view parts diagram "130000 TRANSMISSION (3)" for the Kubota L260P. 27 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 002 | BOLT 32350-26250 Discontinued | 1 | $6.00 | |||
| 003 | STOPPER 32350-26270 Discontinued | 1 | $10.61 | |||
| 004 | PIN STRAIGHT 32350-26280 Discontinued | 1 | $14.87 | |||
| 011 | PIN LOCK 32350-26472 Discontinued | 1 | $20.09 | |||
| 015 | SHIM - 0.5MM 32240-26150 Discontinued | 1 | $2.64 | |||
| 016 | SHIM - 0.2MM 32240-26160 Discontinued | 1 | $2.14 | |||
| 017 | SHIM - 0.1MM 32240-26170 Discontinued | 1 | $2.64 | |||
| 018 | BEARING TAPER RO 08711-30210 | 1 | $56.05 | |||
| 019 | BEARING TAPER RO 08711-30212 | 1 | $73.12 | |||
| 022 | STOPPER 32240-26590 Discontinued | 1 | $3.36 | |||
| 023 | STUD 01515-51022 | 1 | $1.86 | |||
| 024 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 025 | FORK ROD 32240-26620 Discontinued | 1 | $47.14 | |||
| 026 | FORK SHIFT*** 32350-26630 Discontinued | 1 | $79.80 | |||
| 027 | SPRING DIF LOCK* 31220-26640 Discontinued | 1 | $14.60 | |||
| 028 | O-Ring Seal 04811-00180 04816-00180 | 1 | $2.01 | |||
| 029 | PLUG 32240-26640 | 1 | $16.26 | |||
| 030 | PACKING 32210-26890 04715-00400 | 1 | $1.59 | |||
| 032 | SHAFT,DIFF LOCK 31220-26660 Discontinued | 1 | $4.73 | |||
| 033 | PIN SPRING 05411-10330 | 1 | $1.01 | |||
| 034 | PEDAL HOLDER 32240-26670 Discontinued | 1 | $19.23 | |||
| 035 | BOLT 01170-51020 01173-51020 | 1 | $1.21 | |||
| 036 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 037 | M10 x 30 Bolt 01170-51030 01173-51030 | 1 | $1.77 | |||
| 038 | Nut 02172-50100 02116-50100 | 1 | $0.36 | |||
| 040 | WASHER 32350-26490 Discontinued | 1 | $20.09 | |||
| 041 | BOLT 01150-51025 01153-51025 | 1 | $1.31 | |||
Showing 1 to 27 of 27 parts
