Kubota A2100-3-120-B 110000 FUEL TANK Parts Diagram
Exploded-view parts diagram "110000 FUEL TANK" for the Kubota A2100-3-120-B. 21 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | FUEL TANK ASSY 13333-41010 13333-41012 Discontinued | 1 | $718.79 | |||
| 003 | GAS CAP 13871-41260 | 1 | $38.66 | |||
| 004 | LABEL 13871-41340 | 1 | $14.18 | |||
| 004 | SCREEN, FILLER 13871-41350 | 1 | $14.43 | |||
| 006 | FUEL GAUGE 13871-41710 | 1 | $4.63 | |||
| 007 | PIPE, BAND 13871-41770 | 1 | $0.81 | |||
| 008 | LABEL 18501-87210 13333-88212 | 1 | $8.96 | |||
| 009 | BOLT 13641-74520 | 1 | $1.01 | |||
| 010 | PIPE, FUEL 1 13871-42170 | 1 | $4.62 | |||
| 011 | FUEL PIPE 13951-42180 | 1 | $1.48 | |||
| 012 | CLIP, PIPE 13621-42360 12191-42360 | 1 | $0.76 | |||
| 014 | FILTER BODY ASSY 13871-43110 Discontinued | 1 | $12.49 | |||
| 015 | FILTER POT53ERRO 13901-43130 Discontinued | 1 | $9.87 | |||
| 016 | GASKET 13901-43140 | 1 | $6.41 | |||
| 017 | RING, RETAINER 13641-43150 | 1 | $12.52 | |||
| 018 | FILTER, FUEL 13641-43160 13621-43160 | 1 | $1.69 | |||
| 019 | BOLT ***** 01020-50614 | 1 | $1.34 | |||
| 022 | LABEL 13197-87210 Discontinued | 1 | $1.25 | |||
| 023 | LABEL 18106-09650 | 1 | $10.43 | |||
| 024 | LABEL 13916-88710 Discontinued | 1 | $1.01 | |||
| 025 | LABEL, CAUTION 13197-87220 | 1 | $2.24 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

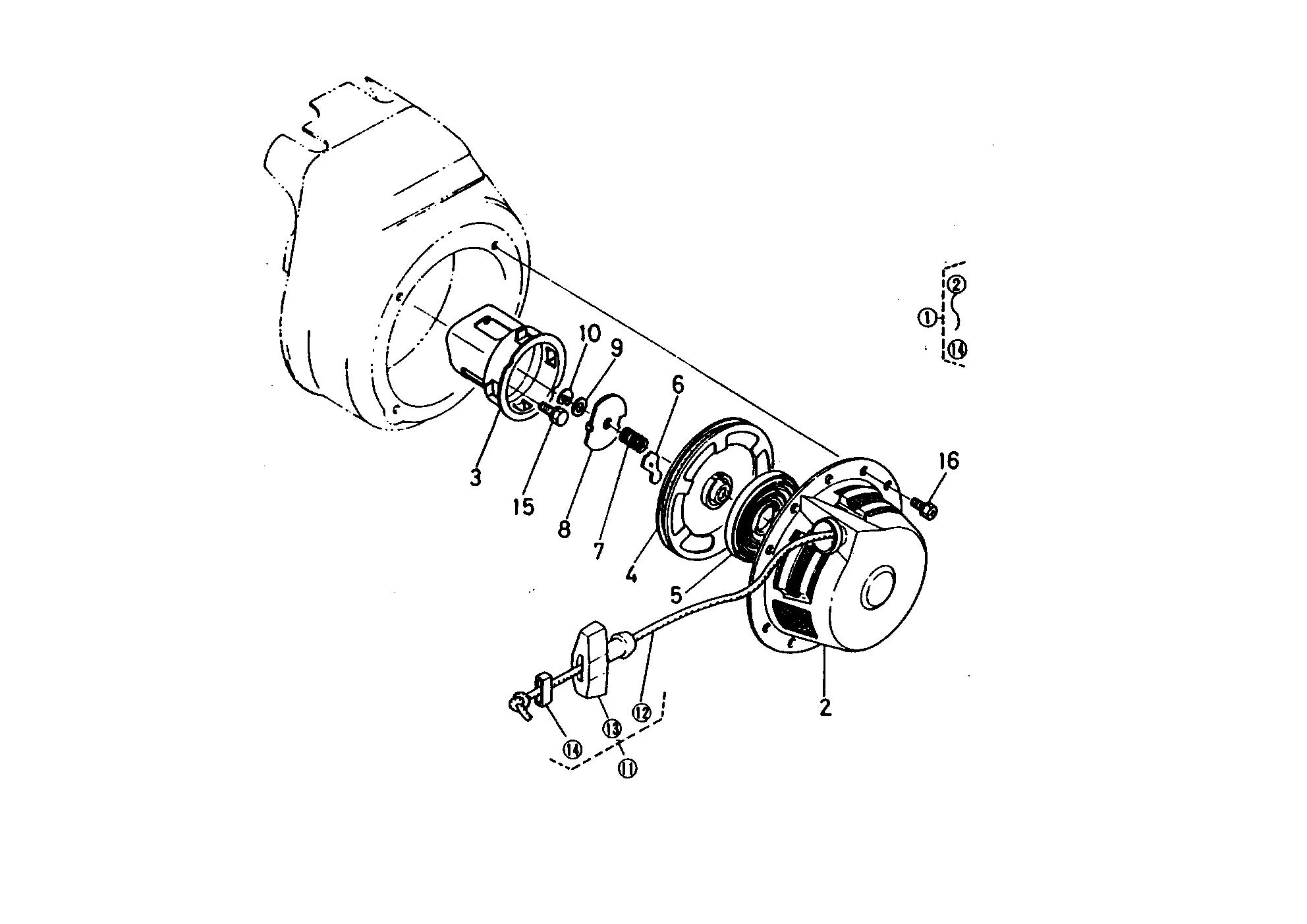

DIAG-100000-84367 100000 RECOIL STARTER
View Diagram -

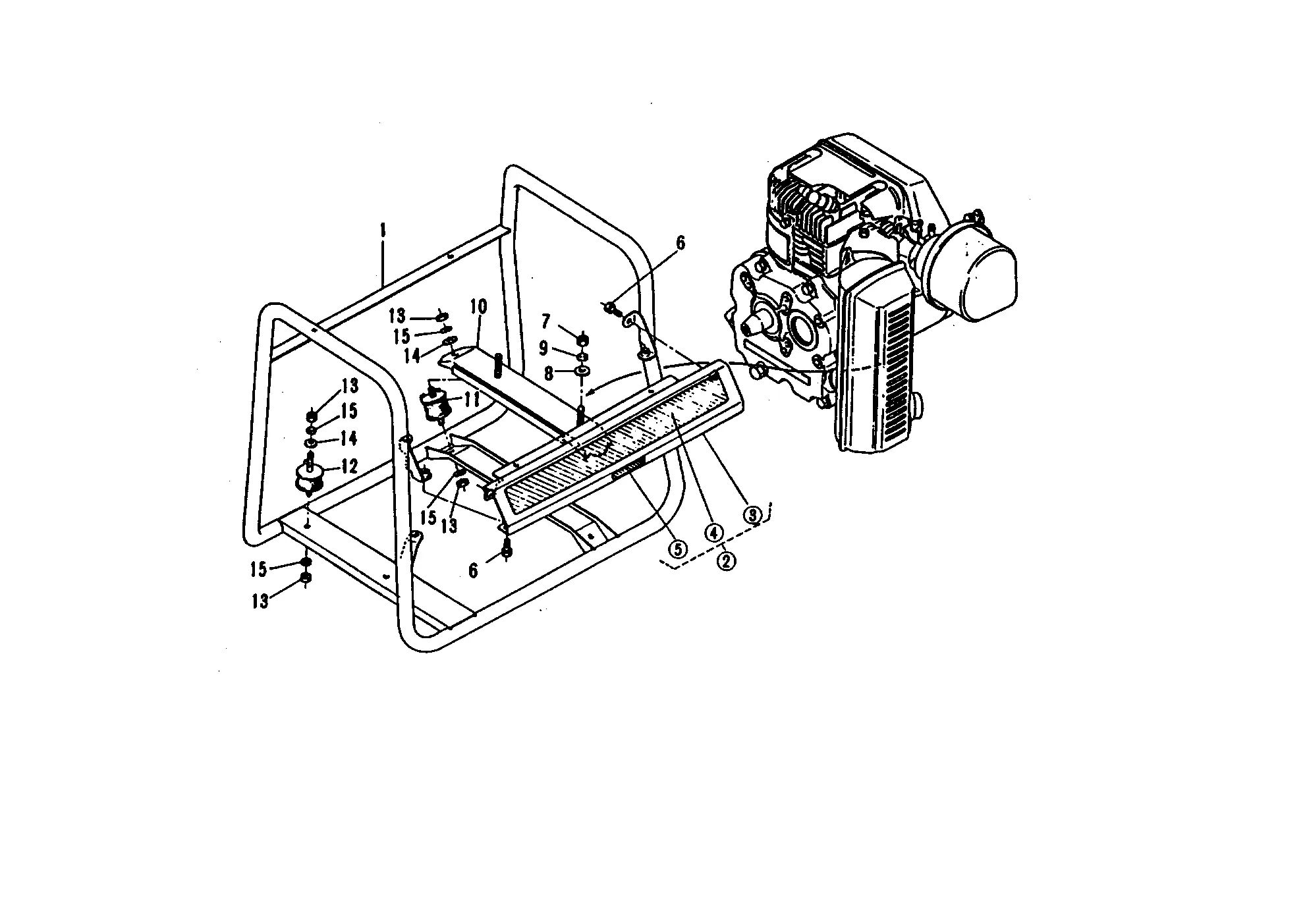

DIAG-120000-84367 120000 ENGINE FRAME
View Diagram -

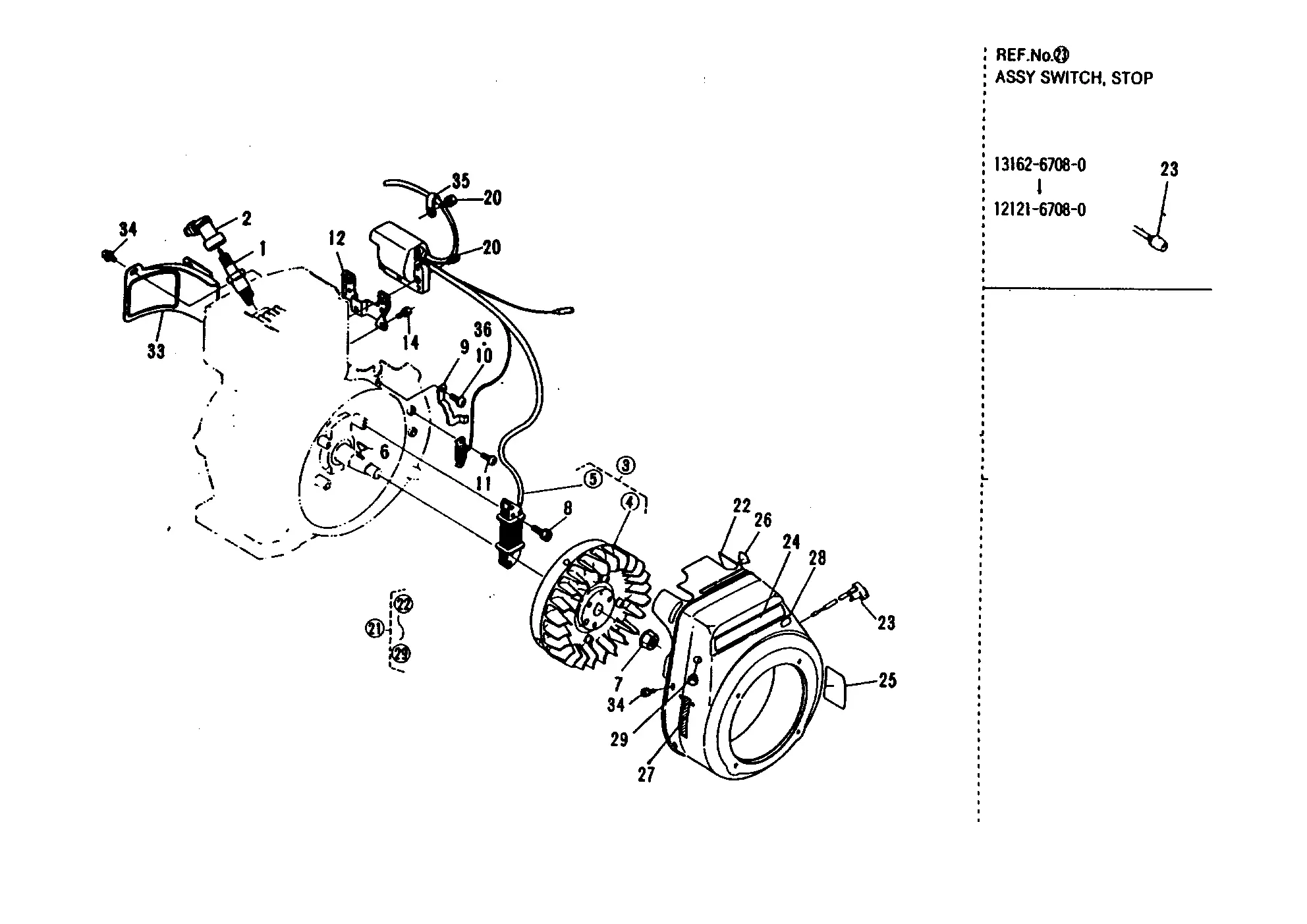

DIAG-090100-84367 090100 MAGNETO
