Kubota M4050 083000 STEP Parts Diagram
Exploded-view parts diagram "083000 STEP" for the Kubota M4050. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | STEP RH 36200-87064 36200-87068 Discontinued | 1 | $266.86 | |||
| 002 | STEP LH 36200-87078 36200-87070 | 1 | $605.19 | |||
| 003 | BOLT 01170-51020 01173-51020 | 1 | $1.21 | |||
| 004 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 005 | STEP, AUX 36200-87310 35596-87310 Discontinued | 1 | $165.27 | |||
| 008 | SCREW, PAN HEAD 03014-50820 | 1 | $0.94 | |||
| 009 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 010 | Washer 04011-50080 04012-50080 | 1 | $0.26 | |||
| 011 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 012 | RH STEP BRACKET 35420-87170 | 1 | $24.43 | |||
| 013 | LH STEP BRACKET 35420-87190 | 1 | $24.43 | |||
| 014 | Bolt 01130-51020 01133-51020 | 1 | $2.17 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

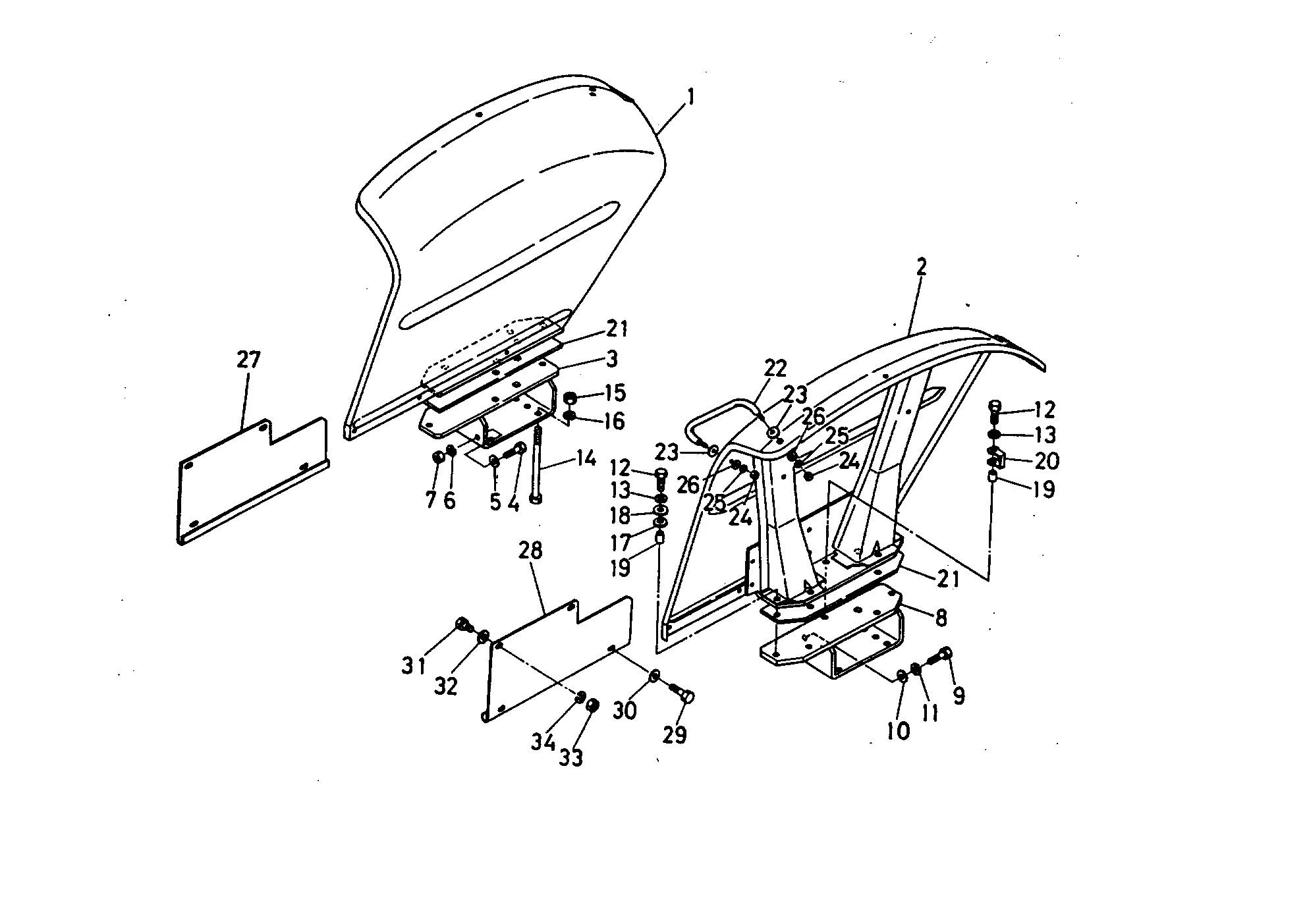

DIAG-082000-85699 082000 FENDER
View Diagram -

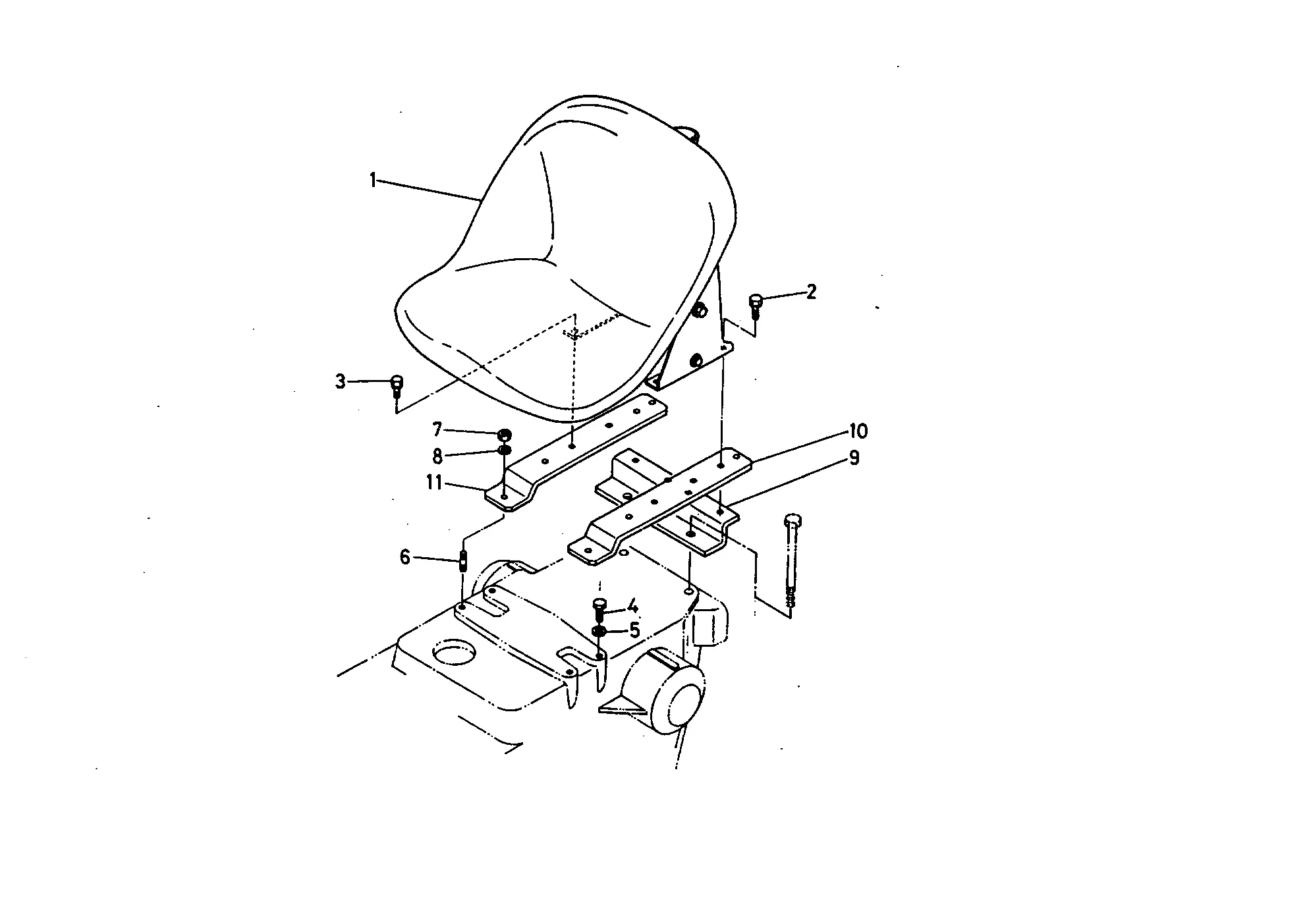

DIAG-081000-85699 081000 SEAT
