Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | TOP LINK ASSEMBL 99471-22103 99471-22100 Discontinued | 1 | $507.09 | |||
| 002 | LINK, TOP 32244-71112 32244-71110 | 1 | $107.53 | |||
| 003 | NUT 32244-71180 | 1 | $16.29 | |||
| 004 | JNT TOP LINK RH 32244-71212 32244-71210 | 1 | $139.98 | |||
| 004 | JOINT 35210-71210 | 1 | $83.91 | |||
| 005 | JOINT, LINK TOP 32244-71224 32244-71220 | 1 | $73.38 | |||
| 006 | ROD ASSY 35110-71200 Discontinued | 1 | $818.29 | |||
| 007 | Clevis Pin 37307-71360 31150-71360 | 1 | $16.79 | |||
| 008 | 3-Point Hitch Pin Set 34150-37644 34150-37640 | 1 | $8.66 | |||
| 009 | HOLDER 99571-22140 | 1 | $48.15 | |||
| 010 | HOLDER,TOP LINK LH * 99571-22150 99571-22156 | 1 | $49.68 | |||
| 011 | BOLT 01170-51225 01173-51225 | 1 | $1.99 | |||
| 012 | Spring Washer (Lock Washer) 04512-50120 | 1 | $2.57 | |||
| 013 | LINK, ASSY LOWER 99571-21310 Discontinued | 1 | $382.56 | |||
| 014 | CHAIN, CHECK 35110-71810 T2050-39712 | 1 | $43.40 | |||
| 015 | PIN 32721-65260 99571-22820 | 1 | $23.48 | |||
| 016 | Snap Pin Retaining Pin 05515-51000 | 1 | $1.51 | |||
| 017 | Plain Washer 04011-00100 04011-50100 | 1 | $0.36 | |||
| 018 | CHAIN,CHECK REAR 35110-71820 Discontinued | 1 | $80.51 | |||
| 019 | NUT 02374-50140 | 1 | $3.16 | |||
| 020 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 021 | Split Pin 05511-00335 05511-50335 | 1 | $0.26 | |||
| 022 | TURNBCKLE 99511-22840 | 1 | $55.30 | |||
| 023 | NUT 02052-50140 | 1 | $1.51 | |||
| 024 | ROD 35110-71540 | 1 | $748.84 | |||
| 025 | PIN, JOINT 05112-51450 05122-51450 | 1 | $6.69 | |||
| 026 | Washer 04011-50140 | 1 | $0.60 | |||
| 027 | Pin for 3-Point Hitch, Lift Rod, and Linkage Assemblies 05511-00425 05511-50425 | 1 | $0.41 | |||
| 028 | LIFT ROD ASSY 35110-71510 | 1 | $447.17 | |||
| 029 | ROD 35110-71523 35110-71520 | 1 | $208.57 | |||
| 030 | LIFT ARM*** 35110-71530 | 1 | $50.91 | |||
| 030 | TURNBUCKLE, LIFT 38187-71770 TA040-39350 | 1 | $79.03 | |||
| 031 | ROD*** 35110-71552 35110-71550 Discontinued | 1 | $192.61 | |||
| 032 | NUT 35110-71570 | 1 | $19.92 | |||
| 033 | COLLAR 35110-71830 35114-71830 Discontinued | 1 | $35.83 | |||
| 034 | Pin 05411-00320 | 1 | $0.60 | |||
| 034 | PIN, SPRING 05411-00422 | 1 | $0.80 | |||
| 035 | PIN, SPRING 05411-00425 | 1 | $0.80 | |||
| 036 | Nipple Fitting 06611-15675 06613-10675 | 1 | $3.54 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-
045020 FENDER [U.S.A]
View Diagram -

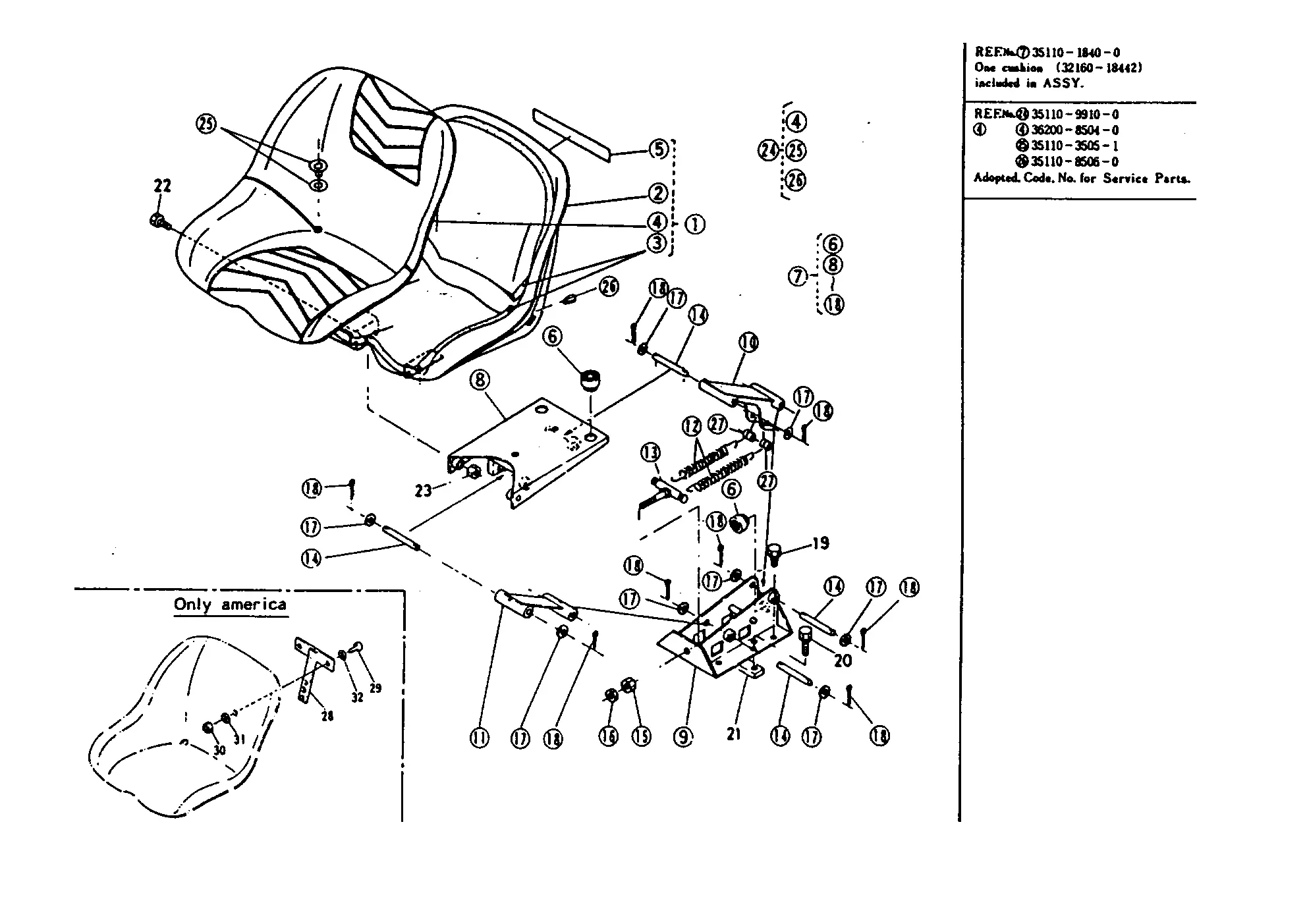

DIAG-031000-85212 031000 SEAT
View Diagram -

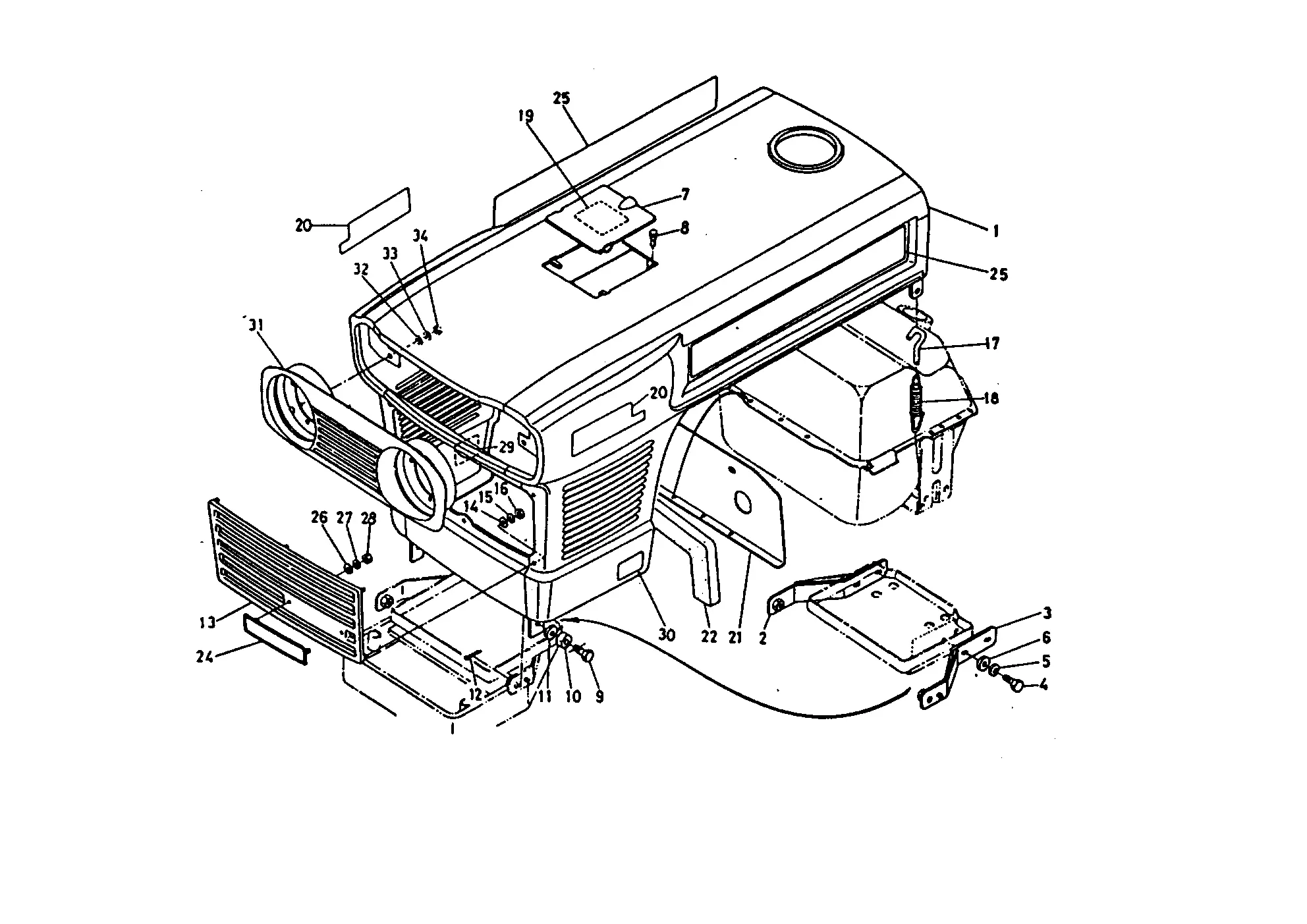

DIAG-029000-85212 029000 BONNET
View Diagram
