Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PUMP,ASSY 6C090-36304 6C090-36330 | 1 | $1,092.13 | |||
| 020 | BUSH 6A100-37232 K2063-36940 | 1 | $5.63 | |||
| 030 | PIN, STRAIGHT 16221-94530 05012-00814 | 1 | $1.31 | |||
| 040 | GEAR, COMP. 6C090-37202 | 1 | $253.15 | |||
| 050 | PLATE(SIDE) 6C140-36350 MA502-10020 | 1 | $19.32 | |||
| 060 | RING,DOUBLE 6C040-36342 6C040-36344 | 1 | $14.25 | |||
| 070 | COMP COVER 6A100-37402 6C140-37400 | 1 | $189.33 | |||
| 090 | BOLT, FLANGE 3J099-27714 01754-51030 | 1 | $5.79 | |||
| 100 | SEAL, OIL 31351-76190 31381-76390 | 1 | $15.11 | |||
| 110 | CIR-CLIP, INTERN 04611-00300 | 1 | $1.51 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-

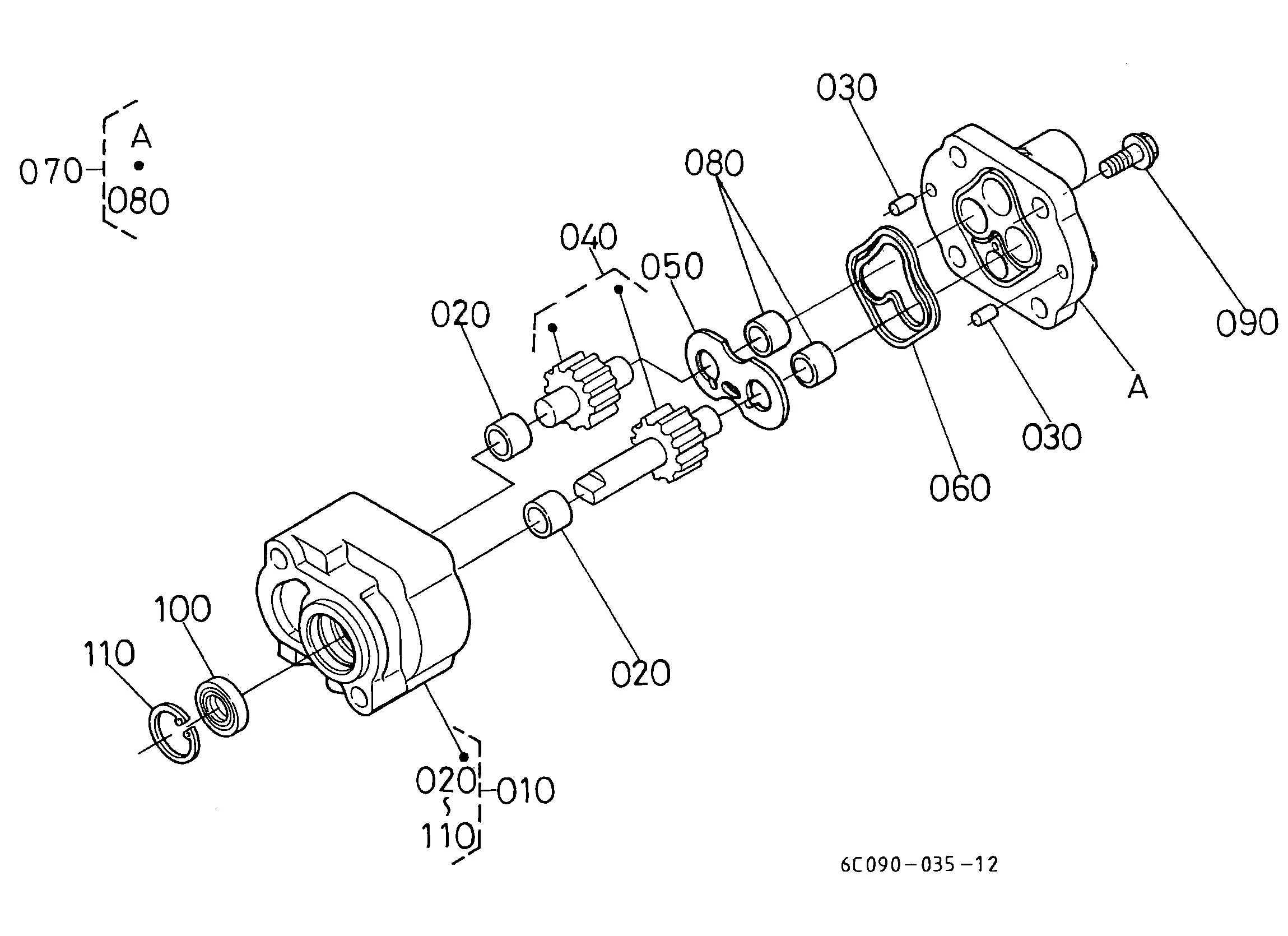

DIAG-070101-84604 070101 HYDRAULIC PUMP [COMPONENT PARTS]
View Diagram -
DIAG-090000-84604 090000 UPPER GASKET KIT
View Diagram -

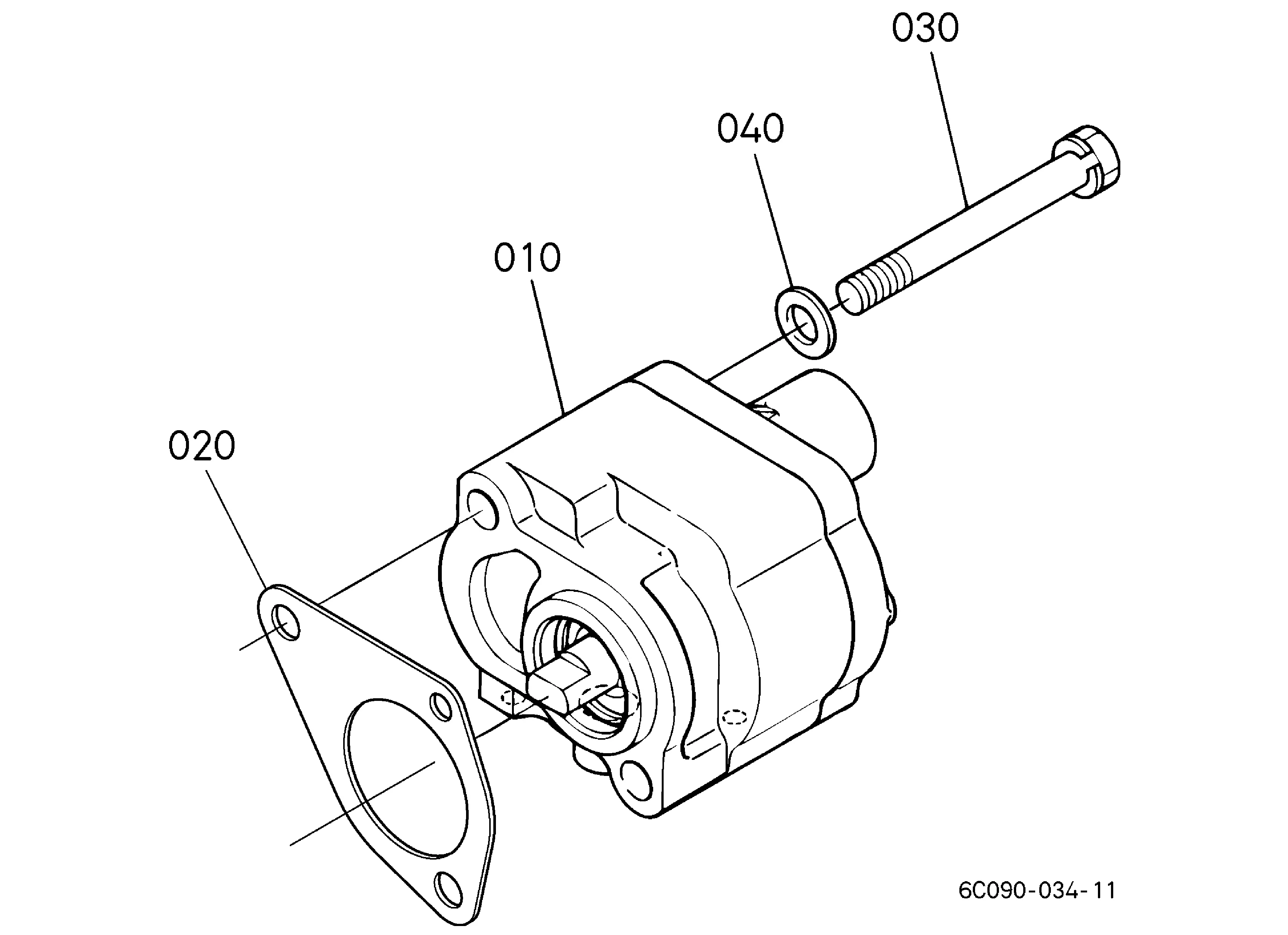

DIAG-070000-84604 070000 HYDRAULIC PUMP
View Diagram
