Scroll to zoom Click a part # to view details

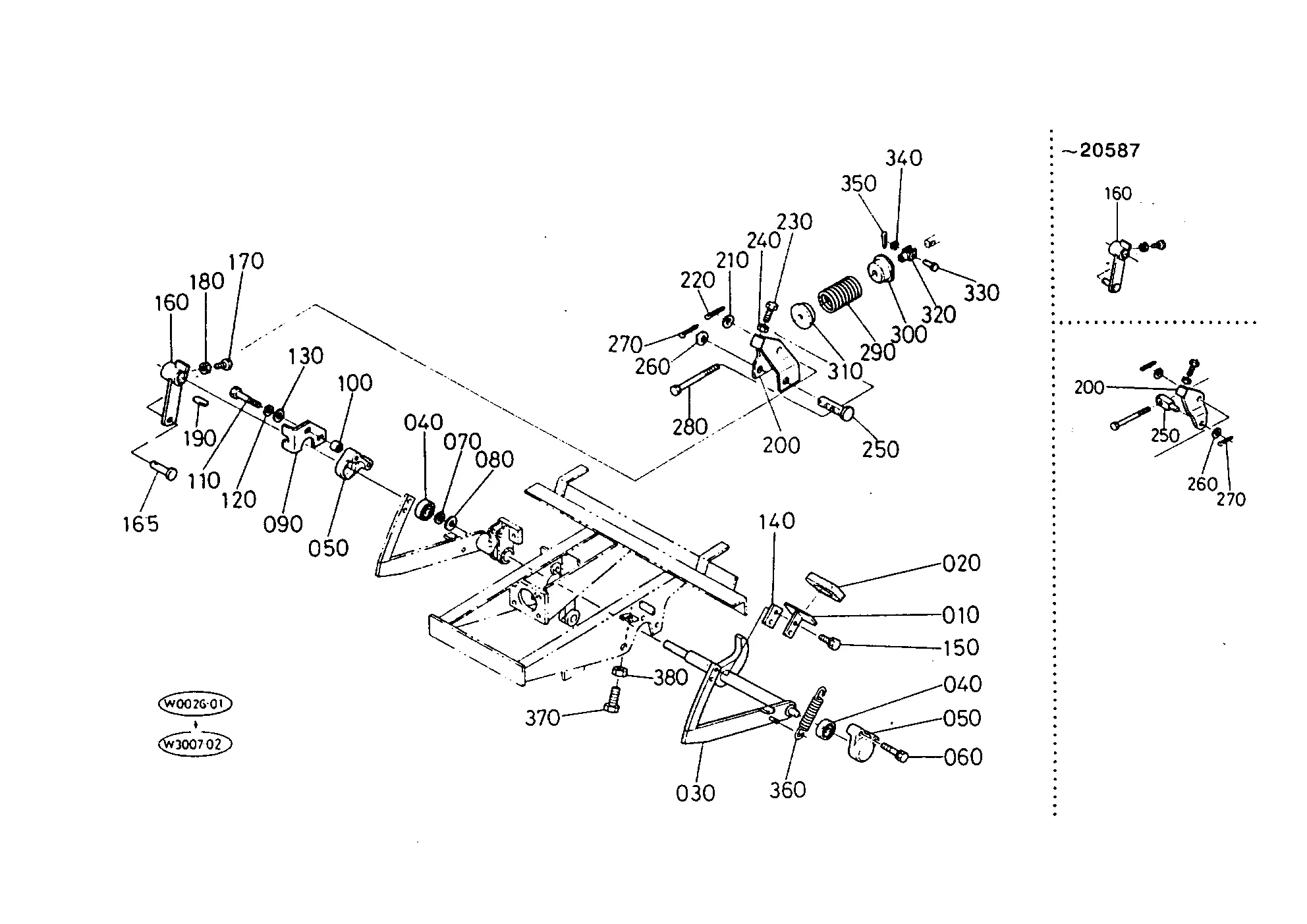

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PEDAL 68811-32110 Discontinued | 1 | $7.65 | |||
| 020 | PAD 68811-32120 | 1 | $10.57 | |||
| 030 | Bolt 01123-50816 | 1 | $1.21 | |||
| 040 | LEVER, BRAKE 68817-32130 Discontinued | 1 | $89.88 | |||
| 050 | BUSHING 08511-02515 | 1 | $5.40 | |||
| 060 | ROLLER 68811-32140 Discontinued | 1 | $13.80 | |||
| 070 | BUSH 53567-21170 08511-01015 | 1 | $3.03 | |||
| 080 | PIN, JOINT 05112-51035 05122-51035 | 1 | $3.37 | |||
| 090 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.22 | |||
| 100 | PIN, SPLIT 05511-50318 | 1 | $0.36 | |||
| 110 | BOLT 01172-51040 01175-51040 | 1 | $6.46 | |||
| 120 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 130 | ROD, PUSH 68811-32150 68811-32152 | 1 | $14.12 | |||
| 140 | Nut 02172-50100 02116-50100 | 1 | $0.14 | |||
| 150 | END, FORK 68811-32160 Discontinued | 1 | $27.64 | |||
| 180 | Joint Pin 05122-51045 05122-71045 | 1 | $4.83 | |||
| 210 | LINK 68811-32170 Discontinued | 1 | $24.13 | |||
| 220 | BUSHING 08511-01515 | 1 | $7.36 | |||
| 230 | PIN 68811-32180 Discontinued | 1 | $12.95 | |||
| 240 | BOLT, SET 65072-42140 | 1 | $15.30 | |||
| 250 | Nut Fastener W2336-07200 02114-50080 | 1 | $30.16 | |||
| 260 | SPRING 68811-32290 Discontinued | 1 | $11.11 | |||
| 270 | CYL,BRAKE MASTER 68811-32200 | 1 | $383.87 | |||
| 280 | Bolt with Washer 01120-50825 01123-50825 | 1 | $1.21 | |||
| 290 | Bolt Fastener 01150-50825 01153-50825 | 1 | $1.77 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-064000-85985 064000 BRAKE
View Diagram -
DIAG-066000-85985 066000 INCHING PEDAL
View Diagram -

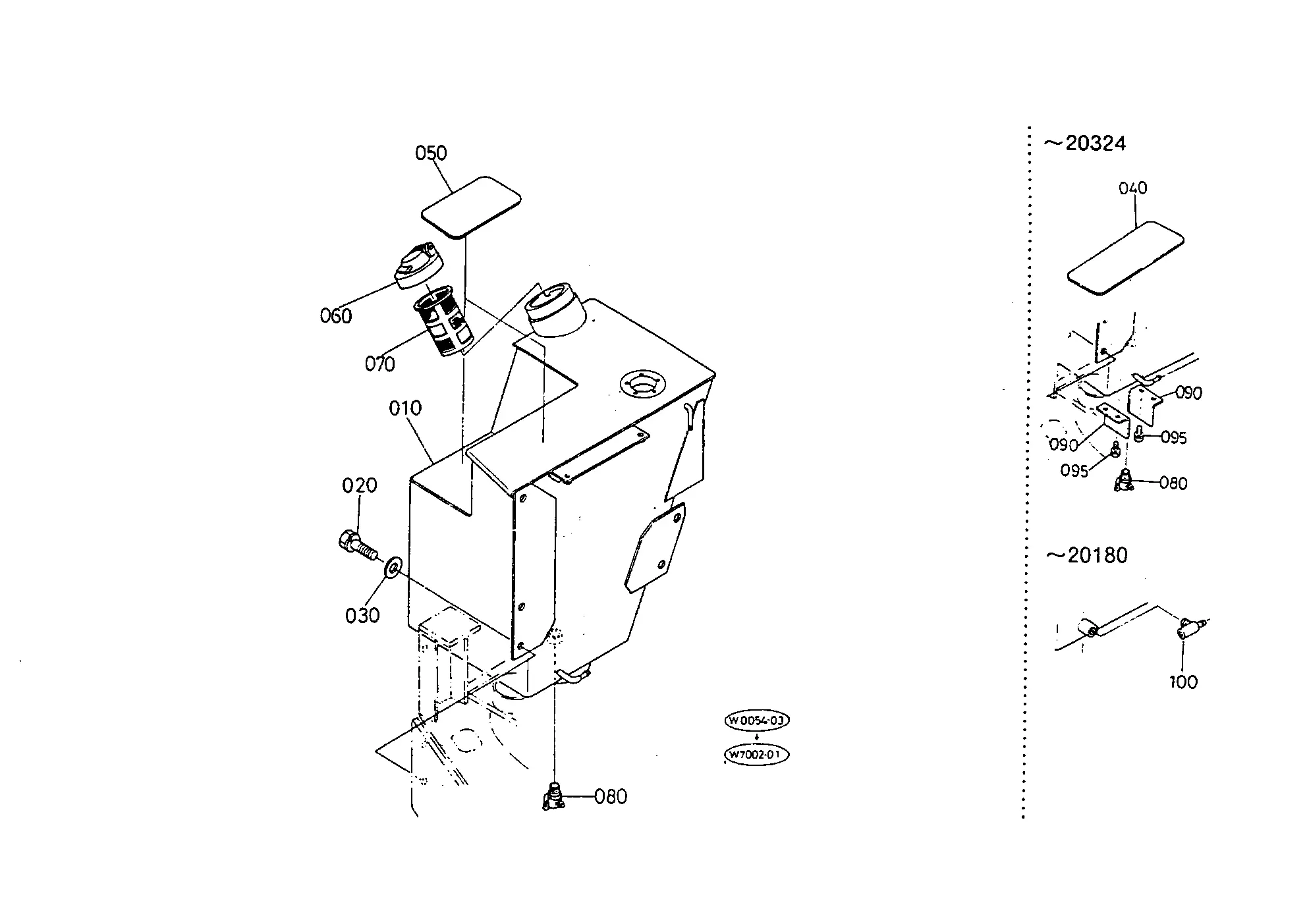

DIAG-025000-85985 025000 FUEL TANK
View Diagram
