Kubota KX121-3S 061400 AIR CLEANER Parts Diagram
Exploded-view parts diagram "061400 AIR CLEANER" for the Kubota KX121-3S. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY CLEANER, AI RD411-42200 | 1 | $544.97 | |||
| 020 | Inner Air Filter Element 1J461-11220 R2401-42280 | 1 | $27.31 | |||
| 030 | Outer Air Filter Element (Primary) TC630-93230 R1401-42270 | 1 | $37.45 | |||
| 040 | CUP, DUST** R1401-42260 | 1 | $113.81 | |||
| 050 | VALVE, DUST UNLO R1401-42290 | 1 | $46.84 | |||
| 060 | STAY, AIR CLEANE RD411-42212 | 1 | $19.95 | |||
| 070 | Bolt Fastener 01133-61020 01133-71020 | 1 | $1.99 | |||
| 080 | Bolt Fastener 01125-60816 01125-70816 | 1 | $0.99 | |||
| 090 | HOSE 2, INLET RD411-42232 | 1 | $96.52 | |||
| 100 | CLAMP HOSE 09318-89080 | 1 | $11.13 | |||
| 110 | BAND 15701-11722 | 1 | $18.11 | |||
| 120 | HOSE 1, INLET RD411-42220 | 1 | $106.20 | |||
| 140 | BAND, PIPE 15401-11720 | 1 | $7.77 | |||
| 150 | HOSE RD411-47610 | 1 | $133.50 | |||
| 150 | HOSE 3, INLET RD411-42260 | 1 | $83.59 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

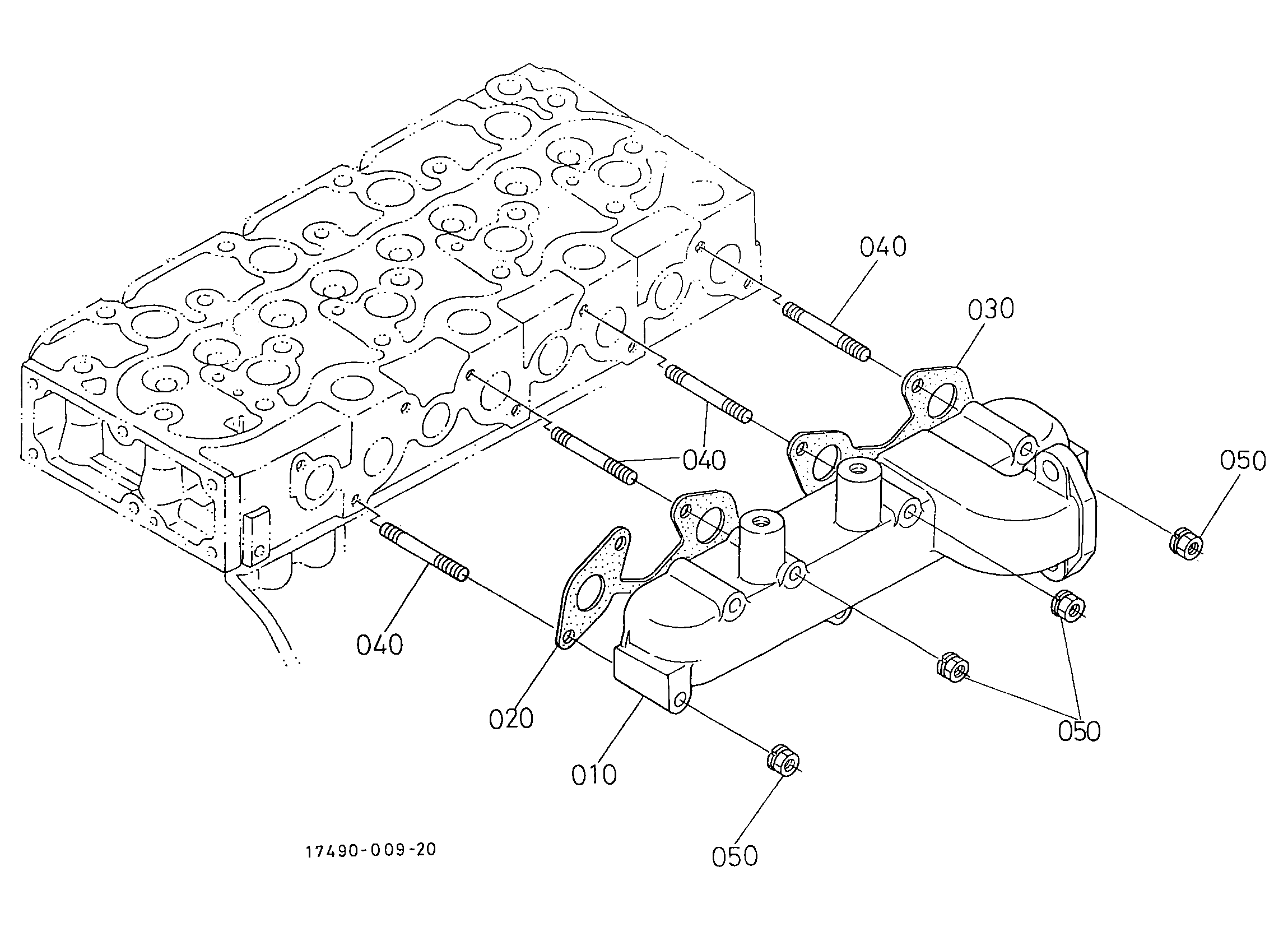

DIAG-061200-85161 061200 EXHAUST MANIFOLD
View Diagram -

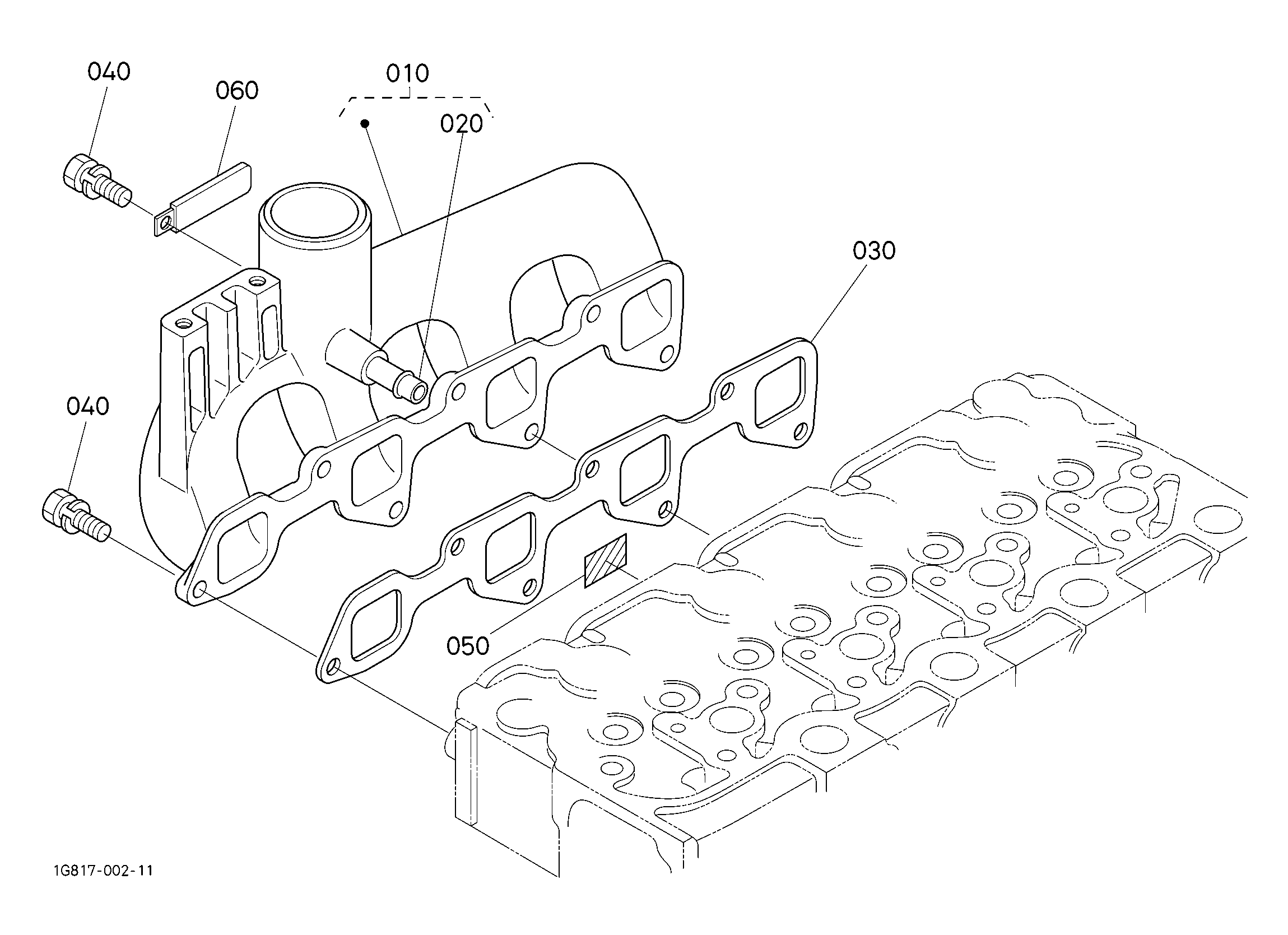

DIAG-061000-85161 061000 INLET MANIFOLD
View Diagram -

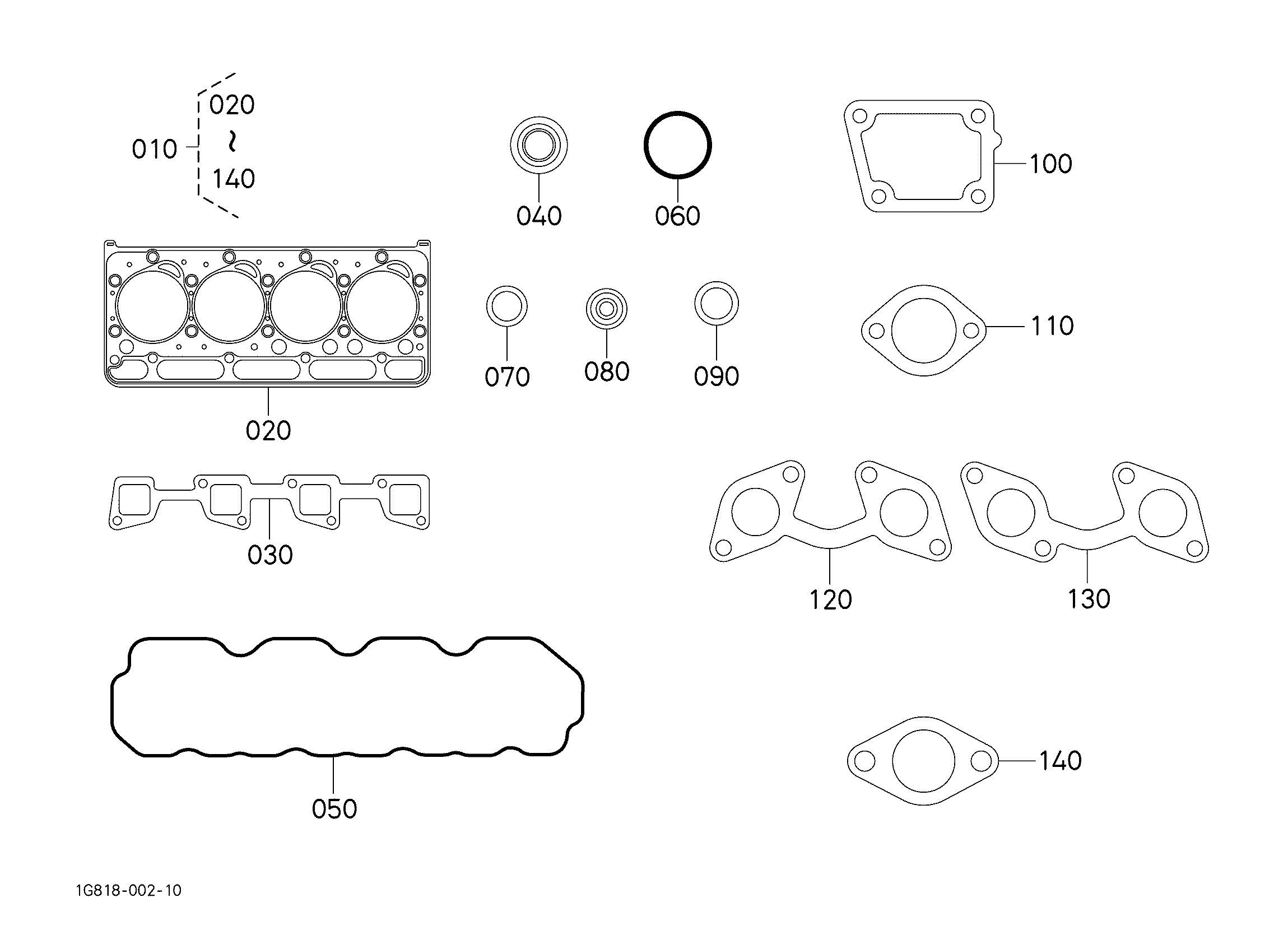

DIAG-090001-85161 090001 GASKET KIT
