Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GUIDE, VALVE (IN 16241-13541 16261-13540 | 1 | $13.27 | |||
| 020 | GUIDE,VALVE(EXHAUST) 1C010-13560 1J829-13560 | 1 | $15.76 | |||
| 030 | VALVE,INLET 1C010-13110 1C010-13115 | 1 | $33.11 | |||
| 040 | VALVE,EXHAUST 1C010-13120 1C010-13124 | 1 | $38.99 | |||
| 050 | Valve Spring 1C010-13240 | 1 | $13.26 | |||
| 060 | SPRING, VALVE 15221-13242 15221-13240 | 1 | $6.27 | |||
| 070 | Valve Spring Retainer 15261-13330 16261-13330 | 1 | $2.45 | |||
| 080 | RETAINER, VALVE 15221-13332 15221-13330 | 1 | $9.59 | |||
| 090 | Valve Collet Assembly 15261-13360 15261-13980 | 1 | $8.70 | |||
| 100 | ASSY COLLET VALV 15221-13980 | 1 | $6.88 | |||
| 110 | Valve Stem Seal 16241-13150 1C010-13150 | 1 | $8.21 | |||
| 120 | SEAL, VALVE 1C010-13160 | 1 | $8.66 | |||
| 125 | SHAFT 1C010-13480 1C010-13482 | 1 | $6.08 | |||
| 130 | ASSY SHAFT 1C010-14050 | 1 | $187.20 | |||
| 135 | SCREW, SET 03410-00808 03410-50808 | 1 | $2.54 | |||
| 140 | BRACKET 1C010-14350 | 1 | $31.11 | |||
| 150 | PIN 05411-00532 | 1 | $1.31 | |||
| 150 | PIN, SPRING 05411-00528 | 1 | $1.31 | |||
| 160 | WASHER 1C010-14430 | 1 | $2.96 | |||
| 170 | Circlip Retaining Ring (Snap Ring) 04612-10160 04612-00160 | 1 | $0.47 | |||
| 180 | SPRING 1C020-14310 | 1 | $5.99 | |||
| 190 | ARM,ROCKER,ASSY( 1C010-14020 1C040-14020 | 1 | $74.44 | |||
| 200 | SCREW 15521-14230 1G896-14230 | 1 | $1.88 | |||
| 210 | NUT 15021-14240 | 1 | $0.00 | |||
| 220 | ARM,ROCKER,ASSY( 1C010-14150 1C040-14150 | 1 | $69.11 | |||
| 250 | BOLT, FLANGE 01774-51060 | 1 | $5.94 | |||
| 260 | ARM, VALVE BURI. 1C020-13460 1C020-13463 | 1 | $61.03 | |||
| 270 | SCREW 1C010-14280 | 1 | $12.65 | |||
| 280 | NUT 16241-14240 | 1 | $2.34 | |||
| 290 | SPRING,VALVE 1C010-13490 | 1 | $11.29 | |||
| 300 | CAP, VALVE 15221-13282 15221-13280 | 1 | $3.61 | |||
| 310 | ASSY CYLINDER HEAD 1G545-03020 1G546-03025 | 1 | $1,710.70 | |||
| 310 | ASSY HEAD, CYLIN 1C010-03026 Discontinued | 1 | $2,335.16 | |||
| 310 | HEAD,CYLINDER,ASSY 1C010-03023 1C041-03020 | 1 | $1,858.47 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-

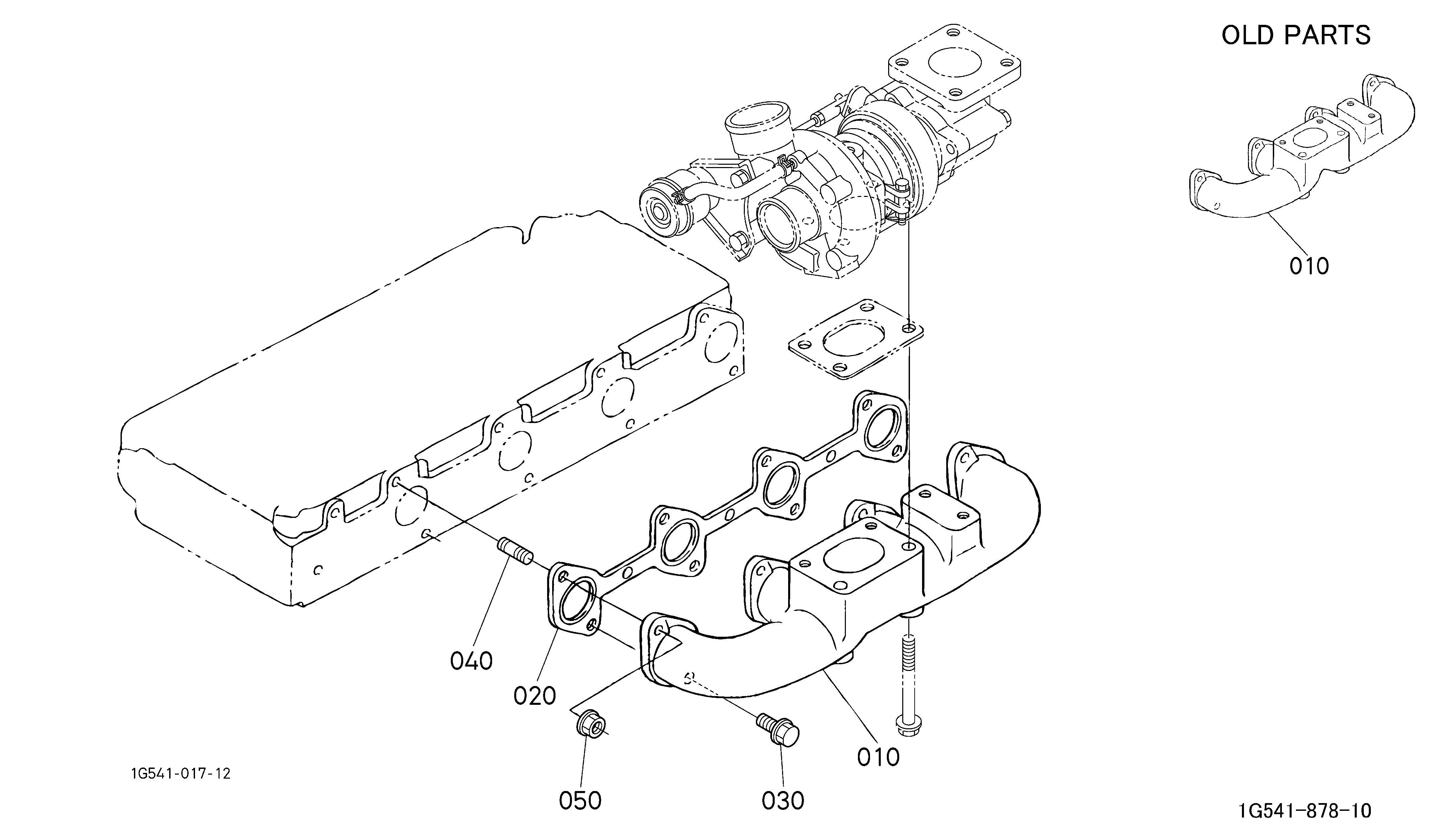

DIAG-060200-85893 060200 EXHAUST MANIFOLD
View Diagram -

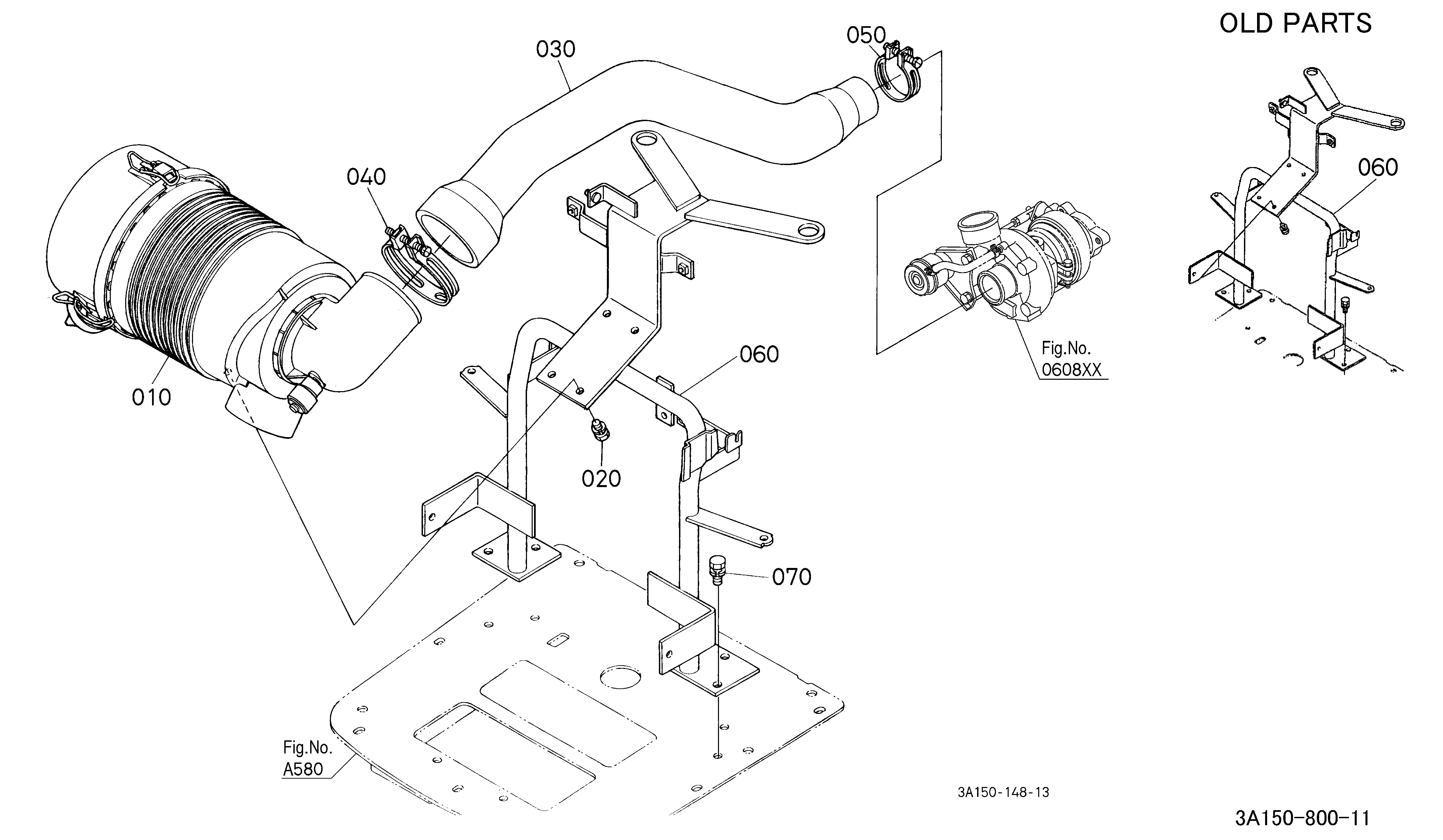

DIAG-060300-85893 060300 AIR CLEANER
View Diagram -

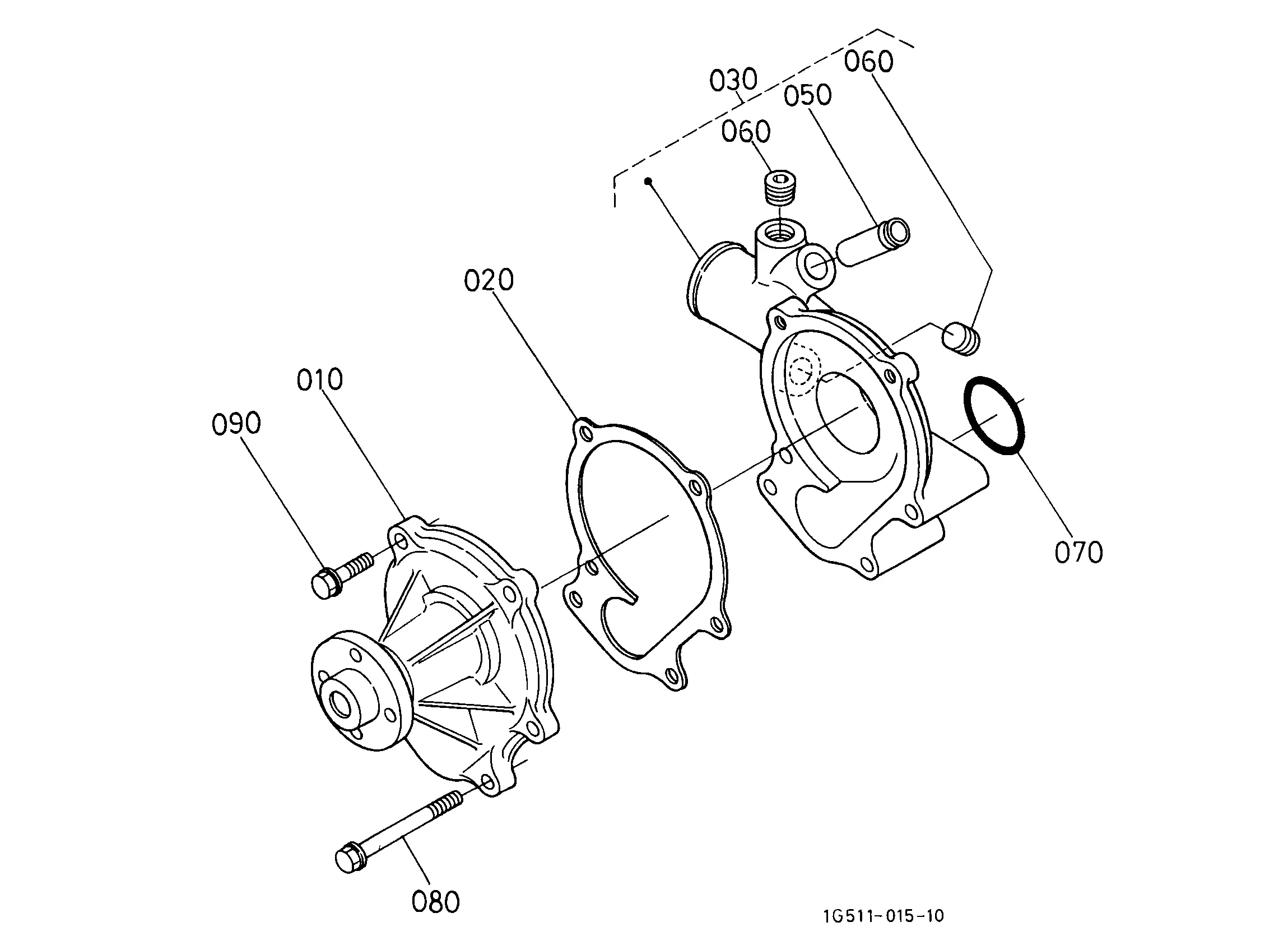

DIAG-050100-85893 050100 WATER PUMP
View Diagram
