| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT, (1G897-1311 1G896-13110 07933-00011 | 1 | $28.25 | |||
| 020 | VALVE, EXHAUST 16415-13120 16484-13120 | 1 | $41.50 | |||
| 020 | VALVE, EXHAUST 1G896-13120 1G897-13120 Discontinued | 1 | $26.11 | |||
| 030 | SPRING, VALVE 15221-13242 15221-13240 | 1 | $6.27 | |||
| 040 | RETAINER, VALVE 15221-13332 15221-13330 | 1 | $9.59 | |||
| 050 | ASSY COLLET VALV 15221-13980 | 1 | $6.88 | |||
| 060 | Valve Stem Seal 15221-13150 15221-13153 | 1 | $8.21 | |||
| 070 | CAP, VALVE 15221-13282 15221-13280 | 1 | $3.61 | |||
| 080 | SHAFT ROCKER ARM 1A091-14260 | 1 | $138.13 | |||
| 090 | BRACKET, ROCKER 15221-14350 15221-14353 | 1 | $33.89 | |||
| 100 | SPRING, ROCKER A 15221-14312 15221-14310 | 1 | $2.59 | |||
| 110 | BOLT, FLANGE 01754-50855 | 1 | $1.01 | |||
| 120 | PIN, SPRING 05411-00528 | 1 | $1.31 | |||
| 130 | WASHER, ROCKER A 15221-14430 | 1 | $1.01 | |||
| 150 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.92 | |||
| 160 | BOLT 01150-50812 01153-50812 | 1 | $0.80 | |||
| 170 | ARM, ROCKER ASSY 15601-14030 15621-14030 | 1 | $75.58 | |||
| 180 | SCREW 15521-14230 1G896-14230 | 1 | $1.88 | |||
| 190 | NUT 15021-14240 | 1 | $0.00 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

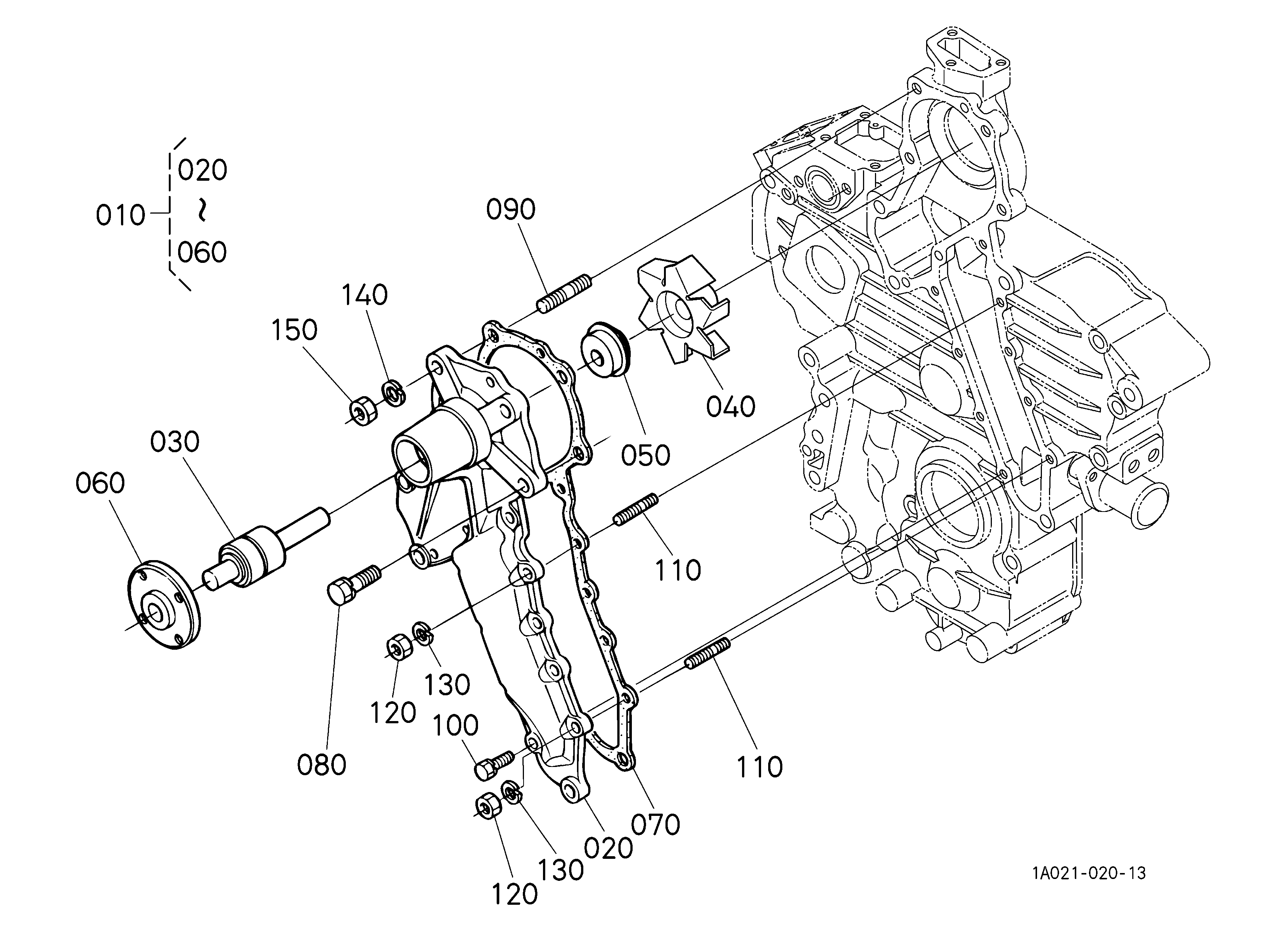

DIAG-050100-85706 050100 WATER PUMP
View Diagram -

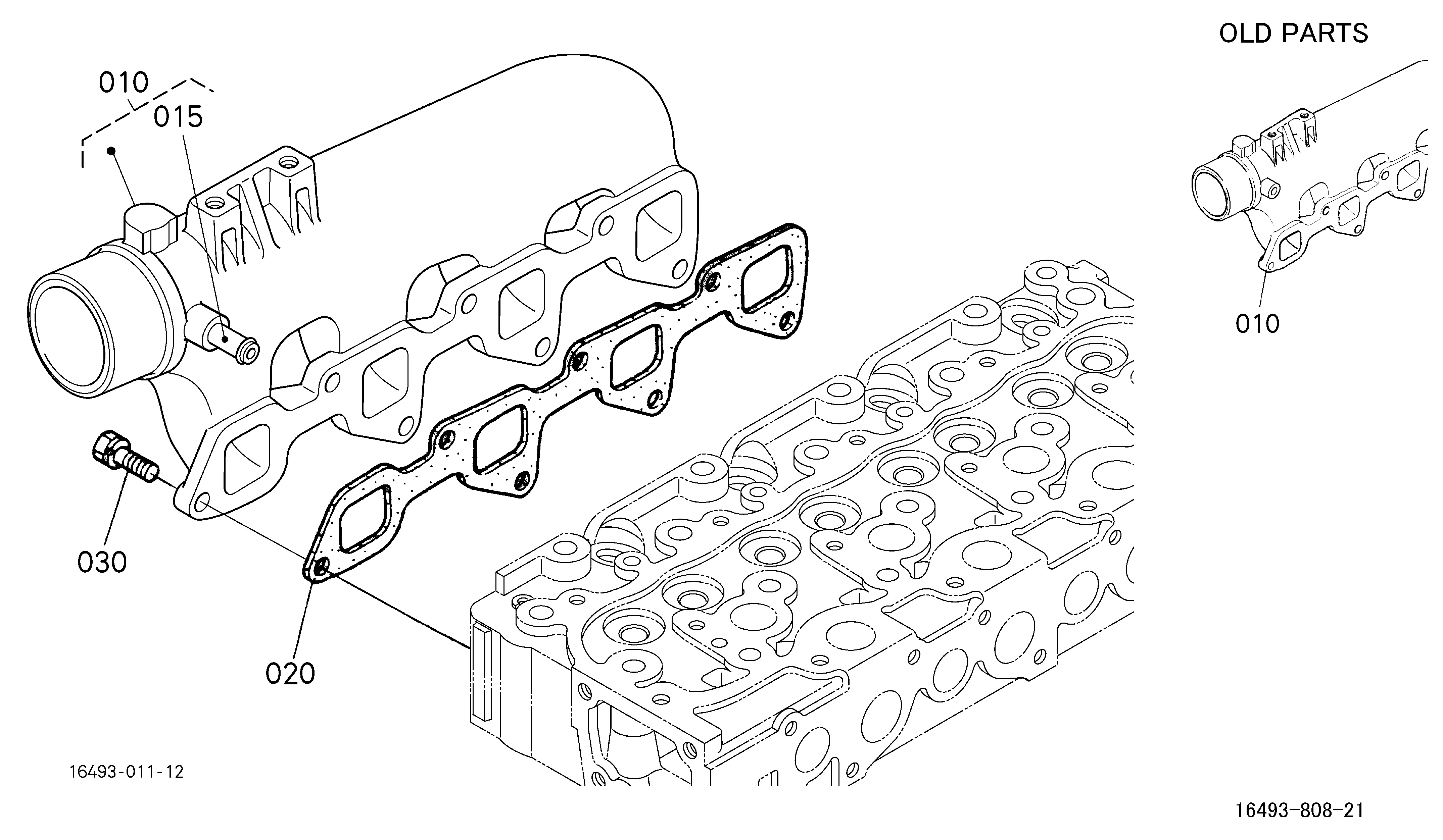

DIAG-060101-85706 060101 INLET MANIFOLD
View Diagram -

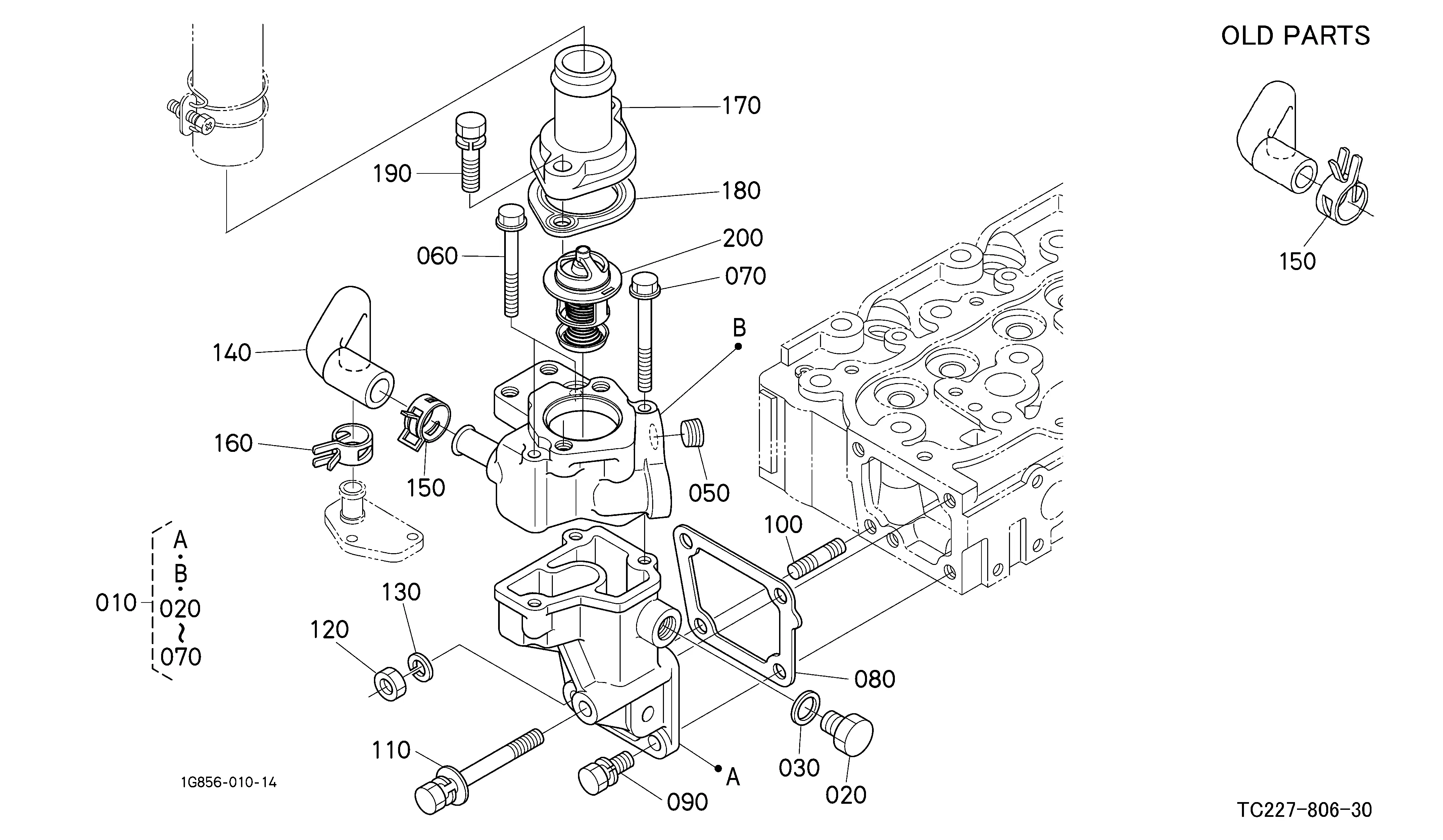

DIAG-050000-85706 050000 WATER FLANGE AND THERMOSTAT
View Diagram
