Kubota L235 055000 FUEL TANK Parts Diagram
Exploded-view parts diagram "055000 FUEL TANK" for the Kubota L235 and Kubota L275. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | TANK, FUEL ASSEM 35260-35100 Discontinued | 1 | $618.09 | |||
| 003 | FUELCOVER 38240-35200 | 1 | $38.16 | |||
| 007 | TUBE, FUEL GAUGE 34260-35472 07935-05741 | 1 | $4.12 | |||
| 008 | CLIP, PIPE 10013-41770 | 1 | $1.45 | |||
| 009 | BUSHING 37300-35550 Discontinued | 1 | $15.67 | |||
| 010 | SUPPORT TANK 35260-35270 | 1 | $40.70 | |||
| 011 | STAY, FUEL TANK 35260-35280 Discontinued | 1 | $43.16 | |||
| 012 | BOLT 01155-50835 01155-70835 | 1 | $1.33 | |||
| 013 | BOLT 01152-50830 01155-50830 | 1 | $0.99 | |||
| 014 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 016 | STAY, FUEL TANK 37150-35290 | 1 | $72.00 | |||
| 017 | BOLT 01202-50816 | 1 | $1.59 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-054000-85271 054000 WIRING DIAGRAM
View Diagram -

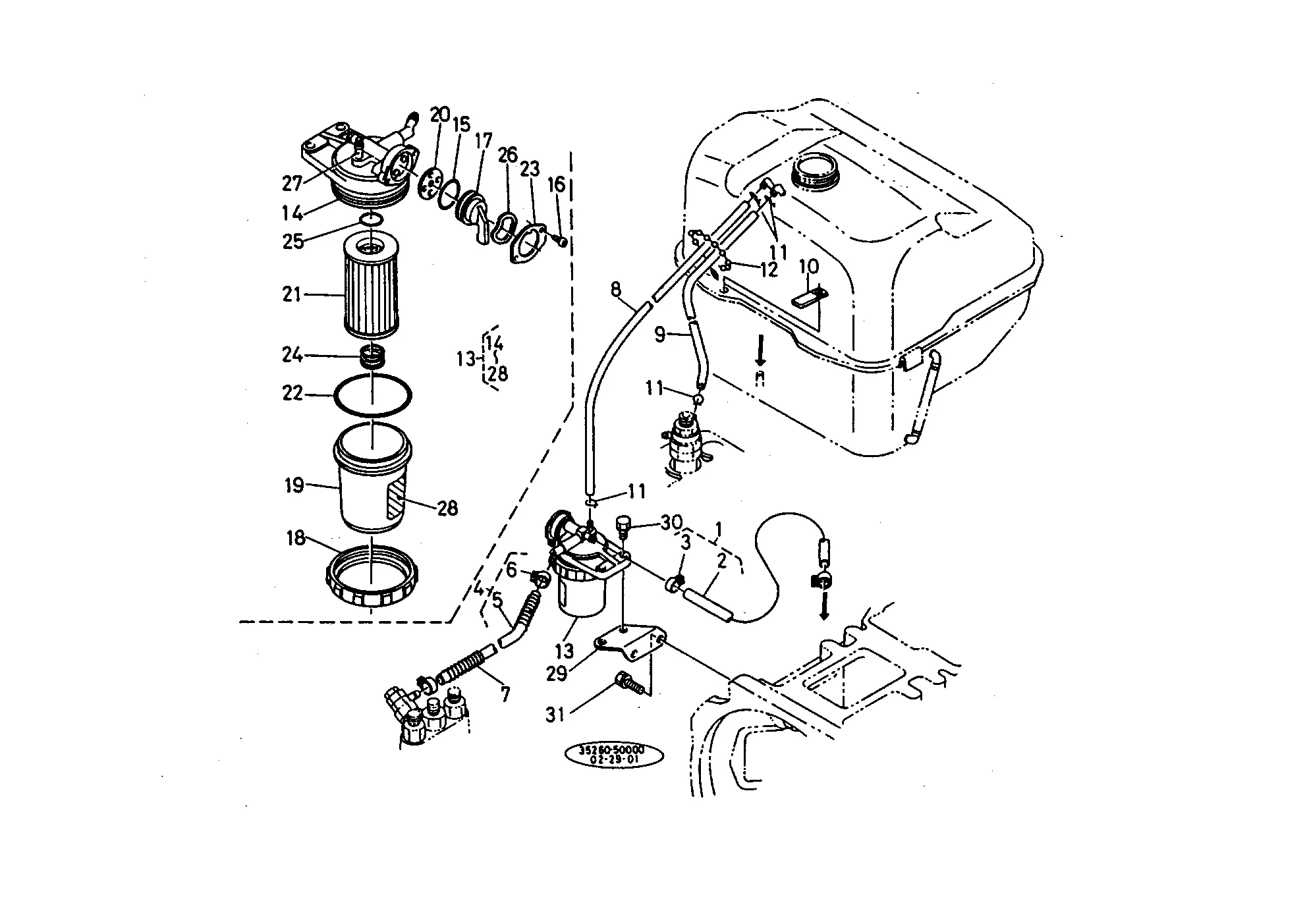

DIAG-056000-85271 056000 FUEL FILTER
View Diagram -

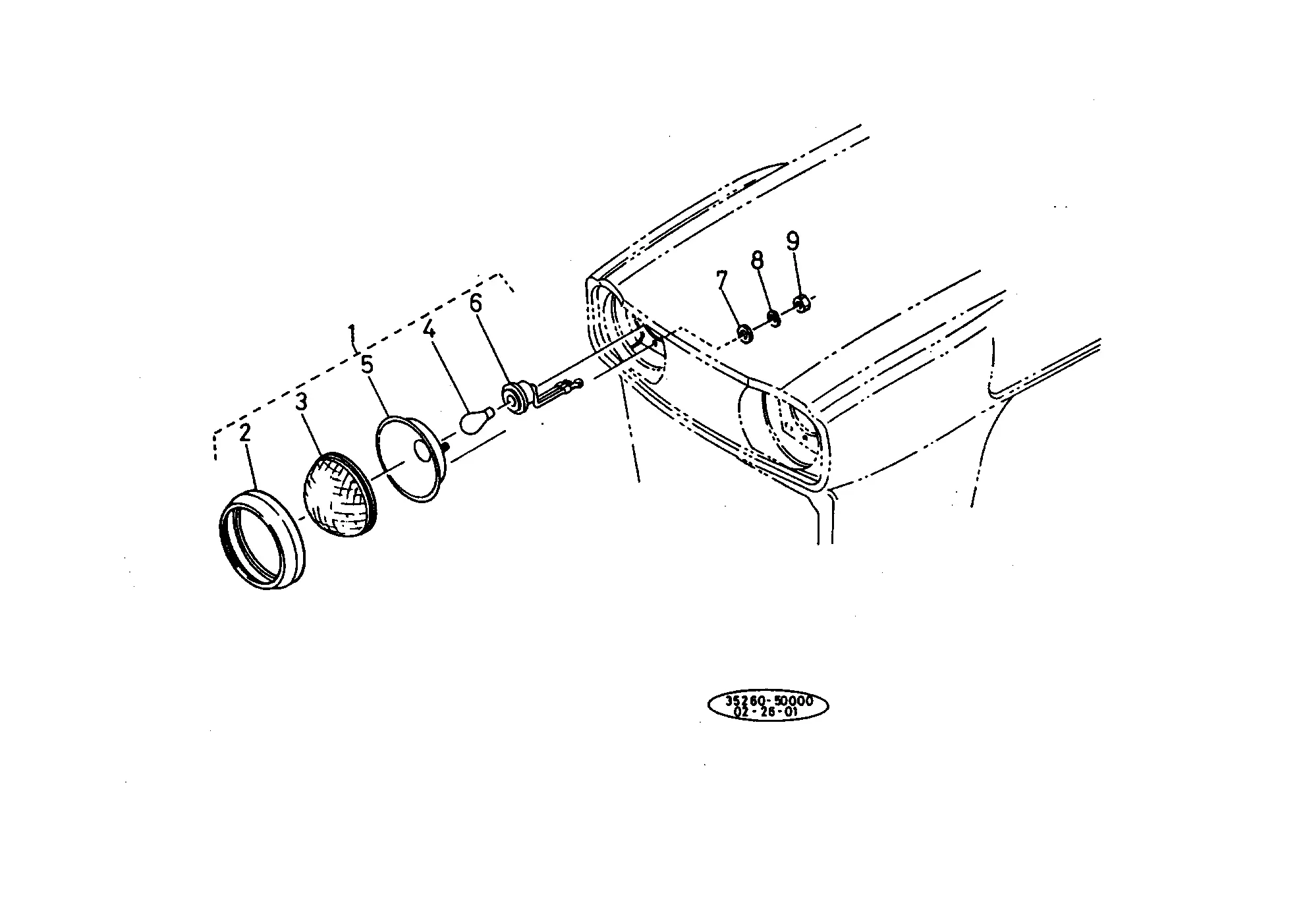

DIAG-053000-85271 053000 HEAD LAMP
