| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | Head Lamp Assy. 34350-33800 36200-75280 Discontinued | 1 | $182.43 | |||
| 002 | Bulb 36200-75290 70000-33841 | 1 | $16.01 | |||
| 003 | LENS 35450-75310 36200-75310 Discontinued | 1 | $20.94 | |||
| 004 | BODY, HEAD LAMP 36200-75330 Discontinued | 1 | $58.94 | |||
| 005 | Plain Washer 04013-50050 04013-70050 | 1 | $0.60 | |||
| 006 | SPRING 34350-33950 | 1 | $3.71 | |||
| 007 | NUT 34350-33960 Discontinued | 1 | $1.36 | |||
| 008 | PLUG 35410-75330 | 1 | $5.03 | |||
| 009 | GASKET 04712-00120 04711-00120 | 1 | $1.91 | |||
| 010 | ASSY, TAILLIGHT* 34350-34100 34350-34103 | 1 | $78.88 | |||
| 012 | LENS, TAIL LIGHT 34350-34120 Discontinued | 1 | $25.50 | |||
| 013 | Taillight Bulb 34350-34140 | 1 | $10.69 | |||
| 014 | HOLDER, TAIL LIG 32400-34190 32400-34192 | 1 | $36.12 | |||
| 015 | Nut Fastener 02013-50060 02014-50060 | 1 | $0.35 | |||
| 016 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.14 | |||
| 017 | SWITCH, STOP 36200-75480 36330-75480 | 1 | $103.38 | |||
| 018 | SPRING 36200-75490 | 1 | $44.65 | |||
| 019 | KIT LAMP 35450-75022 H3540-75000 | 1 | $69.02 | |||
| 019 | LIGHT 35450-75010 Discontinued | 1 | $43.14 | |||
| 021 | SWITCH, PTO 36200-75264 36200-75260 Discontinued | 1 | $104.01 | |||
| 022 | SCREW, PAN HEAD 03054-50516 | 1 | $0.46 | |||
| 023 | WASHER, SPRING 04512-50050 | 1 | $0.36 | |||
| 024 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 025 | Nut 02114-60100 02114-50100 | 1 | $0.77 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

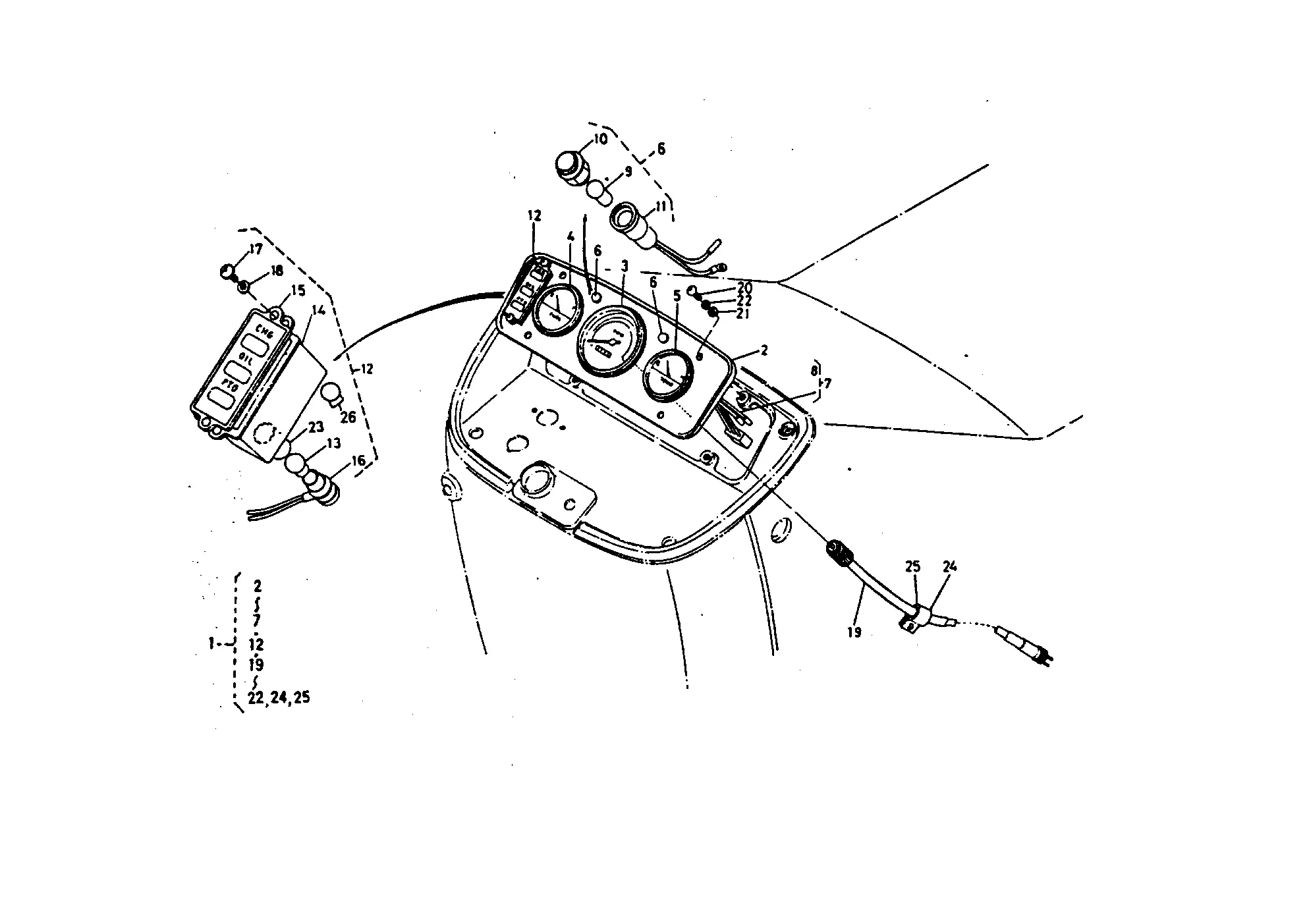

DIAG-052000-85822 052000 PANEL BOARD
View Diagram -

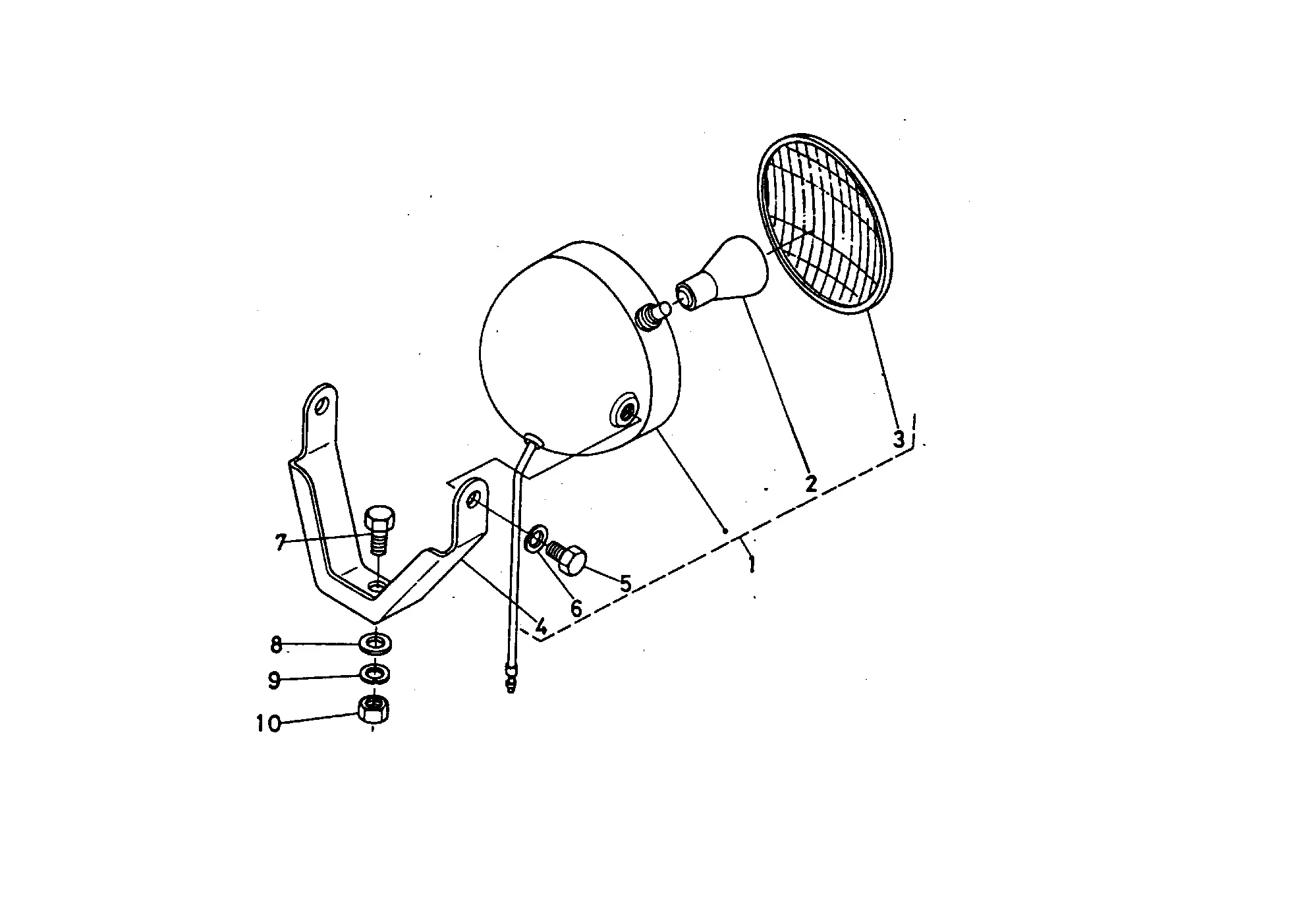

DIAG-054000-85822 054000 WORK LAMP
