Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP FLANGE, WAT 1G700-72700 | 1 | $144.18 | |||
| 020 | PIPE, WATER RETU 16241-73340 16241-73370 | 1 | $3.94 | |||
| 030 | ADAPTER 16222-72840 16222-72842 | 1 | $14.78 | |||
| 030 | ADAPTER 1G067-72840 1G067-72842 | 1 | $17.88 | |||
| 035 | Thermo-Switch Sensor 16851-83040 16851-83043 | 1 | $74.60 | |||
| 040 | GASKET, COPPER 16261-96710 | 1 | $2.34 | |||
| 050 | GASKET, WATER FL 16241-72920 16264-72920 | 1 | $4.60 | |||
| 060 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 070 | BOLT 01023-60655 01023-50655 | 1 | $2.26 | |||
| 080 | Engine Coolant Hose 16241-73350 | 1 | $9.65 | |||
| 090 | BAND, PIPE 16241-73360 | 1 | $4.60 | |||
| 090 | CLAMP,HOSE 1G687-73360 1G687-73362 | 1 | $4.60 | |||
| 100 | Engine Coolant Thermostat Assembly 15321-73015 1E401-73012 | 1 | $44.68 | |||
| 110 | COVER, THERMOSTA 16219-73260 | 1 | $23.38 | |||
| 120 | Engine Thermostat Gasket 1A021-73270 16221-73270 | 1 | $5.97 | |||
| 130 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 140 | PIPE, WATER 17203-72860 | 1 | $47.64 | |||
| 150 | Engine Water Pipe 1G680-72870 | 1 | $22.65 | |||
| 160 | CLAMP 36200-82720 | 1 | $8.19 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-040600-86457 040600 OIL SWITCH AND THERMOMETER
View Diagram -
DIAG-050100-86457 050100 WATER PUMP
View Diagram -

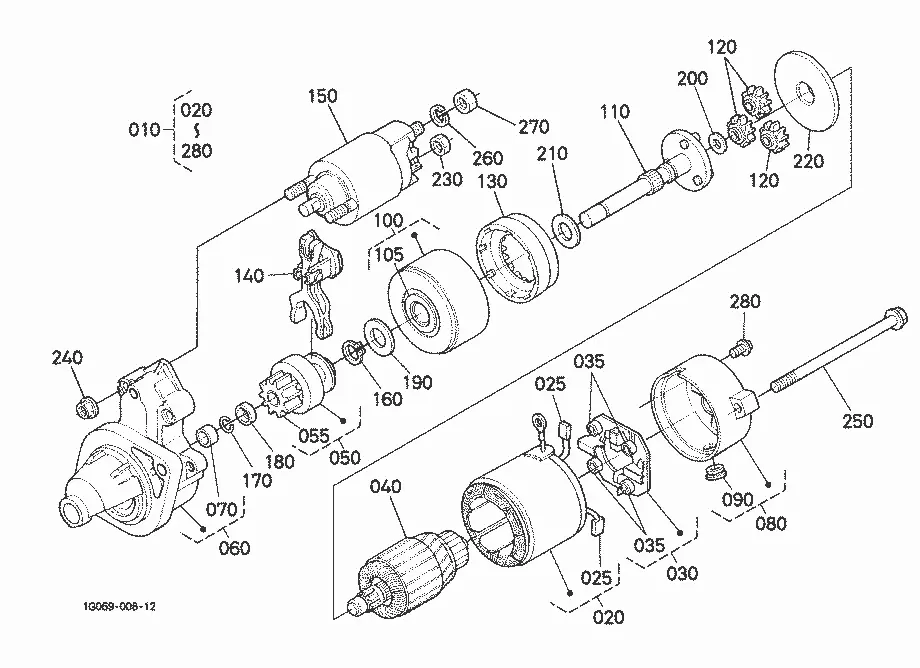

DIAG-040500-86457 040500 STARTER [COMPONENT PARTS]
