Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP FLANGE, WAT 1A021-72706 1A021-72708 | 1 | $259.90 | |||
| 020 | FLANGE, WATER 1A021-72914 Discontinued | 1 | $65.25 | |||
| 030 | PLUG 1A021-96020 | 1 | $7.83 | |||
| 040 | BOLT, FLANGE 01754-50660 | 1 | $5.90 | |||
| 045 | BOLT, FLANGE 01754-50665 | 1 | $6.21 | |||
| 050 | GASKET WATER FLA 15766-72920 1A021-72920 | 1 | $4.85 | |||
| 060 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.96 | |||
| 070 | Stud for Injection Pump and Engine Components 15221-91531 15221-91530 | 1 | $3.99 | |||
| 080 | BOLT 1A021-91020 | 1 | $3.42 | |||
| 090 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 100 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 110 | PIPE WATER RETUR 1A021-73340 | 1 | $18.76 | |||
| 120 | CLAMP HOSE 1A021-11720 | 1 | $4.60 | |||
| 120 | Hose Clamp 6C040-54780 09318-88200 | 1 | $2.25 | |||
| 130 | CLAMP, HOSE 09318-88180 | 1 | $2.41 | |||
| 140 | COVER, THERMOSTA 15196-73260 16691-73260 | 1 | $62.51 | |||
| 150 | Engine Thermostat Gasket 1A021-73270 16221-73270 | 1 | $4.86 | |||
| 160 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 170 | Engine Thermostat Assembly 1A021-73012 1A021-73013 | 1 | $48.91 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-050100-85386 050100 WATER PUMP
View Diagram -

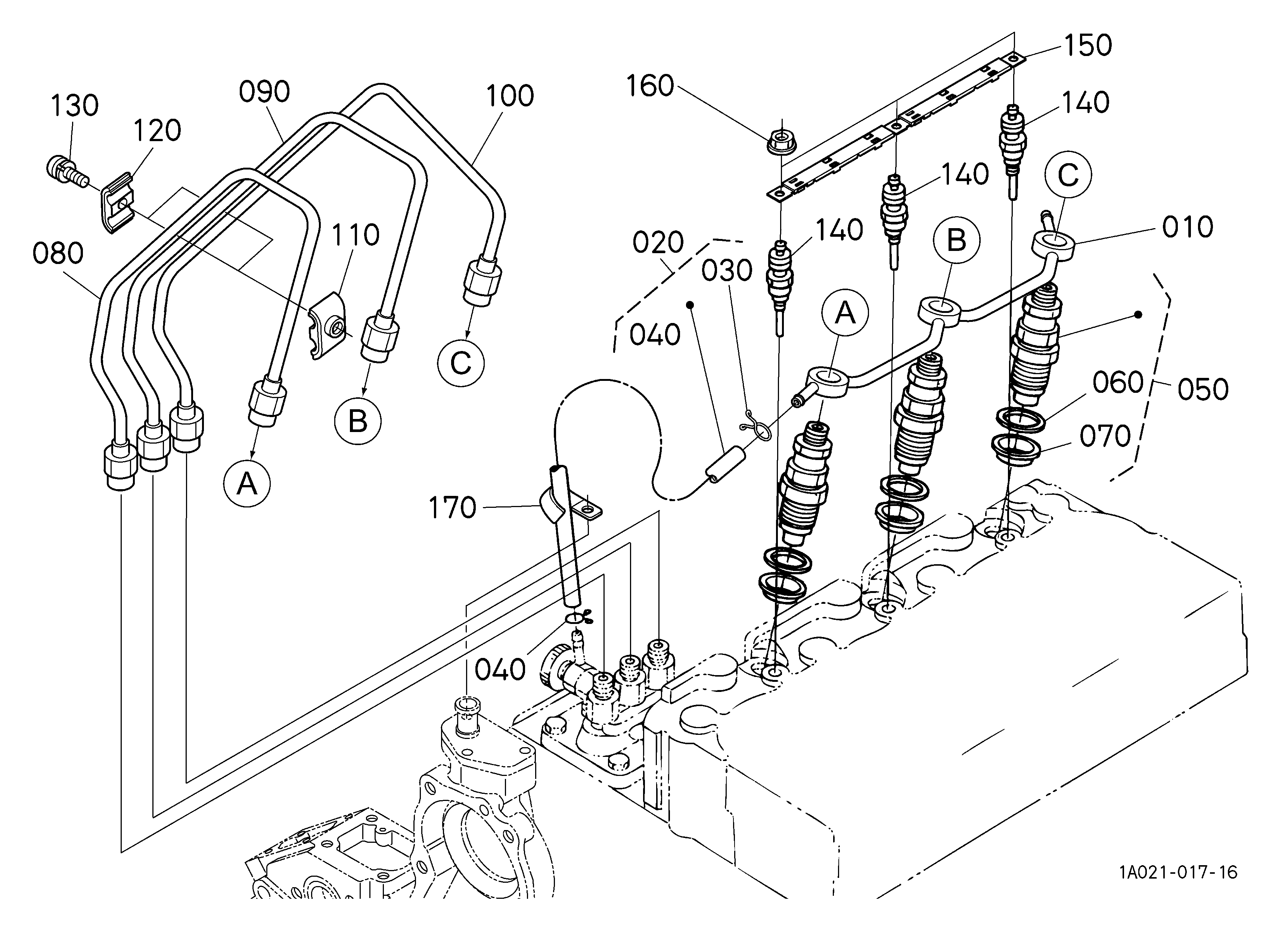

DIAG-020600-85386 020600 NOZZLE HOLDER AND GLOW PLUG
View Diagram -

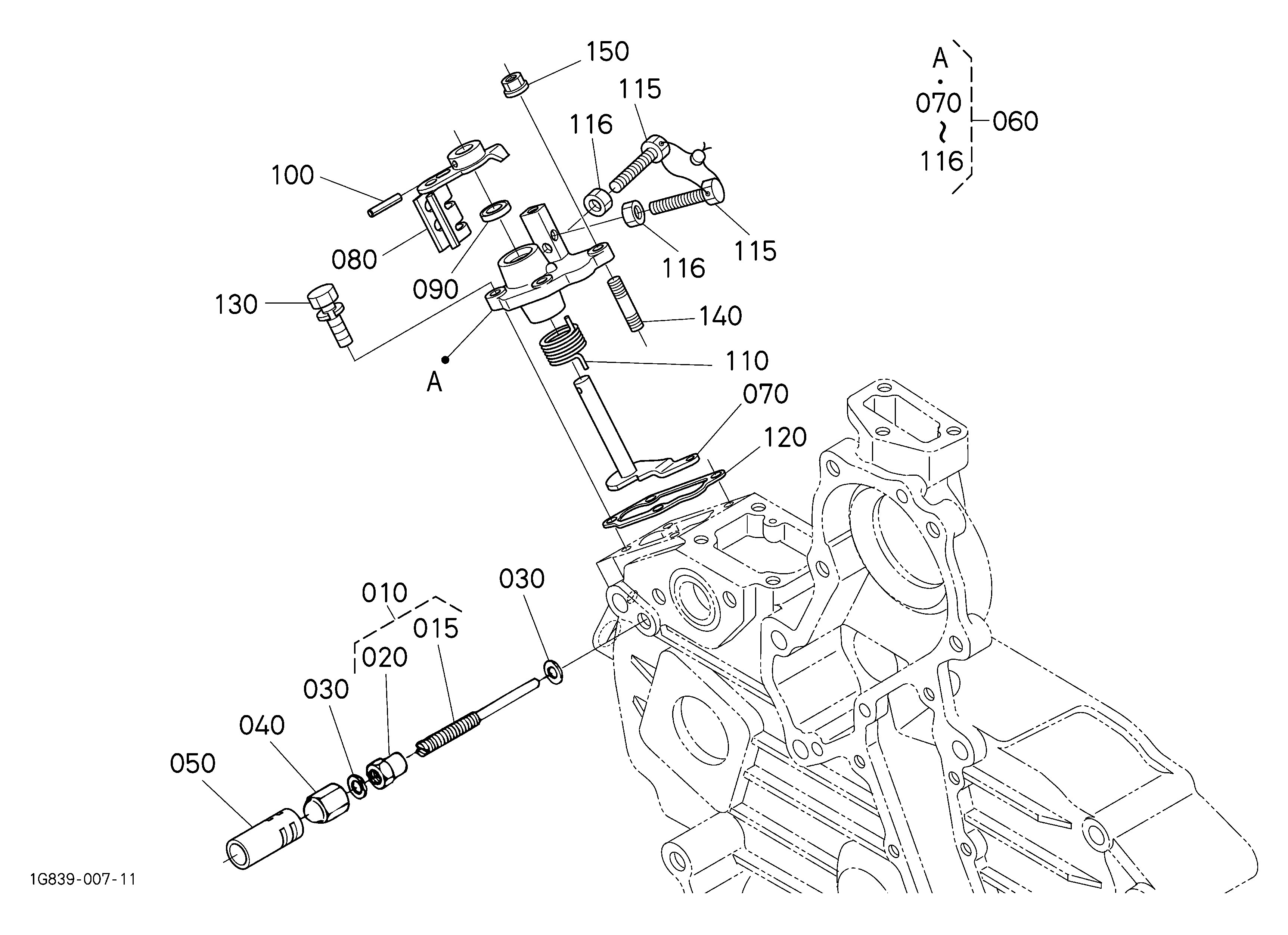

DIAG-020500-85386 020500 SPEED CONTROL PLATE
