Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIPE 2, WATER 16282-72860 16282-72863 | 1 | $85.88 | |||
| 020 | PLUG 06311-55010 | 1 | $3.15 | |||
| 030 | Engine Water Pipe 1G680-72870 | 1 | $22.65 | |||
| 040 | CLAMP,HOSE 1G677-72960 | 1 | $8.66 | |||
| 050 | COMP FLANGE,WATER 16394-72700 16394-72702 | 1 | $139.83 | |||
| 060 | PIPE, WATER RETU 16241-73340 16241-73370 | 1 | $3.94 | |||
| 070 | PLUG 06311-55030 | 1 | $5.15 | |||
| 080 | GASKET, COPPER 16261-96710 | 1 | $2.34 | |||
| 090 | GASKET, WATER FL 16241-72920 16264-72920 | 1 | $4.60 | |||
| 100 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 110 | BOLT 01023-60655 01023-50655 | 1 | $2.26 | |||
| 120 | Engine Coolant Hose 16241-73350 | 1 | $9.65 | |||
| 130 | CLAMP,HOSE 1G687-73360 1G687-73362 | 1 | $4.60 | |||
| 140 | Engine Coolant Thermostat Assembly 15321-73015 1E401-73012 | 1 | $44.68 | |||
| 150 | COVER, THERMOSTA 16219-73260 | 1 | $23.38 | |||
| 160 | Engine Thermostat Gasket 1A021-73270 16221-73270 | 1 | $5.97 | |||
| 170 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 180 | GASKET, COPPER 04724-00100 | 1 | $1.06 | |||
| 190 | Temperature Sensor 5H601-41940 | 1 | $97.27 | |||
| 200 | Seal Washer 04717-01200 | 1 | $2.26 | |||
| 210 | PLATE, HARNESS RG138-42140 | 1 | $6.99 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-050100-125522 050100 WATER PUMP
View Diagram -

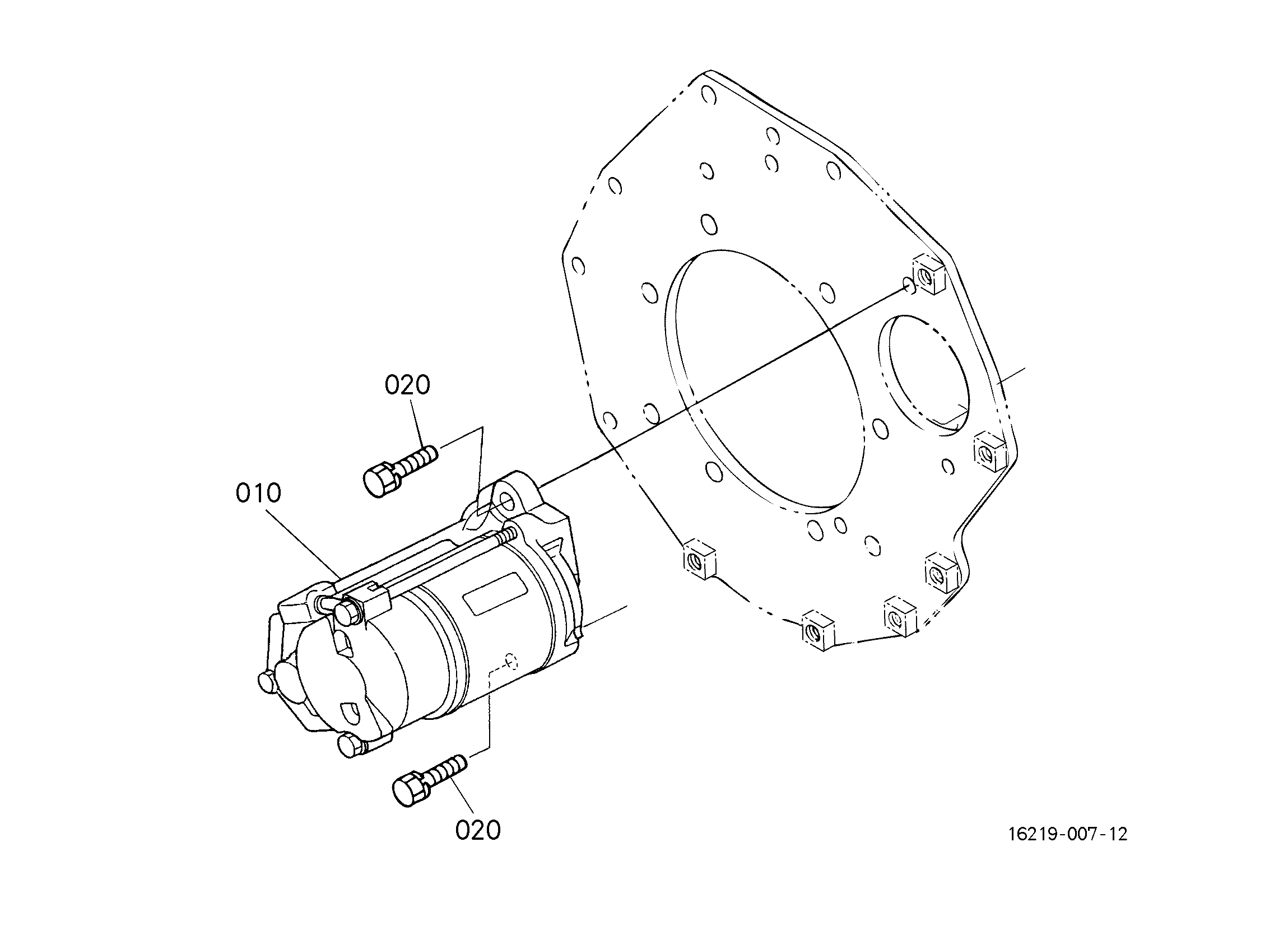

DIAG-041600-125522 041600 STARTER
View Diagram -

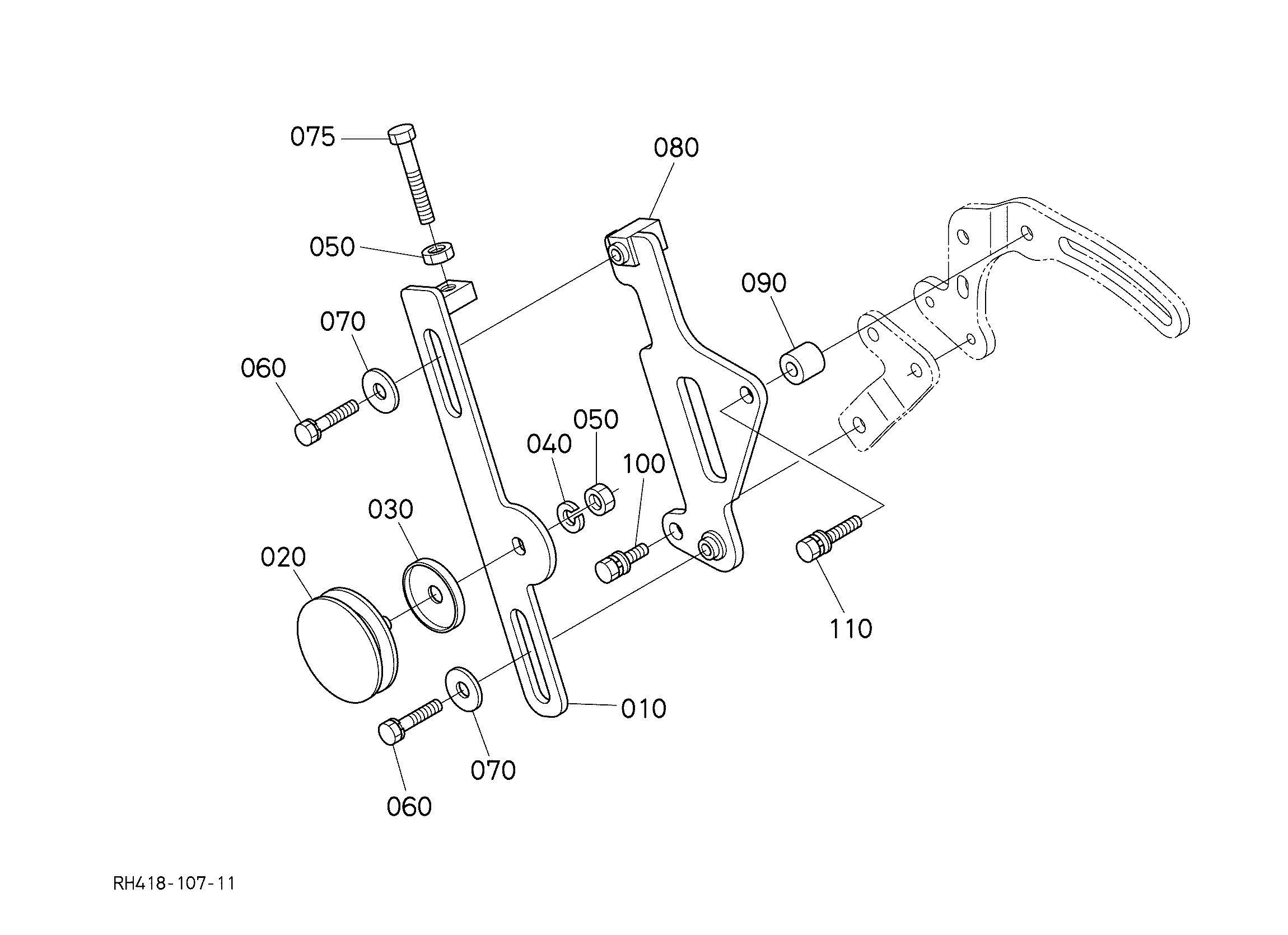

DIAG-050600-125522 050600 TENSION PULLEY
View Diagram
