Kubota ZD221 040000 DYNAMO AND PULLEY Parts Diagram

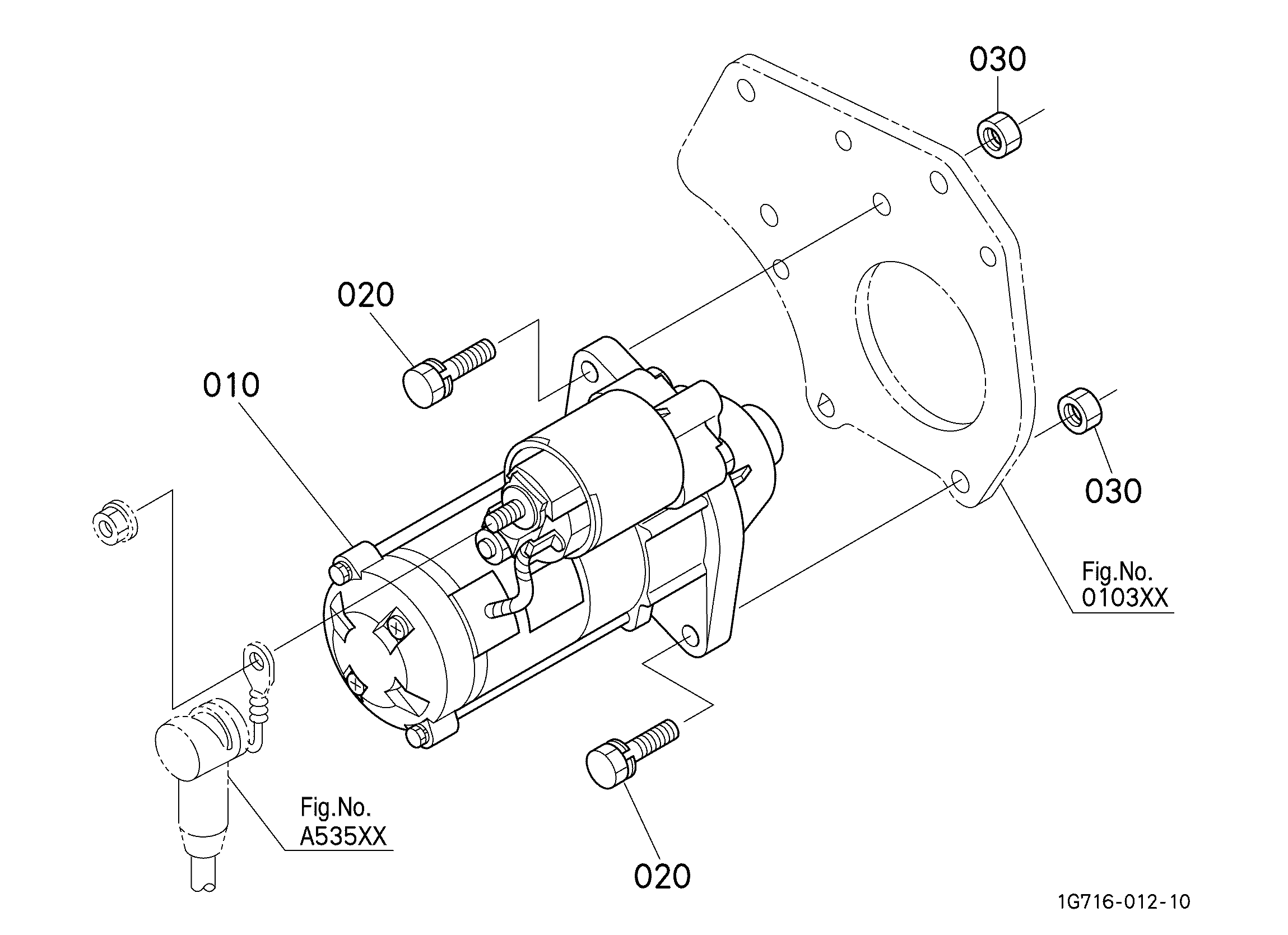

Exploded-view parts diagram "040000 DYNAMO AND PULLEY" for the Kubota ZD221. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | Alternator / Dynamo (Charging Generator) 15531-64016 15531-64017 | 1 | $138.41 | |||
| 020 | STAY, DYNAMO 15872-64420 12599-64420 | 1 | $10.33 | |||
| 030 | BOLT 16871-91030 | 1 | $2.34 | |||
| 040 | BOLT 01150-50855 01153-50855 | 1 | $2.77 | |||
| 050 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 060 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 070 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 090 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 110 | PULLEY, FAN DRIV 16861-74280 16861-74285 | 1 | $220.46 | |||
| 120 | BOLT 15841-91030 15881-91030 | 1 | $15.91 | |||
| 130 | Fan / Alternator Belt 15881-97010 | 1 | $11.19 | |||
Showing 1 to 11 of 11 parts
