Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

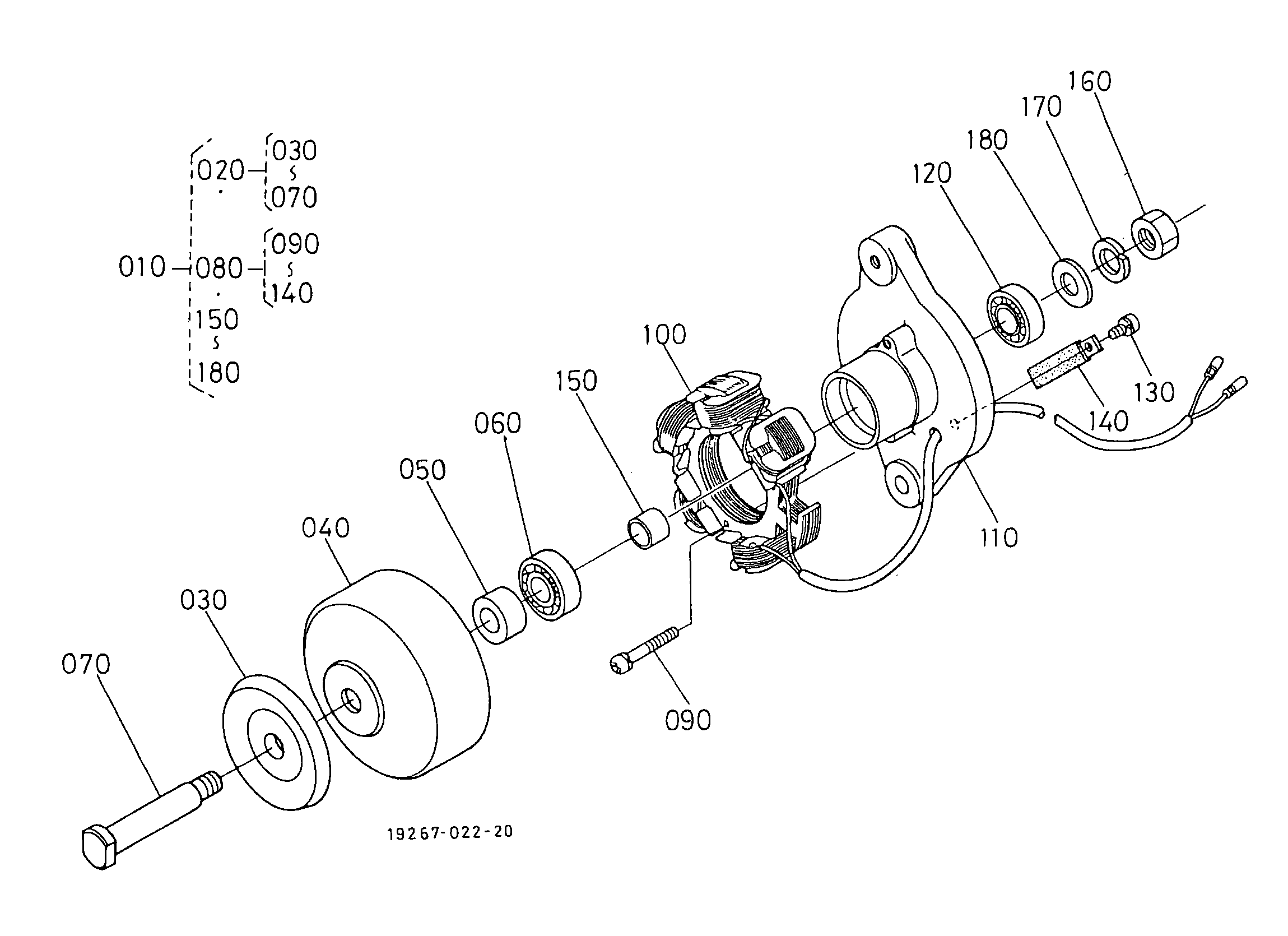

| 010 | Alternator / Dynamo (Charging Generator) 15531-64016 15531-64017 | 1 | $138.41 | |||
| 020 | STAY, DYNAMO 15872-64420 12599-64420 | 1 | $10.33 | |||
| 030 | BOLT 16871-91030 | 1 | $2.34 | |||
| 030 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.37 | |||
| 040 | BOLT 01150-50855 01153-50855 | 1 | $2.77 | |||
| 060 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 070 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 080 | M5 Series Plain Washer 04015-60080 04015-70080 | 1 | $0.60 | |||
| 090 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 100 | PULLEY, FAN DRIV 16861-74280 16861-74285 | 1 | $220.46 | |||
| 110 | BOLT 15841-91030 15881-91030 | 1 | $15.91 | |||
| 120 | Fan / Alternator Belt 15881-97010 | 1 | $11.19 | |||
| 130 | EX STOPPER(RAD) K1211-85170 K1211-85172 | 1 | $8.13 | |||
| 130 | STOPPER,RADIATOR K1253-85172 K1250-85170 | 1 | $4.52 | |||
| 140 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-030500-85019 030500 FUEL PUMP COVER
View Diagram -
DIAG-040100-85019 040100 DYNAMO (COMPONENT PARTS)
View Diagram -

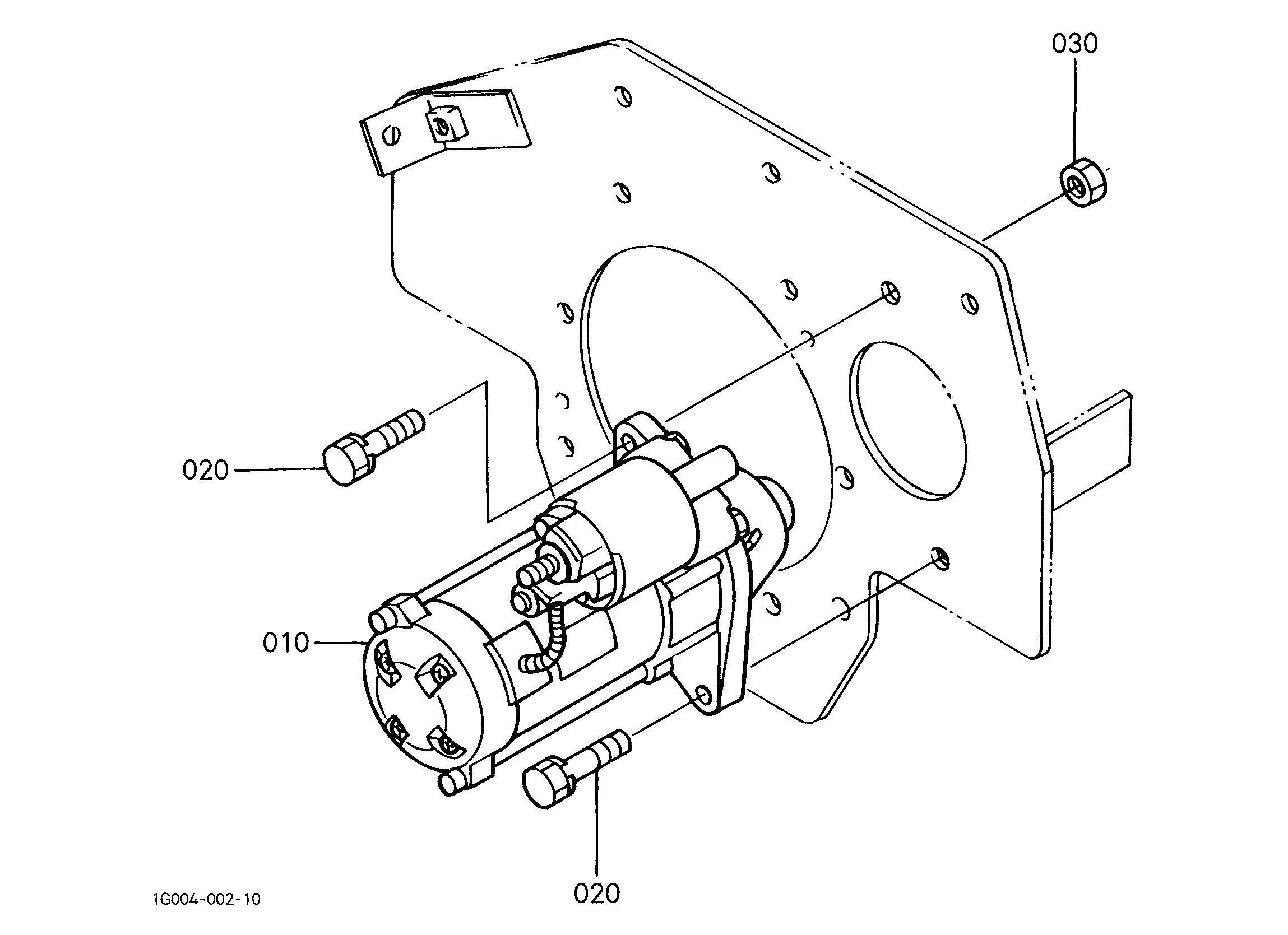

DIAG-040400-85019 040400 STARTER
