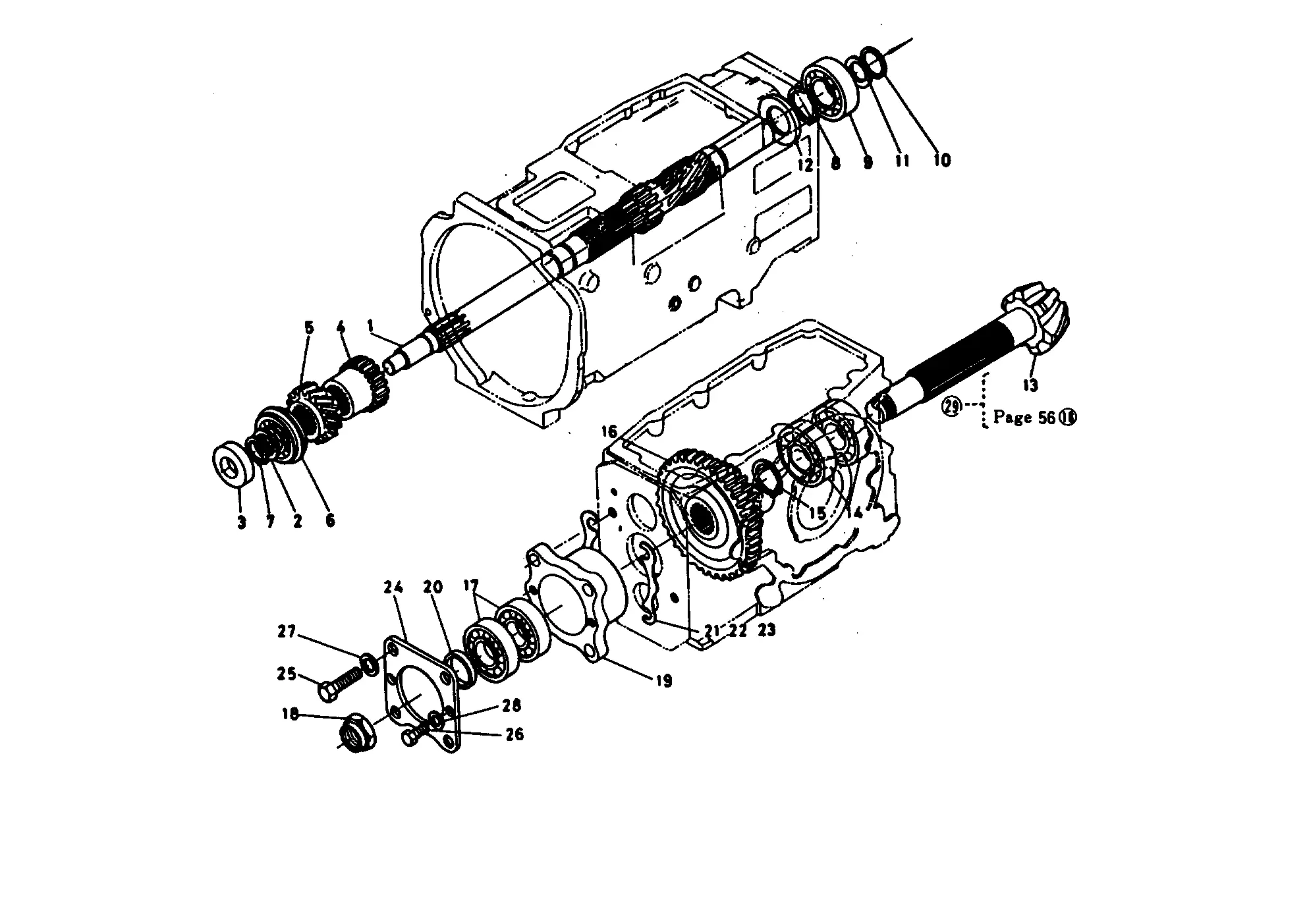

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | COUNTERSHAFT, PT 35110-25320 Discontinued | 1 | $152.17 | |||
| 001 | SHAFT COUNTER 35110-21610 Discontinued | 1 | $350.06 | |||
| 002 | COLLAR THRUST 37150-21760 | 1 | $15.35 | |||
| 003 | CIR-CLIP 37150-21790 | 1 | $3.15 | |||
| 004 | BRG BALL RADIAL2 08151-06205 | 1 | $19.77 | |||
| 005 | Circlip Retaining Ring K7591-32880 04612-00250 | 1 | $2.05 | |||
| 005 | replaces #37150-21550 CIRCLIP EXTERNAL 37150-21550 37150-21551 | 1 | $13.10 | |||
| 007 | GEAR 41 37150-21720 Discontinued | 1 | $256.09 | |||
| 008 | GEAR 45 37150-21730 Discontinued | 1 | $150.91 | |||
| 009 | GEAR 45 37150-21740 | 1 | $372.65 | |||
| 010 | Spindle Ball Bearing 6A700-16570 08101-06205 | 1 | $11.98 | |||
| 011 | COVER 34150-21650 | 1 | $17.72 | |||
| 012 | COLLAR 37150-21770 Discontinued | 1 | $5.63 | |||
| 013 | BOSS 37150-21750 | 1 | $23.57 | |||
| 014 | SNAP RING ASSY. 37150-21780 35110-99120 | 1 | $24.87 | |||
| 015 | SHAFT, PTO 37150-25310 | 1 | $627.55 | |||
| 016 | COLLAR 35110-21750 | 1 | $13.95 | |||
| 018 | SEAL, OIL 37150-25360 | 1 | $18.33 | |||
| 019 | SLINGER 37150-25370 | 1 | $11.04 | |||
| 021 | Ball Bearing PL501-12230 08101-06206 | 1 | $14.46 | |||
| 022 | NUT 34150-25320 | 1 | $15.74 | |||
| 024 | Internal Circlip 04611-10620 04611-00620 | 1 | $5.62 | |||
| 025 | HOLDER, BEARING 37150-25410 H3710-25410 | 1 | $161.71 | |||
| 026 | replaces #37150-25420 GASKET 37150-25420 32448-99130 | 1 | $5.31 | |||
| 027 | BOLT 01150-50822 01153-50822 | 1 | $1.57 | |||
| 028 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 029 | CLUTCH ASSY 35110-21830 35110-21800 | 1 | $3,023.64 | |||
| 031 | CLUTCH 35110-21850 | 1 | $498.12 | |||
| 032 | COUPLING - ** * 35110-21860 Discontinued | 1 | $160.10 | |||
| 034 | Bearing PL501-12260 08101-06009 | 1 | $28.94 | |||
| 035 | BRG BALL RADIAL 35110-21880 Discontinued | 1 | $20.99 | |||
| 035 | BRG BALL RADIAL4 TC220-22160 08101-06008 | 1 | $26.82 | |||
| 036 | WASHER*** 35110-21890 Discontinued | 1 | $4.46 | |||
| 037 | C-Clip 04611-10750 04611-00750 | 1 | $9.28 | |||
| 038 | COLLAR -2 ** 35110-25380 Discontinued | 1 | $4.51 | |||
| 040 | CAP TO SHAFT 31220-25822 31220-25820 | 1 | $11.23 | |||
| 041 | PROTR, PTO SHAFT 35110-25332 35110-25330 Discontinued | 1 | $73.52 | |||
| 042 | BOLT 01170-51225 01173-51225 | 1 | $1.99 | |||
| 043 | Spring Washer (Lock Washer) 04512-50120 | 1 | $2.57 | |||
| 044 | LABEL 35110-21990 | 1 | $2.65 | |||
| 044 | LABEL, CLUTCH 34159-21990 | 1 | $2.28 | |||
| 045 | RETAINER, BEARIN 34150-21940 34150-21942 | 1 | $8.44 | |||
| 046 | BOLT 01150-50820 01153-50820 | 1 | $1.37 | |||
Showing 1 to 43 of 43 parts
Related Assemblies
-
DIAG-035000-85275 035000 GEAR DRIVE SYSTEM 2
View Diagram -

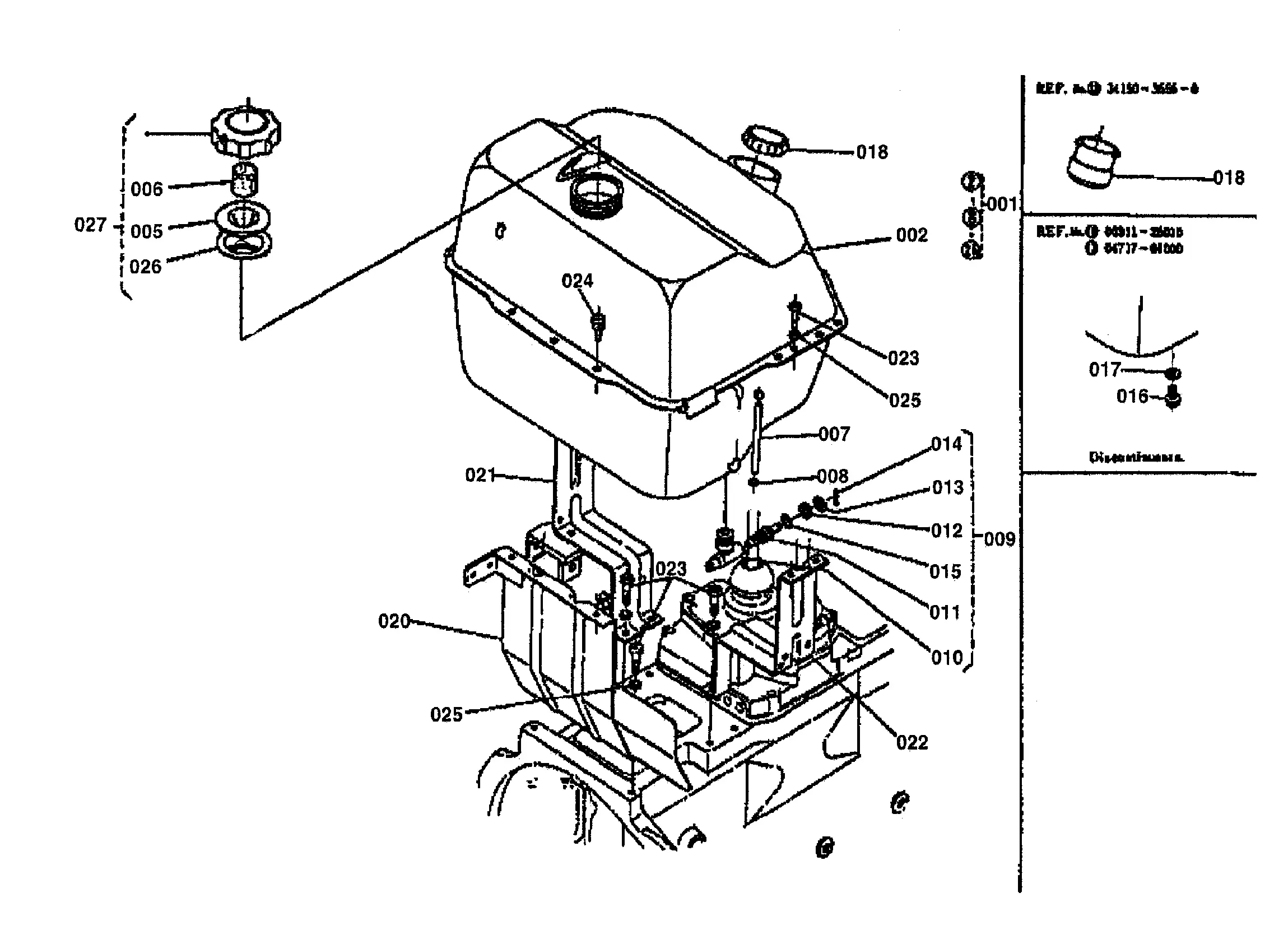

DIAG-050000-85275 050000 FUEL TANK
