| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | CASE, TRANS ASSY 36200-21300 Discontinued | 1 | $5,673.07 | |||
| 003 | PIN, STRAIGHT 05012-01325 | 1 | $2.26 | |||
| 004 | GASKET 36200-21320 36200-21322 | 1 | $32.50 | |||
| 005 | BOLT 01170-51240 01173-51240 | 1 | $2.77 | |||
| 006 | BOLT 01170-51250 01173-51250 | 1 | $3.82 | |||
| 007 | Spring Washer (Lock Washer) 04512-50120 | 1 | $0.16 | |||
| 008 | COVER 36200-21340 36200-21342 Discontinued | 1 | $51.80 | |||
| 009 | GASKET 36200-21350 36200-21352 | 1 | $8.93 | |||
| 010 | BOLT 01110-50828 01153-50828 | 1 | $1.99 | |||
| 011 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 012 | PLUG 38430-21410 H3270-21410 | 1 | $35.54 | |||
| 013 | O'RING 04811-50300 | 1 | $1.42 | |||
| 014 | PLUG 06331-35020 | 1 | $5.15 | |||
| 015 | Seal Washer 04717-02000 | 1 | $3.37 | |||
| 016 | COVER, TRANS CS 36200-21380 Discontinued | 1 | $21.37 | |||
| 017 | GASKET 36200-21390 36200-21392 | 1 | $11.82 | |||
| 018 | BOLT 01170-51022 01173-51022 | 1 | $1.31 | |||
| 019 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 020 | COVER ** 36500-21410 36500-21414 Discontinued | 1 | $495.19 | |||
| 021 | PACKING 36200-21420 Discontinued | 1 | $17.59 | |||
| 022 | BOLT 37720-44120 01173-51203 | 1 | $2.89 | |||
| 023 | BOLT * 01173-61202 01173-51202 | 1 | $2.89 | |||
| 024 | BOLT 01017-51255 01173-51255 | 1 | $3.34 | |||
| 025 | BOLT 01170-51235 01173-51235 | 1 | $2.54 | |||
| 027 | GAUGE, OIL 36200-21510 35458-21510 | 1 | $17.74 | |||
| 028 | O RING 04811-00050 04816-00050 | 1 | $1.51 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

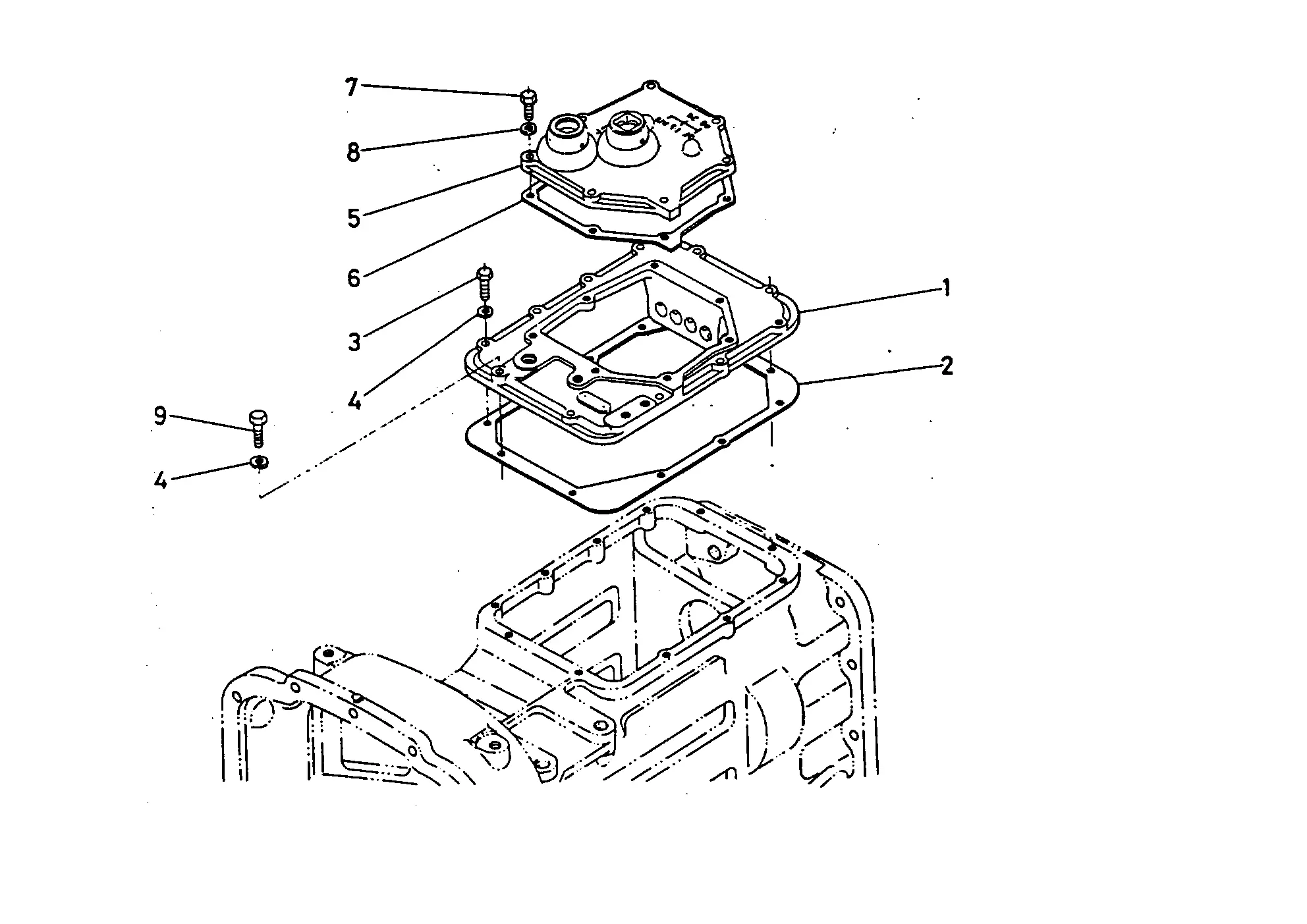

DIAG-027000-85822 027000 CHANGE COVER
View Diagram -

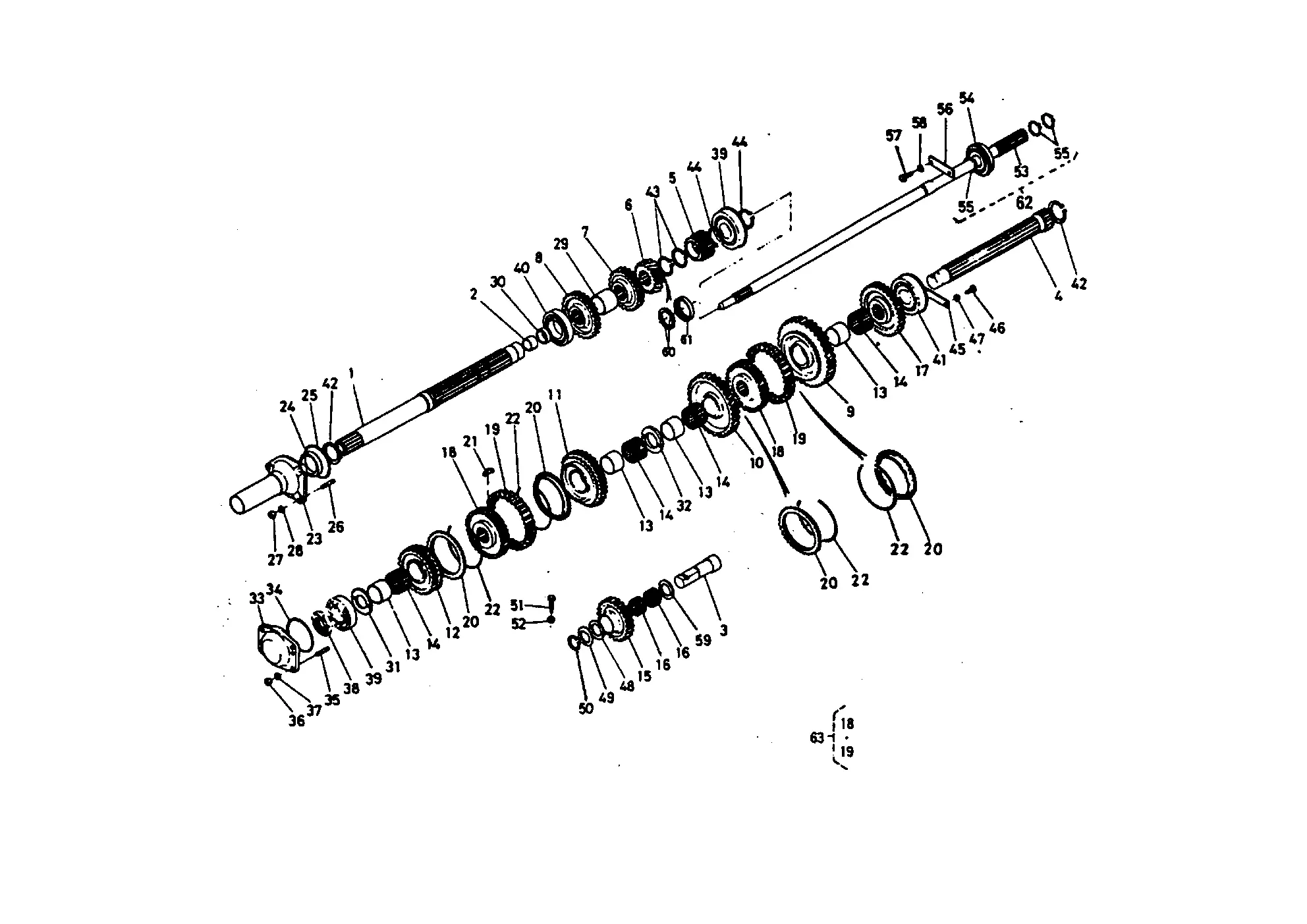

DIAG-031000-85822 031000 MISSION GEAR
View Diagram -
DIAG-056000-85822 056000 PTO SHAFT
View Diagram
