Kubota R400 021000 SPEED CONTROL PLATE Parts Diagram

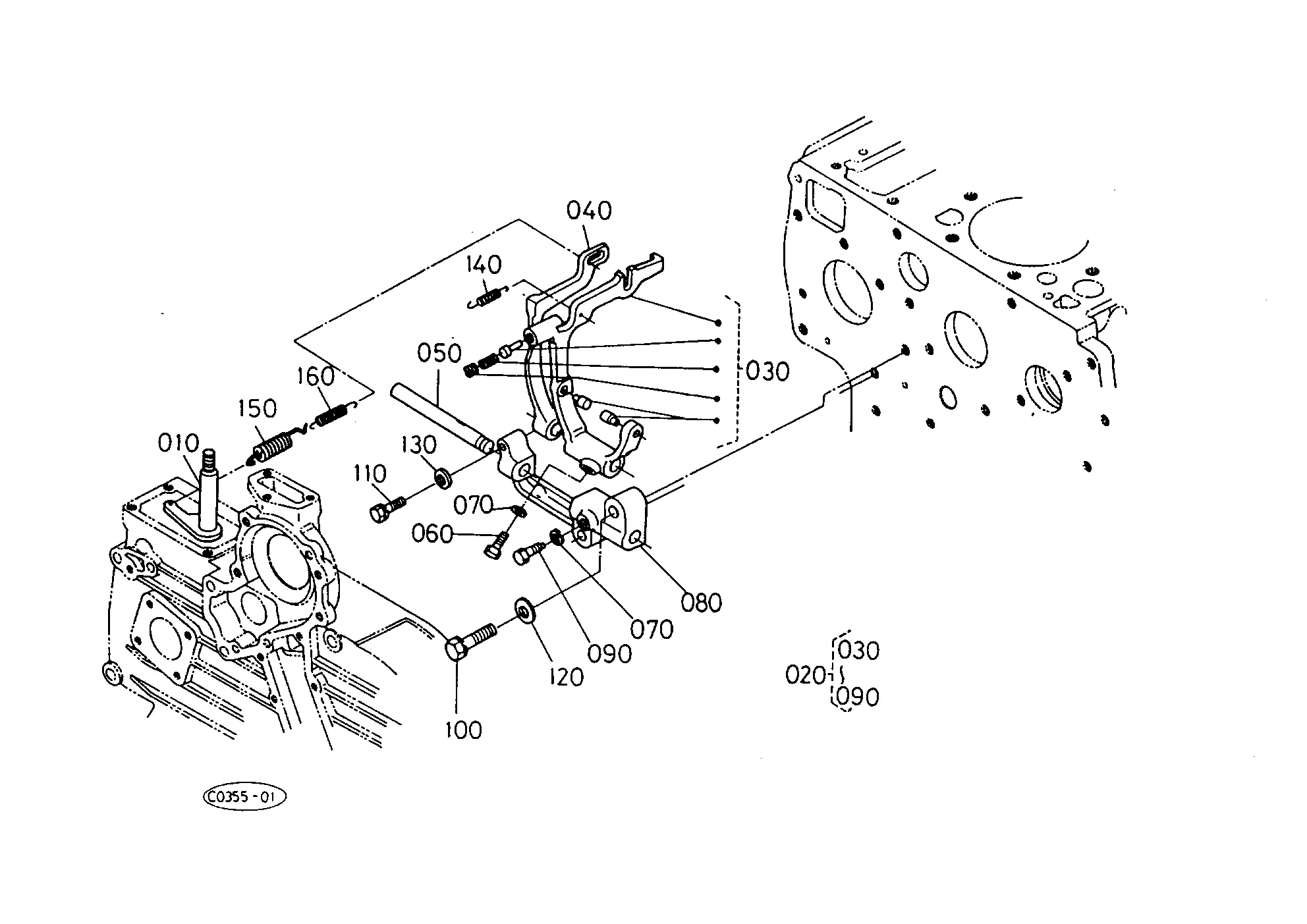

Exploded-view parts diagram "021000 SPEED CONTROL PLATE" for the Kubota R400. 18 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BOLT, ADJUSTING 15601-54120 1A021-54120 | 1 | $8.20 | |||
| 020 | NUT 15601-92010 Discontinued | 1 | $9.88 | |||
| 030 | GASKET, COPPER 15601-96651 15601-96650 | 1 | $9.18 | |||
| 040 | NUT, CAP 14601-14620 15841-14620 | 1 | $8.66 | |||
| 050 | CAP 16241-54420 16221-54420 | 1 | $8.30 | |||
| 060 | LEVER, SPEED CON 15471-57150 | 1 | $55.19 | |||
| 070 | Feather Key 05712-00408 | 1 | $1.51 | |||
| 080 | O-Ring Seal 04811-00120 04816-00120 | 1 | $1.93 | |||
| 090 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 100 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 110 | COLLAR 17011-57380 17011-57384 | 1 | $25.74 | |||
| 120 | PLATE SPEED CONTROL 15521-57114 15521-57115 | 1 | $104.11 | |||
| 130 | GASKET (PLATE) ( 15439-57210 1E147-57210 | 1 | $4.60 | |||
| 130 | GASKET,SP.CONT.P 15221-57210 15296-57210 | 1 | $7.77 | |||
| 140 | Bolt 01123-50620 01023-50620 | 1 | $1.21 | |||
| 150 | STUD 15221-88212 15221-88210 | 1 | $2.34 | |||
| 160 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.36 | |||
| 170 | Nut (Hardware Fastener) 02056-00060 02056-50060 | 1 | $0.36 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-020000-85985 020000 ENGINE STOP LEVER
View Diagram -
DIAG-022000-85985 022000 GOVERNOR
View Diagram -

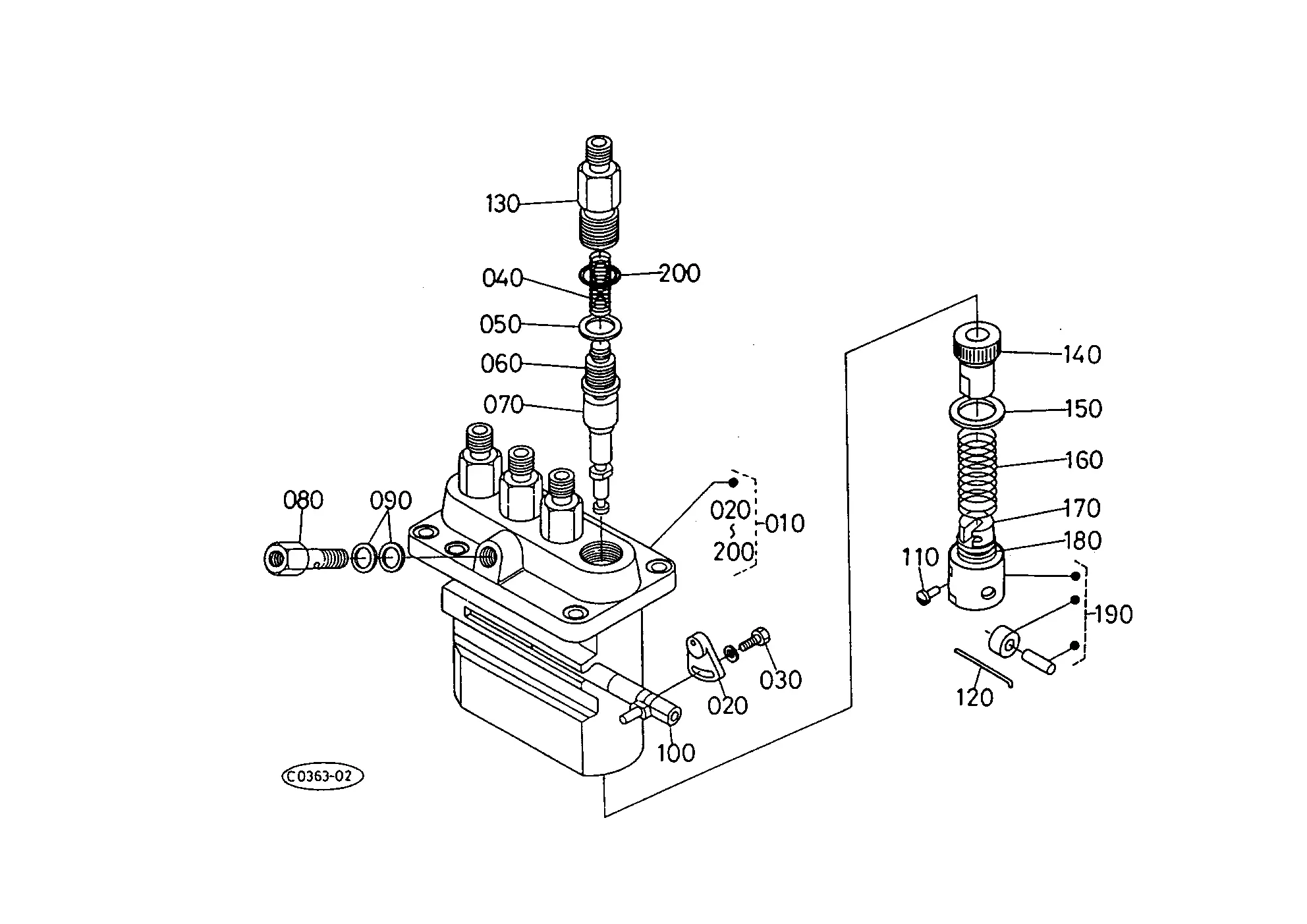

DIAG-019000-85985 019000 INJECTION PUMP (SECTION PARTS)
