| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, PIPE OVER 16467-42500 16467-42502 | 1 | $59.34 | |||
| 020 | TUBE, FUEL ASSY 17331-42500 32751-42630 | 1 | $14.43 | |||
| 030 | Pipe Clip 14971-42751 14971-42750 | 1 | $1.88 | |||
| 040 | CLIP 15271-42710 | 1 | $1.45 | |||
| 045 | KIT HOLDER, NOZZ 16419-53900 16419-53905 | 1 | $256.32 | |||
| 046 | NUT 1G826-92030 1G826-92032 | 1 | $6.89 | |||
| 046 | NUT 15841-92030 | 1 | $6.89 | |||
| 047 | Nozzle Holder Washer 15841-94040 | 1 | $3.18 | |||
| 050 | PIECE, NOZZLE 19077-53610 16082-53610 | 1 | $136.08 | |||
| 060 | Copper Gasket for Nozzle Holder / Glow Plug 15841-53620 15841-53622 | 1 | $2.99 | |||
| 070 | Heat Seal for Nozzle Holder / Glow Plug Assembly 19077-53650 | 1 | $9.67 | |||
| 080 | PIPE, INJECTION 16419-53710 | 1 | $69.04 | |||
| 090 | PIPE, INJECTION 16419-53720 | 1 | $69.04 | |||
| 100 | PIPE, INJECTION 16419-53730 | 1 | $69.04 | |||
| 110 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 120 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 130 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
| 140 | Engine Glow Plug 1J860-65510 1J860-65512 | 1 | $40.22 | |||
| 140 | Glow Plug 19077-65511 19077-65512 | 1 | $47.06 | |||
| 150 | CORD 16415-65560 1G742-65562 | 1 | $18.39 | |||
| 160 | Flange Nut 02761-50040 | 1 | $2.50 | |||
| 165 | Plain Washer 04013-60040 04013-70040 | 1 | $0.36 | |||
| 170 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 180 | GASKET, COPPER 15601-96651 15601-96650 | 1 | $9.18 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-020501-85990 020501 SPEED CONTROL PLATE
View Diagram -
DIAG-021400-85990 021400 BOOST COMPENSATOR
View Diagram -

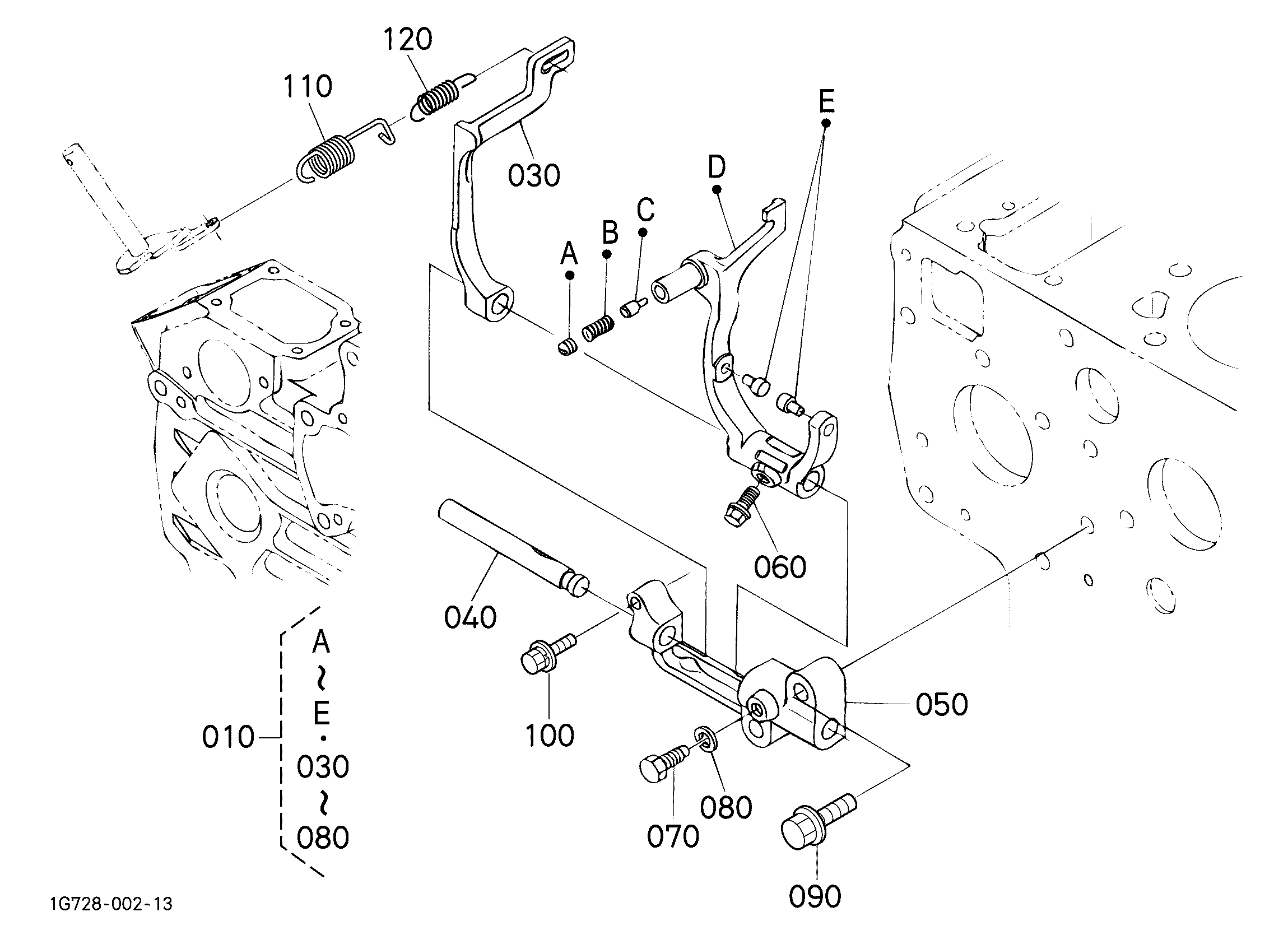

DIAG-020402-85990 020402 GOVERNOR
View Diagram
