Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | replaces #16454-53900 KIT HOLDER NOZZLE 16454-53900 16454-53905 | 1 | $294.76 | |||
| 020 | Copper Gasket for Nozzle Holder / Glow Plug 15841-53620 15841-53622 | 1 | $2.99 | |||
| 025 | Heat Seal for Nozzle Holder / Glow Plug Assembly 19077-53650 | 1 | $9.67 | |||
| 030 | PIPE, INJECTION 19077-53710 19077-53714 | 1 | $75.24 | |||
| 040 | PIPE, INJECTION 19077-53720 19077-53723 | 1 | $64.56 | |||
| 050 | PIPE, INJECTION 19077-53730 19077-53733 | 1 | $62.66 | |||
| 060 | PIPE, INJECTION 19077-53740 19077-53743 | 1 | $68.36 | |||
| 070 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 080 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 090 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
| 100 | PLUG,GLOW 16415-65510 1C010-65510 | 1 | $67.26 | |||
| 110 | CORD, GLOW PLUG* 16475-65560 Discontinued | 1 | $14.61 | |||
| 120 | PIPE, OVERFLOW 16454-42502 | 1 | $58.76 | |||
| 130 | ASSY PIPE, FUEL 34070-42633 | 1 | $10.74 | |||
| 140 | TUBE, FUEL 09661-40400 | 1 | $10.44 | |||
| 150 | Pipe Clip 14971-42751 14971-42750 | 1 | $1.88 | |||
| 160 | Flange Nut 02761-50040 | 1 | $2.50 | |||
| 170 | Plain Washer 04013-60040 04013-70040 | 1 | $0.36 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-020500-93333 020500 SPEED CONTROL PLATE
View Diagram -
DIAG-020400-93333 020400 GOVERNOR
View Diagram -

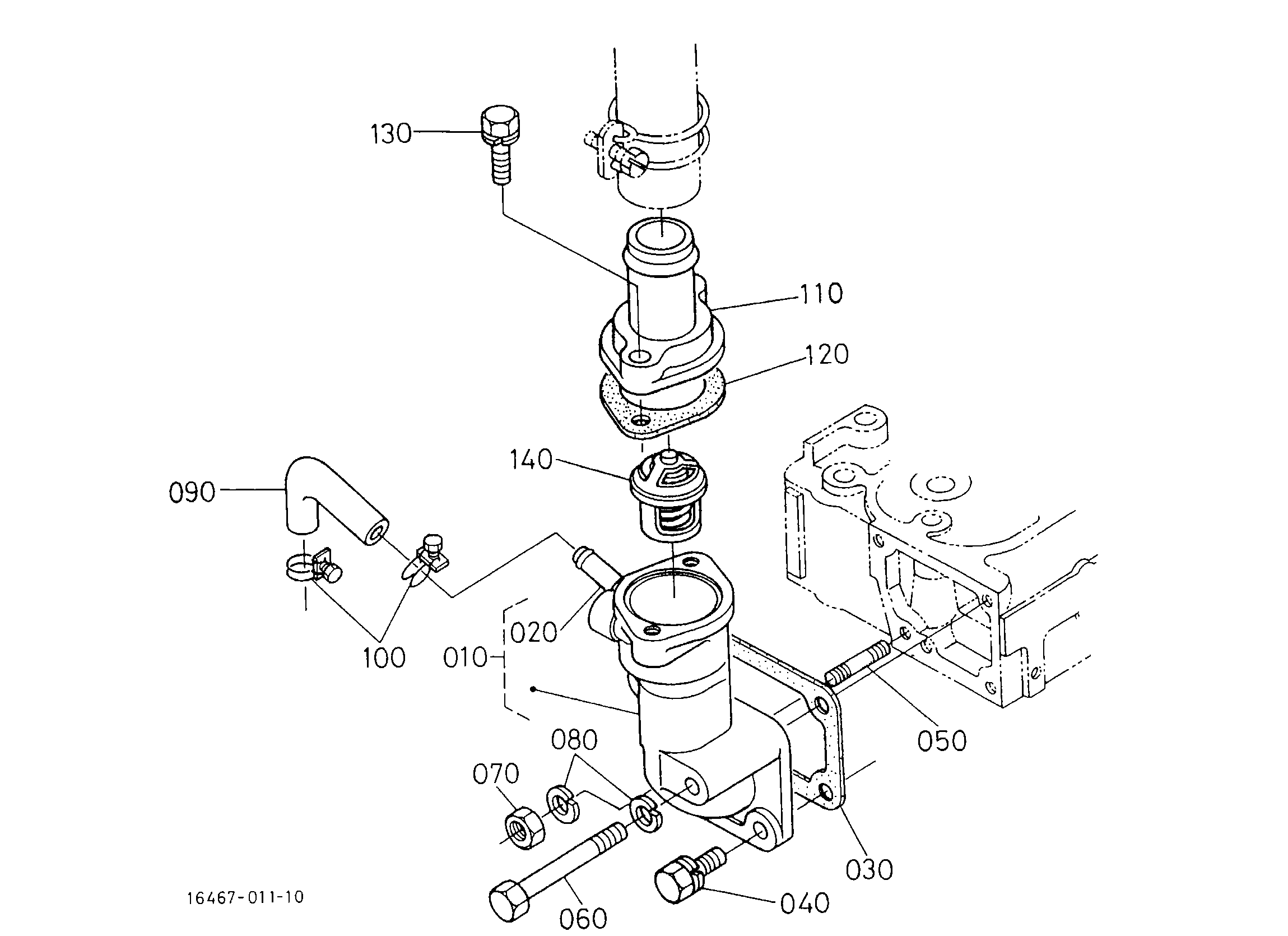

DIAG-050001-93333 050001 WATER FLANGE AND THERMOSTAT [ROPS TYPE]
View Diagram
