Kubota M5500DT 012000 FLYWHEEL Parts Diagram
Exploded-view parts diagram "012000 FLYWHEEL" for the Kubota M5500DT. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | FLYWHEEL ASSY 15351-25010 16134-25010 Discontinued | 1 | $1,114.03 | |||
| 003 | GEAR, RING 15601-63820 15602-63820 | 1 | $308.19 | |||
| 004 | BRG BALL RADIAL1 08141-06303 | 1 | $15.03 | |||
| 005 | BOLT 15451-25160 Discontinued | 1 | $43.19 | |||
| 006 | WASHER *** 15351-25170 Discontinued | 1 | $74.84 | |||
| 007 | FLYWHEEL HSNG AS 15451-04600 | 1 | $867.13 | |||
| 009 | PIN, STRAIGHT 05012-01016 | 1 | $1.51 | |||
| 010 | BOLT 01073-51435 | 1 | $2.36 | |||
| 011 | BOLT 01073-51400 | 1 | $15.20 | |||
| 012 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 013 | PLATE 15451-04670 Discontinued | 1 | $3.68 | |||
| 014 | STUD 15451-91500 | 1 | $10.67 | |||
| 015 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 016 | COVER 15451-04680 | 1 | $121.88 | |||
| 017 | NUT, CAP ** 15451-92332 15451-92330 | 1 | $8.21 | |||
| 018 | GASKET 15451-96660 | 1 | $5.04 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

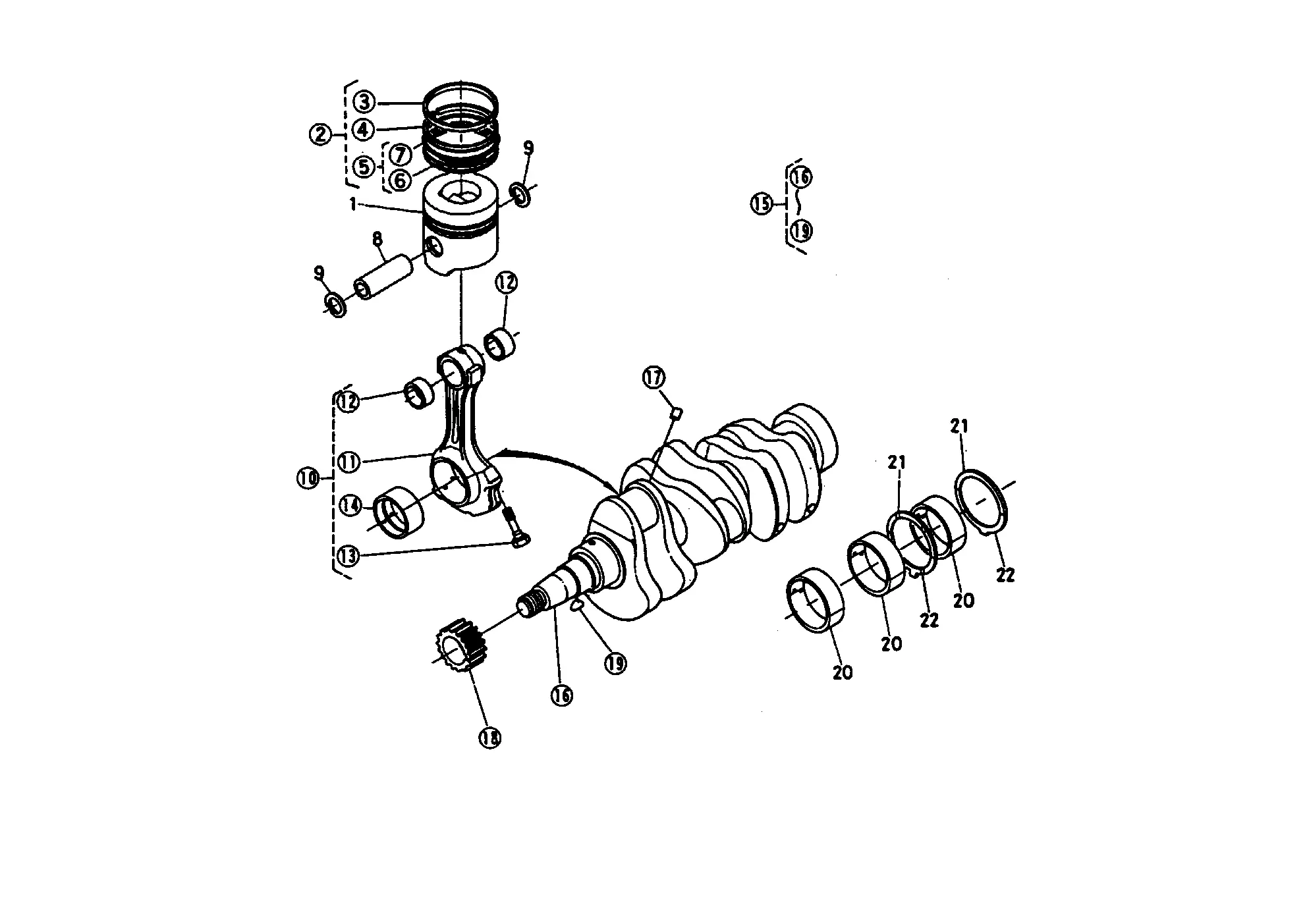

DIAG-011000-85743 011000 PISTON AND CRANKSHAFT
View Diagram -
DIAG-013000-85743 013000 OIL PUMP
View Diagram -

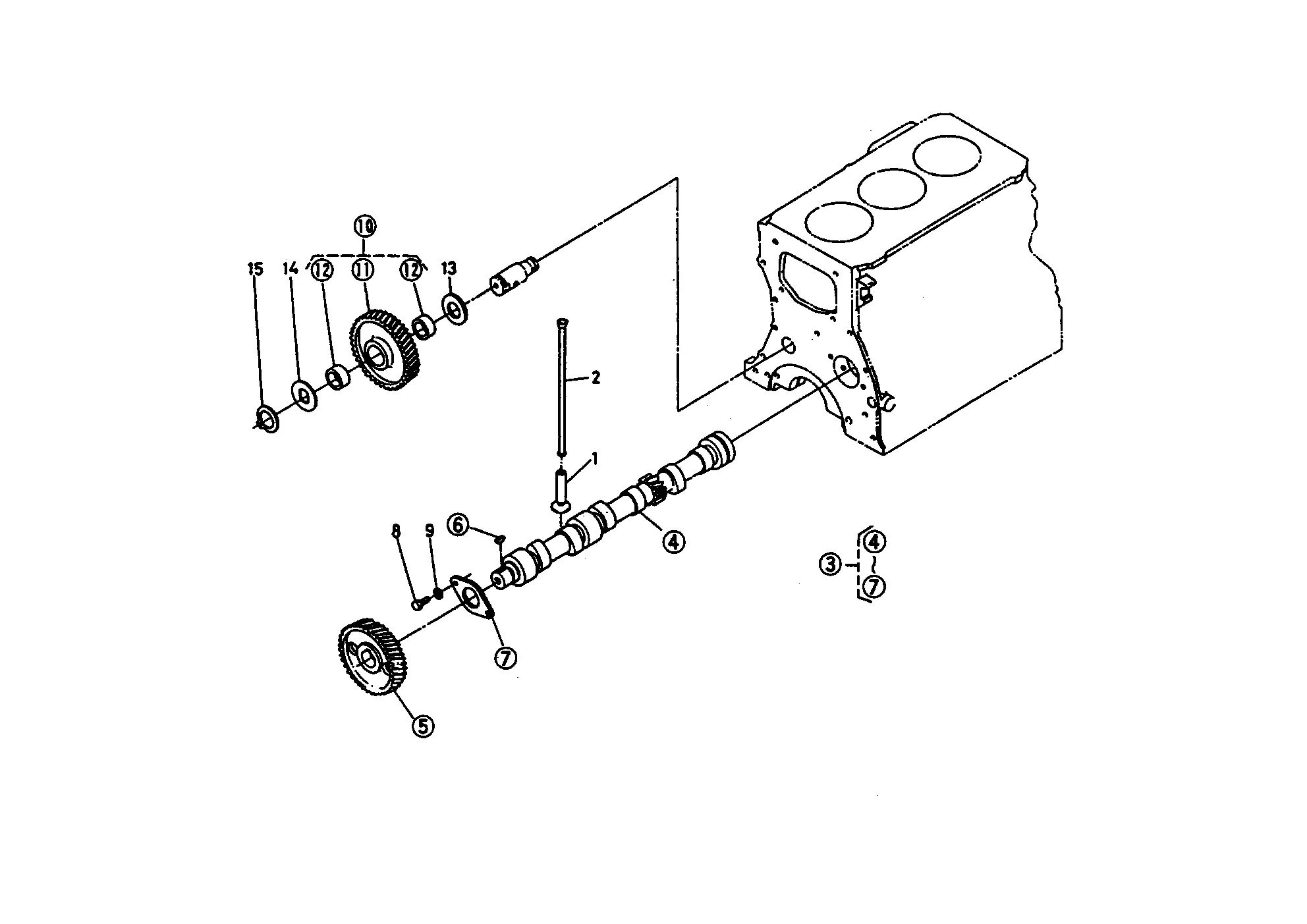

DIAG-010000-85743 010000 CAMSHAFT
