Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FLYWHEEL COMP. 16417-25010 | 1 | $1,303.87 | |||
| 020 | GEAR, RING 15221-63822 15221-63820 | 1 | $260.56 | |||
| 030 | BOLT, FLYWHEEL 15321-25160 15321-25163 | 1 | $29.89 | |||
| 040 | HOUSING COMP FLY 16417-04600 | 1 | $1,431.05 | |||
| 050 | PIN 05012-01018 | 1 | $1.51 | |||
| 060 | PLUG 31220-14293 31220-14290 | 1 | $1.62 | |||
| 070 | COVER 31220-14172 31220-14170 | 1 | $8.98 | |||
| 080 | BOLT 01150-50812 01153-50812 | 1 | $0.80 | |||
| 090 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 100 | BOLT 16427-91010 | 1 | $2.96 | |||
| 110 | Bolt 01073-51240 | 1 | $2.54 | |||
| 120 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

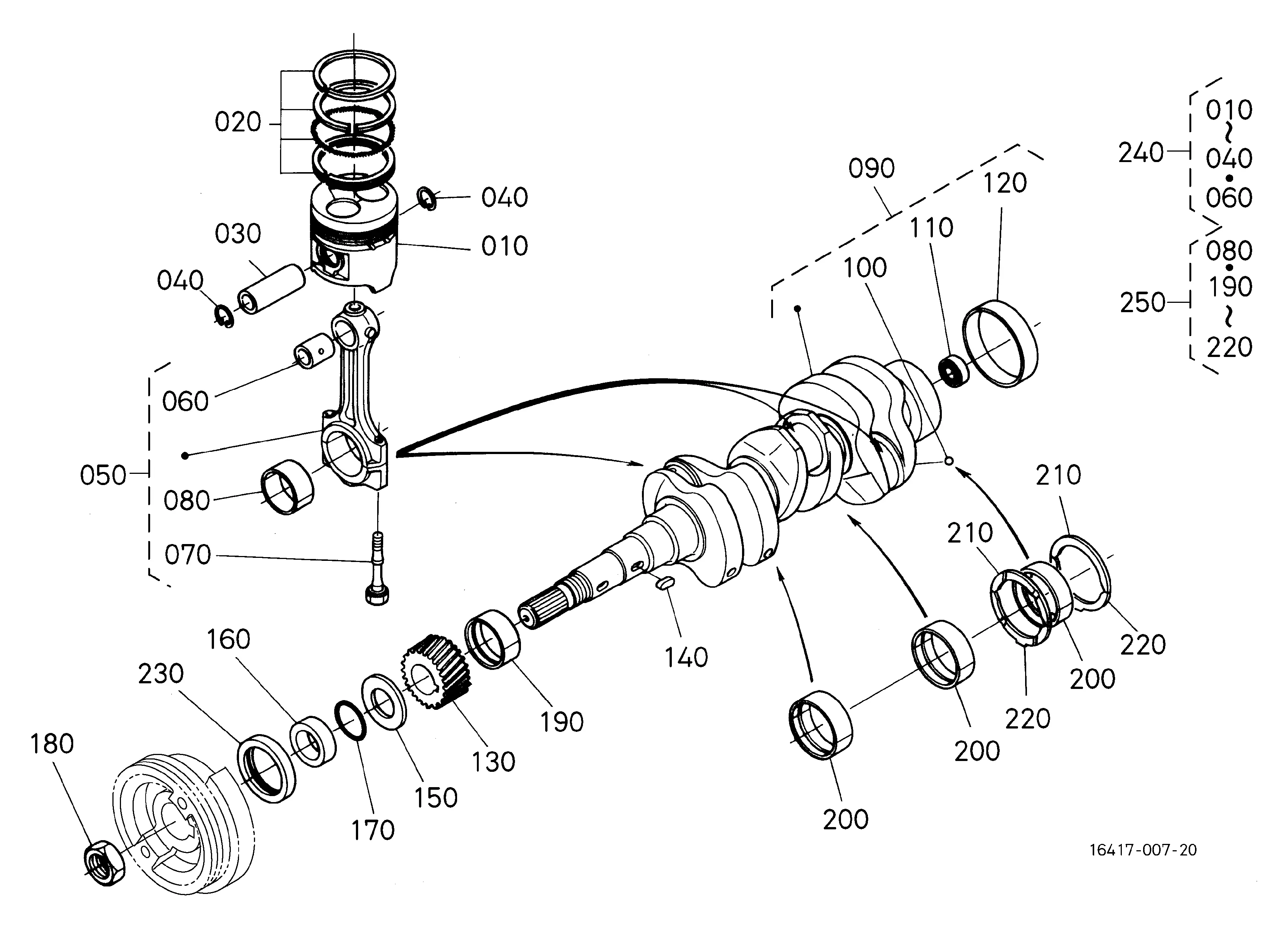

DIAG-010200-85286 010200 PISTON AND CRANKSHAFT
View Diagram -
DIAG-010502-85286 010502 FUEL CAMSHAFT
View Diagram -

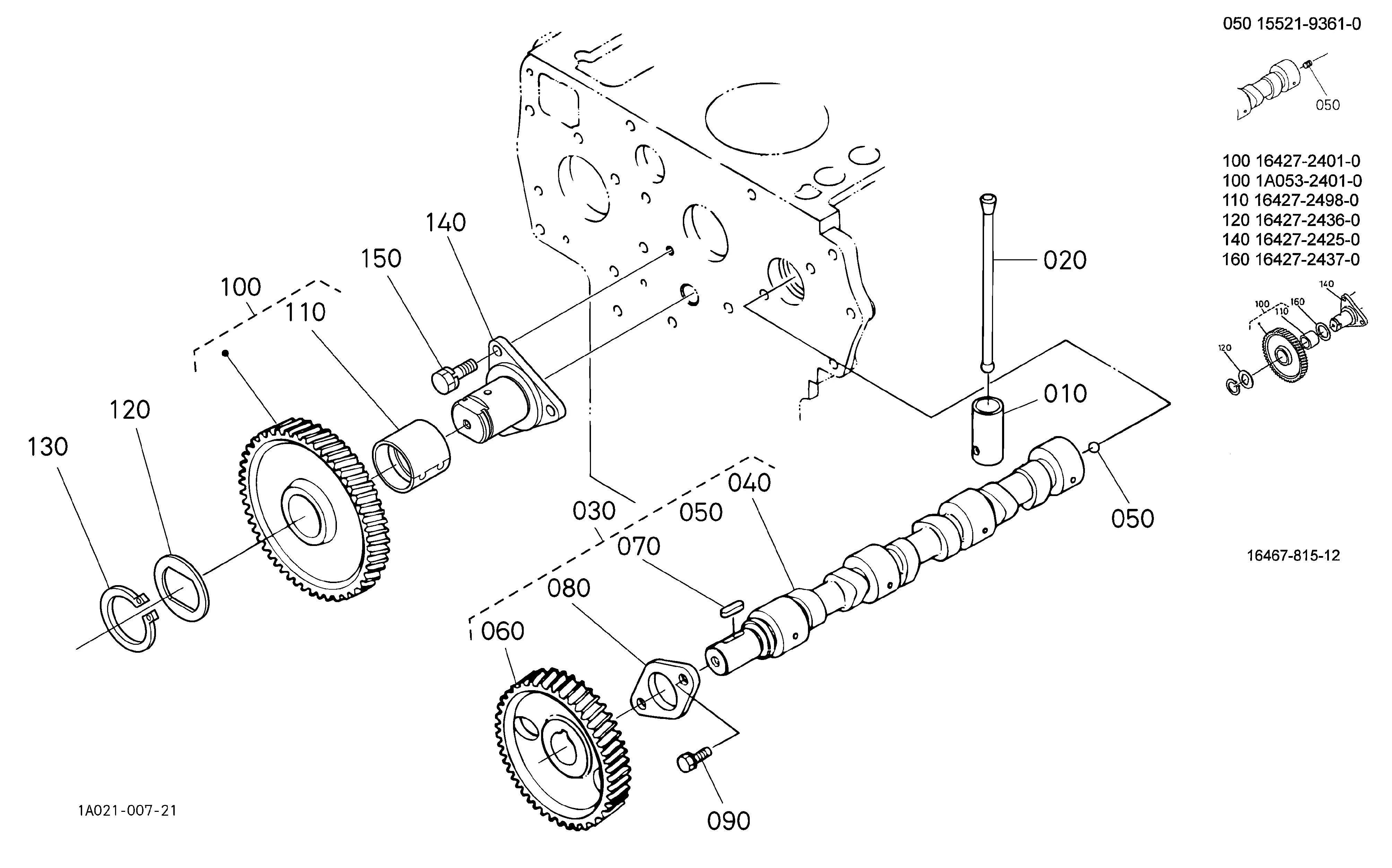

DIAG-010100-85286 010100 CAMSHAFT AND IDLE GEAR SHAFT
View Diagram
