Scroll to zoom Click a part # to view details

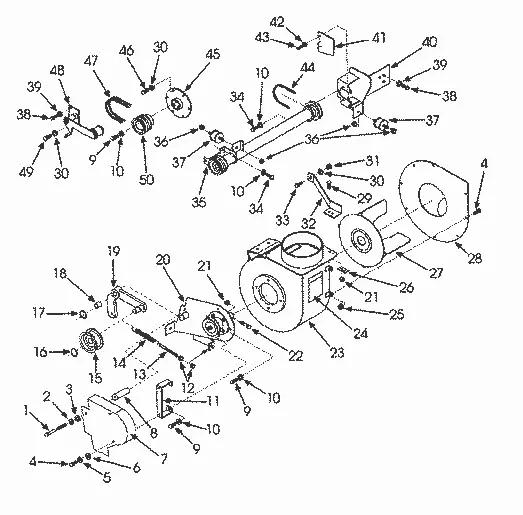

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Hex Nut 0Y204-50080 75599-31025 | 1 | $0.32 | |||
| 2 | WASHER, FLAT 1/2 75599-32115 Discontinued | 1 | $0.64 | |||
| 3 | PULLEY, 4.5 DIA 70050-94888 | 1 | $52.59 | |||
| 4 | BOLT W2336-05210 01173-50820 | 1 | $1.47 | |||
| 5 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.92 | |||
| 6 | HOUSING, FAN SHA 70050-94850 | 1 | $125.34 | |||
| 7 | SPACER 70050-94847 | 1 | $30.67 | |||
| 8 | Radial Ball Bearing 08141-06304 | 1 | $15.23 | |||
| 9 | KEY, FEATHER 70050-93195 05912-00520 | 1 | $1.57 | |||
| 10 | SHAFT, FAN 70050-94849 | 1 | $244.66 | |||
| 11 | STAY WLDT BLOWER 70050-01443 | 1 | $291.82 | |||
| 12 | RING, SNAP 70050-94867 | 1 | $0.99 | |||
| 13 | PULLEY 70050-94842 | 1 | $197.98 | |||
| 14 | SHAFT 70050-94841 | 1 | $187.07 | |||
| 15 | HOUSING 70050-94840 | 1 | $245.00 | |||
| 16 | FEEDER TUBE 70050-93594 Discontinued | 1 | $66.47 | |||
| 17 | TENSION ARM 70050-94844 Discontinued | 1 | $149.32 | |||
| 18 | RING 70050-00315 70070-00107 Discontinued | 1 | $1.51 | |||
| 19 | SNAP RING EXTERN 70050-93197 Discontinued | 1 | $0.90 | |||
| 20 | PULLEY, FLAT 2.1 76700-40351 Discontinued | 1 | $103.41 | |||
| 21 | BEARING 70080-01433 Discontinued | 1 | $24.50 | |||
| 22 | BRACKET 70050-94845 Discontinued | 1 | $56.32 | |||
| 23 | BRG 3/4X7/8X1 3/ 65722-73131 | 1 | $1.91 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-008000-84944 008000 BLOWER & DRIVE COMPONENTS
View Diagram -
DIAG-010000-84944 010000 F3062 BOOT KIT
View Diagram -
DIAG-007000-84944 007000 BLOWER & DRIVE COMPONENTS
View Diagram
