Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY COVER,CYL H 16261-14503 16261-14505 | 1 | $121.75 | |||
| 020 | GASKET,HEAD COVE 16261-14520 16261-14524 | 1 | $16.80 | |||
| 030 | JOINT, BREATHER 16241-05550 | 1 | $8.90 | |||
| 040 | PLATE, ELEMENT 16241-05140 | 1 | $2.57 | |||
| 050 | PLATE, ELEMENT 16241-05150 | 1 | $10.79 | |||
| 060 | ELEMENT, BREATHE 16241-05670 | 1 | $3.13 | |||
| 070 | SHIELD, BREATHER 16241-05370 | 1 | $2.57 | |||
| 080 | SCREW, W/WASHER 15521-93310 03024-50510 | 1 | $0.20 | |||
| 090 | NUT CAP 15951-92330 15952-92330 | 1 | $4.60 | |||
| 100 | Copper Sealing Gasket 15951-96660 | 1 | $1.13 | |||
| 110 | PLUG, OIL FILLER 14941-33140 15852-33140 | 1 | $15.05 | |||
| 120 | O-RING 04814-50300 | 1 | $6.24 | |||
| 120 | O-Ring Seal 04816-50300 | 1 | $3.15 | |||
| 130 | PIPE,BREATHER 16271-05510 16271-05512 | 1 | $16.82 | |||
| 140 | BAND, PIPE 16241-33510 | 1 | $2.99 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

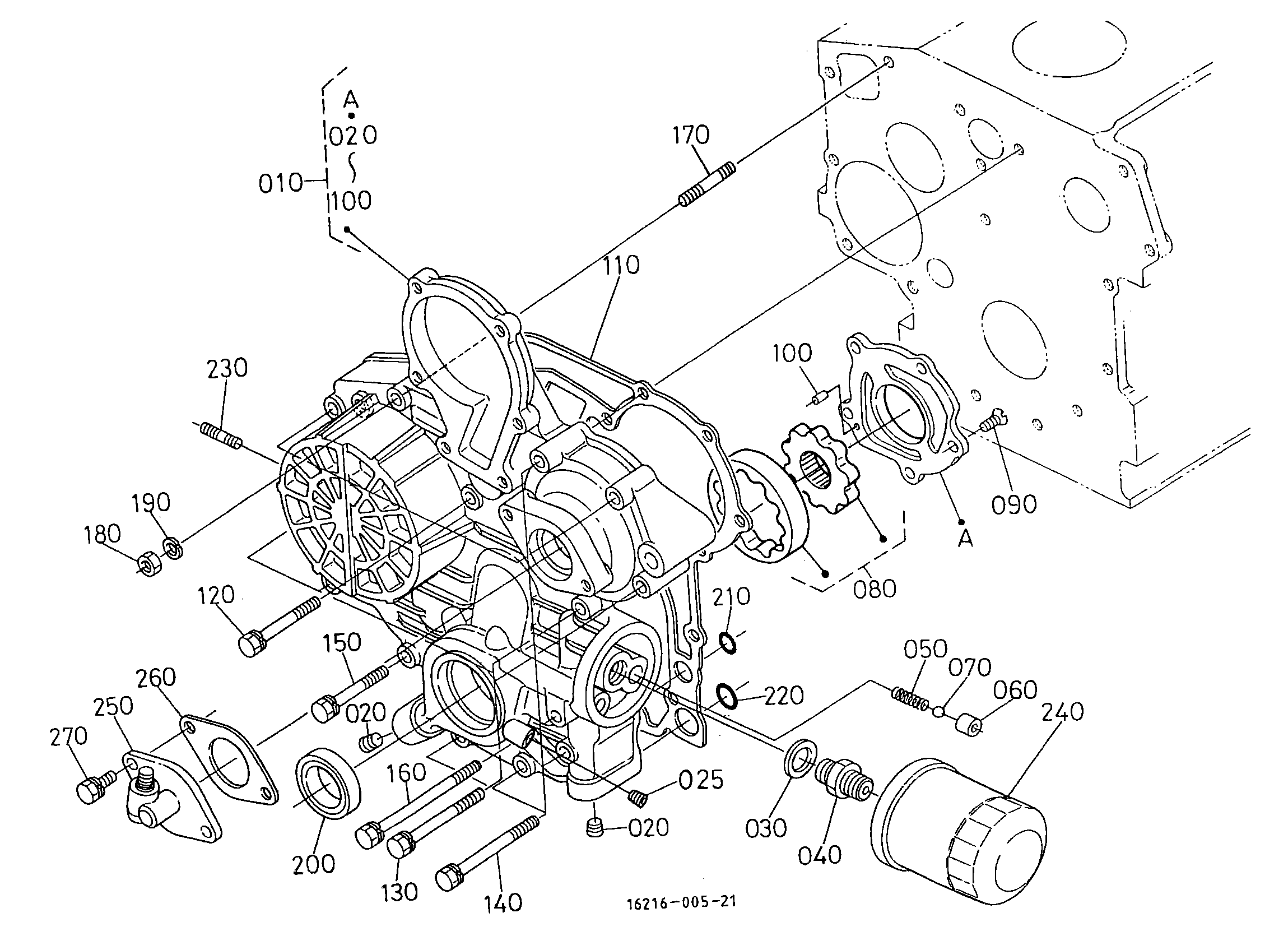

DIAG-000400-84426 000400 GEAR CASE
View Diagram -

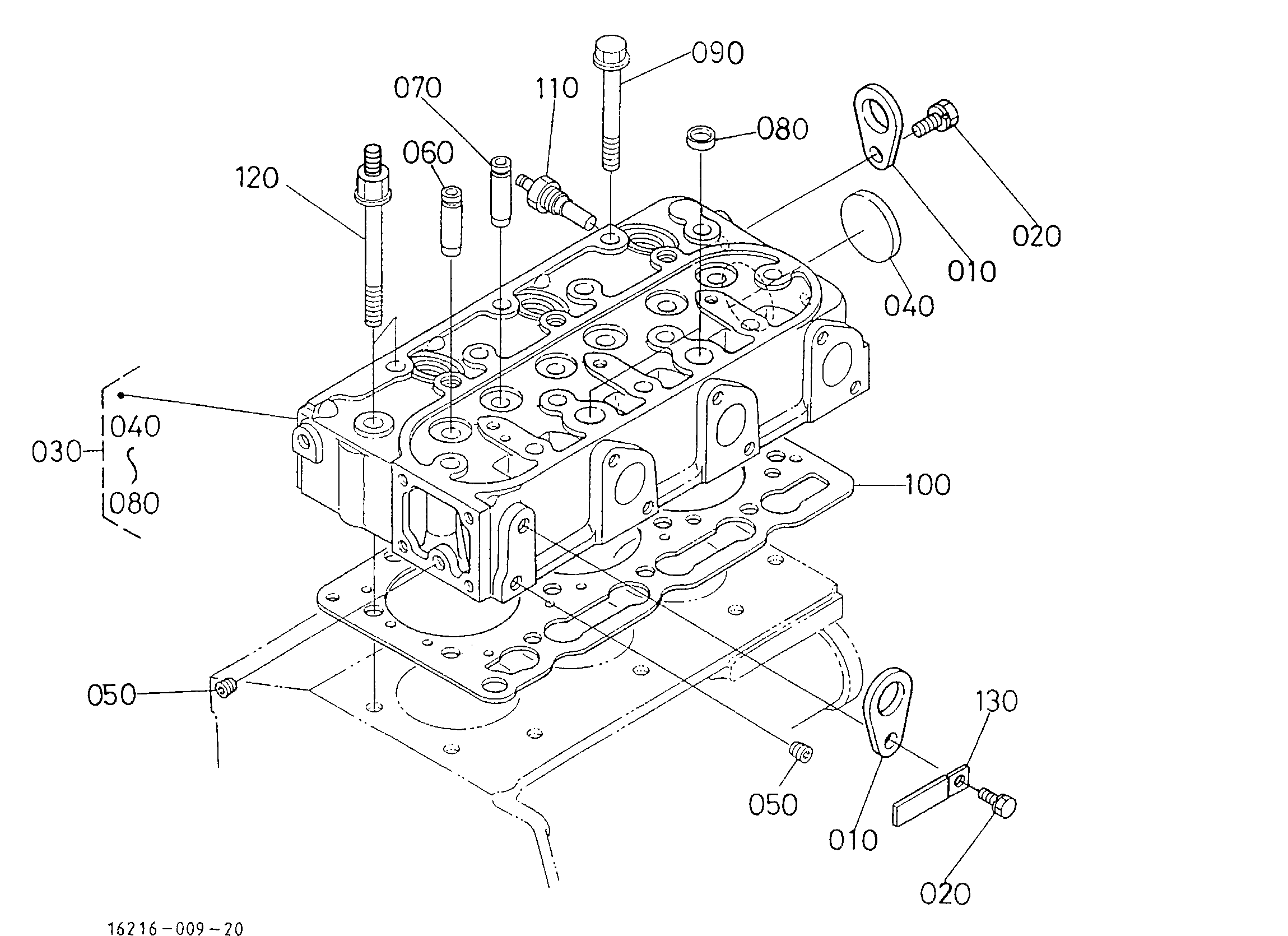

DIAG-000300-84426 000300 CYLINDER HEAD
View Diagram -

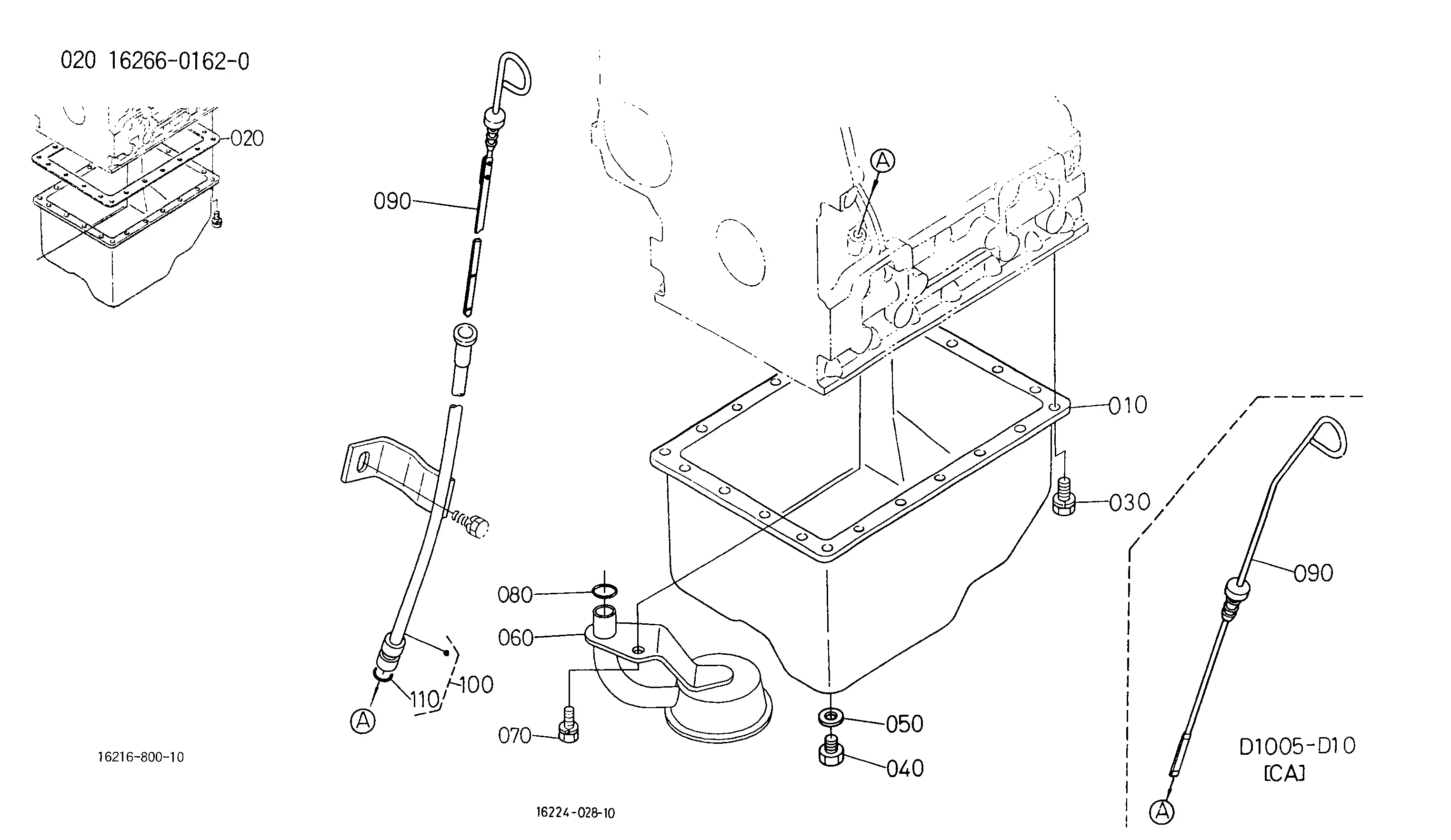

DIAG-000200-84426 000200 OIL PAN
View Diagram
